SE-38

< REMOVAL AND INSTALLATION >

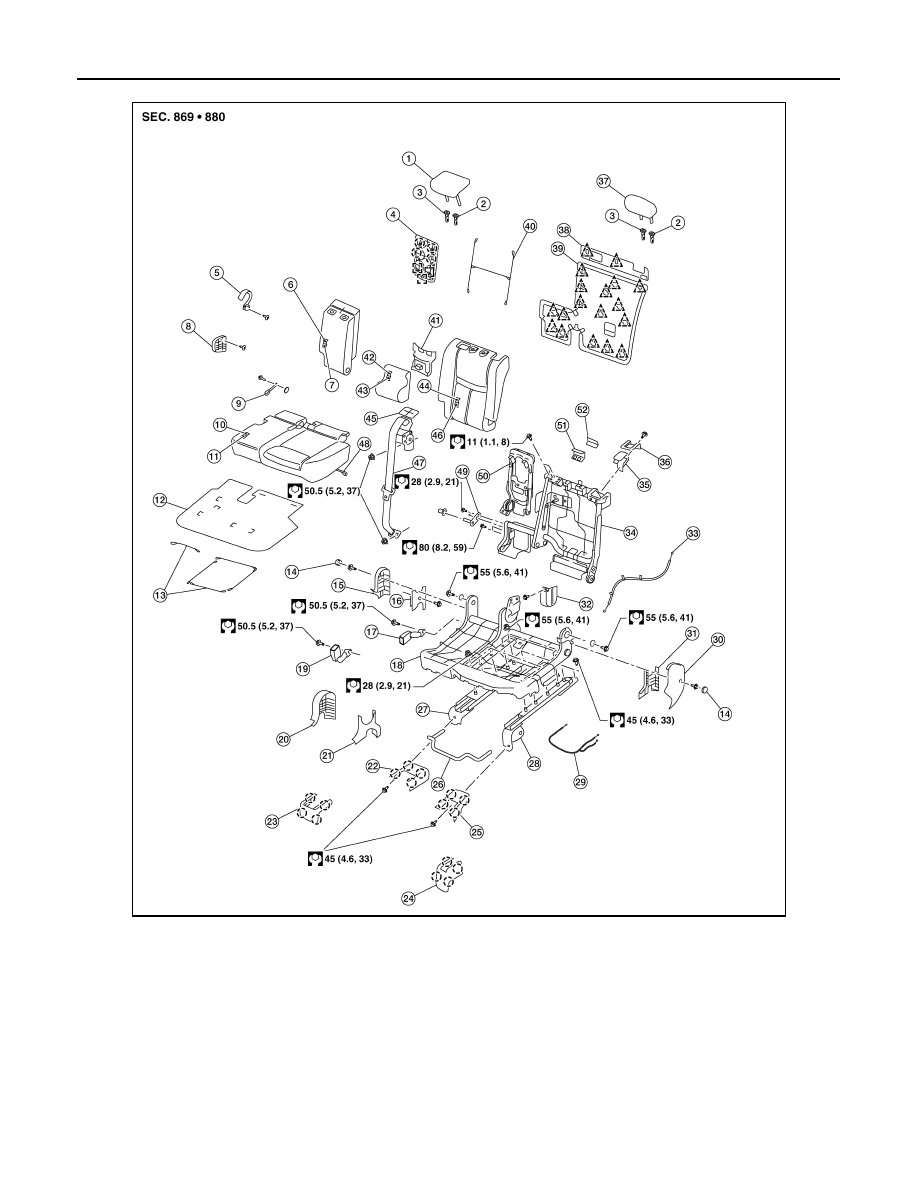

SECOND ROW SEATS

LH SEAT

AWJIA1619ZZ

1.

Headrest (center)

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Cup holder

5.

Armrest inner finisher

6.

Armrest trim

7.

Armrest pad

8.

Armrest outer finisher

9.

Armrest fold flat strap

10. Seat cushion trim

11. Seat cushion pad

12. Seat cushion silencer

13. Seat cushion pad wire

14. Bolt cover

15. Seat cushion outer finisher (RH)

16. Seat cushion inner finisher (RH) 17. Seat belt buckle (center)

18. Seat cushion frame

19. Seat belt buckle (LH)

20. Seat cushion center finisher (RH) 21. Seat cushion center finisher (LH)

22. Rear bolt cover (RH) (with third

row seat)

23. Front bolt cover (RH)

24. Front bolt cover (LH)

25. Rear bolt cover (LH) (with third

row seat)

26. Seat slide control lever

27. Seat cushion slide (RH)

SECOND ROW SEATS

SE-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

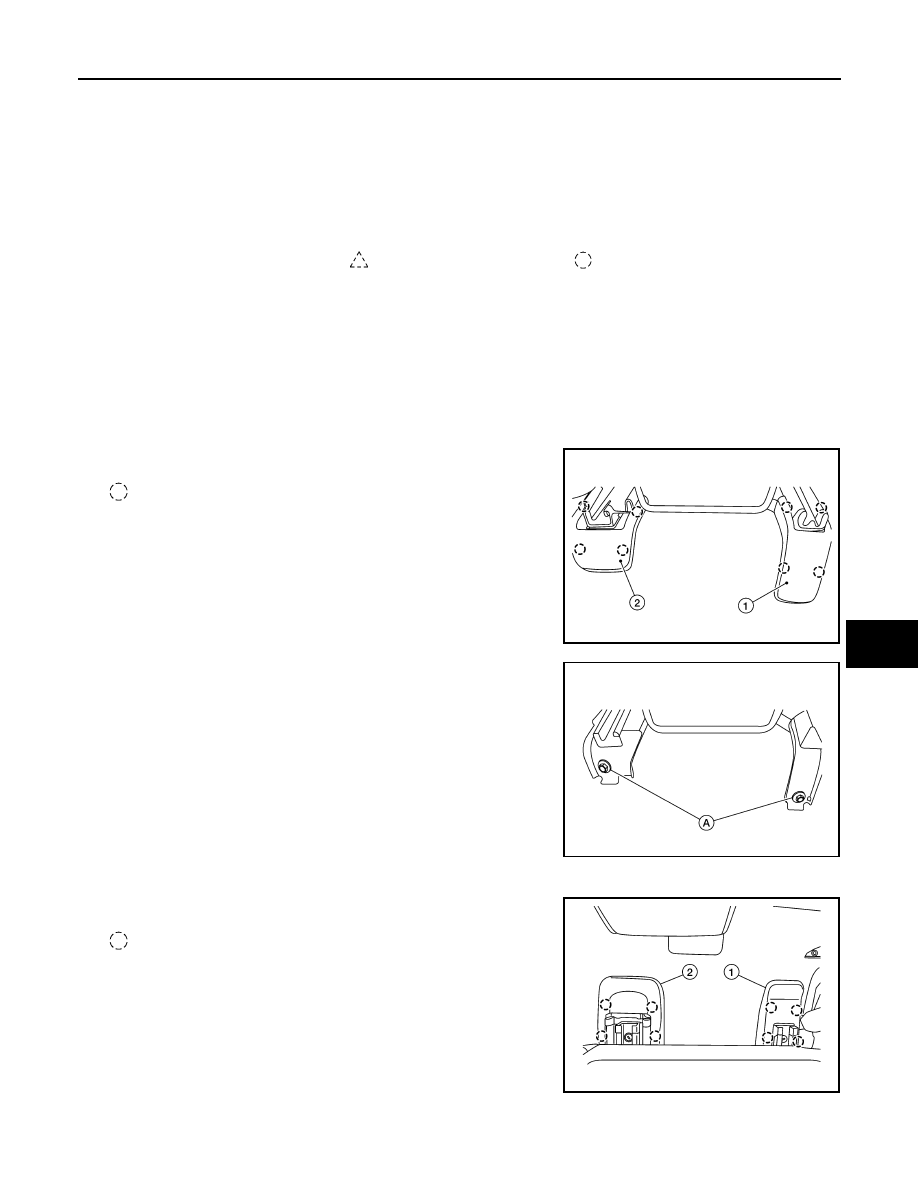

Removal and Installation

INFOID:0000000011280456

LH SEAT

CAUTION:

During removal and installation, an assistant is required to protect against injury or damage.

Removal
1. Remove the headrests.
2. Using a suitable tool release pawls and remove front bolt covers

RH (2) and LH (1).

:Pawl

3. Remove the seat front bolts (A).

4. Slide the seat to the full forward position.
5. Using a suitable tool release pawls and remove rear bolt covers

RH (2) and LH (1) (with third row seat).

:Pawl

28. Seat cushion slide (LH)

29. Seat cushion slide cable

30. Seat cushion outer finisher (LH)

31. Seat cushion inner finisher (LH) 32. Armrest inner finisher

33. Recline release cable

34. Seatback frame

35. Recline device

36. Recline device finisher

37. Headrest (LH)

38. Seatback luggage upper board

39. Seatback luggage board

40. Seatback pad wire

41. Armrest lower pad

42. Seatback center trim

43. Seatback center pad

44. Seatback trim

45. Seat belt retractor finisher

46. Seatback pad

47. Seat belt retractor (center)

48. Fold flat strap

49. Armrest bracket

50. Armrest frame

51. Seat belt retractor inner finisher

52. Seat belt retractor outer finisher

Clip

Pawl

ALJIA1409ZZ

ALJIA1416ZZ

ALJIA1410ZZ

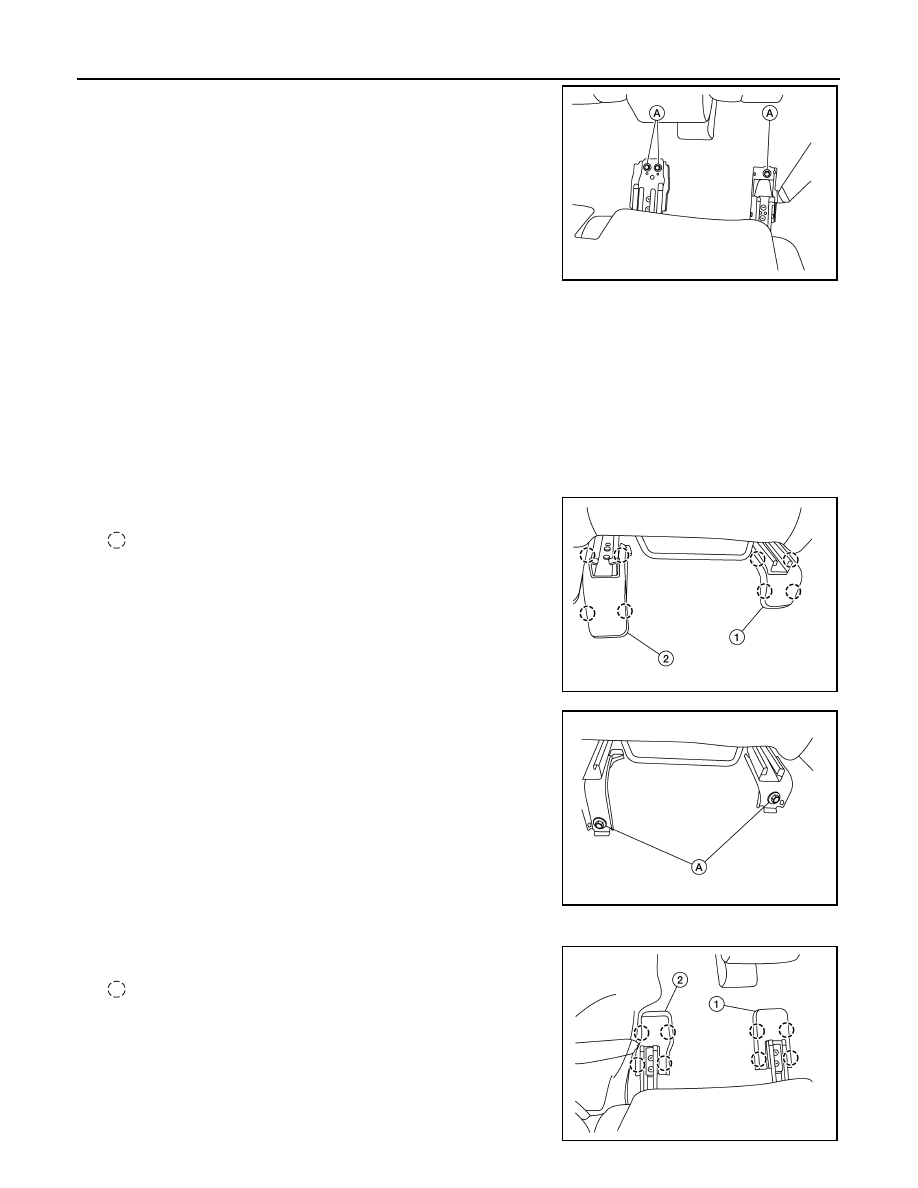

SE-40

< REMOVAL AND INSTALLATION >

SECOND ROW SEATS

6. Remove the seat rear bolts (A).

7. Fold the seatback to the flat position, then remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

RH SEAT

CAUTION:

During removal and installation, an assistant is required to protect against injury or damage.

Removal
1. Remove the headrest.
2. Using a suitable tool release pawls and remove front bolt covers

LH (1) and RH (2).

:Pawl

3. Remove the seat front bolts (A).

4. Slide the seat to the full forward position.
5. Using a suitable tool release pawls and remove rear bolt covers

RH (2) and LH (1) (with third row seat).

:Pawl

ALJIA1417ZZ

ALJIA1418ZZ

ALJIA1420ZZ

ALJIA1419ZZ

SECOND ROW SEATS

SE-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

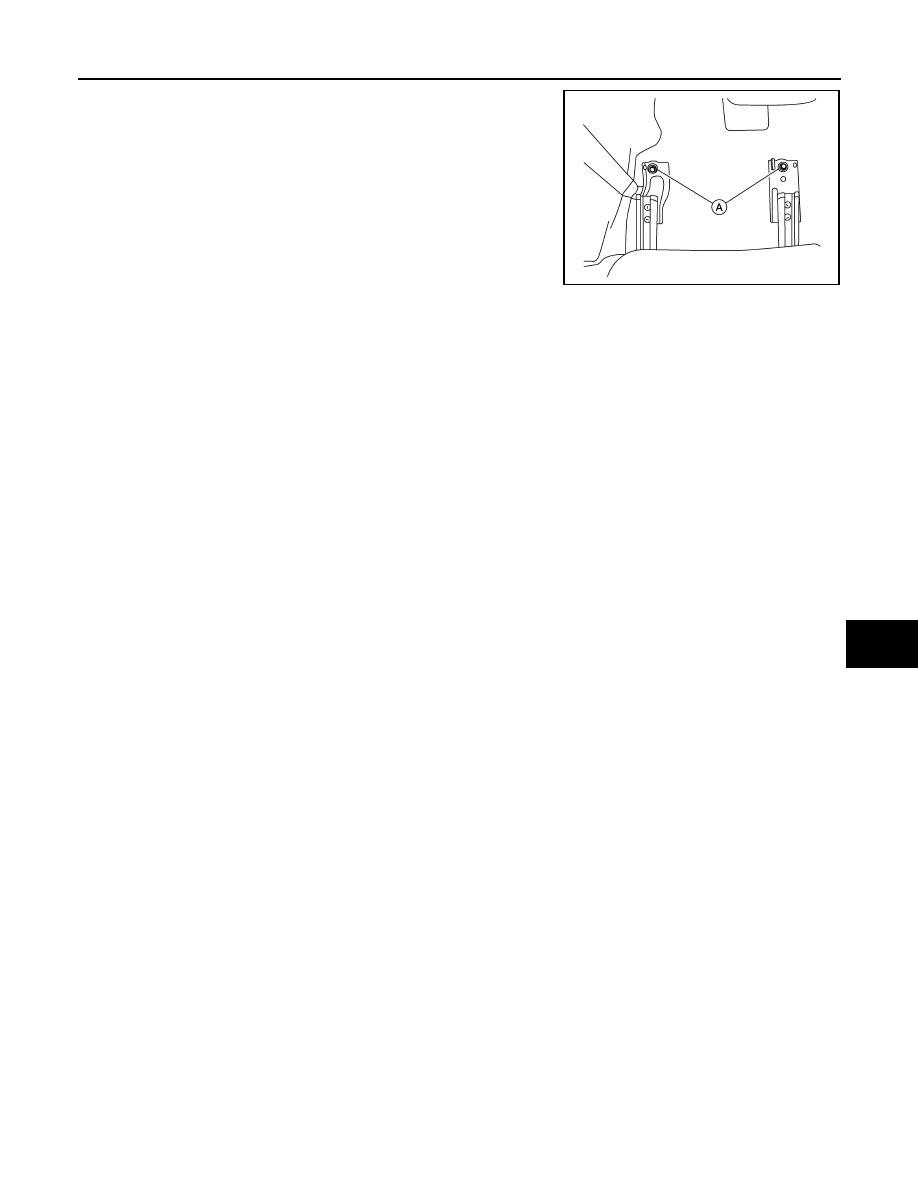

6. Remove the seat rear bolts (A).

7. Fold the seatback to the flat position, then remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.
