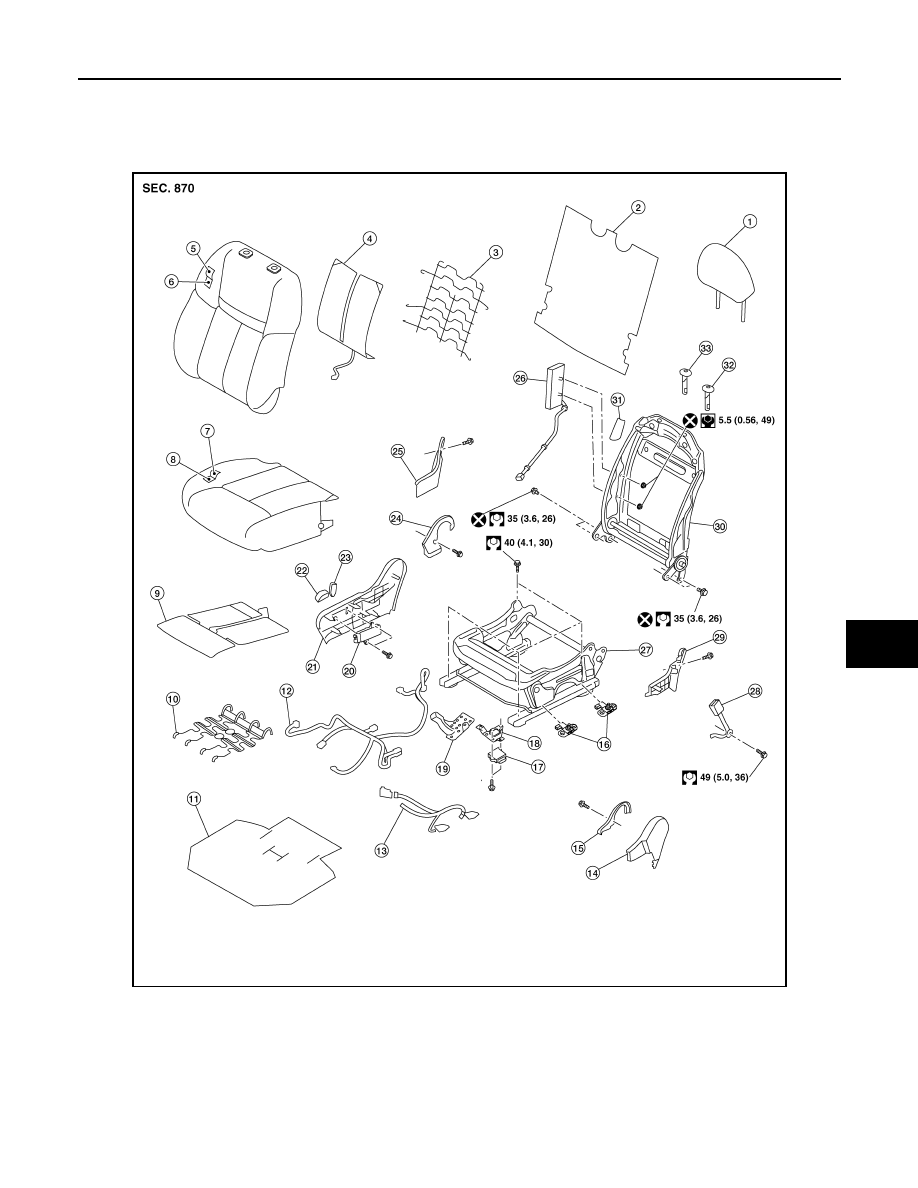

SE-30

< REMOVAL AND INSTALLATION >

FRONT SEAT

7.

Seat cushion outer finisher (RH) 8.

Seat cushion rear finisher (RH)

9.

Seat cushion inner finisher (RH)

10. Seat slide finisher (RH)

11. Seat belt buckle

12. Seat cushion trim

13. Seat cushion pad

14. Seat cushion heater (if

equipped)

15. Seat cushion support

16. Seat cushion silencer

17. Seat harness

18. Seat harness bracket

19. Seat cushion frame

20. Seat slide finisher bracket (LH)

21. Seat slide finisher (LH)

22. Power seat switch

23. Seat slide knob

24. Seat recline knob

25. Seat cushion outer finisher (LH) 26. Lumbar support switch

27. Seat cushion rear finisher (LH)

28. Seat cushion inner finisher (LH) 29. Side air bag module (not service-

able)

30. Seatback bracket

31. Seatback frame

32. Headrest holder (locked)

33. Headrest holder (free)

FRONT SEAT

SE-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

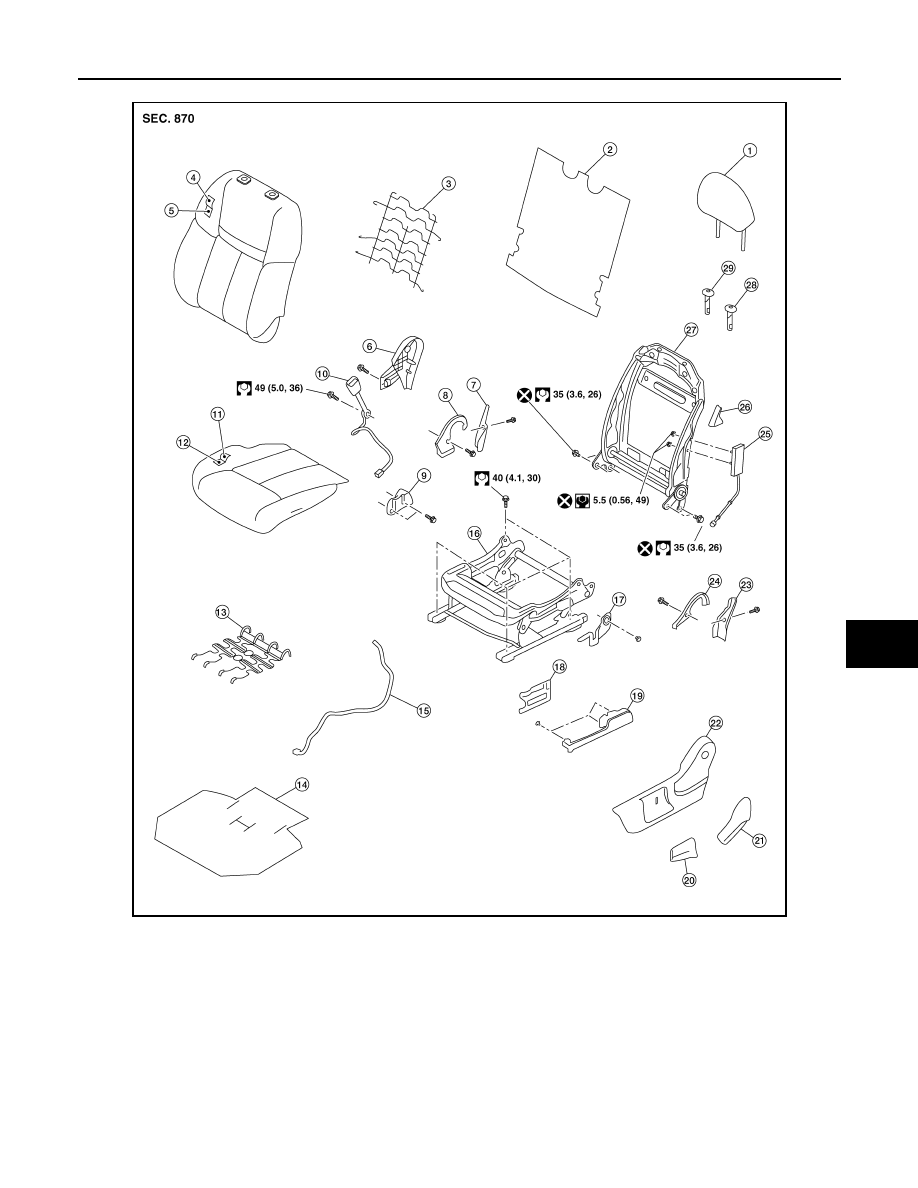

MANUAL SEAT

AWJIA1615ZZ

1.

Headrest

2.

Seatback board

3.

Seatback support

4.

Seatback trim

5.

Seatback pad

6.

Seat cushion outer finisher

7.

Seat cushion rear finisher (RH)

8.

Seat cushion inner finisher (RH) 9.

Seat slide finisher (RH)

10. Seat belt buckle

11. Seat cushion trim

12. Seat cushion pad

13. Seat cushion support

14. Seat cushion silencer

15. Seat harness

16. Seat cushion frame

17. Recline switch

18. Seat slide finisher bracket (LH)

19. Seat slide finisher (LH)

20. Lift lever

21. Recline lever

22. Seat cushion outer finisher (LH) 23. Seat cushion rear finisher (LH)

24. Seat cushion inner finisher (LH)

SE-32

< REMOVAL AND INSTALLATION >

FRONT SEAT

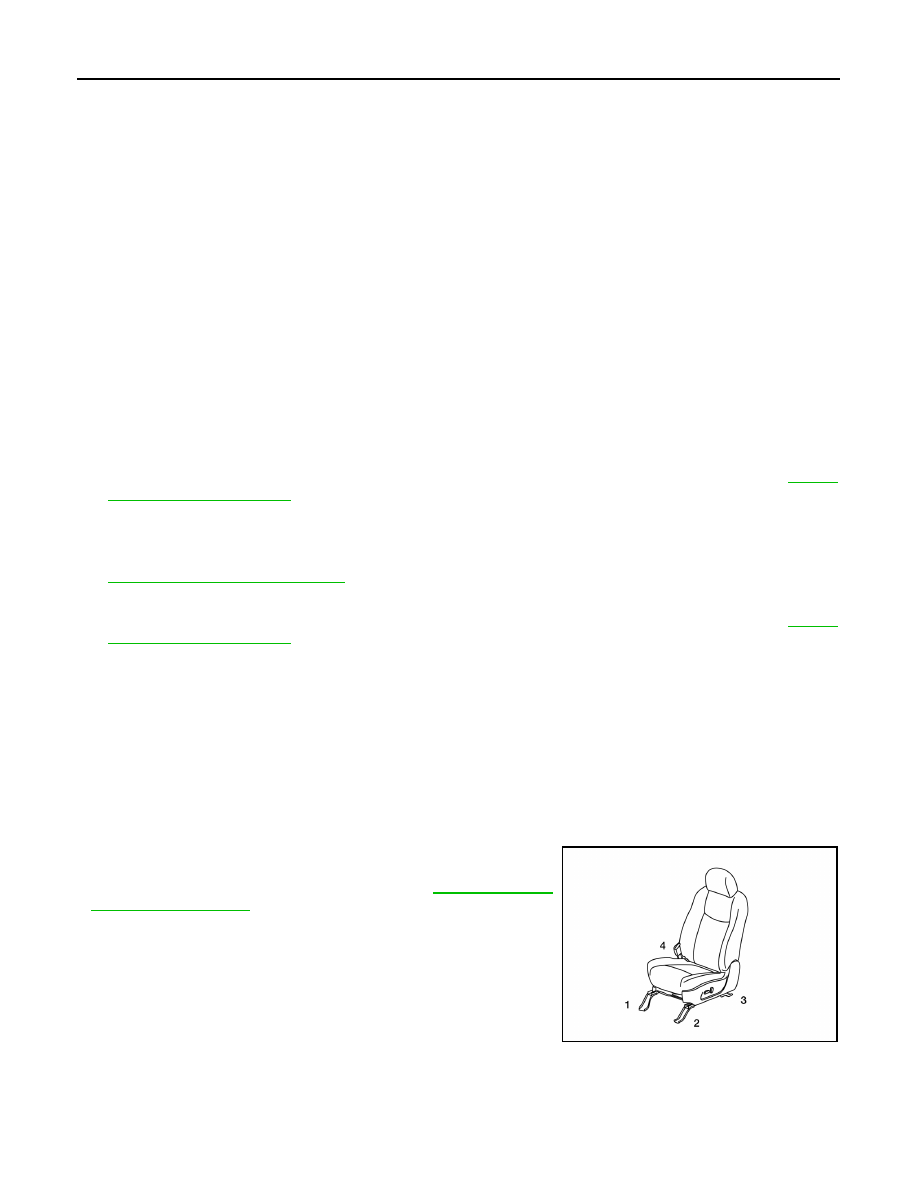

DRIVER SIDE : Removal and Installation

INFOID:0000000011280452

REMOVAL

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to

personal injury if the side air bag module should accidentally deploy.

CAUTION:

• When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-

tor with the side air bag module connector. Such an error may cause the air bag module to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After front side air bag module inflates, the front seatback assembly must be replaced.

• When removing and installing the seat, use shop cloths to protect components from damage.

• Before removing the front seat, turn the ignition switch OFF, disconnect both battery cables then

wait at least three minutes.

1. Slide the seat to the full rearward position.
2. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

.

3. Disconnect harness connector from side air bag module.
4. Remove front bolts.
5. Connect negative and positive battery terminals, then slide the seat to the full forward position. Refer to

PG-80, "Removal and Installation"

 (power seat only).

6. Slide the seat to the full forward position.
7. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

 (power seat only).

8. Remove rear bolts.
9. Tilt the seat rearward and disconnect the harness connectors from the seat.

NOTE:

Take note of harness routing and attachment locations for correct installation.

10. Remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that the seat harness or the floor carpet is not damaged during installation.

NOTE:

• When installing the front seat (LH), tighten the bolts in the order

shown.

• Tighten the seat bolts to specification. Refer to

SE-29, "DRIVER

SIDE : Exploded View"

.

PASSENGER SIDE

25. Side air bag module (not service-

able)

26. Seatback bracket

27. Seatback frame

28. Headrest holder (locked)

29. Headrest holder (free)

ALJIA0788ZZ

FRONT SEAT

SE-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PASSENGER SIDE : Exploded View

INFOID:0000000011280453

POWER SEAT

AWJIA1616ZZ

1.

Headrest

2.

Seatback board

3.

Seatback support

4.

Seatback heater

5.

Seat cushion trim

6.

Seat cushion pad

7.

Seat cushion trim

8.

Seat cushion pad

9.

Seat cushion heater

10. Seat cushion support

11. Seat cushion silencer

12. Seat harness

13. Occupant classification system

harness

14. Seat cushion outer finisher

(LH)

15. Seat cushion inner finisher (LH)
