Nissan Rogue. Manual - part 1044





SE-42

< REMOVAL AND INSTALLATION >

THIRD ROW SEATS

THIRD ROW SEATS

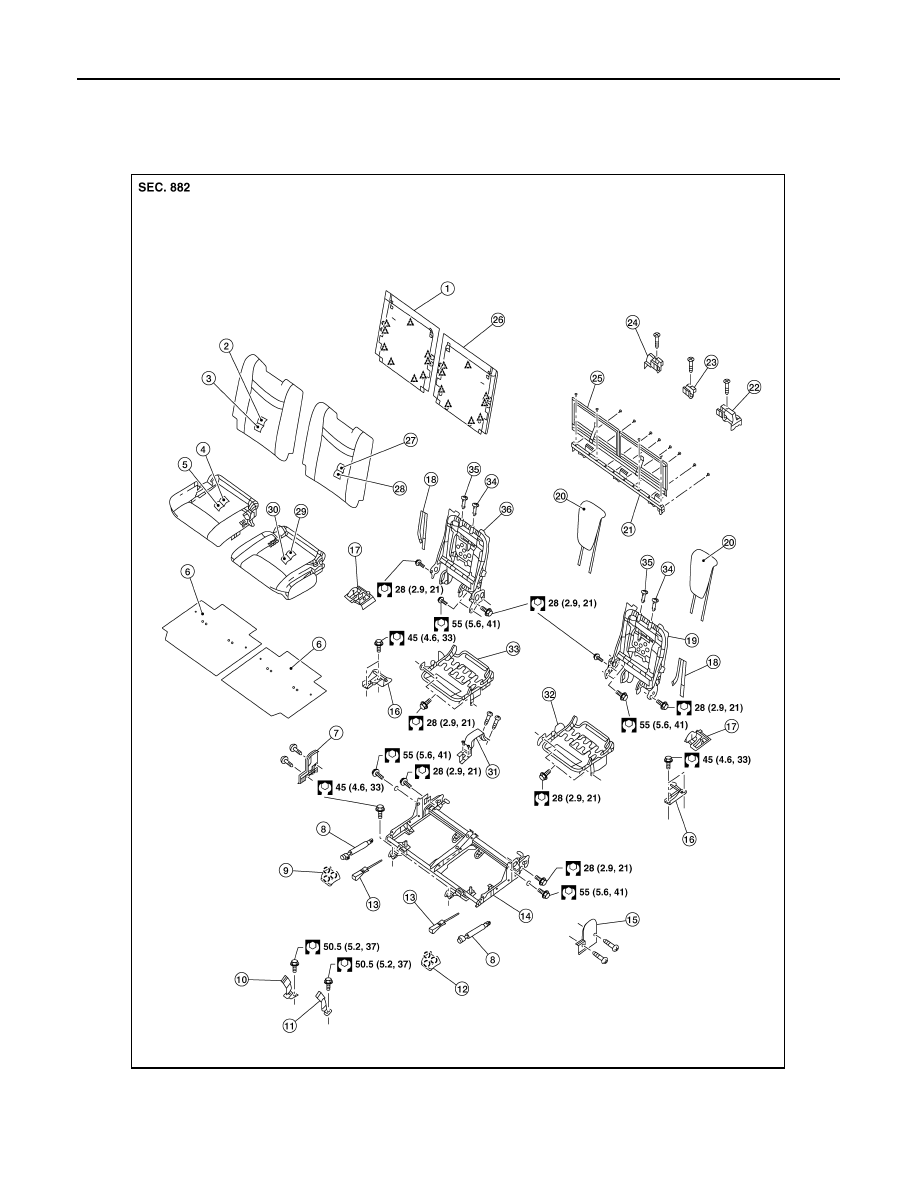

Exploded View

INFOID:0000000011280457

1.

Seatback board (RH)

2.

Seatback trim (RH)

3.

Seatback pad (RH)

4.

Seat cushion trim (RH)

5.

Seat cushion pad (RH)

6.

Seat cushion silencer (LH/RH)

7.

Seat hinge finisher (RH)

8.

Gas stay

9.

Bolt cover (RH)

AWJIA1319ZZ

THIRD ROW SEATS

SE-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

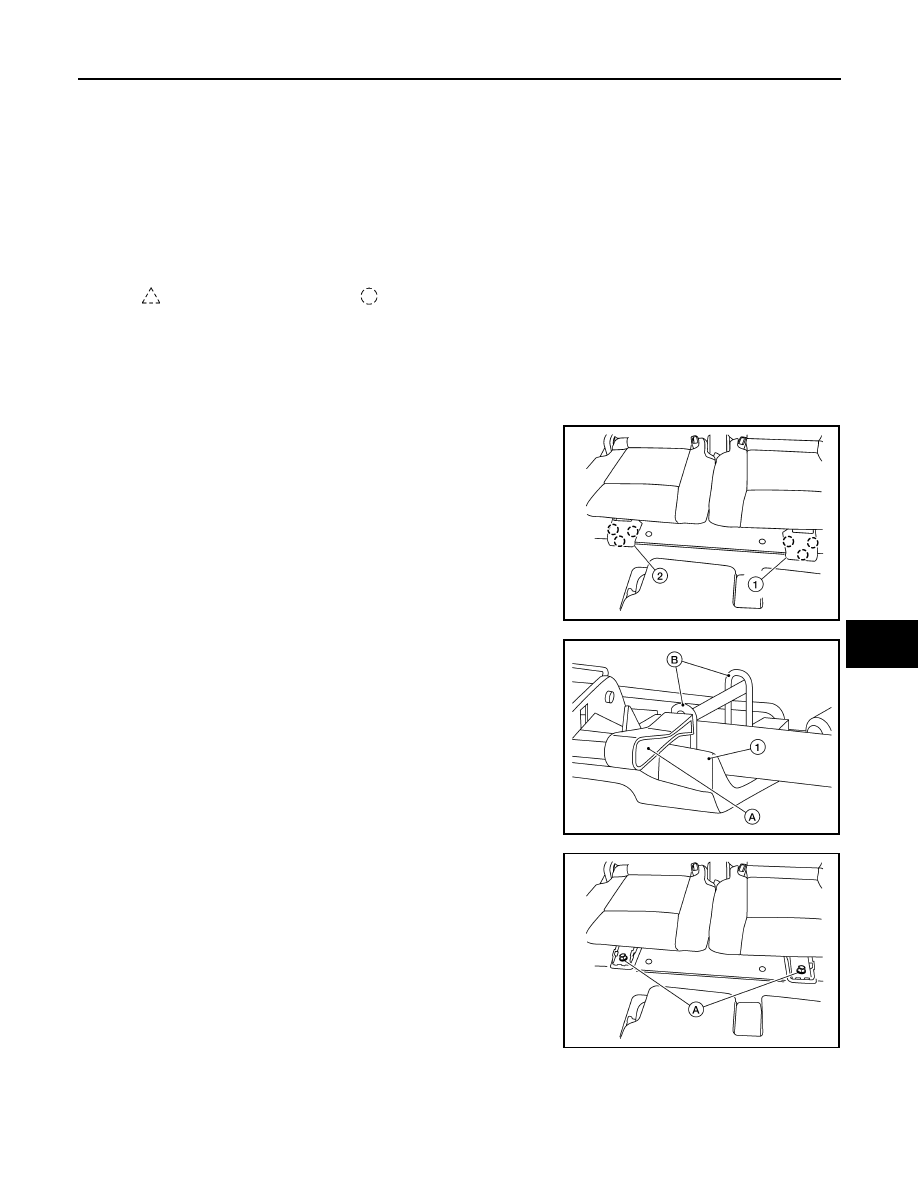

Removal and Installation

INFOID:0000000011280458

CAUTION:

During removal and installation, an assistant is required to protect against injury or damage.

REMOVAL

1. Using a suitable tool release pawls and remove front bolt covers

RH (2) and LH (1).

2. Insert a suitable tool (A) through both U wires (B) of third row

seat legs (1) (LH/RH).

WARNING:

Do not remove seat front bolts without inserting a suitable

tool through both U wires to protect against personal injury.

3. Remove the seat front bolts (A).

4. Fold the seatback to the flat position and open back door.

10. Seat belt buckle (RH)

11. Seat belt buckle (LH)

12. Bolt cover (LH)

13. Stopper pin

14. Seat frame support

15. Seat hinge finisher (LH)

16. Seat striker (LH/RH)

17. Seat striker finisher (LH/RH)

18. Seatback pull strap (LH/RH)

19. Seatback frame (LH)

20. Headrest (LH/RH)

21. Third row seat cross member

22. Third row seat cross member fin-

isher (LH)

23. Third row seat cross member

finisher (center)

24. Third row seat cross member fin-

isher (RH)

25. Third row luggage floor

26. Seatback board (LH)

27. Seatback trim (LH)

28. Seatback pad (LH)

29. Seat cushion trim (LH)

30. Seat cushion pad (LH)

31. Seat frame finisher (center)

32. Seat cushion frame (LH)

33. Seat cushion frame (RH))

34. Headrest holder (locked)

35. Headrest holder (free)

36. Seatback frame (RH)

Clip

Pawl

ALJIA1423ZZ

ALJIA1479ZZ

ALJIA1424ZZ

SE-44

< REMOVAL AND INSTALLATION >

THIRD ROW SEATS

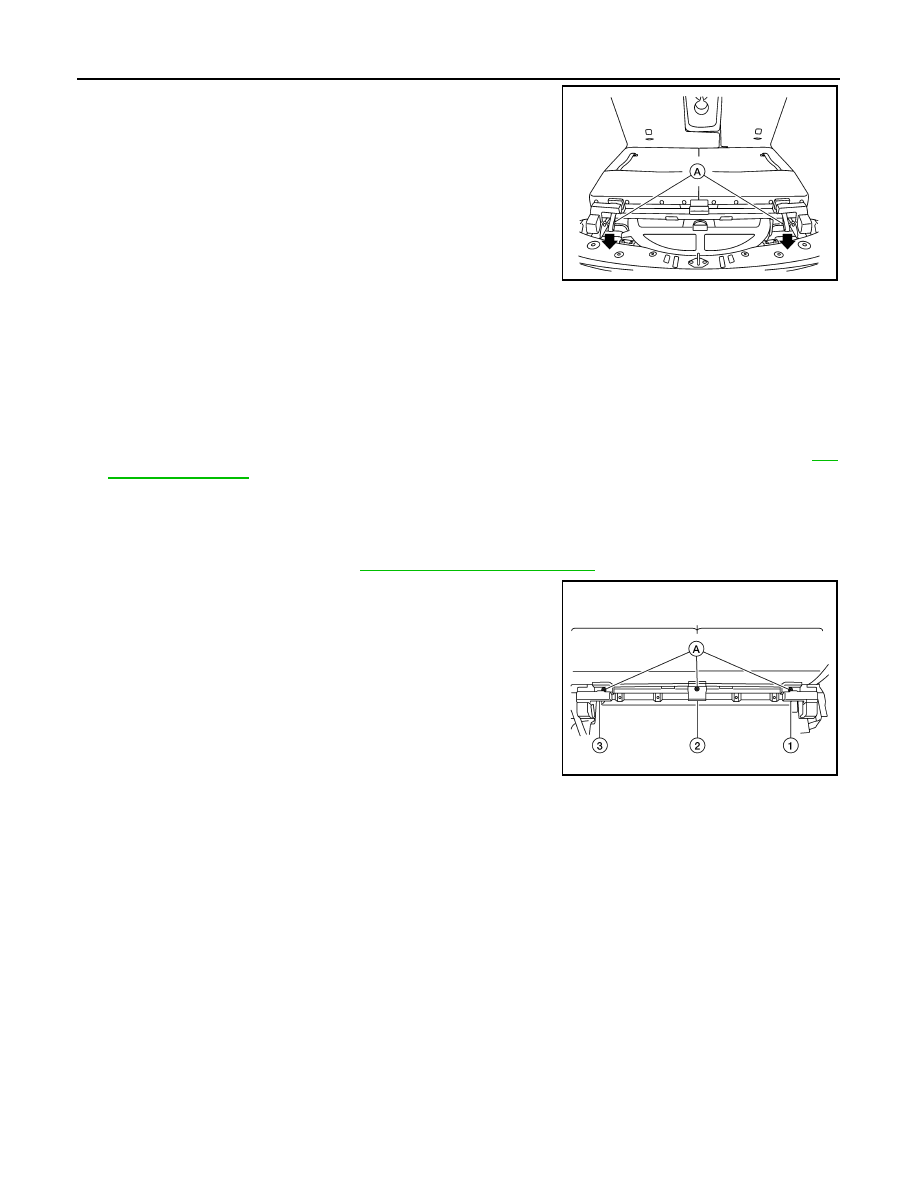

5. Release seat latches by pulling straps (A) rearward, then lift seat

from seat strikers (LH/RH) and remove.

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

Do not remove suitable tool from U wires before installing seat front bolts or personal injury may

occur.

NOTE:

1. Two people are required to position the seat so the seat latches are over the seat striker locations.

2. Place rear seat legs on strikers, make sure to latch.

3. Check that the rear seat latch and striker do not interfere, then tighten bolts to specification. Refer to

SE-

42, "Exploded View"

.

Third Row Seat Cross Member

INFOID:0000000011280459

REMOVAL

1. Remove the third row seat. Refer to

SE-43, "Removal and Installation"

.

2. Remove screws (A) and third row seat cross member finishers

(1, 2, 3).

ALJIA1425ZZ

ALJIA1427ZZ

THIRD ROW SEATS

SE-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

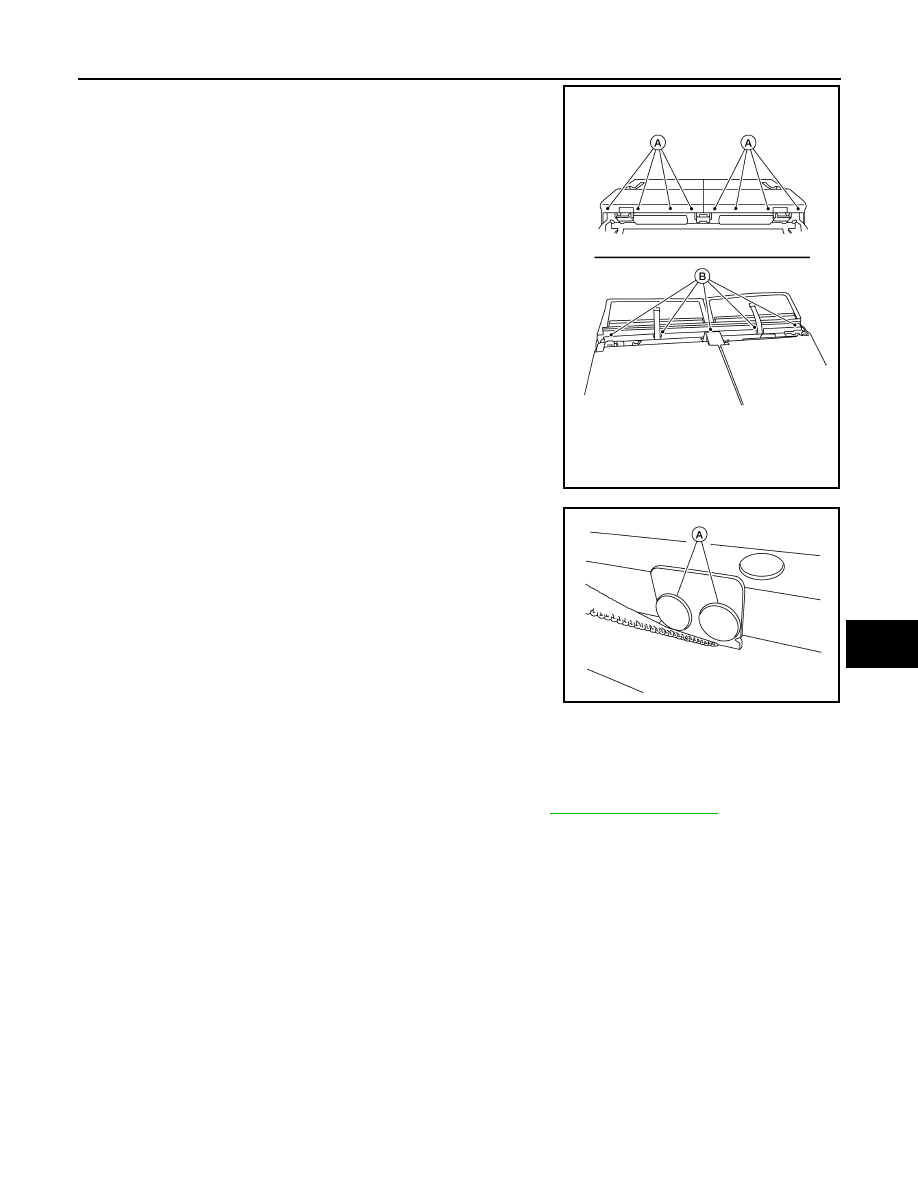

3. Release third row luggage board outer clips (A) and inner clips

(B) using a suitable tool.

4. Release third row luggage board retainer strap clips (A) (LH/RH)

using a suitable tool and remove third row luggage board.

5. Remove bolts and remove third row seat cross member.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• Tighten the third row seat cross member to specification. Refer to

SE-82, "Exploded View"

.

ALJIA1429ZZ

ALJIA1430ZZ
