Nissan Rogue. Manual - part 1010

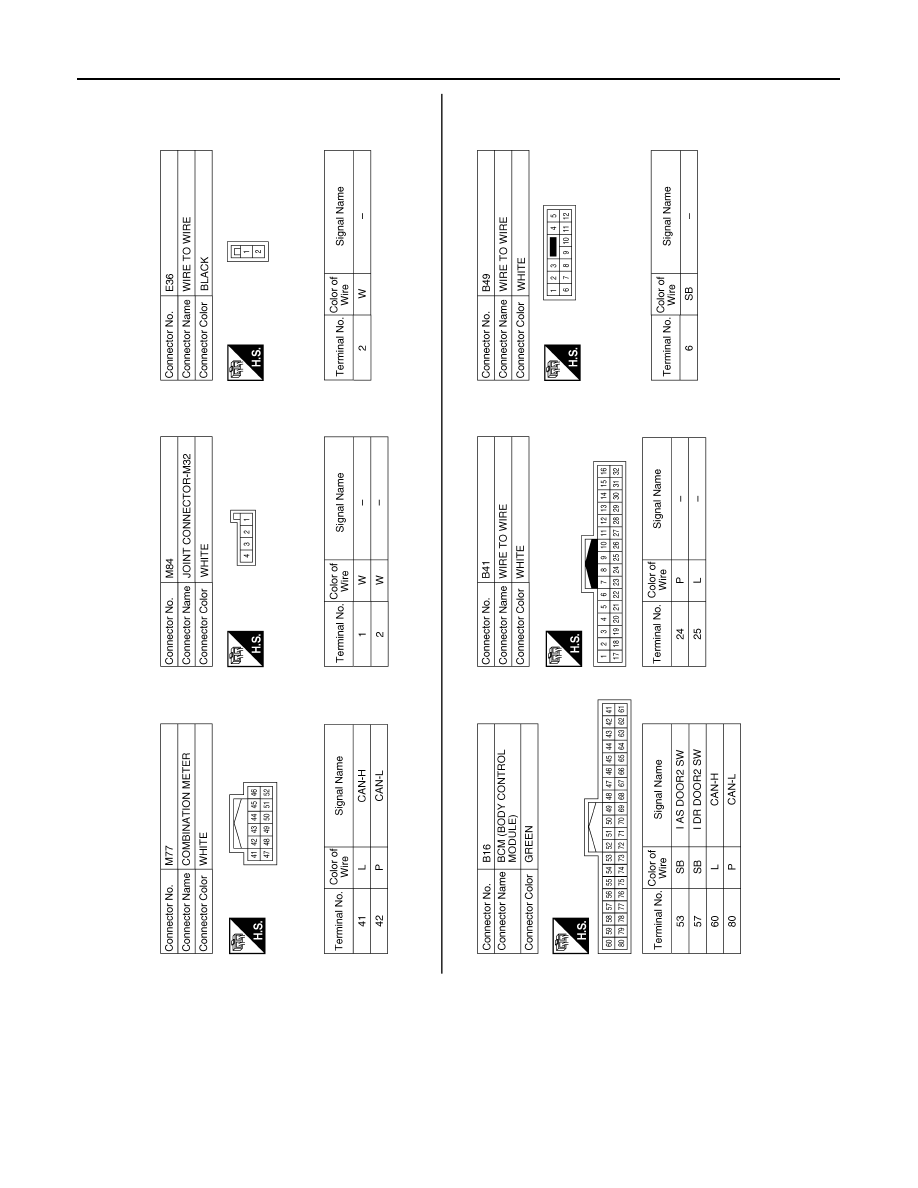

RF-20

< WIRING DIAGRAM >

MOONROOF SYSTEM

AAKIA2307GB

MOONROOF SYSTEM

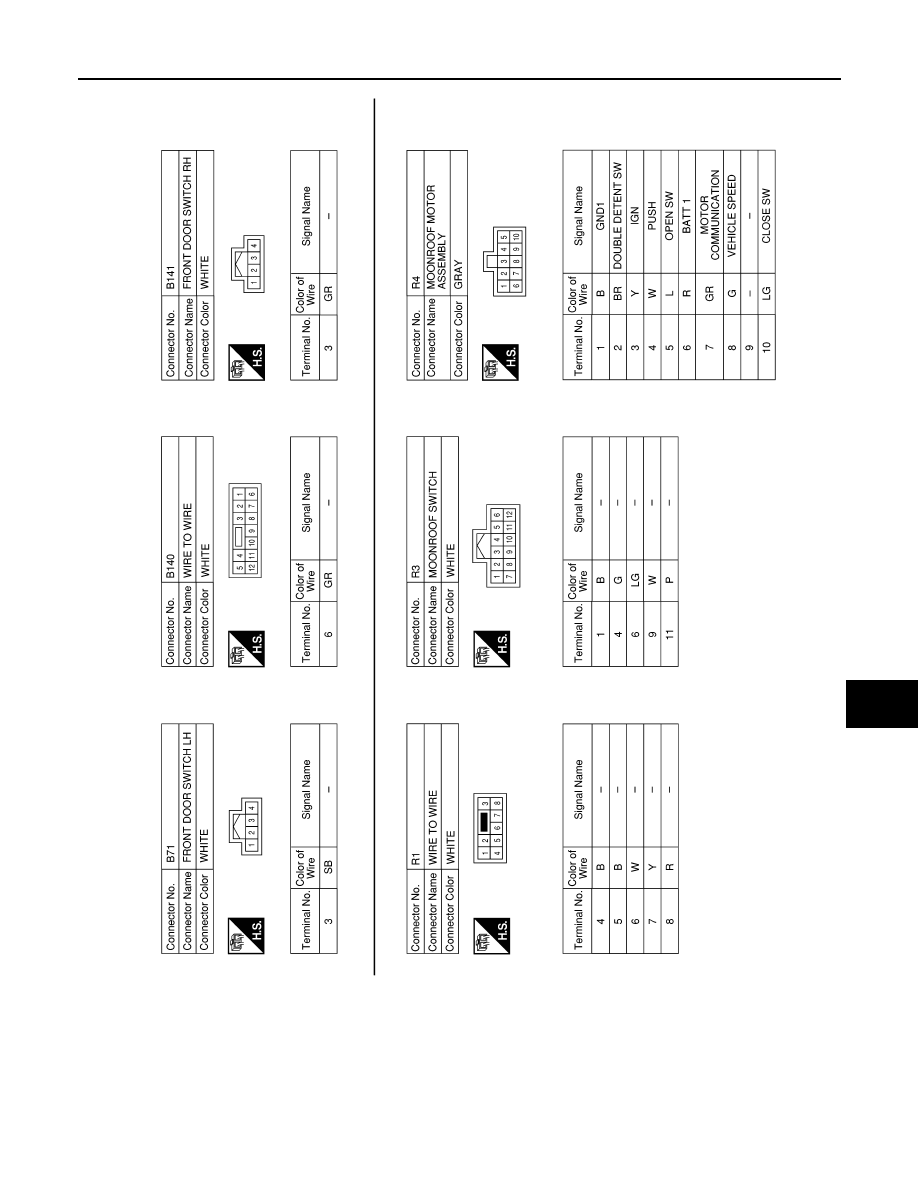

RF-21

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

AAKIA2308GB

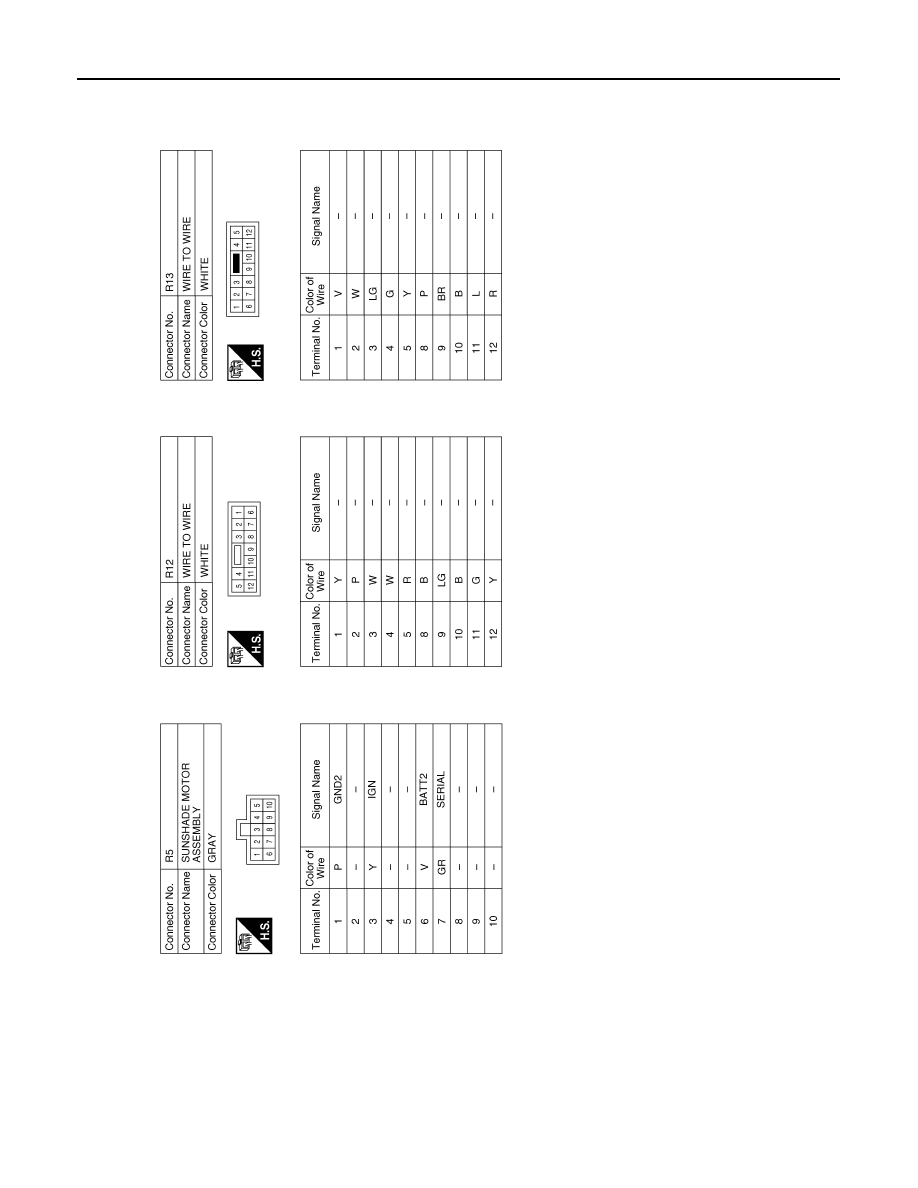

RF-22

< WIRING DIAGRAM >

MOONROOF SYSTEM

AAKIA2309GB

DIAGNOSIS AND REPAIR WORKFLOW

RF-23

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000011280131

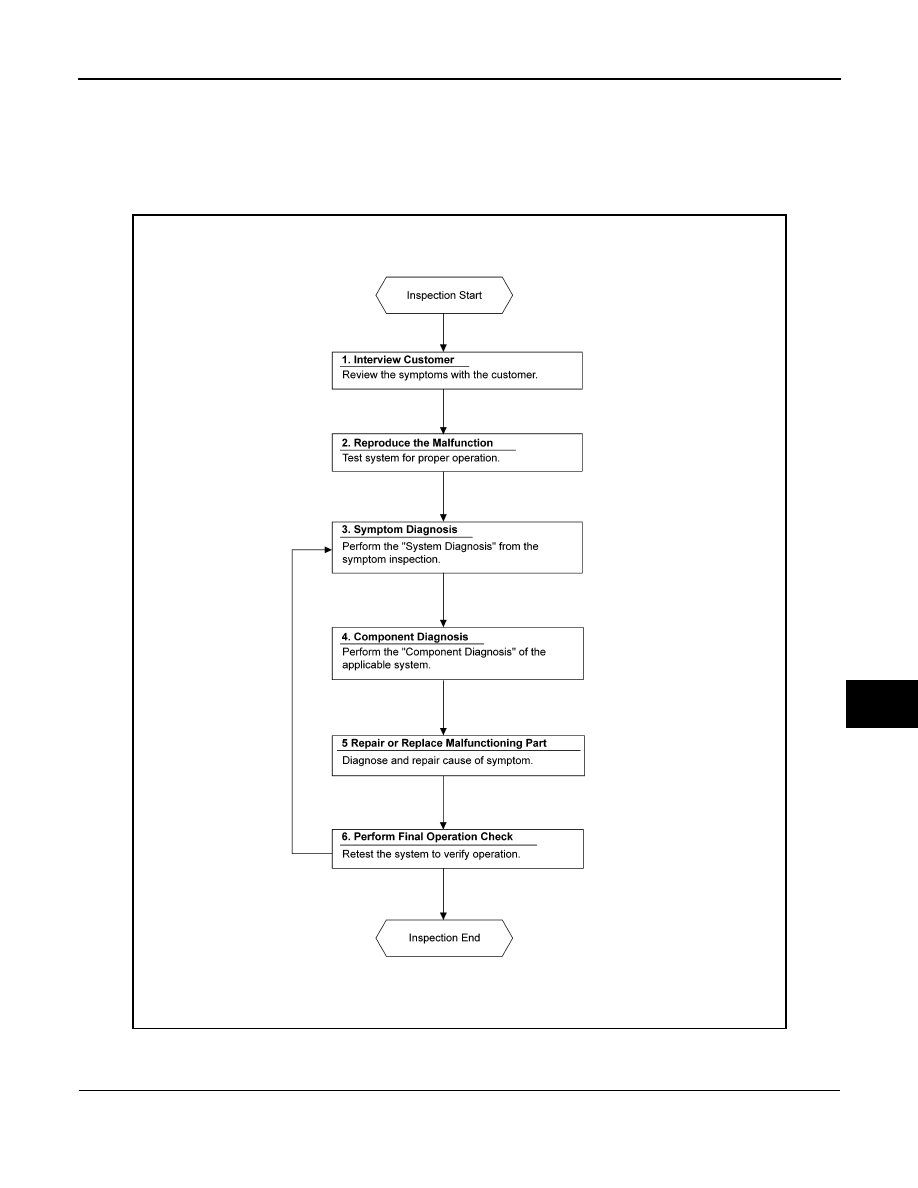

OVERALL SEQUENCE

DETAILED FLOW

1.

 OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain as much information as possible about the conditions and environment under

which the malfunction occurred.
