DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

BCM

RF-13

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000011280127

ECU

Reference

BCM (with Intelligent Key system)

BCS-28, "Reference Value"

BCS-46, "Fail Safe"

BCS-46, "DTC Inspection Priority Chart"

BCS-47, "DTC Index"

BCM (without Intelligent Key system)

BCS-96, "Reference Value"

BCS-107, "Fail Safe"

BCS-107, "DTC Inspection Priority Chart"

BCS-108, "DTC Index"

RF-14

< ECU DIAGNOSIS INFORMATION >

MOONROOF MOTOR ASSEMBLY

MOONROOF MOTOR ASSEMBLY

Reference Value

INFOID:0000000011280128

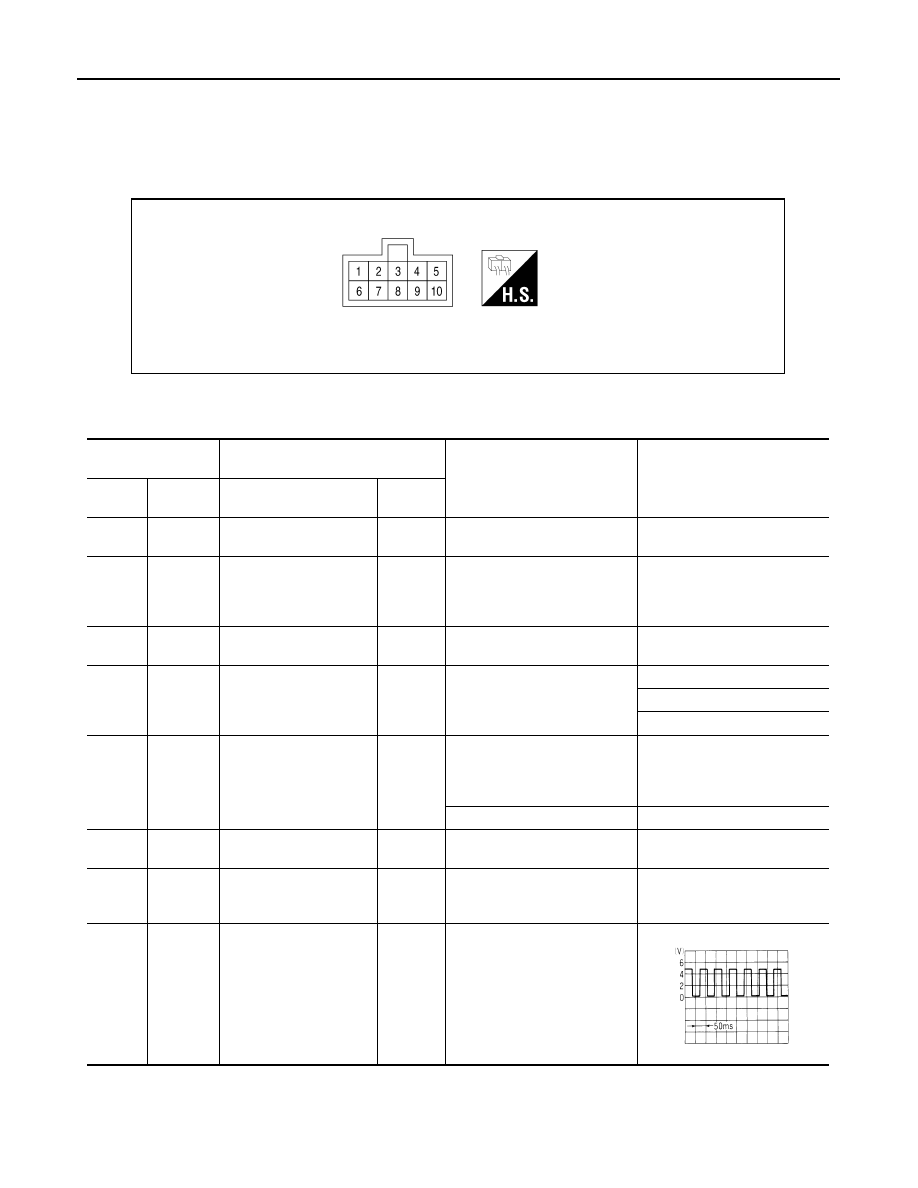

TERMINAL LAYOUT
