Nissan Rogue. Manual - part 1006





RF-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

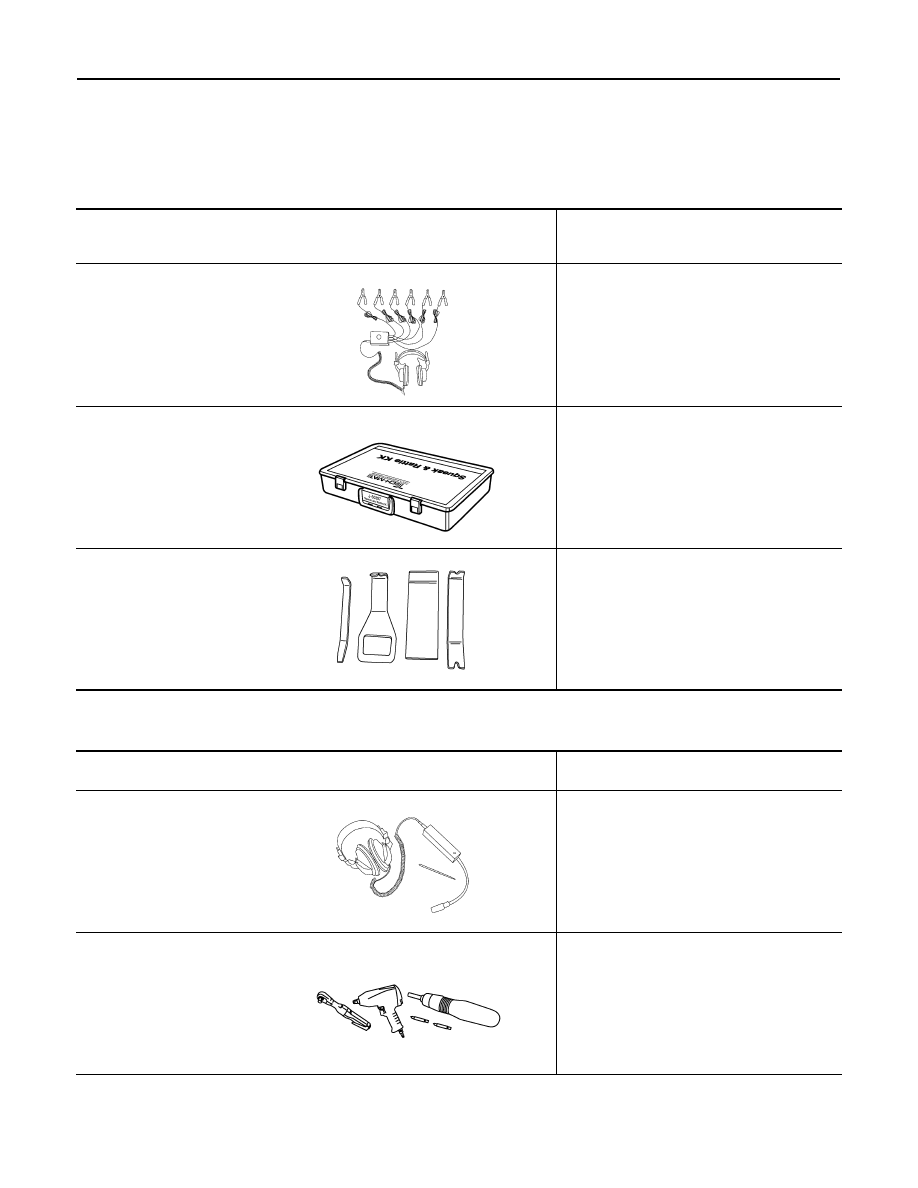

Special Service Tool

INFOID:0000000011280117

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000011280118

Tool number
(TechMate No.)
Tool name

Description

(J-39570)
Chassis Ear

Locating the noise

(J-50397)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

(J-46534)
Trim Tool Set

Removing trim components

SIIA0993E

ALJIA1232ZZ

AWJIA0483ZZ

(TechMate No.)
Tool name

Description

(J-39565)
Engine Ear

Locating the noise

( — )
Power tool

Loosening nuts, screws and bolts

SIIA0995E

PIIB1407E

COMPONENT PARTS

RF-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

MOONROOF

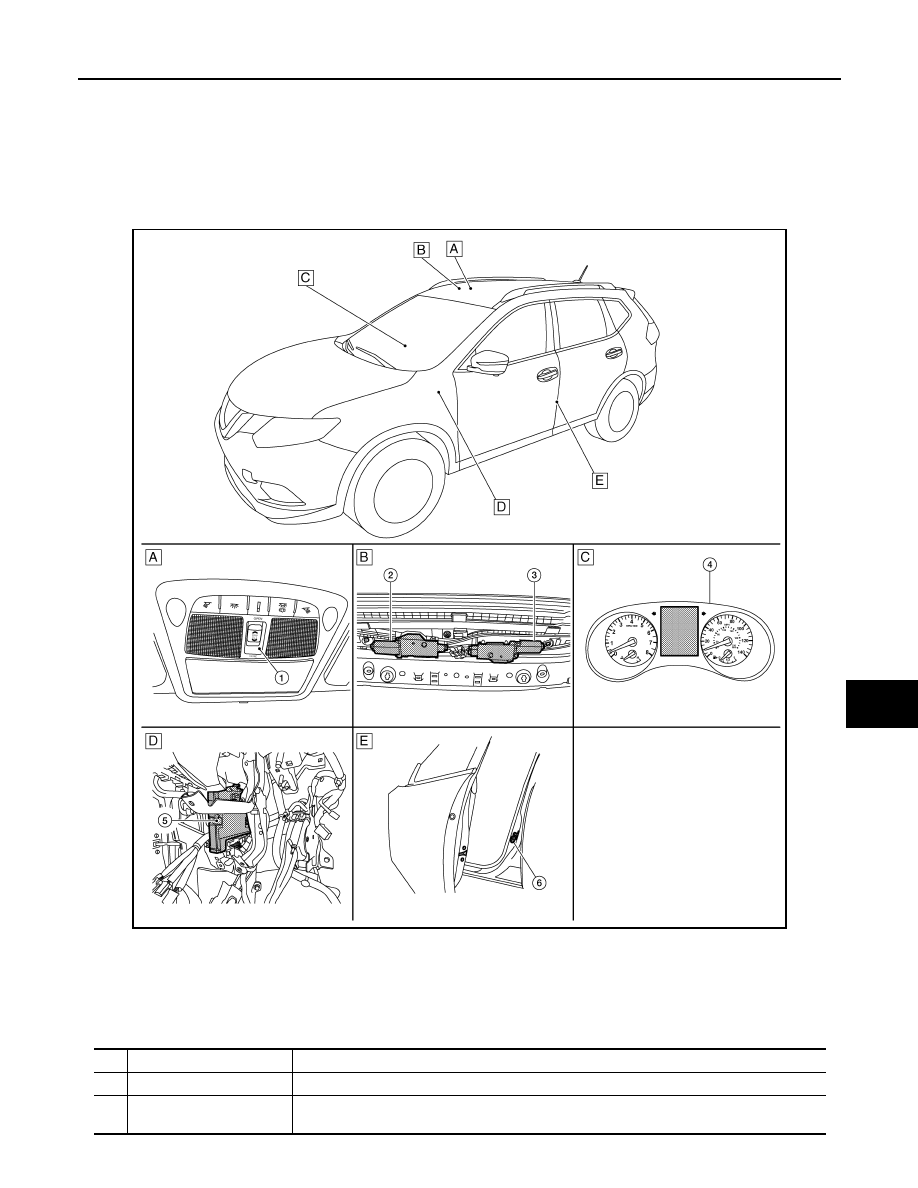

MOONROOF : Component Parts Location

INFOID:0000000011280119

MOONROOF : Component Description

INFOID:0000000011280120

ALKIA3620ZZ

A.

Moonroof switch

B.

View with headliner removed

C.

Combination meter

D.

Behind instrument panel (LH)

E.

View with LH door open (RH similar)

No.

Component

Function

1.

Moonroof switch

Transmits open/close operation signal to the moonroof and sunshade motor assembly.

2.

Sunshade motor

The sunshade motor and CPU are integrated into one unit that opens/closes by input from the
moonroof switch operation.

RF-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

3.

Moonroof motor

The moonroof motor and CPU are integrated into one unit that opens/closes by input from the
moonroof switch operation.

4.

Combination meter

Transmits the vehicle speed signal to BCM via CAN communication.

5.

BCM

Supplies the power supply to the moonroof & sunshade motor assembly.

6.

Front door switch LH

Detects door open/close condition and transmits to BCM.

No.

Component

Function

SYSTEM

RF-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SYSTEM

MOONROOF
MOONROOF : System Diagram

INFOID:0000000011280121

MOONROOF & SUNSHADE

MOONROOF : System Description

INFOID:0000000011280122

MOONROOF SYSTEM

INPUT/OUTPUT SIGNAL CHART

MOONROOF AND SUNSHADE OPERATION

• Moonroof motor and sunshade motor assembly operates with the power supply that is output from the BCM

while the ignition switch is ON or retained power is operating.

• Tilt up/down & slide open/close signals from the moonroof switch enable the moonroof motor and sunshade

motor to move.

• Moonroof motor assembly receives a vehicle speed signal from the combination meter and controls the

moonroof motor torque of tilt down at the time of high speed operation.

AUTO OPERATION

Moonroof and Sunshade AUTO feature makes it possible to slide open and slide closed the moonroof and

sunshade without holding the moonroof switch in the slide open/close position.

RETAINED POWER OPERATION

• Retained power operation is an additional power supply function that enables the moonroof and sunshade

system to operate for 45 seconds after the ignition switch is turned off and the front doors remain closed.

Retained power function cancel conditions:

ALLIA1381GB

Item

Input signal to moonroof motor assem-

bly

Moonroof motor function

Actuator

Moonroof switch

Moonroof signal (tilt up/down or slide
open/close)

Receives signal and moves
the moonroof and sunshade
assembly to the correct posi-
tion.

Moonroof motor and/or Sun-

shade motor

Sunshade signal (slide open/close)

Combination meter

Vehicle speed signal

Receives speed signal and de-
termines the amount of torque
the motor requires.

BCM

RAP signal

Retained power after the key is
turned off and the front doors
stay closed.
