RF-16

< ECU DIAGNOSIS INFORMATION >

SUNSHADE MOTOR ASSEMBLY

SUNSHADE MOTOR ASSEMBLY

Reference Value

INFOID:0000000011280129

TERMINAL LAYOUT

PHYSICAL VALUES

AWKIA1980ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage

(Approx.)

+

-

Signal name

Input/

Output

1

(P)

Ground

Ground

—

—

0

3

(Y)

Ground

Ign power supply

Input

Within 45 seconds after
the ignition is turned off

Battery voltage

When the driver side or
passenger side door is
opened during retained
power operation.

0

6

(V)

Ground

Bat + power supply

—

—

Battery voltage

7

(GR)

Ground

Sunshade open/close
switch signal

Input/

Output

Sunshade switch is in the
open/close position

0

Other than above

Battery voltage

MOONROOF SYSTEM

RF-17

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

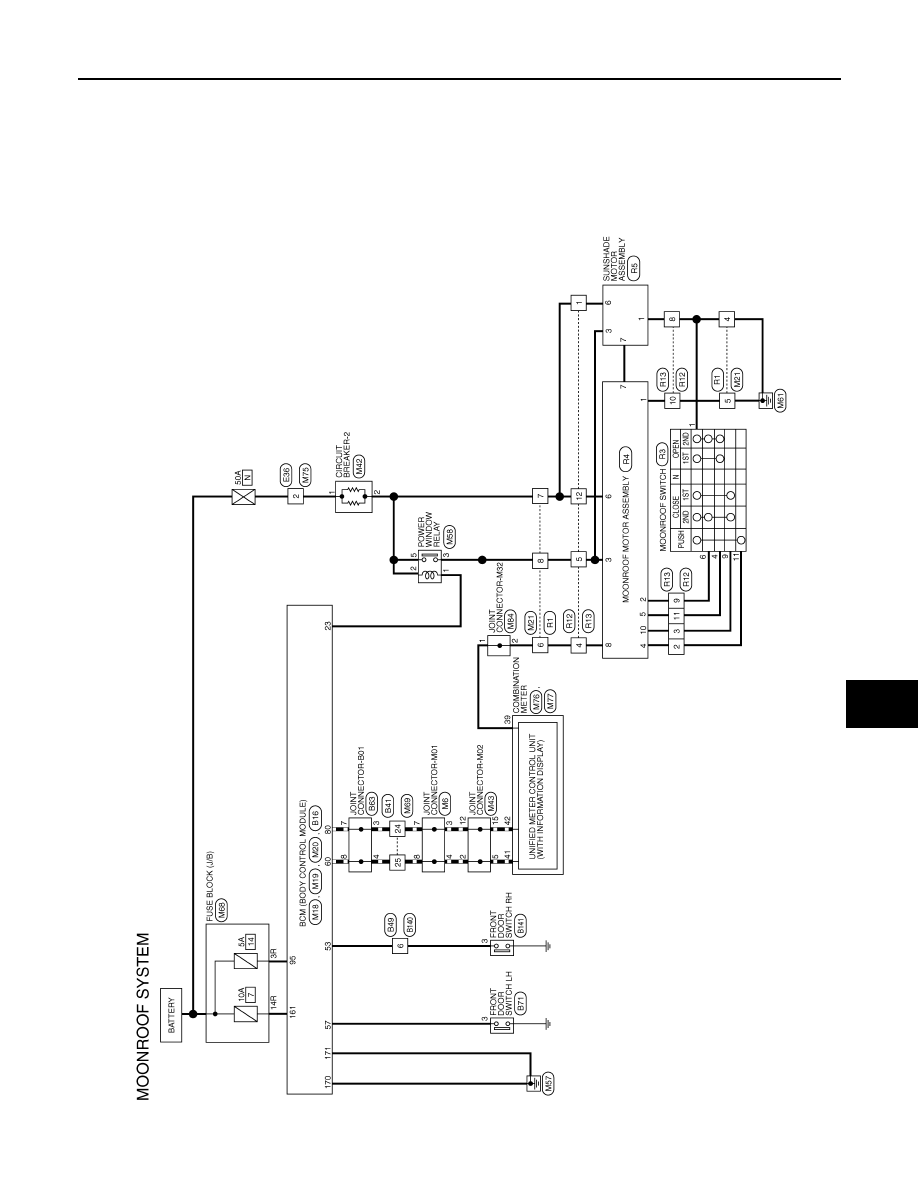

WIRING DIAGRAM

MOONROOF SYSTEM

Wiring Diagram

INFOID:0000000011280130

AAKWA0968GB

RF-18

< WIRING DIAGRAM >

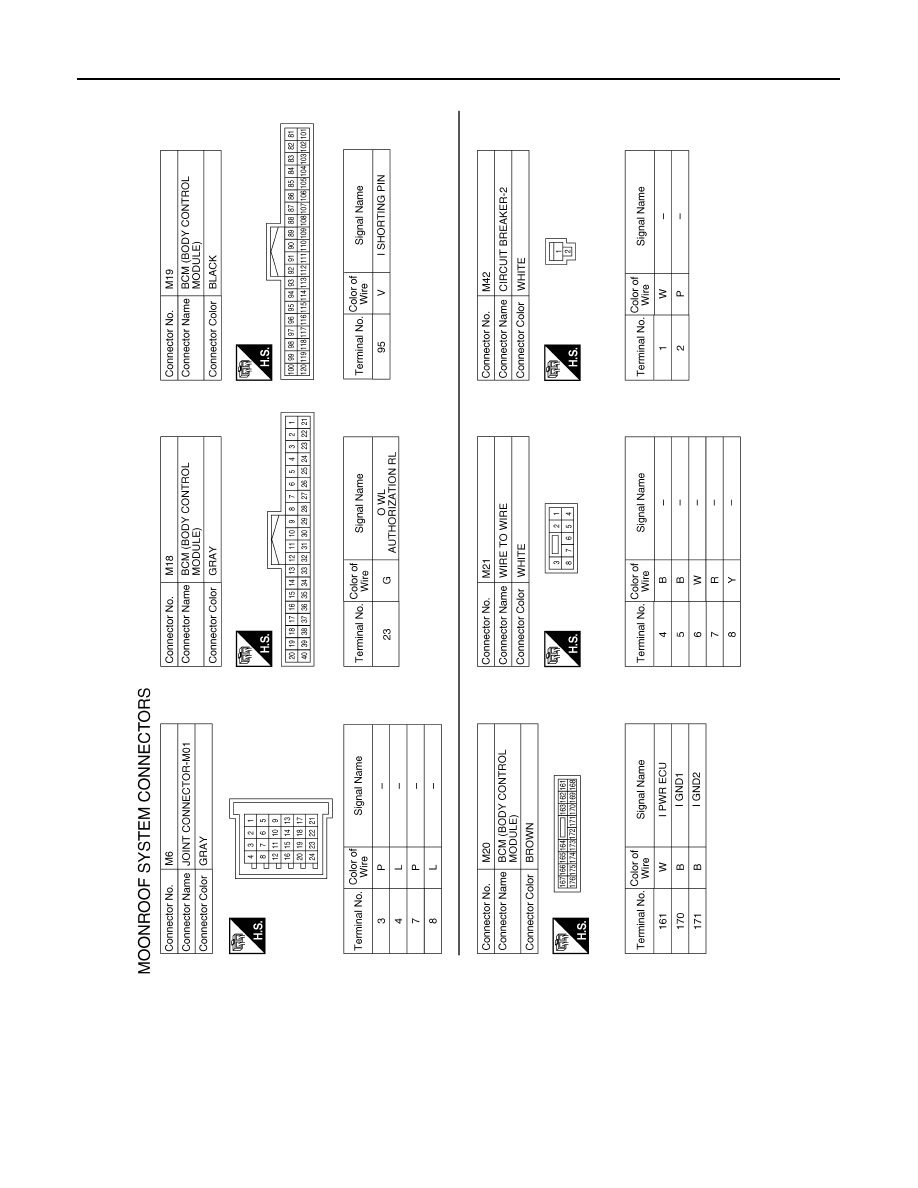

MOONROOF SYSTEM

AAKIA2305GB

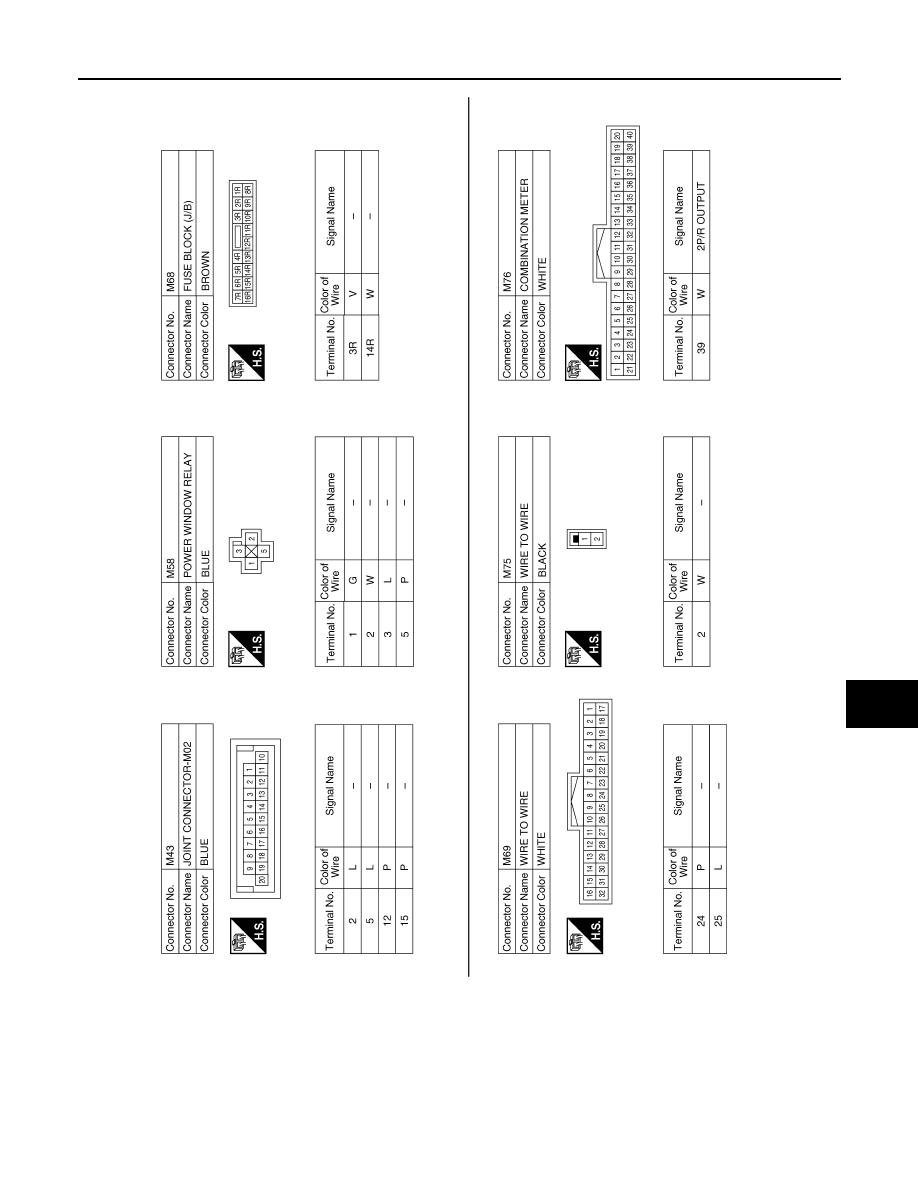

MOONROOF SYSTEM

RF-19

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

AAKIA2306GB
