EXL-166

< REMOVAL AND INSTALLATION >

[XENON TYPE]

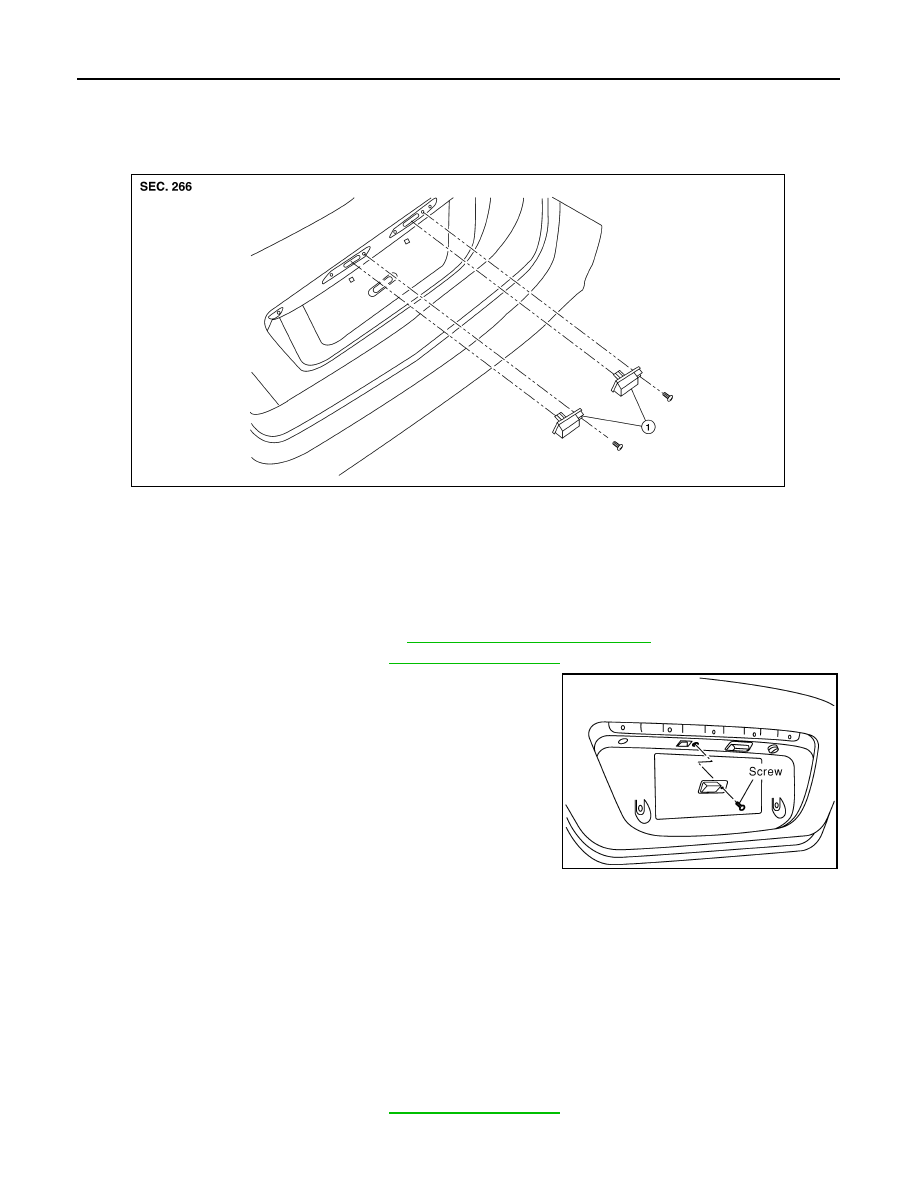

LICENSE PLATE LAMP

LICENSE PLATE LAMP

Exploded View

INFOID:0000000009465289

Removal and Installation

INFOID:0000000009465290

LICENSE PLATE LAMP

Removal

1. Remove the license lamp finisher. Refer to

EXT-31, "Removal and Installation"

.

2. Position trunk lid finisher aside. Refer to

INT-36, "Exploded View"

.

3. Remove the license plate lamp screw and remove the license

plate lamp.

Installation

Installation is in the reverse order of removal.

LICENSE PLATE LAMP BULB

Removal

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off, a burn injury may result.

CAUTION:

• Do not touch bulb glass with your hand or keep other grease and oily substances away from bulb

glass.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

1. Position trunk lid finisher aside. Refer to

INT-36, "Exploded View"

.

1.

License plate lamp

ALLIA0906ZZ

PKIA0059E

LICENSE PLATE LAMP

EXL-167

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

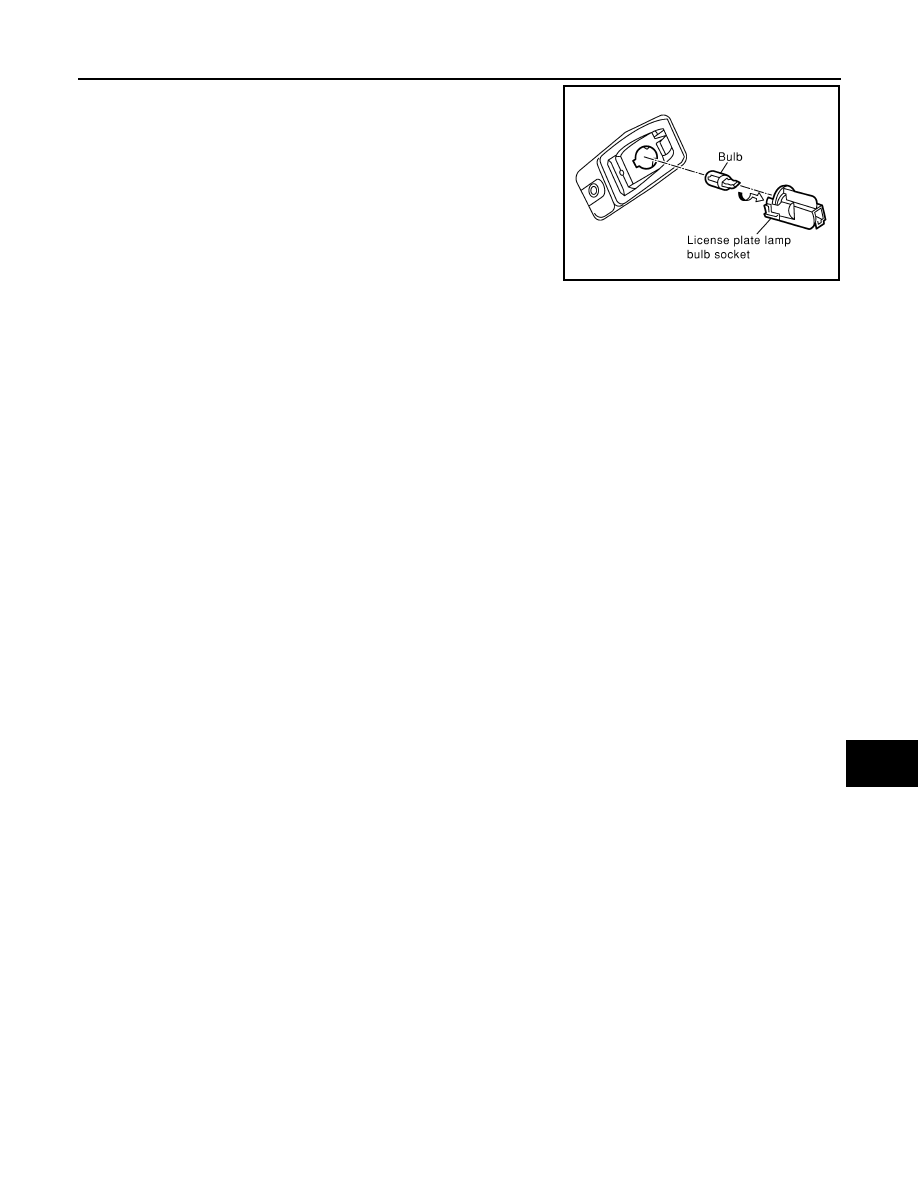

2. Turn the license plate lamp bulb socket counterclockwise and

unlock it.

3. Remove the bulb from the license plate lamp bulb socket.

Installation

Installation is in the reverse order of removal.

WKIA3384E

EXL-168

< UNIT DISASSEMBLY AND ASSEMBLY >

[XENON TYPE]

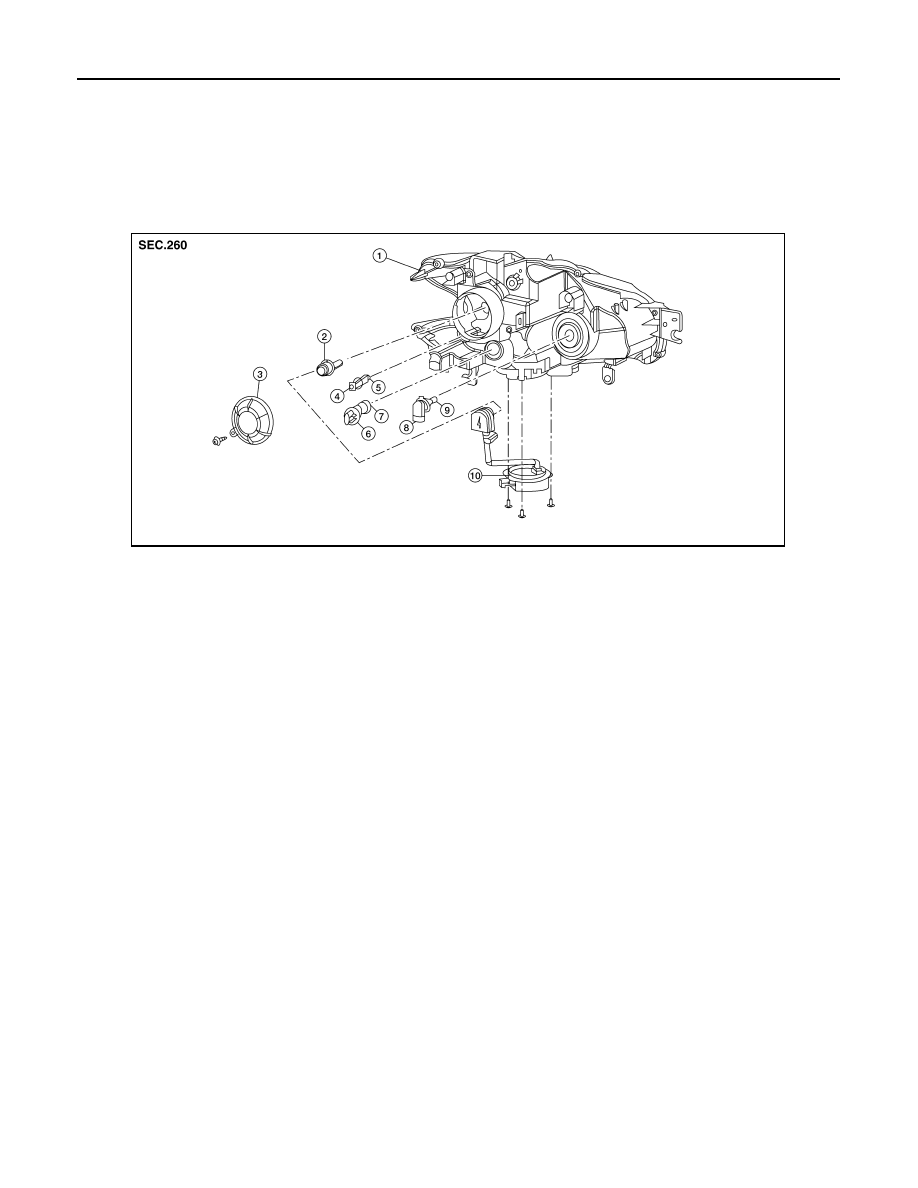

FRONT COMBINATION LAMP

UNIT DISASSEMBLY AND ASSEMBLY

FRONT COMBINATION LAMP

Disassembly and Assembly

INFOID:0000000009465291

EXPLODED VIEW

CAUTION:

HID control unit and xenon bolb socket cannot be disassembled.

DISASSEMBLY

1. Remove the screw from cover and rotate the plastic cover counterclockwise and unlock it.
2. Rotate the xenon bulb socket counterclockwise and unlock it.
3. Unlock the retaining spring and remove the xenon bulb.
4. Remove the HID control unit installation screws.
5. Remove the screw and disconnect the harness connector from the HID control unit.
6. Remove the xenon bulb socket from front combination lamp.
7. Rotate the halogen bulb socket counterclockwise and unlock it.
8. Remove the bulb from halogen bulb socket.
9. Rotate the front turn signal lamp socket counterclockwise and unlock it.
10. Remove the bulb from front turn signal lamp socket.
11. Rotate the front side marker lamp socket counterclockwise and unlock it.
12. Remove the bulb from front side marker lamp socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

• Install HID control unit securely.

• After installing the bulb, install the plastic cover and the bulb socket securely for watertightness.

1.

Front combination lamp

2.

Xenon bulb

3.

Plastic cover

4.

Side marker lamp socket

5.

Side marker lamp bulb

6.

Front turn signal lamp socket

7.

Front turn signal lamp bulb

8.

Halogen bulb socket (high beam)

9.

Halogen bulb (high beam)

10.

HID control unit and xenon bulb socket

ALLIA0898ZZ

REAR COMBINATION LAMP

EXL-169

< UNIT DISASSEMBLY AND ASSEMBLY >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

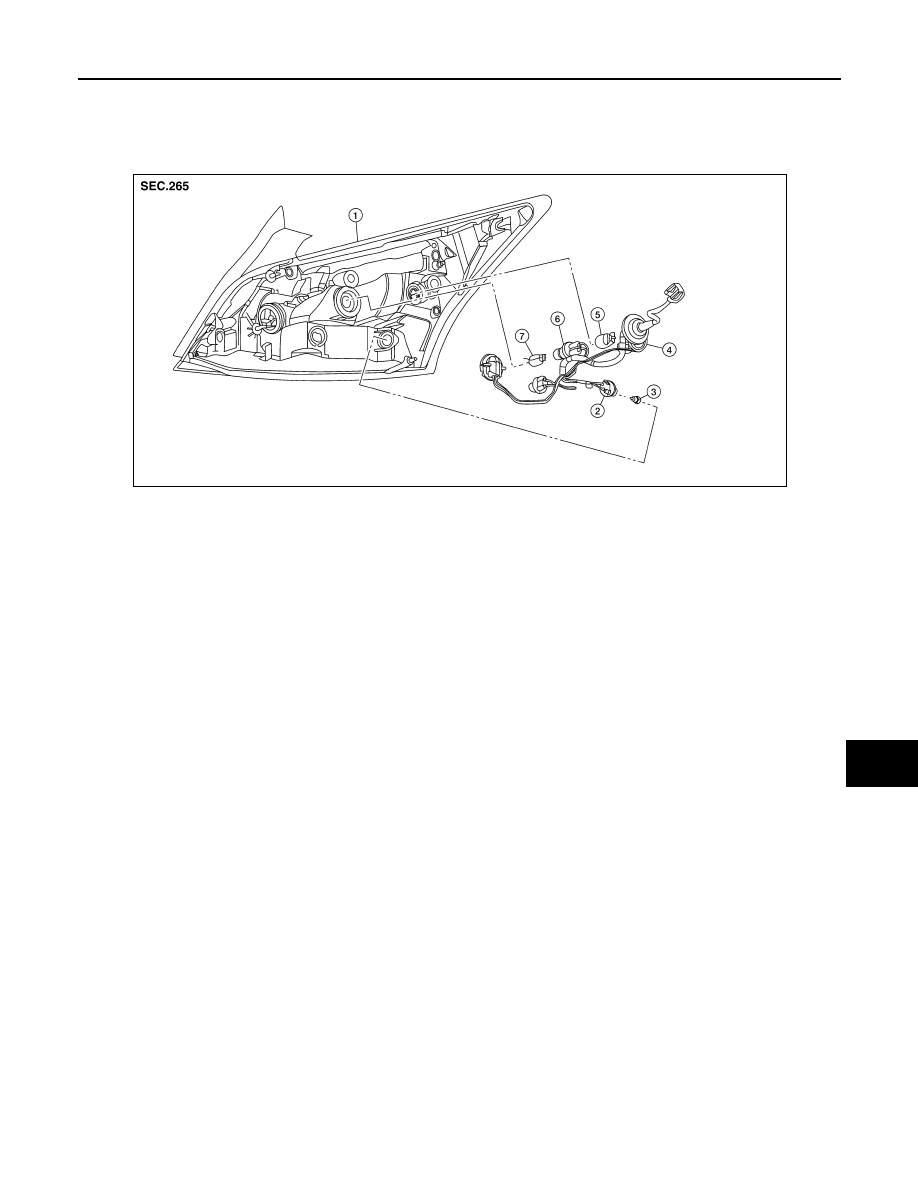

REAR COMBINATION LAMP

Disassembly and Assembly

INFOID:0000000009465292

DISASSEMBLY

1. Rotate the rear side marker lamp socket counterclockwise and unlock it.
2. Remove the bulb from rear side marker lamp socket.
3. Rotate the rear turn signal lamp socket counterclockwise and unlock it.
4. Remove the bulb from rear turn signal lamp socket.
5. Rotate the back-up lamp socket counterclockwise and unlock it.
6. Remove the bulb from back up lamp socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

1.

Rear combination lamp

2.

Rear side marker lamp socket

3.

Rear side marker lamp bulb

4.

Rear turn signal lamp socket

5.

Rear turn signal lamp bulb

6.

Back-up lamp socket

7.

Back-up lamp bulb

ALLIA0903ZZ
