EXL-162

< REMOVAL AND INSTALLATION >

[XENON TYPE]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

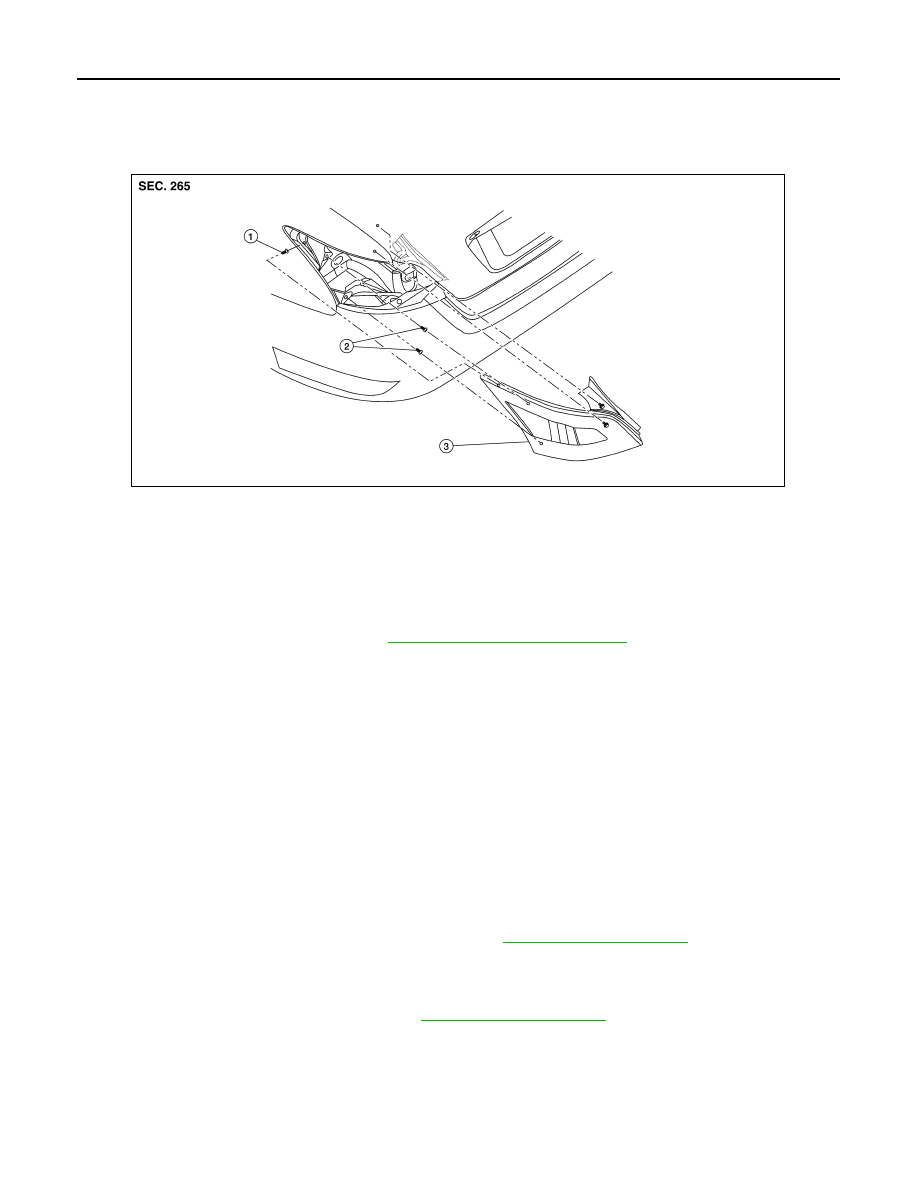

Exploded View

INFOID:0000000009465285

Removal and Installation

INFOID:0000000009465286

REAR COMBINATION LAMP

Removal

1. Remove the trunk side finisher. Refer to

INT-36, "Removal and Installation"

.

2. Remove the rear combination lamp nuts.
3. Pull the rear combination lamp toward the rear of the vehicle to remove it.
4. Disconnect the harness connector from the rear combination lamp.

Installation

Installation is in the reverse order of removal.

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off, a burn injury may result.

CAUTION:

• Do not touch bulb glass with your hand or keep other grease and oily substances away from bulb

glass.

• Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP

Replacement is integral with rear combination lamp. Refer to

EXL-162, "Exploded View"

.

REAR SIDE MARKER LAMP BULB

Removal

1. Remove the rear combination lamp. Refer to

EXL-162, "Exploded View"

.

2. Rotate the rear side marker lamp socket counterclockwise and unlock from rear combination lamp.
3. Remove the bulb from the rear side marker lamp socket.

Installation

Installation is in the reverse order of removal.

REAR TURN SIGNAL LAMP BULB

1.

Slide clip

2.

Grommets

3.

Rear combination lamp

ALLIA0902ZZ

REAR COMBINATION LAMP

EXL-163

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Removal

1. Remove the rear combination lamp. Refer to

EXL-162, "Exploded View"

.

2. Rotate the rear turn signal lamp socket counterclockwise and unlock from rear combination lamp.
3. Remove the bulb from the rear turn signal lamp socket.

Installation

Installation is in the reverse order of removal.

BACK-UP LAMP BULB

Removal

1. Remove the rear combination lamp. Refer to

EXL-162, "Exploded View"

.

2. Rotate the back-up lamp socket counterclockwise and unlock from rear combination lamp.
3. Remove the bulb from the back-up lamp socket.

Installation

Installation is in the reverse order of removal.

EXL-164

< REMOVAL AND INSTALLATION >

[XENON TYPE]

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

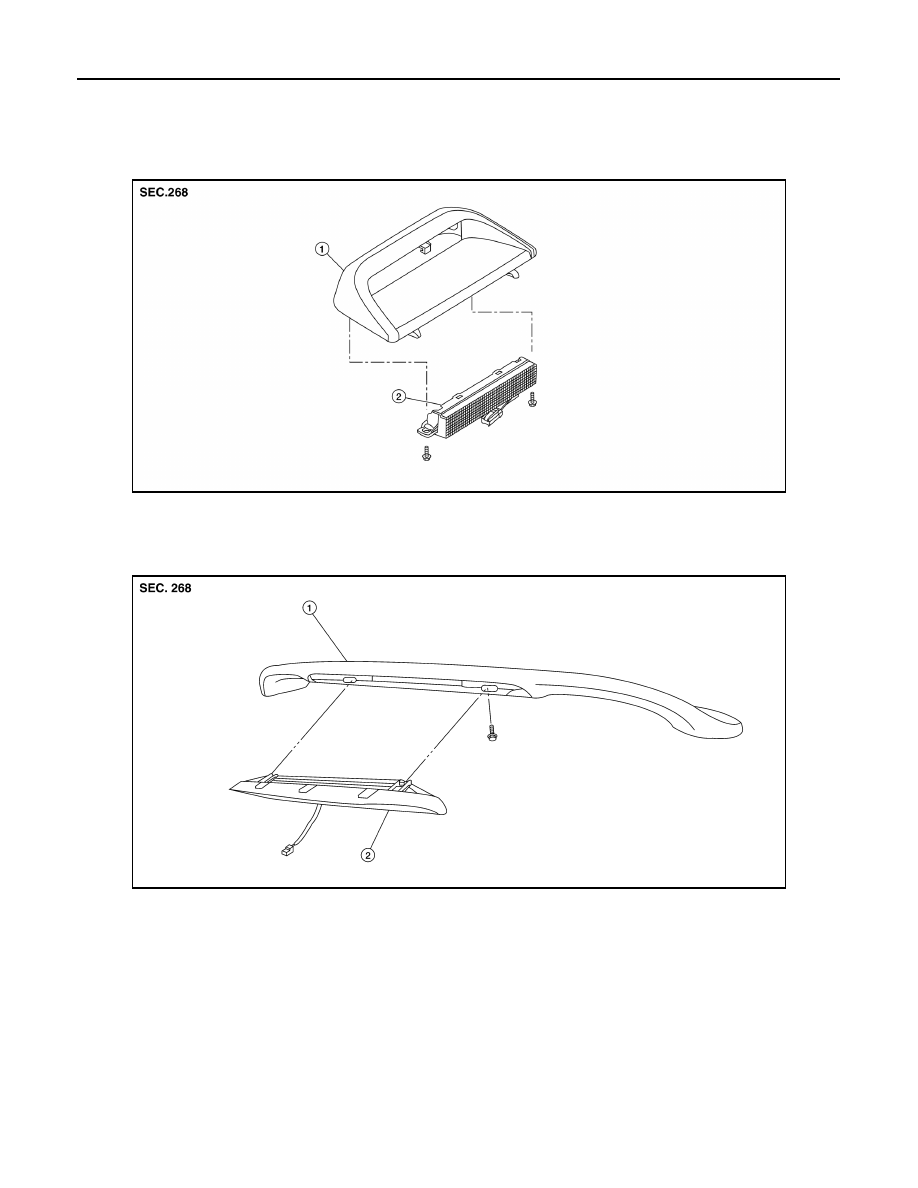

Exploded View

INFOID:0000000009465287

Models Without Rear Spoiler

Models With Rear Spoiler

Removal and Installation

INFOID:0000000009465288

WITHOUT REAR SPOILER

Removal

AWLIA1815ZZ

1.

High-mounted stop lamp cover

2.

High-mounted stop lamp bulb

ALLIA0905ZZ

1.

Rear spoiler

2.

High-mounted stop lamp assembly

HIGH-MOUNTED STOP LAMP

EXL-165

< REMOVAL AND INSTALLATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

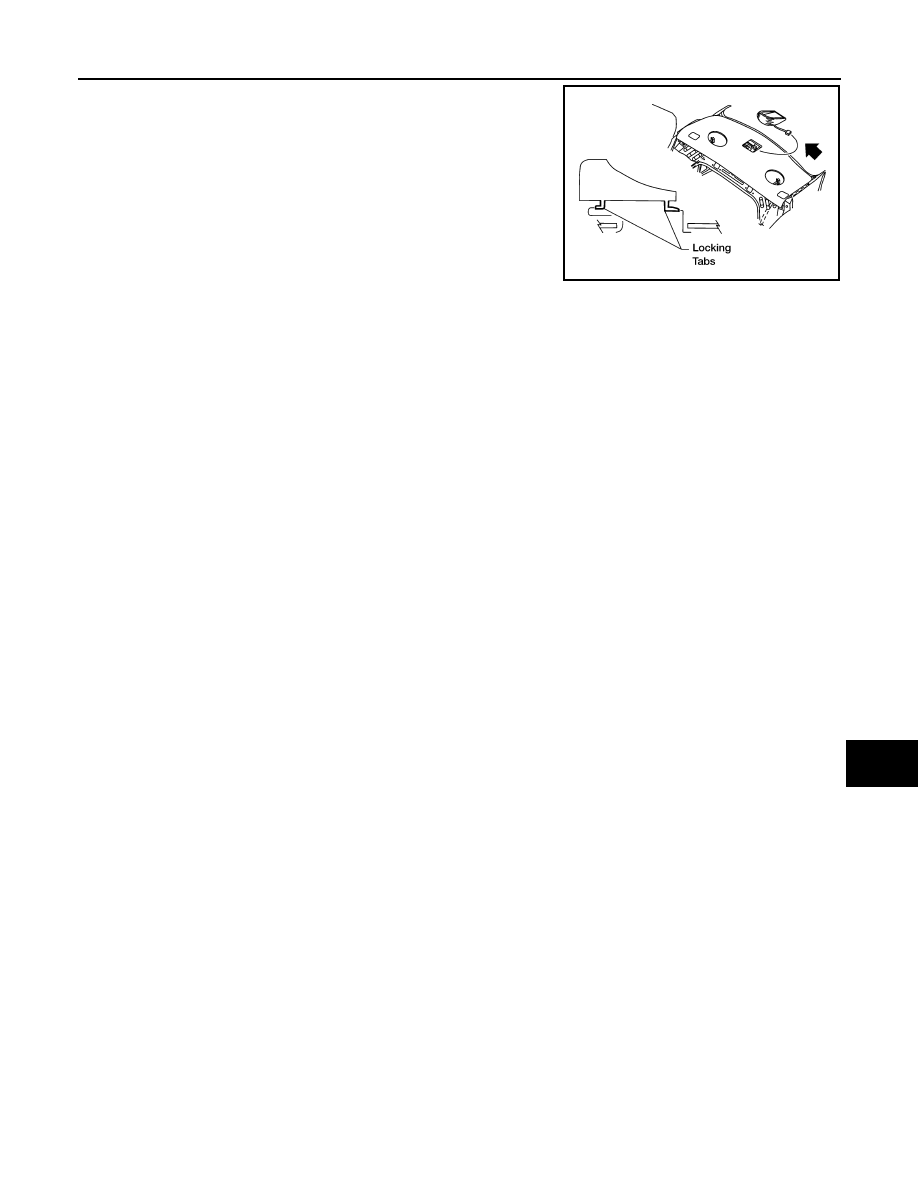

1. Slide the high-mounted stop lamp rearward on the parcel shelf

to give clearance to the front locking tabs.

2. Lift the front of the high-mounted stop lamp up and slide it for-

ward to give clearance to the rear locking tabs.

3. Disconnect the harness connector from the high-mounted stop

lamp and remove.

Installation

Installation is in the reverse order of removal.

WITH REAR SPOILER

Removal

1. Remove the high-mounted stop lamp screws.
2. Remove the high-mounted stop lamp from the rear spoiler far enough to gain access to the connector.
3. Disconnect the harness connector from the high-mounted stop lamp and remove.

Installation

Installation is in the reverse order of removal.

LKIA0063E
