Nissan Maxima. Manual - part 607





EXL-170

< SERVICE DATA AND SPECIFICATIONS (SDS)

[XENON TYPE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000009465293

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Front combination lamp

Headlamp (Xenon low beam)

35

Headlamp (Halogen high beam)

65

Park/Turn lamp

28/8

Front side marker lamp

5

Front fog lamp

55

Door mirror turn signal lamp

Rear combination lamp

Stop lamp

Tail lamp

Rear turn signal lamp

21

Rear side marker lamp

5

Back-up lamp

18

License plate lamp

5

High-mounted stop lamp

Without rear spoiler

With rear spoiler

DIAGNOSIS AND REPAIR WORKFLOW

EXL-171

< BASIC INSPECTION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010051020

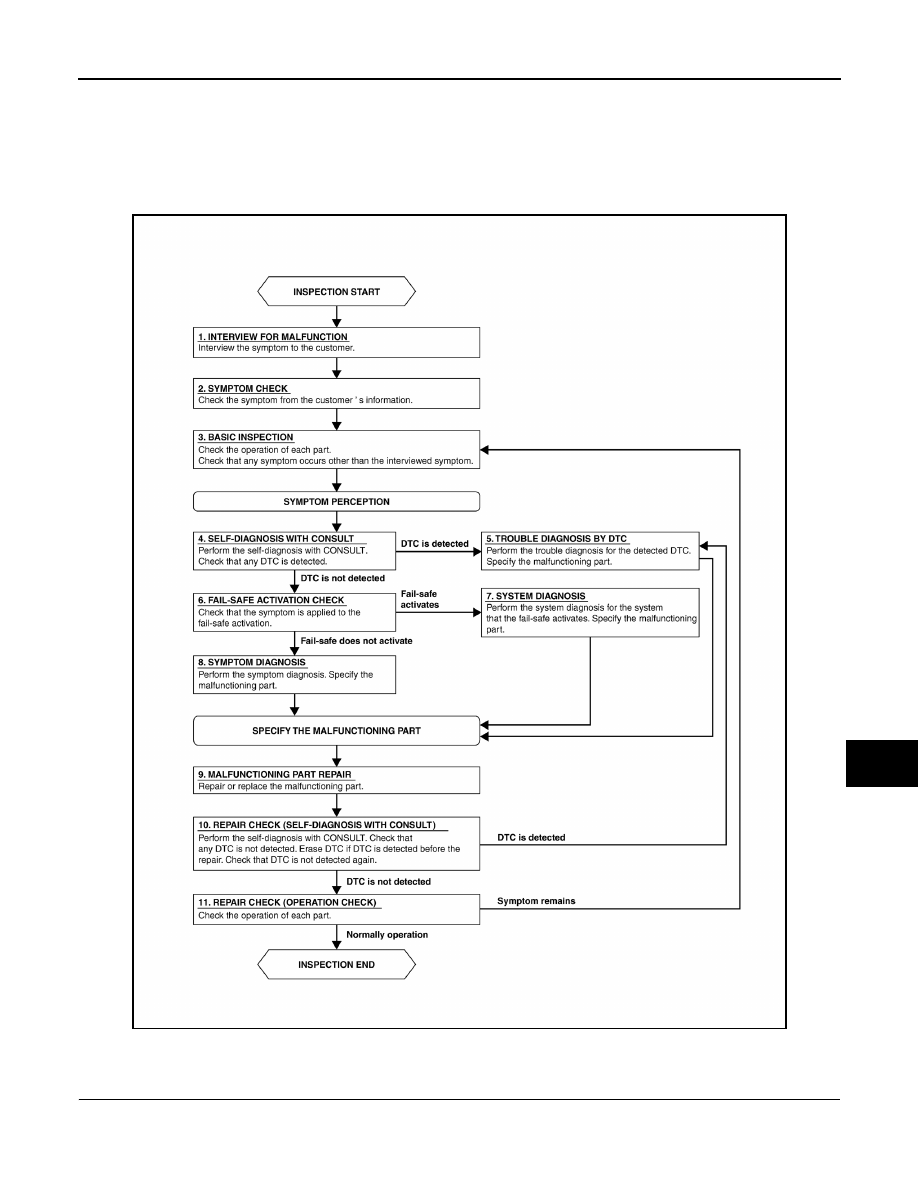

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Find out what the customer's concerns are.

AWLIA1907GB

EXL-172

< BASIC INSPECTION >

[HALOGEN TYPE]

DIAGNOSIS AND REPAIR WORKFLOW

>> GO TO 2.

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3.

3.

BASIC INSPECTION

Check the operation of each part. Check if any concerns occur other than those mentioned in the customer

interview.

>> GO TO 4.

4.

SELF-DIAGNOSIS WITH CONSULT

Perform the self diagnosis with CONSULT. Check if any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9.

6.

FAIL-SAFE ACTIVATION CHECK

Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9.

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9.

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)

Perform the self diagnosis with CONSULT. Verify that no DTCs are detected. Erase all DTCs which were

detected prior to the repair. Perform the self diagnosis with CONSULT again. Verify that DTC is not detected

again.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 11.

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.

DIAGNOSIS AND REPAIR WORKFLOW

EXL-173

< BASIC INSPECTION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Does it operate normally?

YES

>> Inspection End.

NO

>> GO TO 3.
