CENTER SPEAKER

CENTER SPEAKER

Removal and Installation

INFOID:0000000009471537

REMOVAL

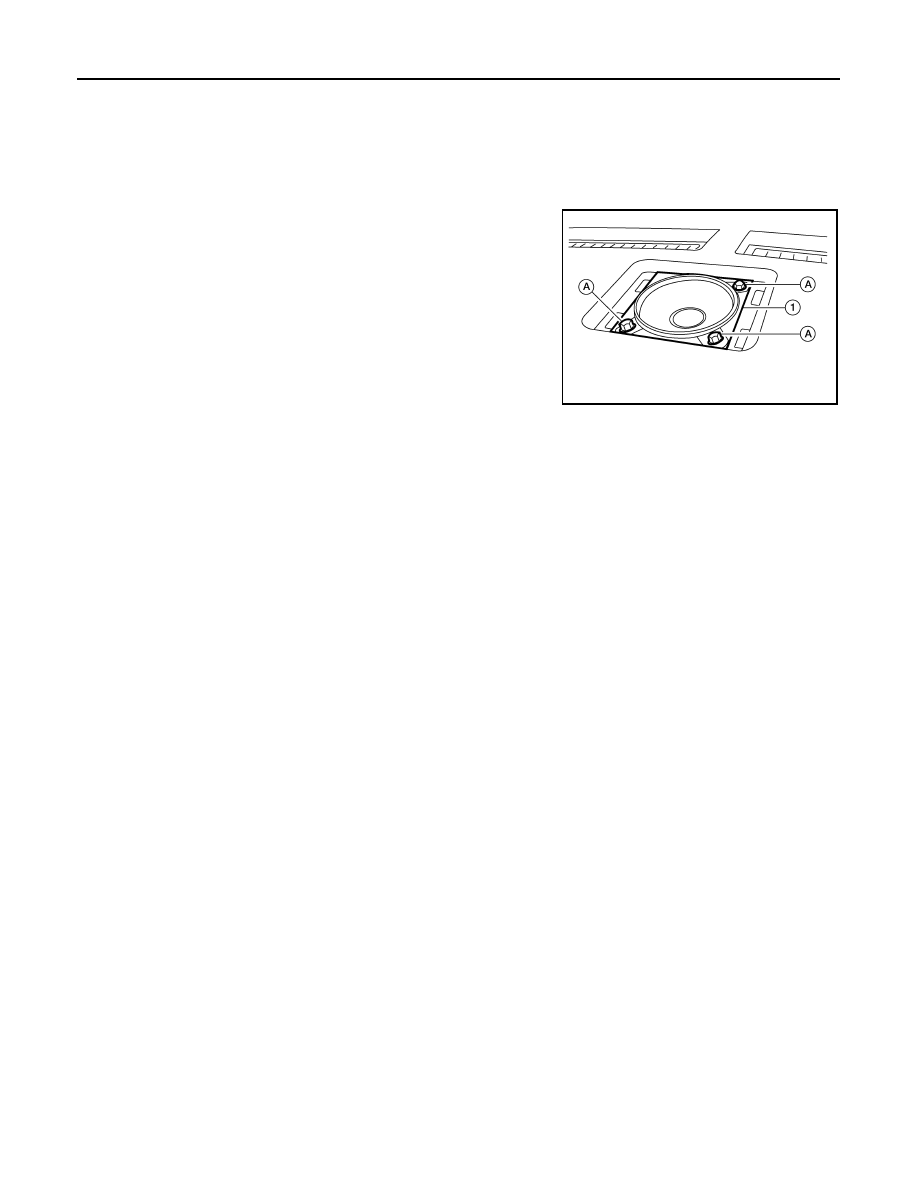

1. Remove the center speaker grille, using a suitable tool.
2. Remove the center speaker screws (A).
3. Pull out the center speaker (1), disconnect the harness connec-

tor from the center speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA2221ZZ

AV

FRONT DOOR SPEAKER

AV-661

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009471538

REMOVAL

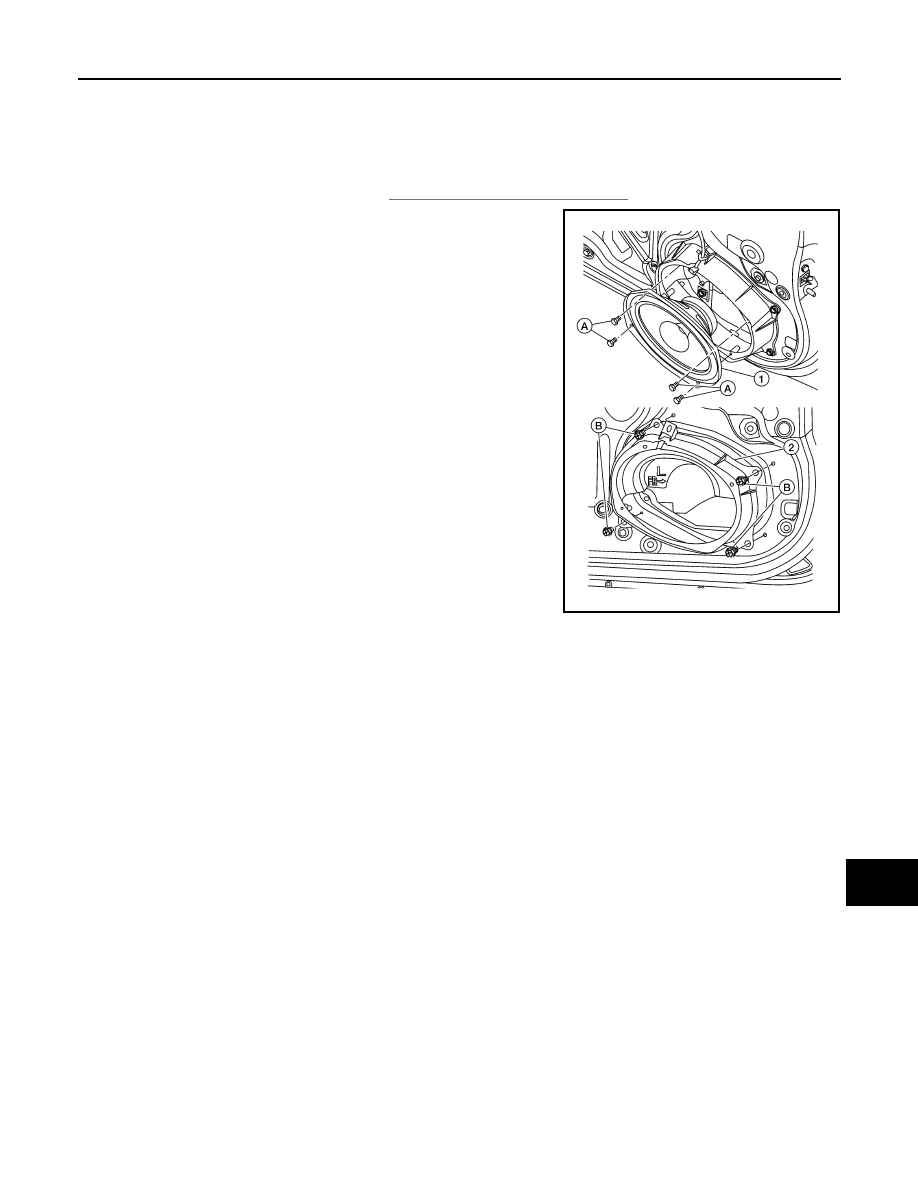

1. Remove the front door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove the front door speaker screws (A).
3. Disconnect the harness connector from the front door speaker

(1) and remove.

4. Remove the front door speaker spacer screws (B) and remove

the front door speaker spacer (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1133ZZ

AV-662

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000009471539

REMOVAL

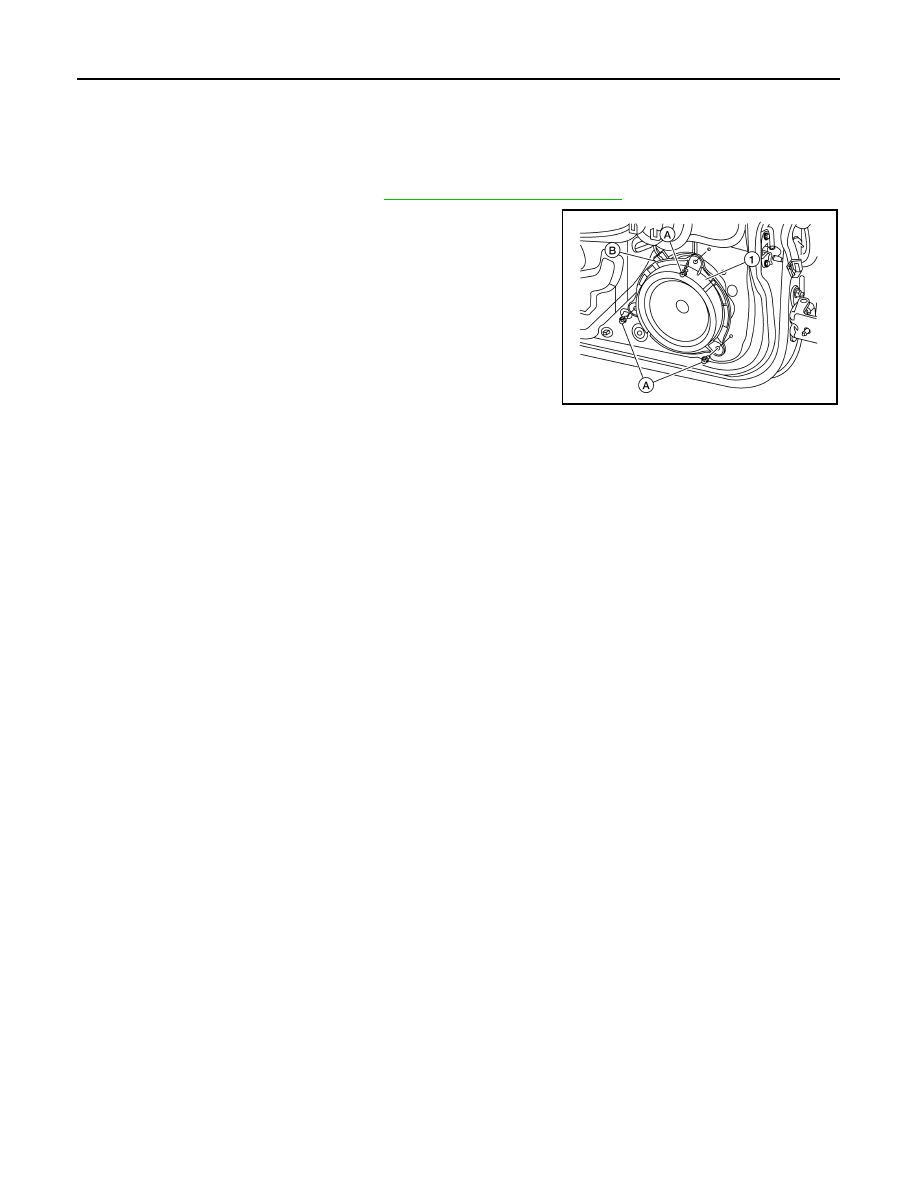

1. Remove the rear door finisher. Refer to

INT-21, "Removal and Installation"

.

2. Remove the rear door speaker screws (A).
3. Disconnect the harness connector (B) from the rear door

speaker (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1135ZZ

AV

SUBWOOFER

AV-663

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SUBWOOFER

Removal and Installation

INFOID:0000000009471540

REMOVAL

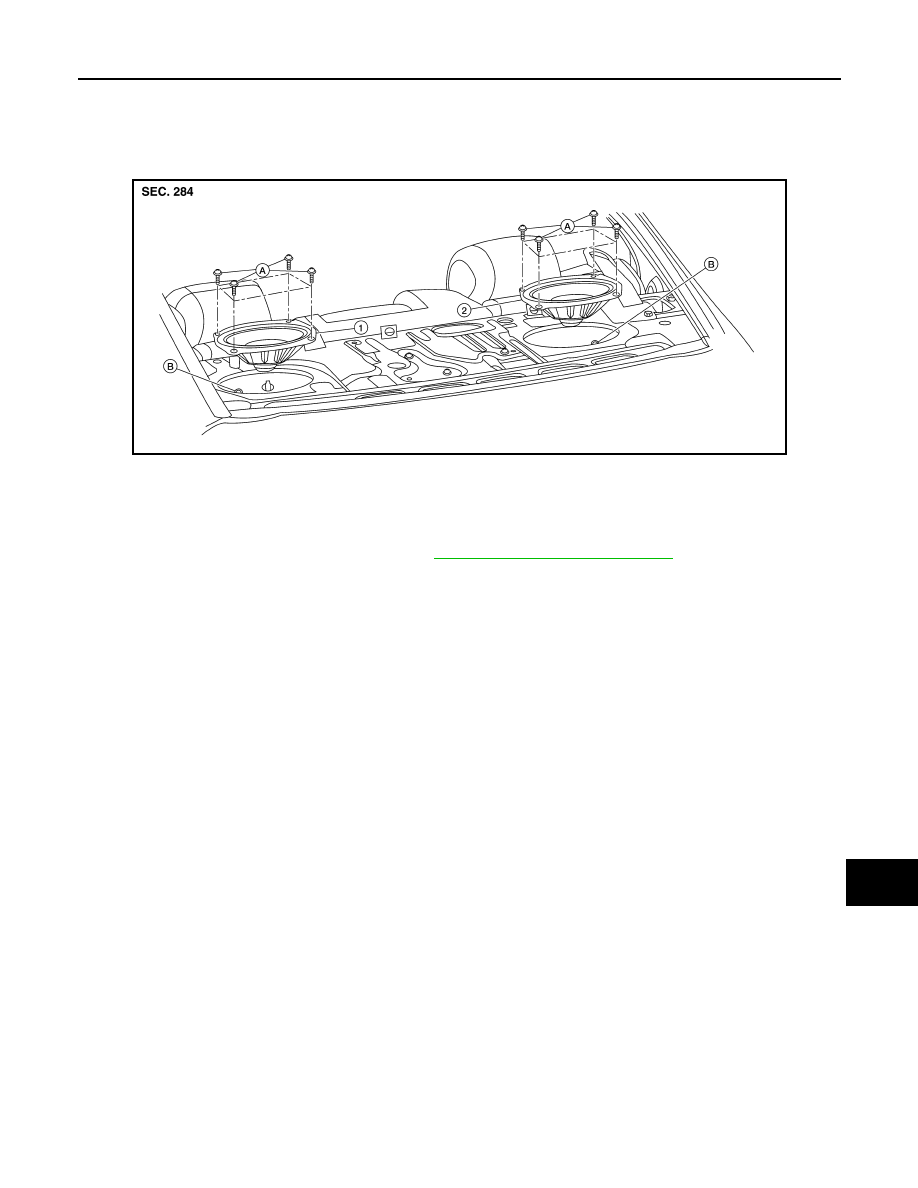

1. Remove the rear parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

2. Remove the subwoofer screws.
3. Pull out the subwoofer, disconnect the harness connector from the subwoofer and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1134ZZ

1.

Subwoofer (LH)

2.

Subwoofer (RH)

A.

Subwoofer screws

B.

Subwoofer connectors
