Nissan Maxima. Manual - part 209

AV-656

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

AUDIO DISPLAY UNIT

5. Remove the audio display unit screws on the sides and the audio display unit from the audio display unit

brackets.

INSTALLATION

Installation is in the reverse order of removal.

AV

USB CONNECTOR

AV-657

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB CONNECTOR

Removal and Installation

INFOID:0000000009471534

REMOVAL

1. Remove the center console assembly. Refer to

IP-14, "Removal and Installation"

.

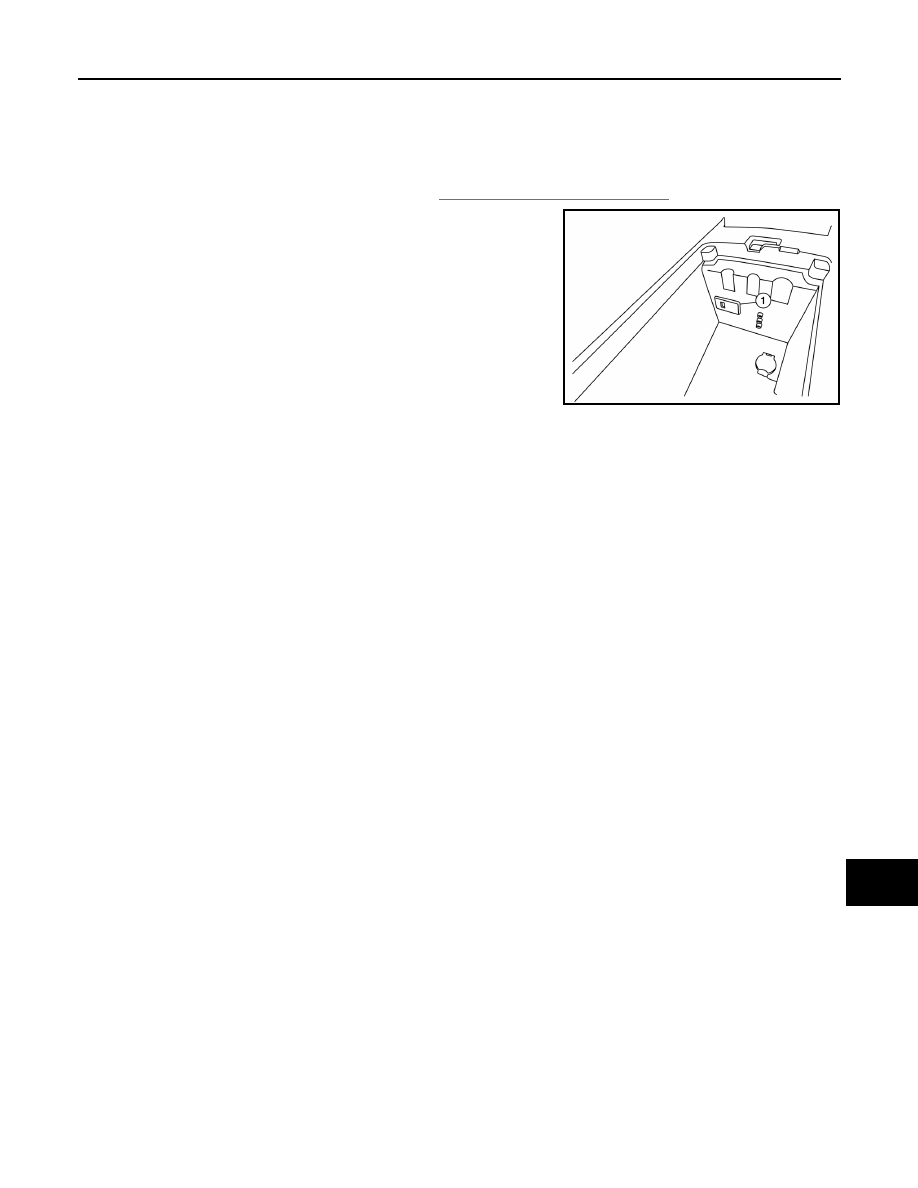

2. Push the pawl from the back of the center console to remove the

USB interface (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1401ZZ

AV-658

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

AUX IN JACK

AUX IN JACK

Removal and Installation

INFOID:0000000009471535

REMOVAL

1. Remove the center console assembly. Refer to

IP-14, "Removal and Installation"

.

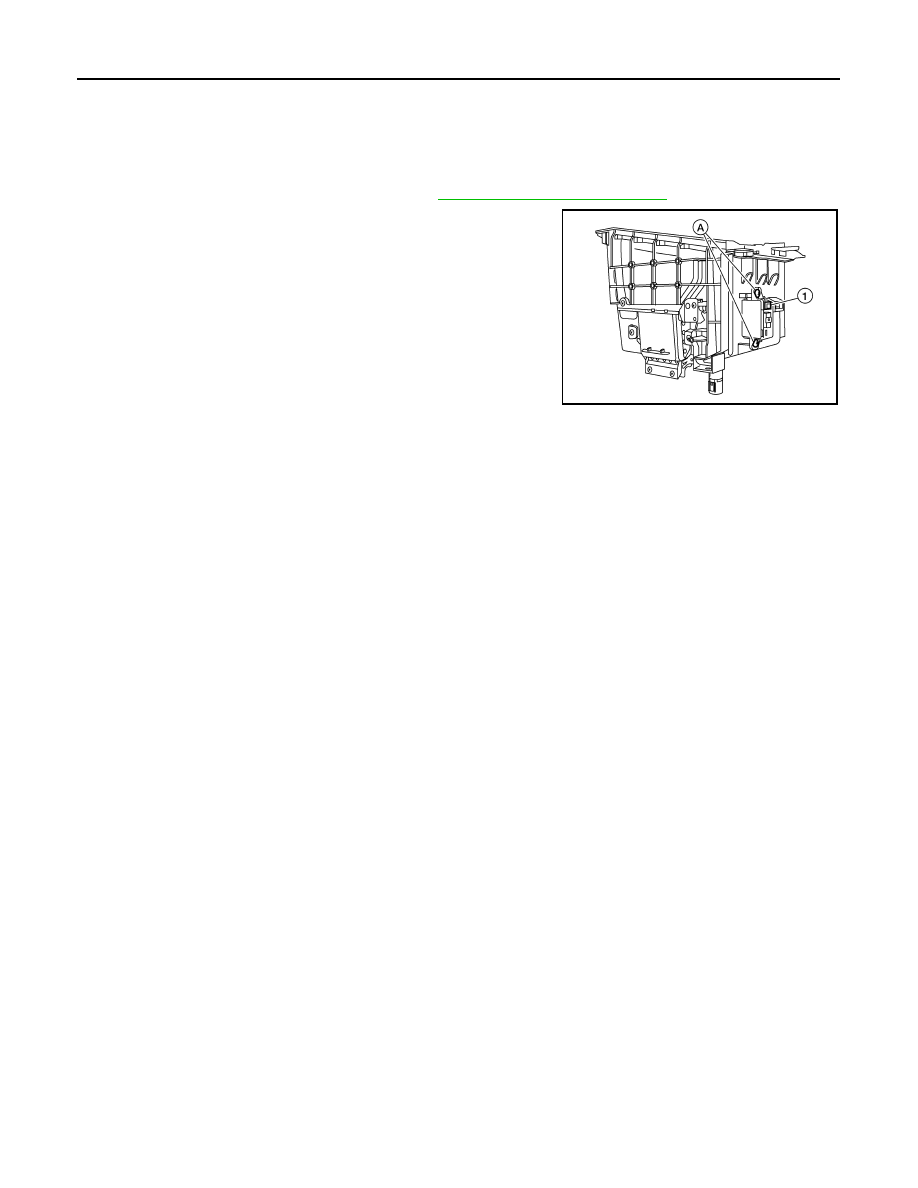

2. Remove the auxiliary input jacks screws (A) and auxiliary input

jacks (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1162ZZ

AV

FRONT TWEETER

AV-659

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

 FRONT TWEETER

Removal and Installation

INFOID:0000000009471536

REMOVAL

1. Remove the front pillar finisher. Refer to

INT-24, "Removal and Installation"

.

2. Remove the front tweeter speaker grille. Refer to

IP-10, "Exploded View"

.

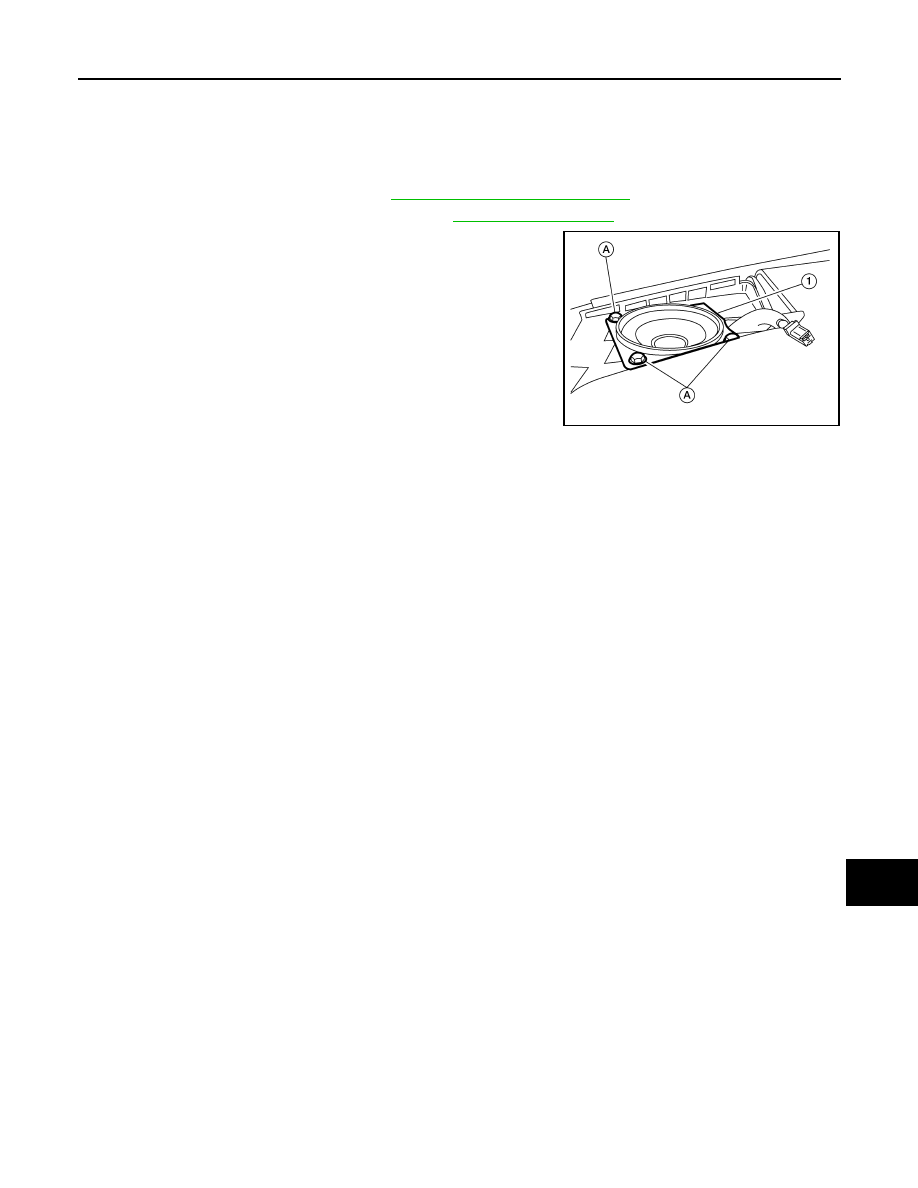

3. Remove the front tweeter speaker screws (A).
4. Pull out front tweeter speaker (1), disconnect the harness con-

nector from the front tweeter speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA2220ZZ
