AV-664

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

BOSE SPEAKER AMP

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000009471541

REMOVAL

NOTE:

If removing the BOSE speaker amp. bracket, it is necessary to remove the parcel shelf finisher. The BOSE

speaker amp. can be removed without removing the BOSE speaker amp. bracket.
1. Disconnect the battery negative terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove the trunk upper finisher. Refer to

INT-36, "Exploded View"

.

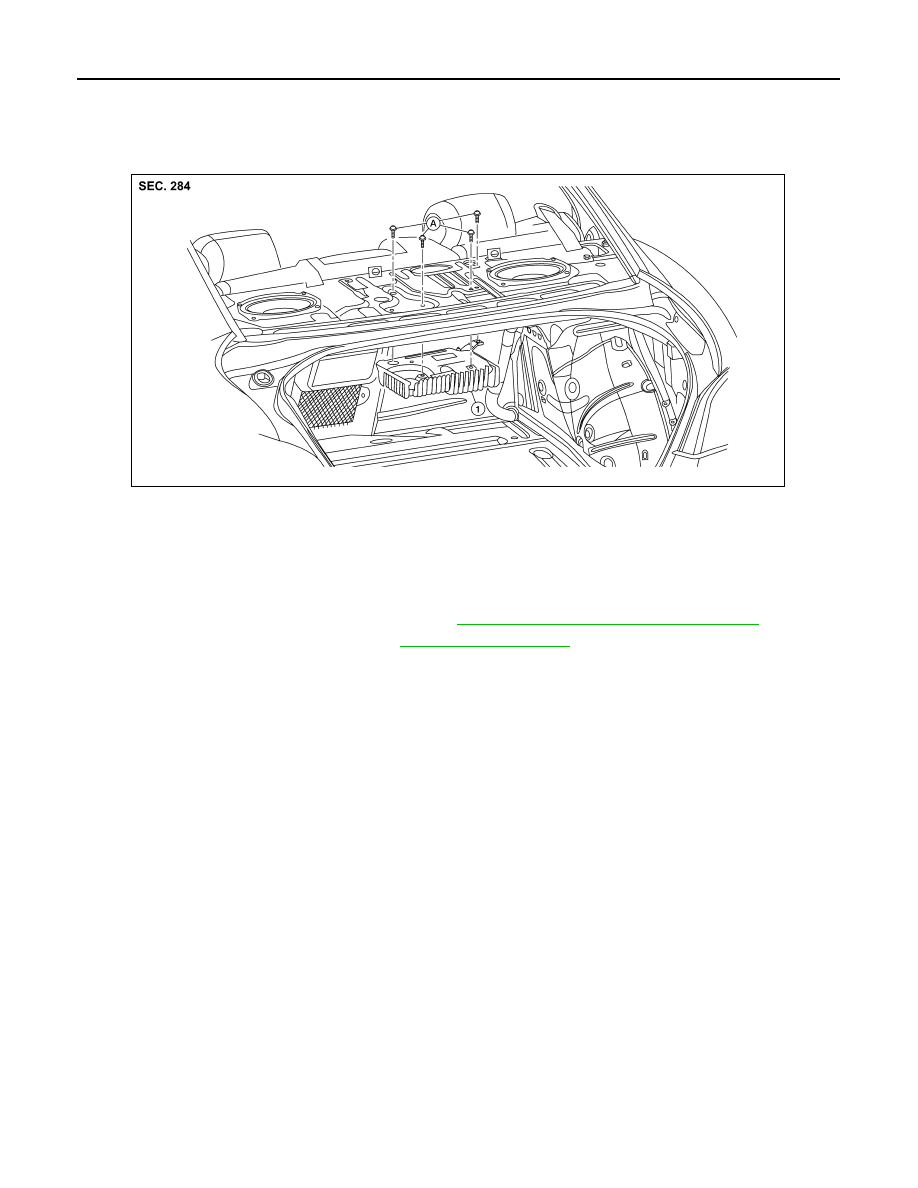

3. Remove the Bose speaker amp. screws.
4. Disconnect the harness connector from the BOSE speaker amp. and remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Bose speaker amp.

A.

Screws

ALNIA1137ZZ

AV

SATELLITE RADIO ANTENNA

AV-665

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000009471542

REMOVAL

1. Lower the headlining at the rear. Refer to

INT-33, "Exploded View"

.

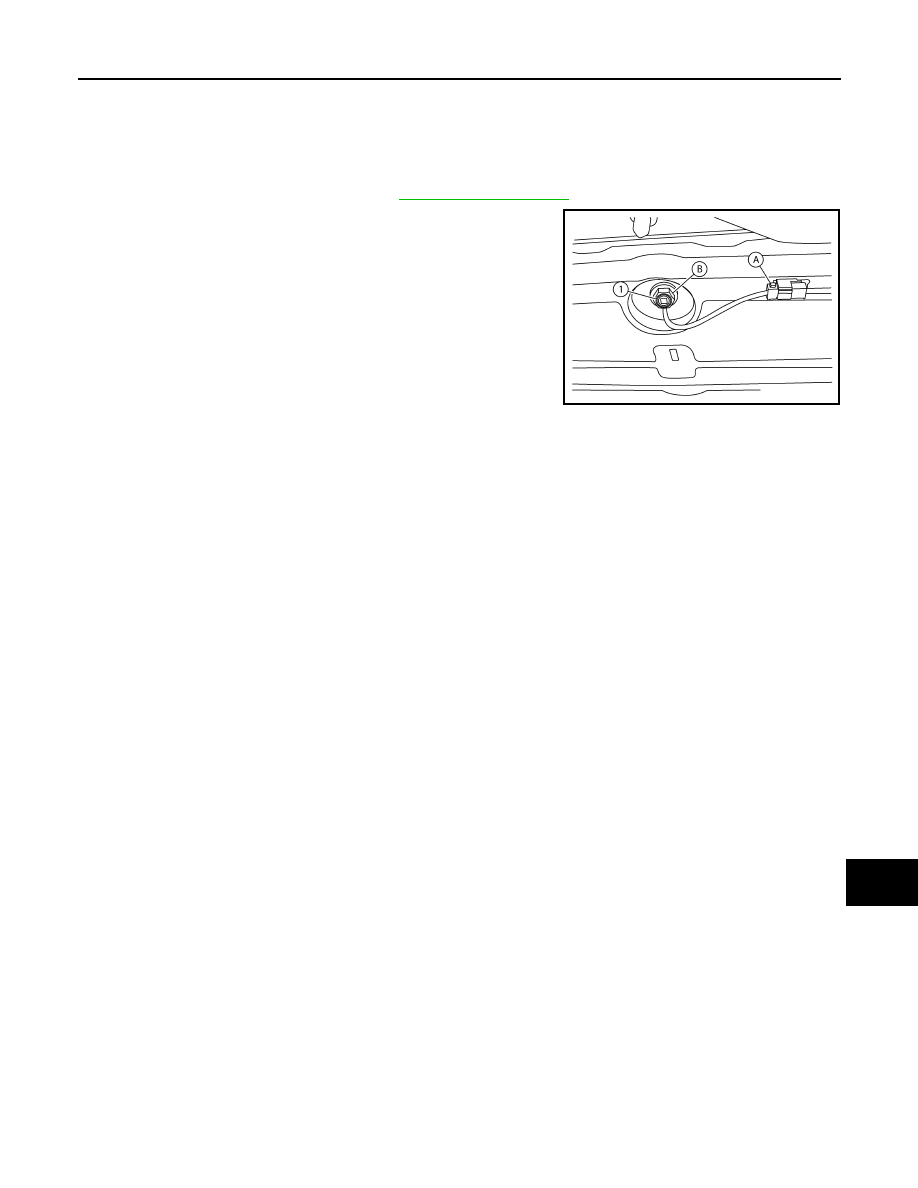

2. Disconnect the harness connector (A) from satellite radio

antenna.

3. Remove the satellite radio antenna nut (B) and the satellite radio

antenna (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1141ZZ

AV-666

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

GPS ANTENNA

GPS ANTENNA

Removal and Installation

INFOID:0000000009471543

REMOVAL

1. Remove cluster lid A. Refer to

IP-10, "Exploded View"

.

2. Remove the audio unit. Refer to

AV-652, "Removal and Installation"

.

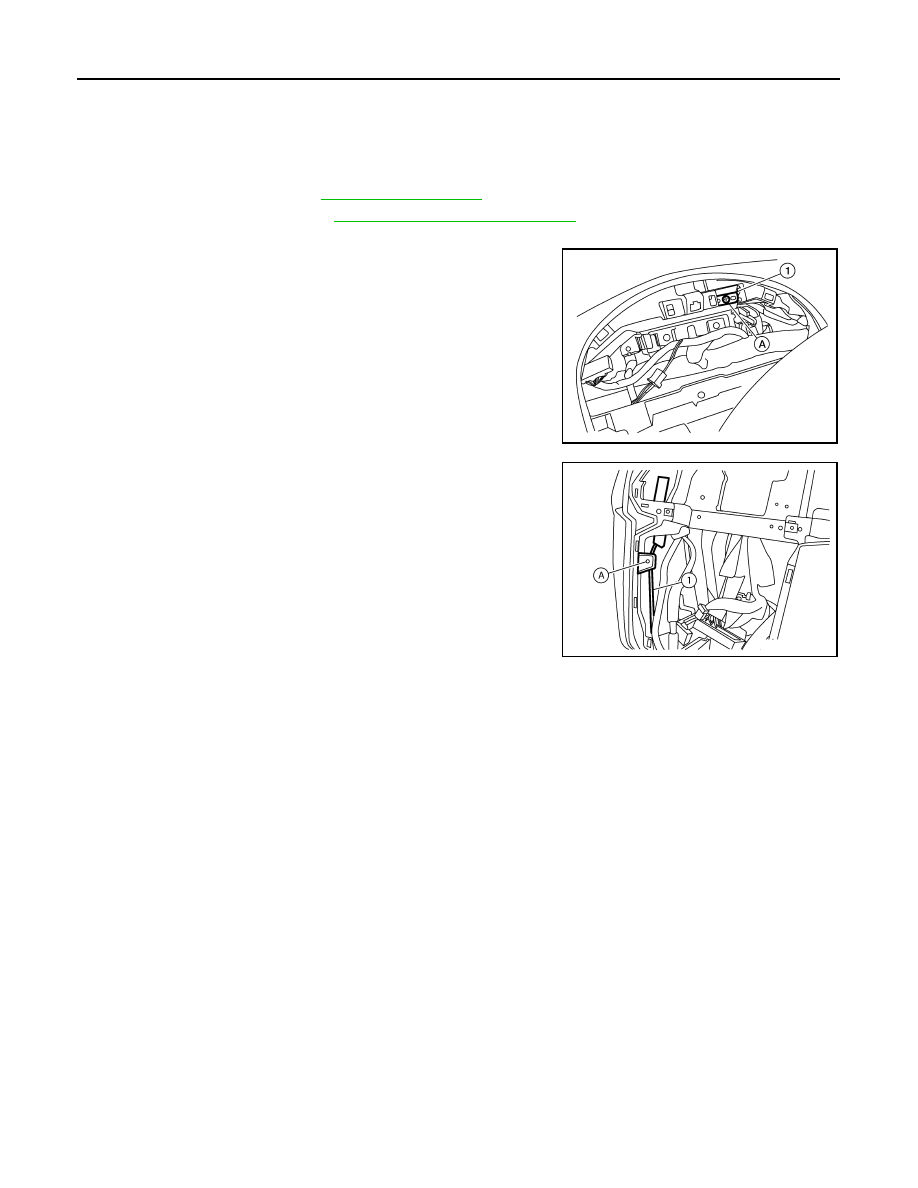

3. Remove the GPS antenna screw (A).

• GPS antenna (1)

4. Detach the GPS antenna cable clip (A), then fish the GPS

antenna connector and harness (1), through the cluster lid A

instrument panel opening and remove the GPS antenna.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1142ZZ

ALNIA1143ZZ

AV

STEERING SWITCH

AV-667

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Removal and Installation

INFOID:0000000009471544

REMOVAL

1. Remove the driver airbag module. Refer to

SR-12, "Removal and Installation"

.

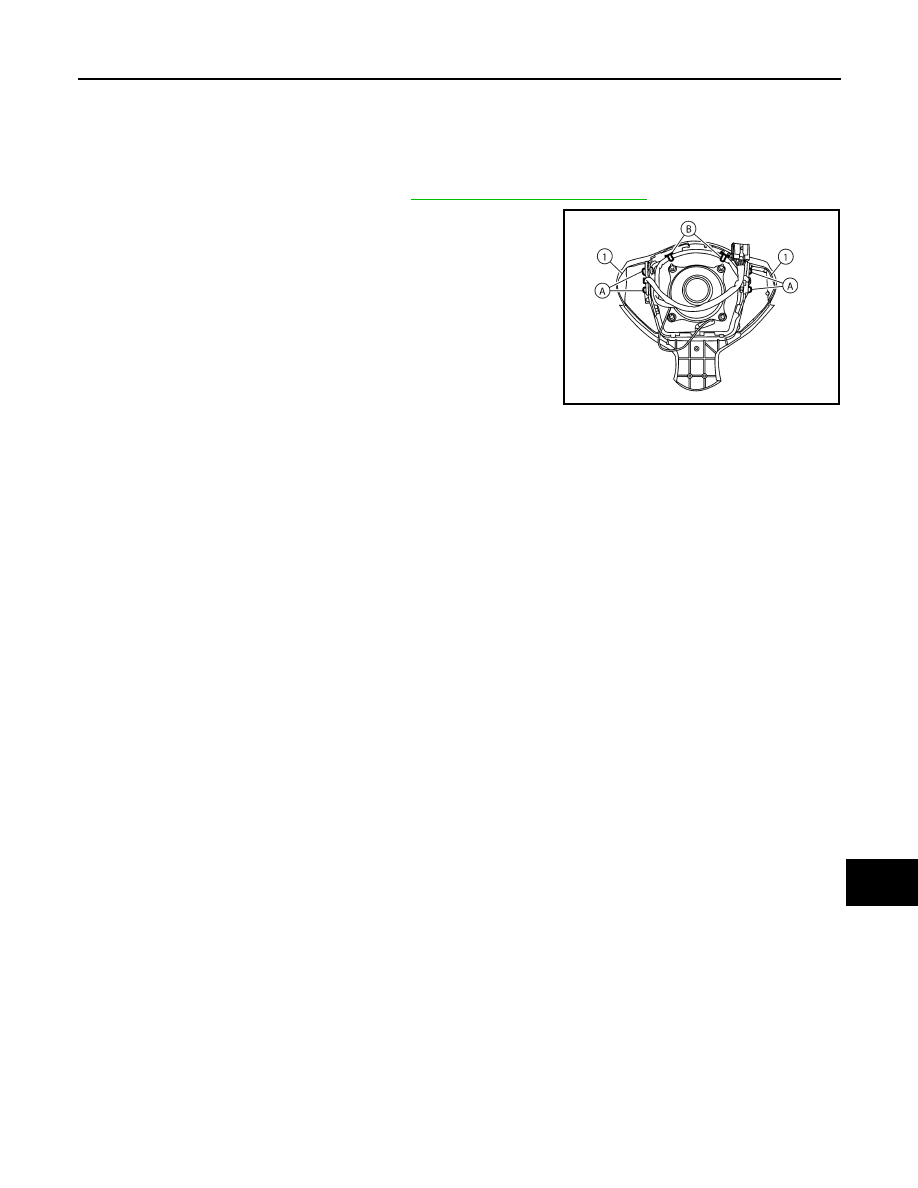

2. Remove the steering wheel audio control switch screws (A).
3. Release the steering wheel audio control switch harness clips

(B).

4. Remove the steering wheel audio control switches (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1132ZZ
