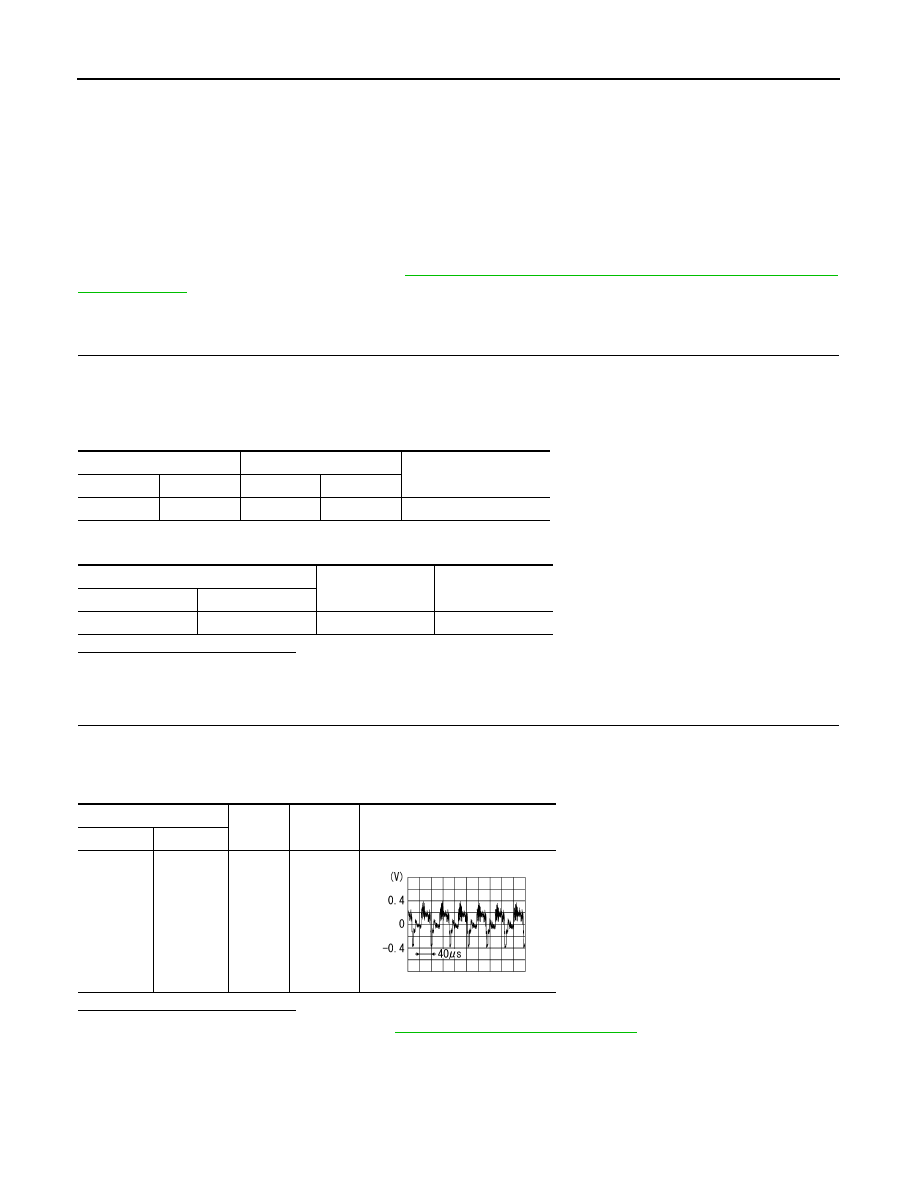

Nissan Maxima. Manual - part 190

AV-580

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

AUX IMAGE SIGNAL CIRCUIT

AUX IMAGE SIGNAL CIRCUIT

Description

INFOID:0000000009471498

• Transmits the image signal of AUX device from auxiliary input jacks to AV control unit.

• AV control unit transmits the image signal that is input to the display unit.

Diagnosis Procedure

INFOID:0000000009471499

Regarding Wiring Diagram information, refer to

AV-614, "Wiring Diagram - With BOSE audio system With Nav-

igation System"

.

1.

CHECK CONTINUITY AUX IMAGE SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect auxiliary input jack connector M209 and AV control unit connector M164.

3. Check continuity between auxiliary input jack harness connector M209 (A) terminal 7 and AV control unit

harness connector M164 (B) terminal 76.

4. Check continuity between auxiliary input jack harness connector M209 (A) terminal 8  and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK AUX IMAGE SIGNAL

1. Connect auxiliary input jack connector M209 and AV control unit connector M164.

2. Turn ignition switch ON.

3. Check signal between auxiliary input jack connector M209 terminal 7 and ground.

Is the inspection result normal?

YES

>> Replace AV control unit. Refer to

AV-652, "Removal and Installation"

 .

NO

>> Check that there is no malfunction in the external device.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M209

7

M164

76

Yes

A

—

Continuity

Connector

Terminal

M209

7

Ground

No

(+)

(-)

Condition

Reference signal

Connector

Terminal

M209

7

Ground

Receive
video sig-
nal

SKIB2251J

AV

DISK EJECT SIGNAL CIRCUIT

AV-581

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISK EJECT SIGNAL CIRCUIT

Description

INFOID:0000000009471500

The eject signal is output to AV control unit when the eject switch of A/C and AV switch assembly is pressed.

Diagnosis Procedure

INFOID:0000000009471501

Regarding Wiring Diagram information, refer to

AV-614, "Wiring Diagram - With BOSE audio system With Nav-

igation System"

.

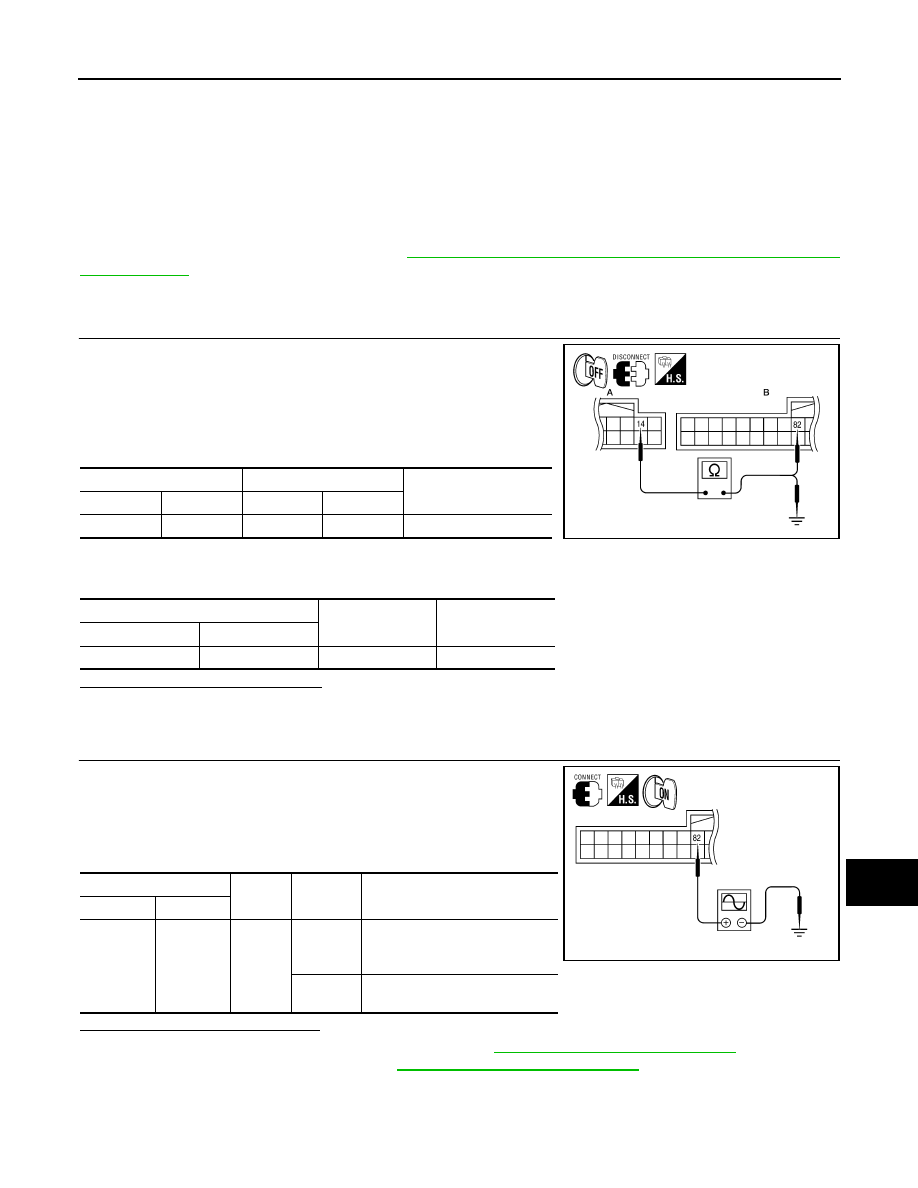

1.

CHECK CONTINUITY DISK EJECT SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect A/C and AV switch assembly connector M98 and AV

control unit connector M164.

3. Check continuity between A/C and AV switch assembly connec-

tor M98 (A) terminal 14 and AV control unit harness connector

M164 (B) terminal 82.

4. Check continuity between A/C and AV switch assembly connec-

tor M98 (A) terminal 14 and ground.

Are continuity results as specified?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK AV CONTROL UNIT VOLTAGE

1. Connect A/C and AV switch assembly connector M98 and AV

control unit connector M164.

2. Turn ignition switch ON.

3. Check voltage between AV control unit harness connector M164

terminal 82 and ground.

Are voltage readings as specified?

YES

>> Replace A/C and AV switch assembly. Refer to

AV-654, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-652, "Removal and Installation"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M98

14

M164

82

Yes

A

—

Continuity

Connector

Terminal

M98

14

Ground

No

ALNIA1226GB

(+)

(-)

Condition

Voltage

(Approx.)

Connector

Terminal

M164

82

Ground

Pressing
the eject
switch

0 V

Except for
above

5.0 V

ALNIA1227GB

AV-582

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

MICROPHONE SIGNAL CIRCUIT

MICROPHONE SIGNAL CIRCUIT

Description

INFOID:0000000009471502

Voice signals are transmitted from the microphone to the AV control unit using the microphone signal circuits.

Diagnosis Procedure

INFOID:0000000009471503

Regarding Wiring Diagram information, refer to

AV-614, "Wiring Diagram - With BOSE audio system With Nav-

igation System"

.

1.

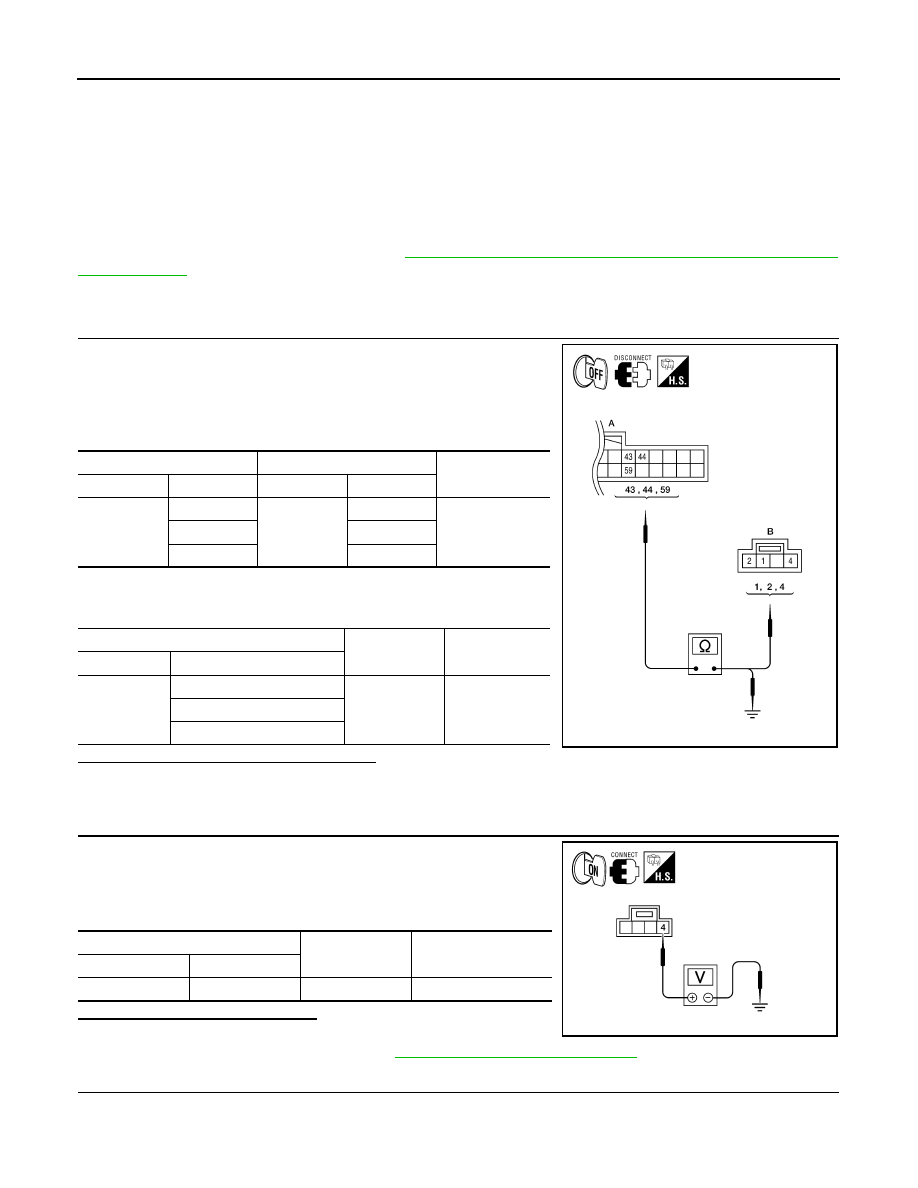

CHECK HARNESS BETWEEN AV CONTROL UNIT AND MICROPHONE

1. Turn ignition switch OFF.

2. Disconnect AV control unit connector and microphone connec-

tor.

3. Check continuity between AV control unit harness connector

M163 (A) and microphone harness connector R7 (B).

4. Check continuity between AV control unit harness connector

M163 (A) and ground.

Are the continuity test results as specified?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK MICROPHONE POWER SUPPLY

1. Connect AV control unit connector and microphone connector.

2. Turn ignition switch ON.

3. Check voltage between microphone harness connector R7 ter-

minal 4 and ground.

Is voltage reading approx. 5 volts?

YES

>> GO TO 3.

NO

>> Replace AV control unit. Refer to

AV-652, "Removal and Installation"

.

3.

CHECK MICROPHONE SIGNAL

A

B

Continuity

Connector

Terminal

Connector

Terminal

M163

59

R7

1

Yes

43

2

44

4

A

—

Continuity

Connector

Terminal

M163

44

Ground

No

43

59

AWLIA1762ZZ

(+)

(-)

Voltage (approx)

Connector

Terminal

R7

4

Ground

5V

WKIA5796E

AV

MICROPHONE SIGNAL CIRCUIT

AV-583

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

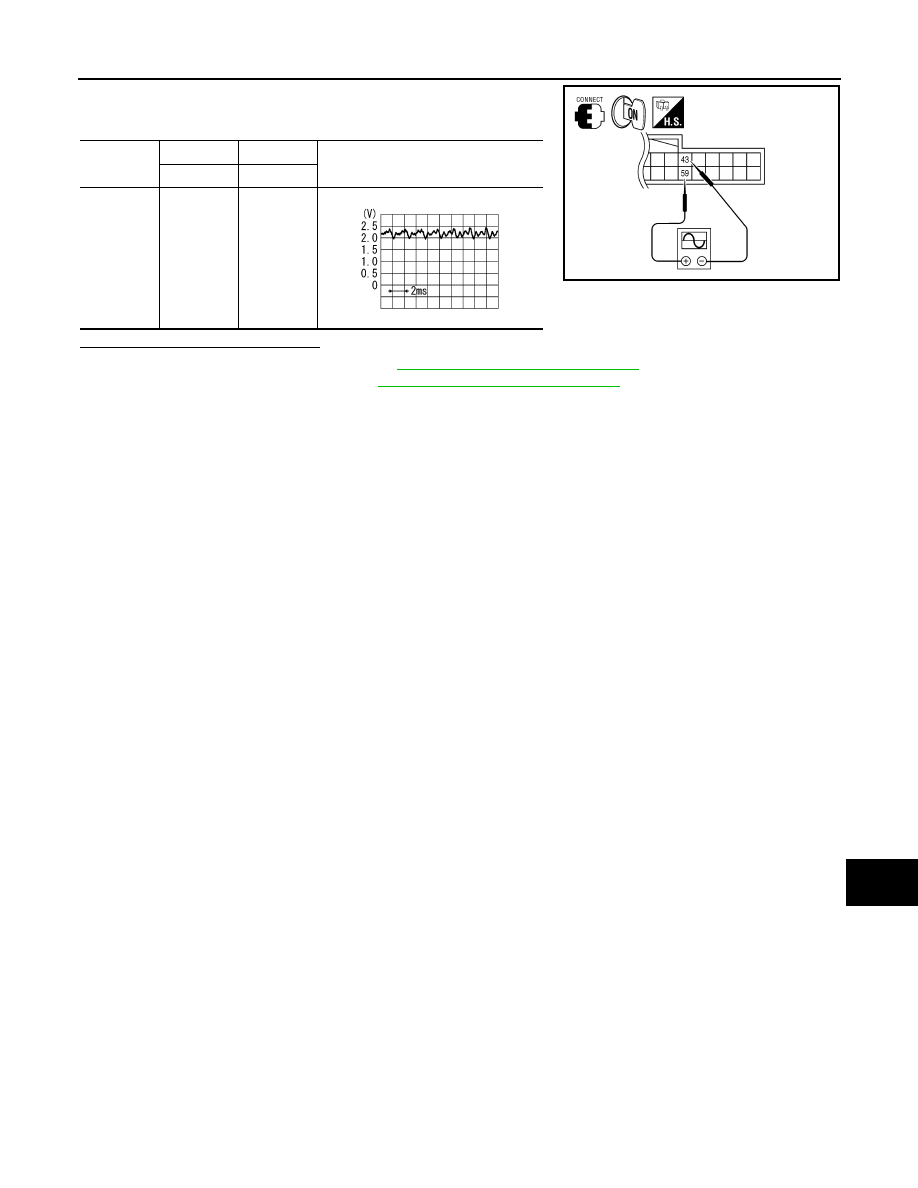

Check signal between AV control unit harness connector M163 ter-

minals 43 and 59.

Are voltage readings as specified?

YES

>> Replace AV control unit. Refer to

AV-652, "Removal and Installation"

.

NO

>> Replace microphone. Refer to

AV-672, "Removal and Installation"

.

Connector

(+)

(-)

Reference signal

Terminal

Terminal

M163

59

43

While speaking into MIC

ALNIA1216GB

PKIB5037J
