Nissan Maxima. Manual - part 191





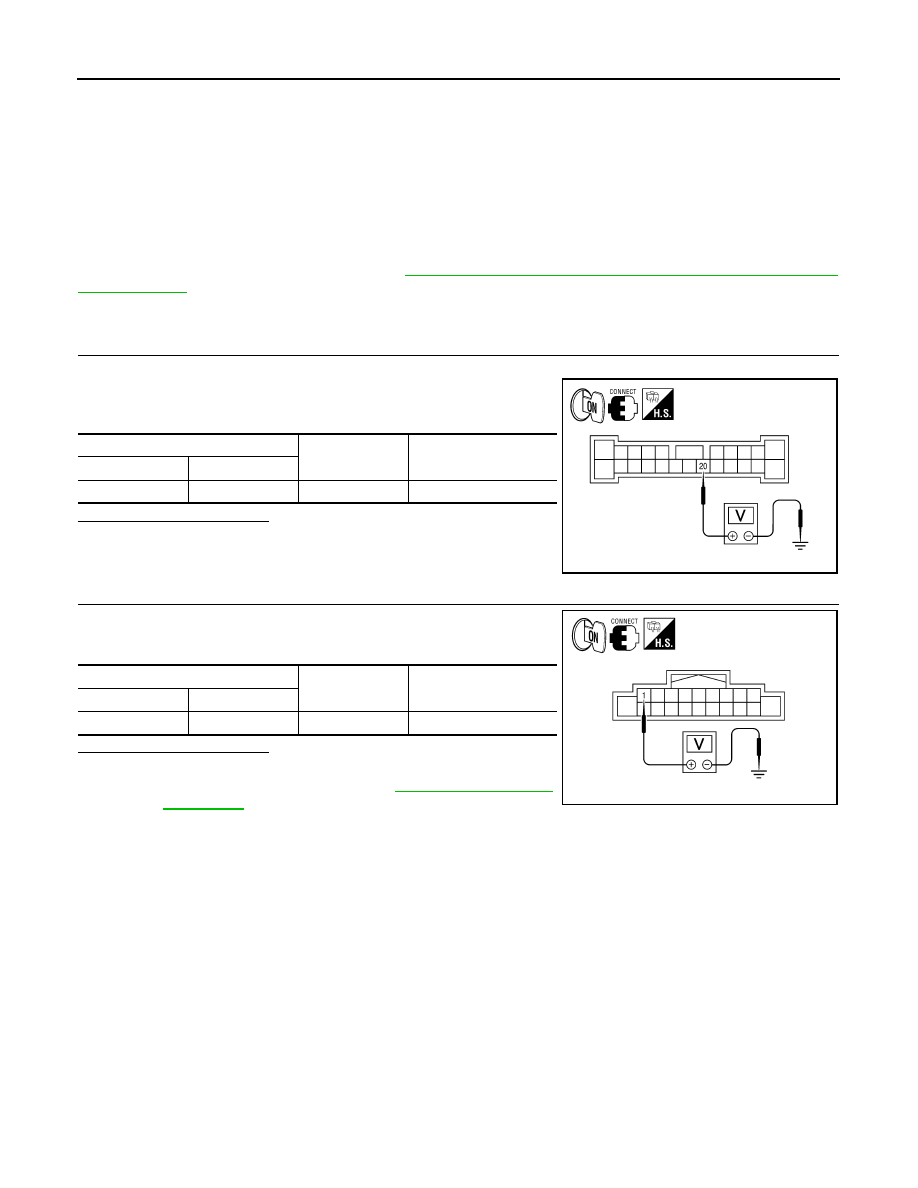

AV-584

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

AMP ON SIGNAL CIRCUIT

AMP ON SIGNAL CIRCUIT

Description

INFOID:0000000009471504

When the audio system is turned on, a voltage signal is supplied from the AV control unit to the BOSE speaker

amp. When this signal is received, the BOSE speaker amp. will turn on.

Diagnosis Procedure

INFOID:0000000009471505

Regarding Wiring Diagram information, refer to

AV-614, "Wiring Diagram - With BOSE audio system With Nav-

igation System"

.

1.

CHECK AMP ON SIGNAL (BOSE SPEAKER AMP)

1. Turn audio system ON.

2. Check voltage between BOSE speaker amp. harness connector

B109 terminal 20 and ground.

Is inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 2.

2.

CHECK AMP ON SIGNAL (AV CONTROL UNIT)

Check voltage between AV control unit harness connector M160 ter-

minal 1 and ground.

Is inspection result normal?

YES

>> Repair harness or connector.

NO

>> Replace AV control unit. Refer to

AV-652, "Removal and

Installation"

.

(+)

(-) Voltage

(Approx.)

Connector

Terminal

B109

20

Ground

Battery voltage

AWNIA1707ZZ

(+)

(-) Voltage

(Approx.)

Connector

Terminal

M160

1

Ground

Battery voltage

ALNIA0148ZZ

AV

FRONT DOOR SPEAKER

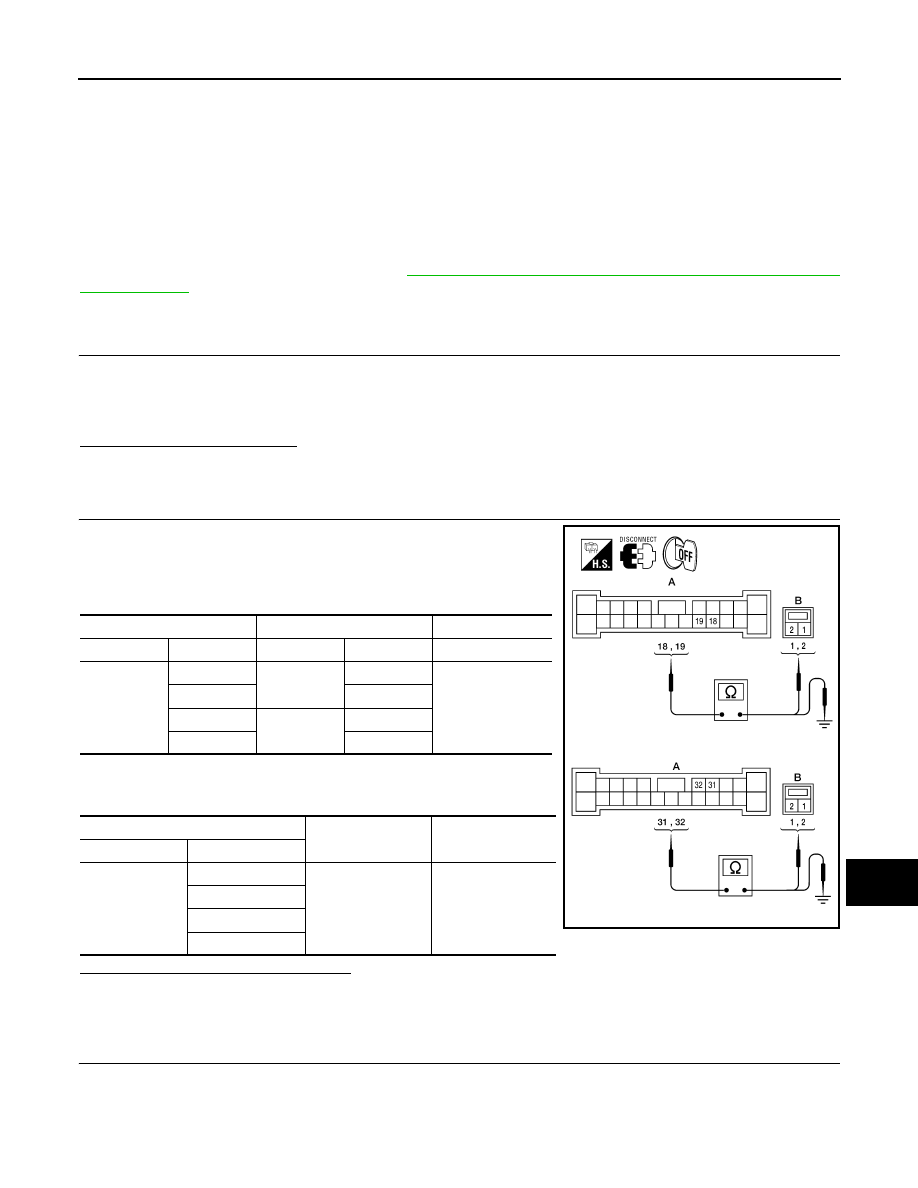

AV-585

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT DOOR SPEAKER

Description

INFOID:0000000009471506

The AV control unit sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the

audio signals before sending them to the front door speakers using the audio signal circuits.

Diagnosis Procedure

INFOID:0000000009471507

Regarding Wiring Diagram information, refer to

AV-614, "Wiring Diagram - With BOSE audio system With Nav-

igation System"

.

1.

CONNECTOR CHECK

Check the AV control unit, BOSE speaker amp. and speaker connectors for the following:

•  Proper connection

•  Damage

•  Disconnected or loose terminals
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair the terminal and connector.

2.

HARNESS CHECK

1. Disconnect BOSE speaker amp. connector B109 and suspect

speaker connector.

2. Check continuity between BOSE speaker amp. harness connec-

tor B109 (A) and suspect speaker harness connector (B).

3. Check continuity between BOSE speaker amp. harness connec-

tor B109 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 3.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

3.

FRONT DOOR SPEAKER SIGNAL CHECK

A B

Continuity

Connector

Terminal

Connector

Terminal

B109

18

D3

1

Yes

19

2

31

D103

1

32

2

A

-

Continuity

Connector

Terminal

B109

18

Ground

No

19

31

32

AWNIA1694ZZ

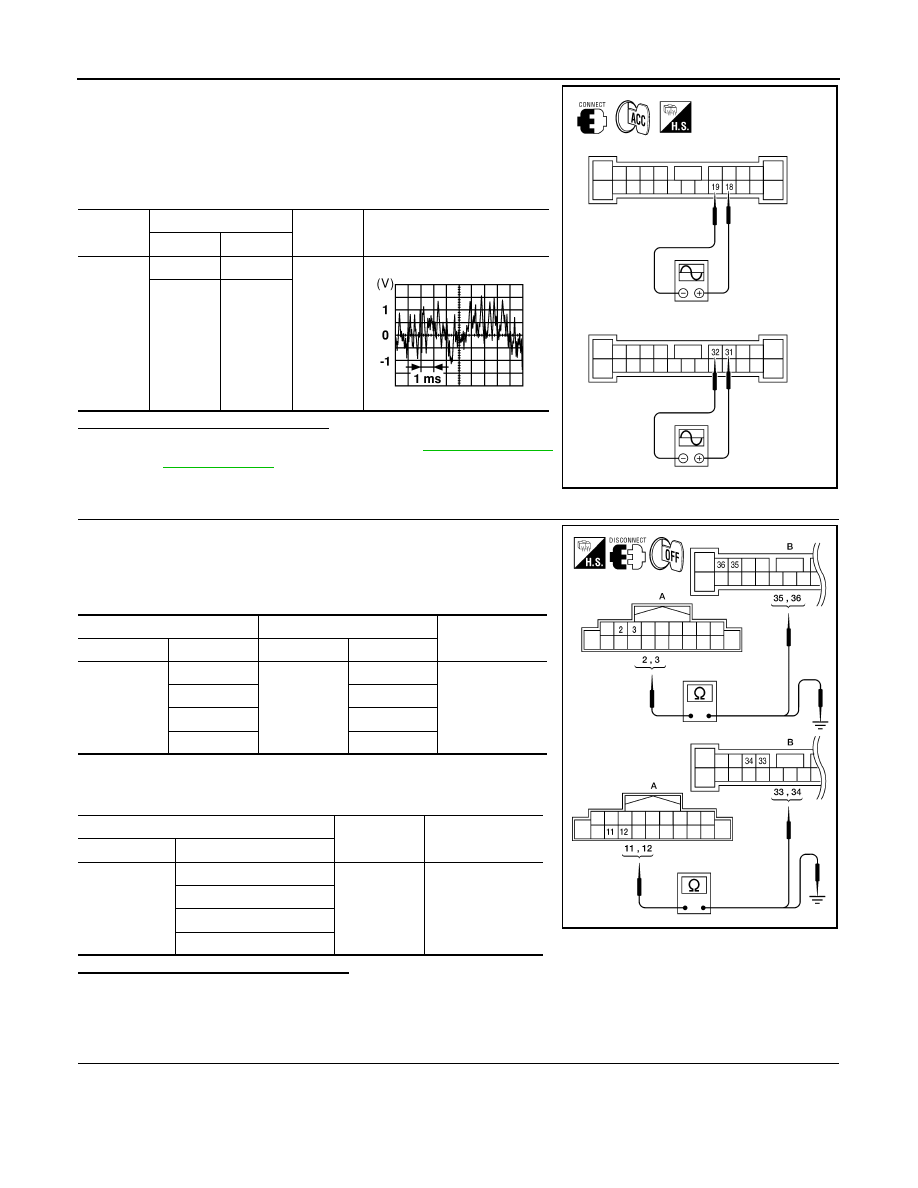

AV-586

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

FRONT DOOR SPEAKER

1. Connect BOSE speaker amp. connector B109 and suspect

speaker connector.

2. Turn ignition switch to ACC.

3. Push POWER switch.

4. Check the signal between BOSE speaker amp. harness connec-

tor B109 terminals with CONSULT or oscilloscope.

Is audio signal voltage as specified?

YES

>> Replace suspect speaker. Refer to

AV-661, "Removal

and Installation"

.

NO

>> GO TO 4.

4.

HARNESS CHECK

1. Disconnect AV control unit connector M160 and BOSE speaker

amp. connector B109.

2. Check continuity between AV control unit harness connector

M160 (A) and BOSE speaker amp. harness connector B109 (B).

3. Check continuity between AV control unit harness connector

M160 (A) and ground.

Are continuity test results as specified?

YES

>> GO TO 5.

NO

>> • Check connector housings for disconnected or loose terminals.

• Repair harness or connector.

5.

FRONT DOOR SPEAKER SIGNAL CHECK

Connec-

tor

Terminal

Condition

Reference

signal

(+)

(-)

B109

18

19

Receive
audio sig-
nal

31

32

AWNIA1695ZZ

SKIA0177E

A

B

Continuity

Connector

Terminal

Connector

Terminal

M160

2

B109

35

Yes

3

36

11

33

12

34

Continuity

Connector

Terminal

M160

2

Ground

No

3

11

12

AWNIA1696ZZ

AV

FRONT DOOR SPEAKER

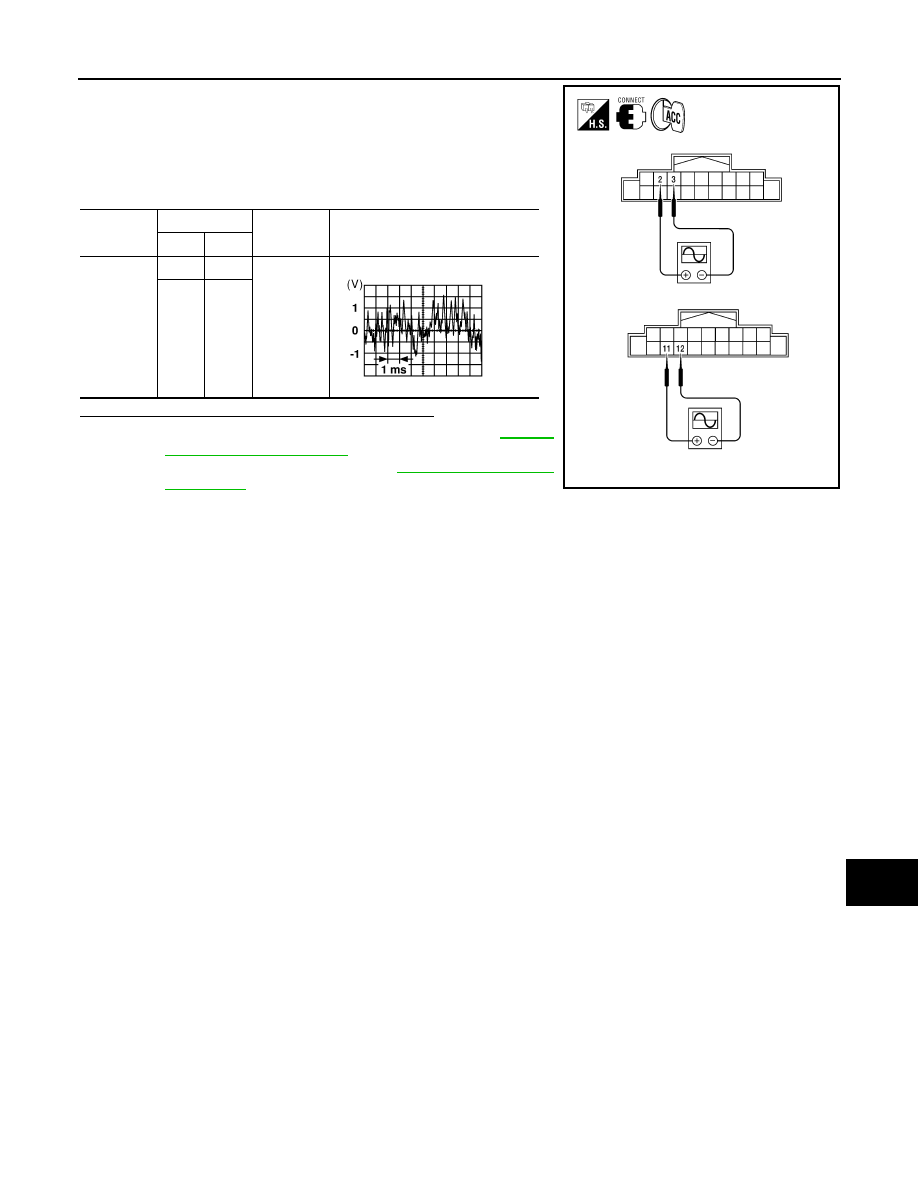

AV-587

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1. Connect AV control unit connector and BOSE speaker amp.

connector.

2. Turn ignition switch ACC.

3. Push POWER switch.

4. Check the signal between AV control unit harness connector ter-

minals with CONSULT or oscilloscope.

Are the audio signal voltage readings as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-664,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-652, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M160

2

3

Receive
audio sig-
nal

11

12

ALNIA0171ZZ

SKIA0177E
