TM-120

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F09B]

TCM

RANGE SW 2

Selector lever in “N” and “D” positions

On

Selector lever in “P” and “R” positions

Off

RANGE SW 1

Selector lever in “R”, “N” and “D” positions

On

Selector lever in “P” position

Off

BRAKESW

Depressed brake pedal

On

Released brake pedal

Off

FULL SW

Fully depressed accelerator pedal

On

Released accelerator pedal

Off

IDLE SW

Released accelerator pedal

On

Fully depressed accelerator pedal

Off

DOWNLVR

Selector lever: DOWN (

− side)

On

Other than the above

Off

UPLVR

Selector lever: UP (+ side)

On

Other than the above

Off

NONMMODE

Manual shift gate position

Off

Other than the above

On

MMODE

Manual shift gate position (neutral)

On

Other than the above

Off

STRDWNSW

*2

Pressed paddle shifter (shift-up)

On

Released paddle shifter

Off

STRUPSW

*2

Pressed paddle shifter (shift-down)

On

Released paddle shifter

Off

INDDRNG

Selector lever in “D” position

On

Selector lever in other positions

Off

INDNRNG

Selector lever in “N” position

On

Selector lever in other positions

Off

INDRRNG

Selector lever in “R” position

On

Selector lever in other positions

Off

INDPRNG

Selector lever in “P” position

On

Selector lever in other positions

Off

MMODE IND

When manual mode

On

Other conditions

Off

SMCOIL D

During driving

Changes ON

⇔ OFF.

SMCOIL C

During driving

Changes ON

⇔ OFF.

SMCOIL B

During driving

Changes ON

⇔ OFF.

SMCOIL A

During driving

Changes ON

⇔ OFF.

LUSEL SOL OUT

Selector lever in “P” and “N” positions

On

Wait at least for 5 seconds with the selector lever in
“R” and “D” positions

Off

LUSEL SOL MON

Selector lever in “P” and “N” positions

On

Wait at least for 5 seconds with the selector lever in
“R” and “D” positions

Off

STRTR RLY OUT

Selector lever in “P” and “N” positions

On

Selector lever in other positions

Off

Item name

Condition

Display value (Approx.)

TCM

TM-121

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*1 Means CVT fluid temperature. Actual oil temperature

°C (°F) cannot be checked unless a numeric value is converted. Refer to

TM-

152, "ATFTEMP COUNT Conversion Table"

.

*2: With paddle shifter

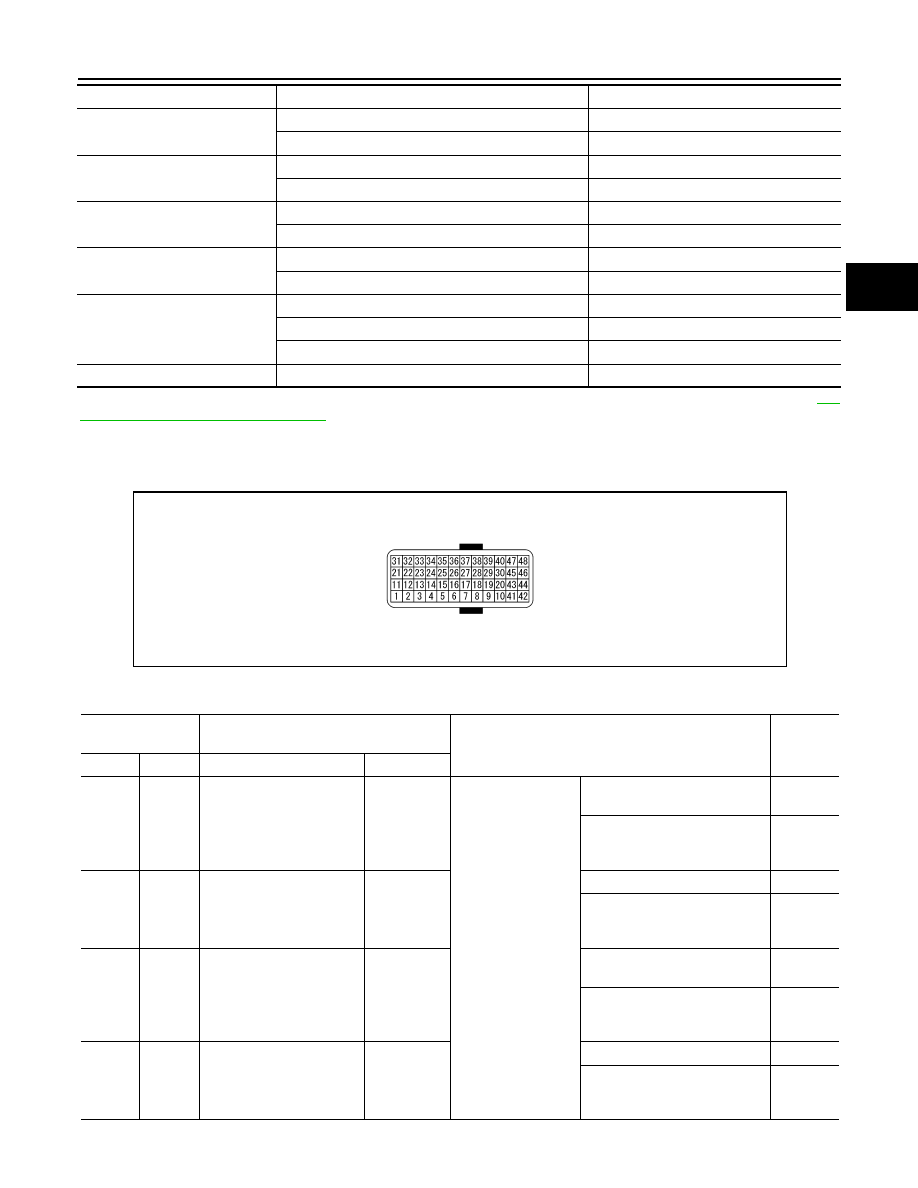

TERMINAL LAYOUT

PHYSICAL VALUES

STRTR RLY MON

Selector lever in “P” and “N” positions

On

Selector lever in other positions

Off

VDC ON

VDC operate

On

Other conditions

Off

TCS ON

TCS operate

On

Other conditions

Off

ABS ON

ABS operate

On

Other conditions

Off

RANGE

Selector lever in “N” and “P” positions

N·P

Selector lever in “R” position

R

Selector lever in “D” position

D

M GEAR POS

During driving

1, 2, 3, 4, 5, 6

Item name

Condition

Display value (Approx.)

SCIA6679J

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

−

Signal name

Input/Output

1

(P/B)

Ground

Transmission range switch
2

Input

Ignition switch ON

Selector lever in “N” and “D” po-
sitions

0 V

Selector lever in other positions

10.0 V –

Battery
voltage

2

(P/L)

Ground

Transmission range switch
3

Input

Selector lever in “D” position

0 V

Selector lever in other positions

10.0 V –

Battery
voltage

3

(G/O)

Ground

Transmission range switch
4

Input

Selector lever in “R” and “D” po-
sitions

0 V

Selector lever in other positions

10.0 V –

Battery
voltage

4

(GR)

Ground

Transmission range switch
3 (monitor)

Input

Selector lever in “D” position

0 V

Selector lever in other positions

10.0 V –

Battery
voltage

TM-122

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F09B]

TCM

5

(B)

Ground

Ground

Output

Always

0 V

6

(O)

Ground

K-LINE

Input/Output

—

—

7

(W)

Ground

Sensor ground

Output

Always

0 V

8

(G/W)

—

CLOCK (SEL2)

—

—

—

9

(L/R)

—

CHIP SELECT (SEL1)

—

—

—

10

(BR/R)

—

DATA I/O (SEL3)

—

—

—

11

(BR/W)

Ground

Transmission range switch
1

Input

Ignition switch ON

Selector lever in “R”, “N” and “D”
positions

0 V

Selector lever in other positions

Battery
voltage

13

(V)

Ground

CVT fluid temperature sen-
sor

Input

Ignition switch ON

When CVT fluid temperature is
20

°C (68°F)

1.9 – 2.2

V

When CVT fluid temperature is
80

°C (176°F)

0.8 – 1.1

V

14

(R/W)

Ground

Primary pressure sensor

Input

“N” position idle

0.5 – 0.8

V

15

(V/W)

Ground

Secondary pressure sen-
sor

Input

1.0 – 1.5

V

19

(G/B)

Ground

Reverse lamp relay

Output

Ignition switch ON

Selector lever in “R” position

0 V

Selector lever in other positions

Battery
voltage

20

(R/B)

Ground

Starter relay

Output

Ignition switch ON

Selector lever in “N”, “P” posi-
tions

Battery
voltage

Selector lever in other positions

0 V

25

(W/R)

Ground

Sensor ground

Output

Always

0 V

26

(L/O)

Ground

Sensor power

Output

Ignition switch ON

—

4.75 –

5.25 V

Ignition switch OFF

—

0 V

27

(R/G)

Ground

Step motor D

Output

Within 2 seconds after ignition switch ON, the time
measurement by using the pulse width measurement
function (Hi level) of CONSULT.*

CAUTION:

Connect the diagnosis data link cable to the vehicle
diagnosis connector.

10.0

msec

28

(R)

Ground

Step motor C

Output

30.0

msec

29

(O/B)

Ground

Step motor B

Output

10.0

msec

30

(G/R)

Ground

Step motor A

Output

30.0

msec

31

(P)

—

CAN-L

Input/Output

—

—

32

(L)

—

CAN-H

Input/Output

—

—

33

(LG)

Ground

Primary speed sensor

Input

When driving [“M

1

” position, 20 km/h (12 MPH)]

695 Hz

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

−

Signal name

Input/Output

TCM

TM-123

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*: A circuit tester cannot be used to test this item.

Fail-safe

INFOID:0000000010113945

The TCM has an electrical fail-safe mode. In this mode TCM operates even if there is an error in a main elec-

tronic control input/output signal circuit.

FAIL-SAFE FUNCTION

If any malfunction occurs in a sensor or solenoid valve, this function controls the CVT to make driving possi-

ble.

Secondary Speed Sensor

The shift pattern is changed in accordance with the throttle position when an unexpected signal is sent from

the secondary speed sensor to the TCM. The manual mode and “DS” mode are inhibited, and the transaxle is

put in “D”.

Primary Speed Sensor

The shift pattern is changed in accordance with the throttle position and secondary speed (vehicle speed)

when an unexpected signal is sent from the primary speed sensor to the TCM. The manual mode and “DS”

mode are inhibited, and the transaxle is put in “D”.

Transmission Range Switch

If an unexpected signal is sent from the transmission range switch to the TCM, the transaxle is put in “D”.

CVT Fluid Temperature Sensor

34

(LG/R)

Ground

Secondary speed sensor

Input

When driving [“D” position, 20 km/h (12 MPH)]

390 Hz

37

(V/R)

Ground

Lock-up select solenoid
valve

Output

Ignition switch ON

Selector lever in “P” and “N” po-
sitions

Battery
voltage

Wait at least for 5 seconds with
the selector lever in “R” and “D”
positions.

0 V

38

(L/W)

Ground

Torque converter clutch so-
lenoid valve

Output

When vehicle drive
in “D” position

When CVT performs lock-up

6.0 V

When CVT does not perform
lock-up

1.0 V

39

(W/B)

Ground

Secondary pressure sole-
noid valve

Output

“N” positions idle

 Release your foot from the ac-
celerator pedal.

5.0 – 7.0

V

 Press the accelerator pedal all
the way down.

3.0 – 4.0

V

40

(R/Y)

Ground

Line pressure solenoid
valve

Output

 Release your foot from the ac-
celerator pedal.

5.0 – 7.0

V

 Press the accelerator pedal all
the way down.

1.0 – 3.0

V

42

(B)

Ground

Ground

Output

Always

0 V

45

(L/R)

Ground

Power supply
(memory back-up)

Input

Always

Battery
voltage

46

(Y)

Ground

Power supply

Output

Ignition switch ON

—

Battery
voltage

Ignition switch OFF

—

0 V

47

(L/R)

Ground

Power supply
(memory back-up)

Input

Always

Battery
voltage

48

(Y)

Ground

Power supply

Output

Ignition switch ON

—

Battery
voltage

Ignition switch OFF

—

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

−

Signal name

Input/Output
