REAR SEAT

SE-129

< REMOVAL AND INSTALLATION >

[W/O CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

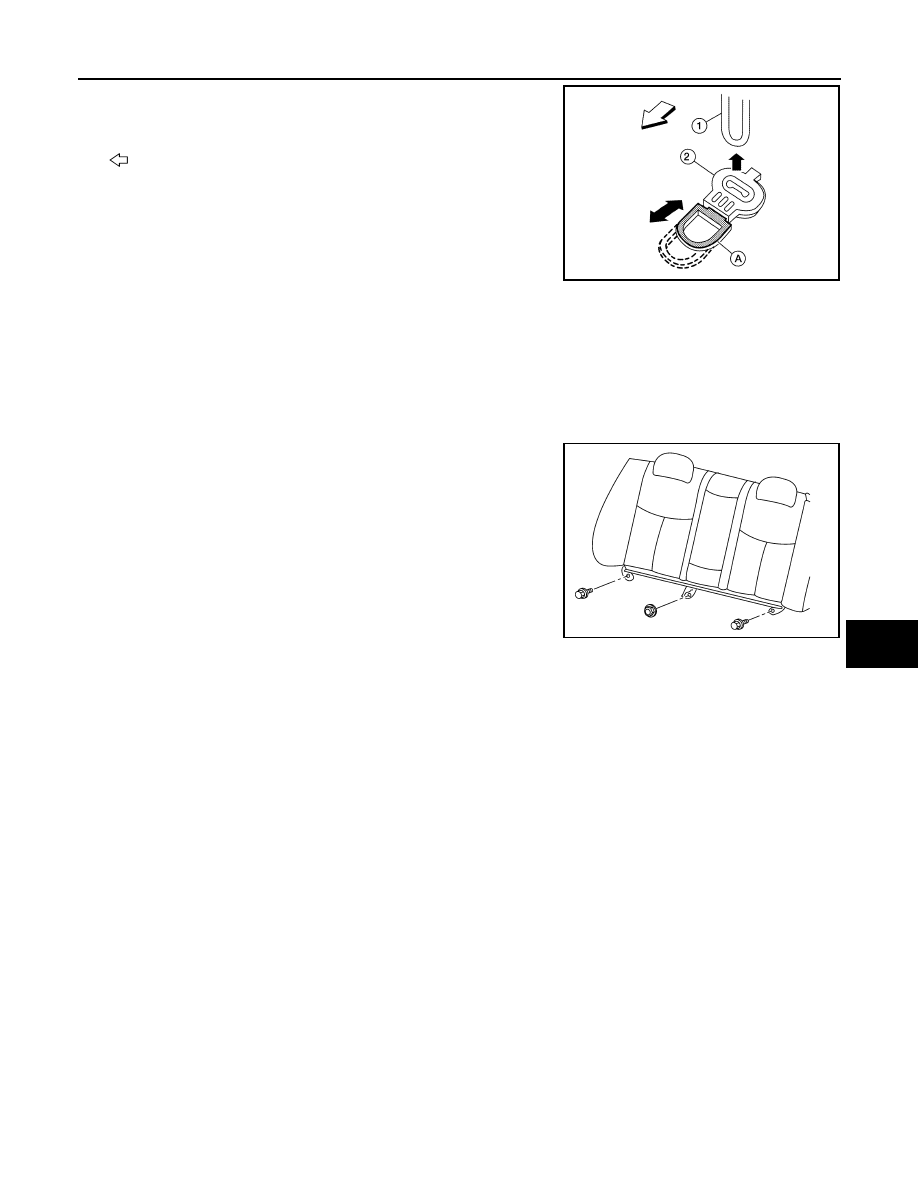

1. Locate the seat cushion lock (2) at the front bottom of the seat

cushion assembly (one for each side). Pull the release lever (A)

forward and lift the seat cushion assembly upward to release the

seat cushion wire (1) from the seat cushion lock (2).

: Front

2. Then pull the seat cushion assembly forward to remove.

Installation

Installation is in the reverse order of removal.

SEATBACK

Removal

1. Remove the seat cushion assembly.
2. Remove the headrests (LH/RH).
3. Remove the seatback frame bolts and nut.

4. Lift the seatback to disengage seat hook wires from the hangers.

Installation

Installation is in the reverse order of removal.

ALJIA0949ZZ

ALIIA0328ZZ

SE-130

< REMOVAL AND INSTALLATION >

[W/O CLIMATE CONTROLLED SEATS]

REAR SEAT

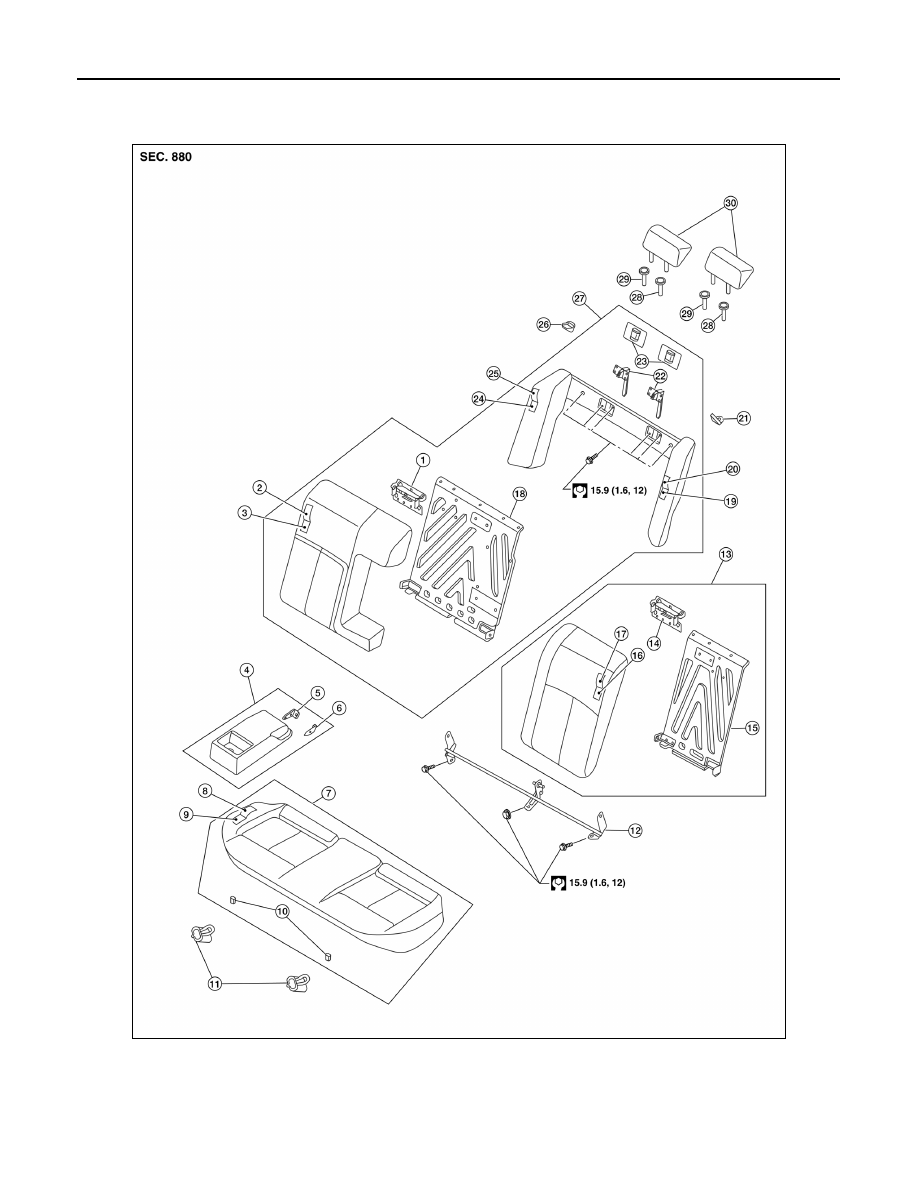

Exploded View - 60:40 Split Seatback

INFOID:0000000009468174

AWJIA0939ZZ

1.

Seatback latch striker (RH)

2.

Seatback trim (RH)

3.

Seatback pad (RH)

4.

Armrest assembly

5.

Inner armrest bracket (RH)

6.

Inner armrest bracket (LH)

7.

Seat cushion assembly

8.

Seat cushion trim

9.

Seat cushion pad

10. Seat cushion wire cover

11. Seat cushion lock

12. Seatback hinge assembly

REAR SEAT

SE-131

< REMOVAL AND INSTALLATION >

[W/O CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

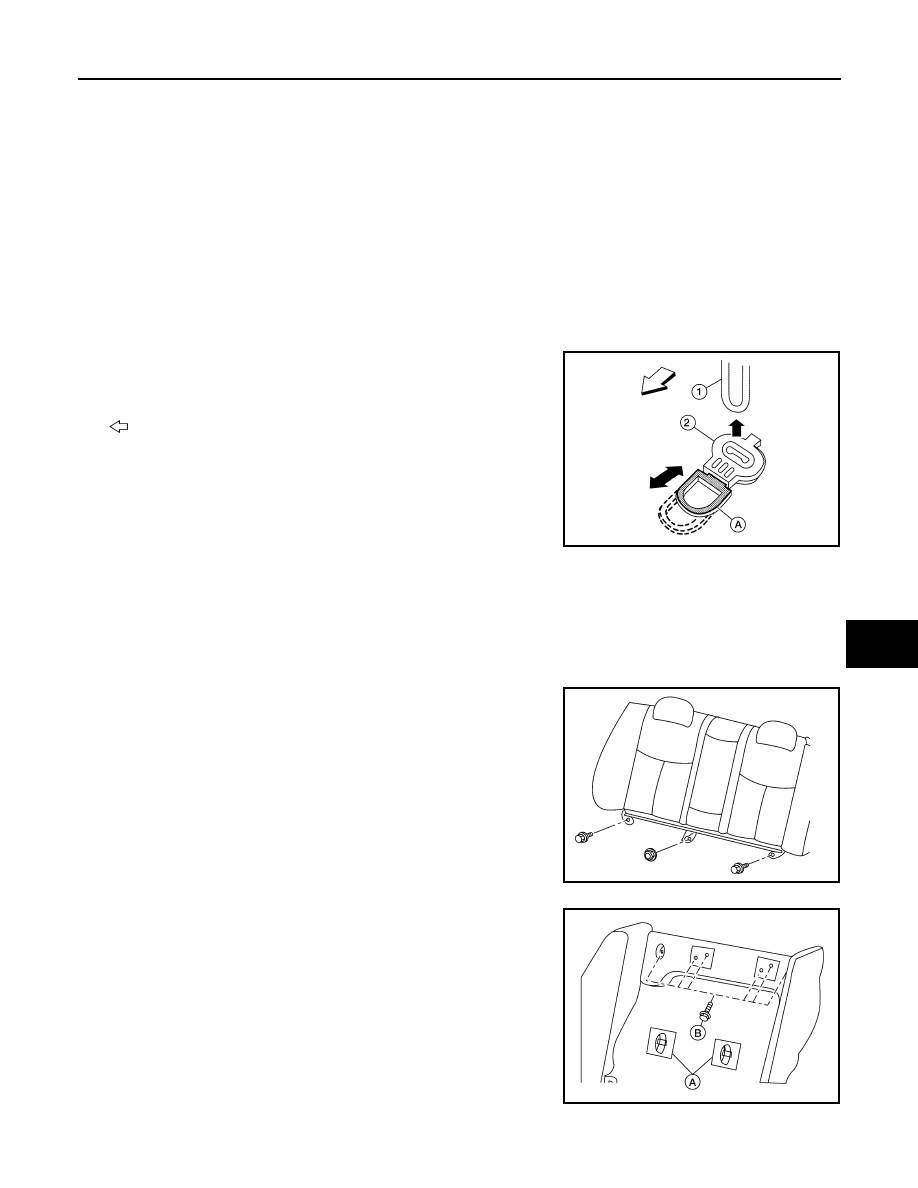

Removal and Installation

INFOID:0000000009468175

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

SEAT CUSHION ASSEMBLY

Removal

1. Locate the seat cushion lock (2) at the front bottom of the seat

cushion assembly (one for each side). Pull the release lever (A)

forward and lift the seat cushion assembly upward to release the

seat cushion wire (1) from the seat cushion lock (2).

: Front

2. Then pull the seat cushion assembly forward to remove.

Installation

Installation is in the reverse order of removal.

SEATBACK

Removal

1. Lock seatback (LH/RH) in upright position.
2. Remove the seatback hinge assembly bolts and nut.
3. Fold seatback (LH/RH) forward.

4. Remove seatback latch covers (A).
5. Remove the halo upper frame assembly bolts (B).
6. Remove the seatback assembly.

7.

Installation

13. Seatback assembly (LH)

14. Seatback latch striker (LH)

15. Seatback frame (LH)

16. Seatback pad (LH)

17. Seatback trim (LH)

18. Seatback frame (RH)

19. Side bolster pad (LH)

20. Side bolster trim (LH)

21. Seat belt guide (LH)

22. Seatback latch assembly

23. Seatback latch cover

24. Side bolster pad (RH)

25. Side bolster trim (RH)

26. Seat belt guide (RH)

27. Seatback assembly (RH)

28. Headrest holder (locked)

29. Headrest holder (free)

30. Headrest

ALJIA0949ZZ

ALIIA0328ZZ

ALIIA0329ZZ

SE-132

< REMOVAL AND INSTALLATION >

[W/O CLIMATE CONTROLLED SEATS]

REAR SEAT

Installation is in the reverse order of removal.
