FRONT SEAT

SE-125

< REMOVAL AND INSTALLATION >

[W/O CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

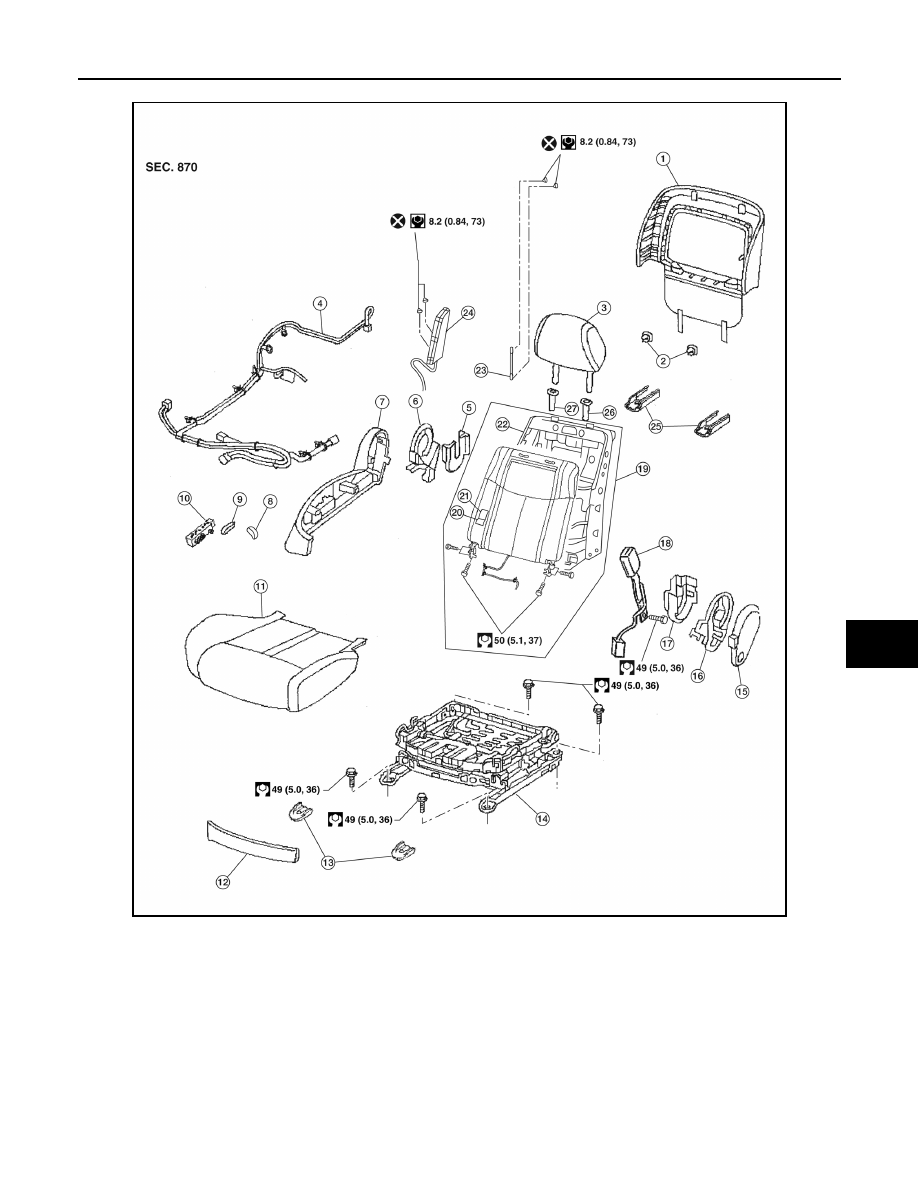

Passenger Seat

AWJIA0926ZZ

1.

Seatback board

2.

Seatback board clip

3.

Headrest

4.

Seat harness

5.

Seat cushion inner finisher inside (RH) 6.

Recline device inner cover

7.

Seat cushion outer finisher (RH) 8.

Seat recline knob

9.

Seat slide and lifter switch knob

10.

Power seat switch

11.

Seat cushion assembly

12. Seat cushion front finisher

13.

Front slide cover

14.

Seat frame assembly

15. Seat cushion outer finisher (LH)

16

Recline mechanism inner cover

17.

Seat cushion inner finisher inside (LH) 18. Seat belt buckle

19.

Seatback assembly

20.

Seatback pad

21. Seatback trim

22.

Seatback frame

23.

Chute rod

24. Side air bag module

25.

Rear slide cover

26.

Headrest holder (locked)

27. Headrest holder (free)

SE-126

< REMOVAL AND INSTALLATION >

[W/O CLIMATE CONTROLLED SEATS]

FRONT SEAT

Removal and Installation

INFOID:0000000009468171

REMOVAL

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat repair. It can lead to per-

sonal injury if the side air bag module should accidentally deploy.

CAUTION:

• When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-

tor with the side air bag module connector. Such an error may cause the air bag module to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After the front side air bag module inflates, the front seatback assembly must be replaced.

• When removing and installing the seat, use shop cloths to protect components from damage.

• Before removing the front seat, turn the ignition switch OFF, disconnect both battery terminals and

wait at least three minutes.

1. Slide the seat to the full froward position.
2. Remove the rear slide covers.

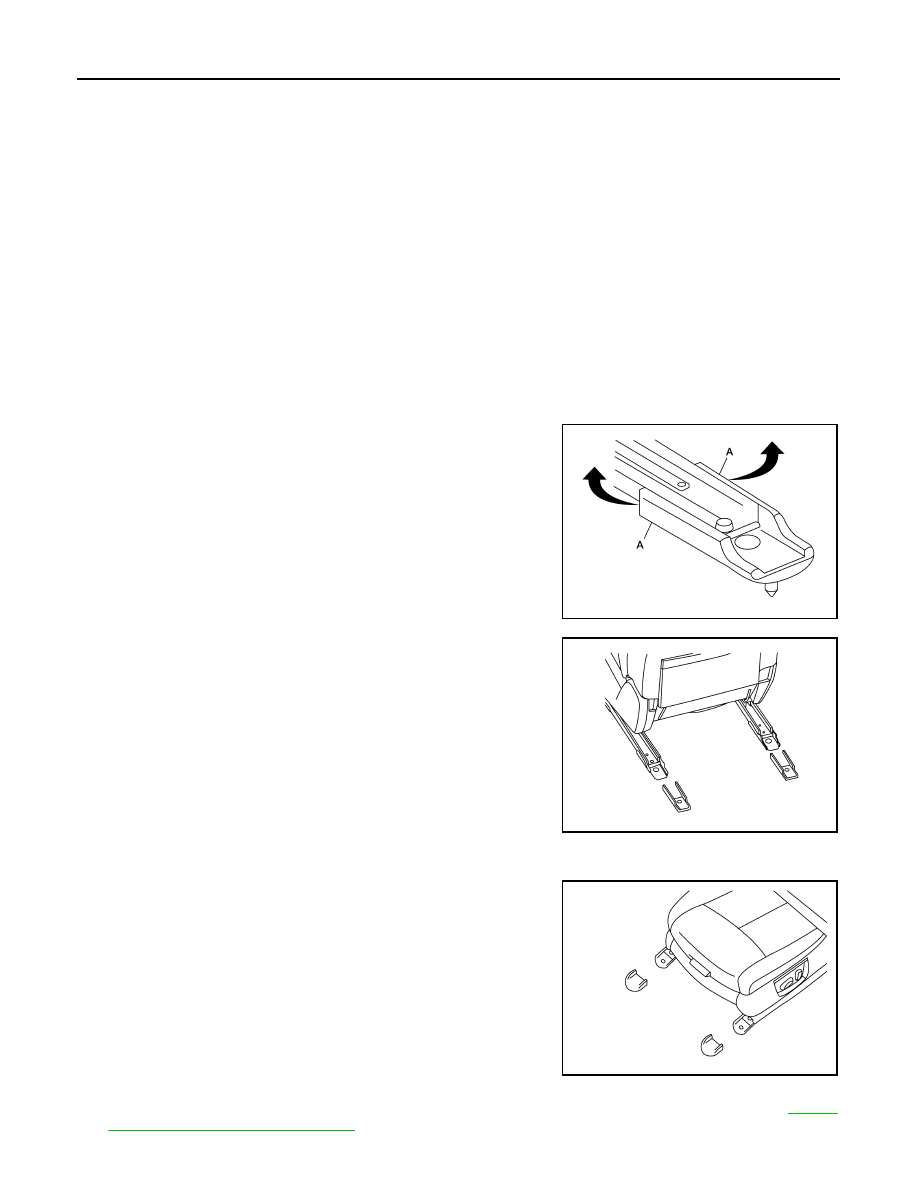

a. Release the pawls (A).

b. Remove the rear slide covers.
3. Remove the rear mount bolts.

4. Slide the seat to the full rearward position.
5. Remove the front slide covers.
6. Remove the front mount bolts.

7. Disconnect the negative and positive battery terminals and wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

ALIIA0356ZZ

ALIIA0324ZZ

ALIIA0323ZZ

FRONT SEAT

SE-127

< REMOVAL AND INSTALLATION >

[W/O CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

8. Disconnect the harness connector under the seat and remove harness clips.
9. Remove seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that the seat harness or the floor trim is not damaged during installation.

NOTE:

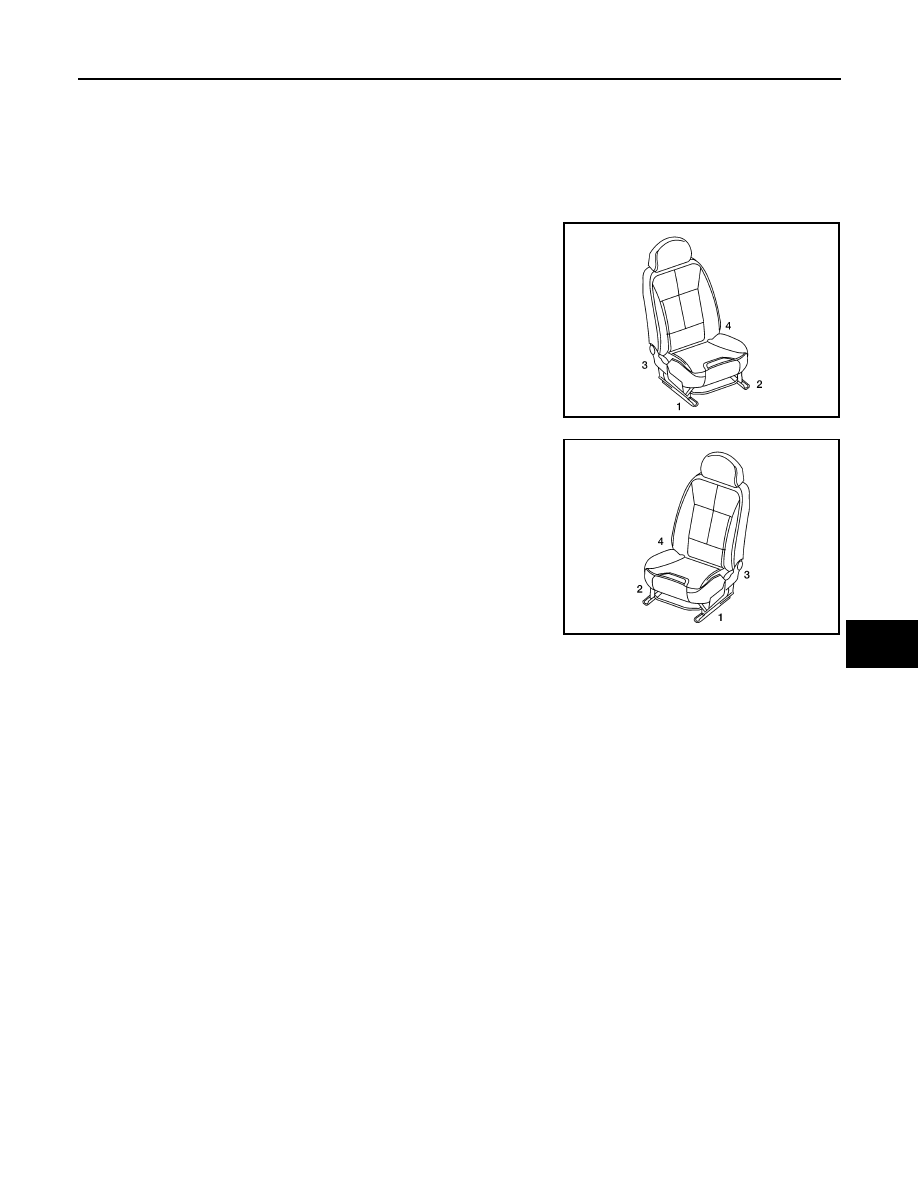

• When installing the LH front seat, tighten the bolts in the order

shown.

• When installing the RH front seat, tighten the bolts in the order

shown.

LH front seat bolt torque

: 49 Nm (5.0 kg-m, 36 ft-lb)

LIIA2853E

RH front seat bolt torque

: 49 Nm (5.0 kg-m, 36 ft-lb)

LIIA2854E

SE-128

< REMOVAL AND INSTALLATION >

[W/O CLIMATE CONTROLLED SEATS]

REAR SEAT

REAR SEAT

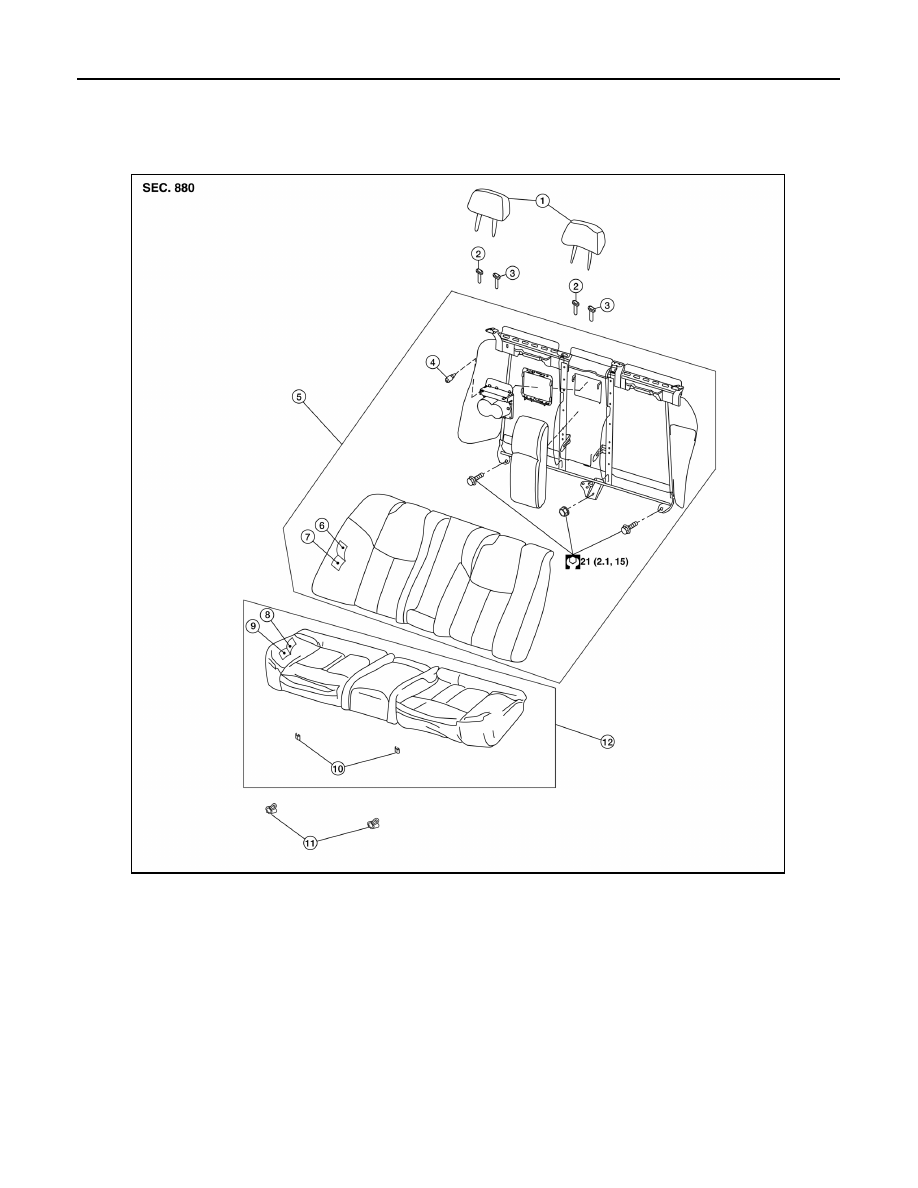

Exploded View - Fixed Seatback

INFOID:0000000009468172

Removal and Installation

INFOID:0000000009468173

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

SEAT CUSHION ASSEMBLY

Removal

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Bumper

5.

Seatback assembly

6.

Seatback trim

7.

Seatback pad

8.

Seat cushion trim

9.

Seat cushion pad

10. Seat cushion wire cover

11. Seat cushion lock

12. Seat cushion assembly

AWJIA0941ZZ
