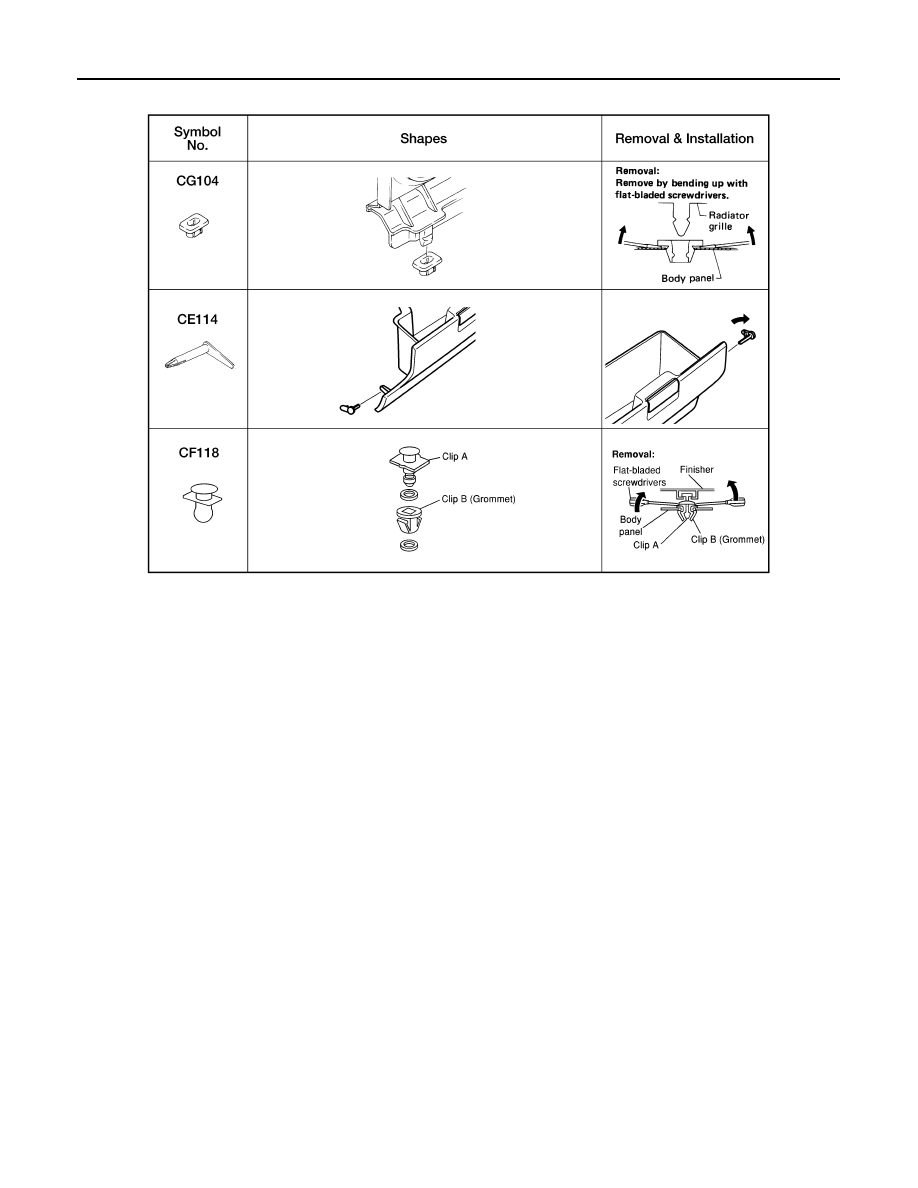

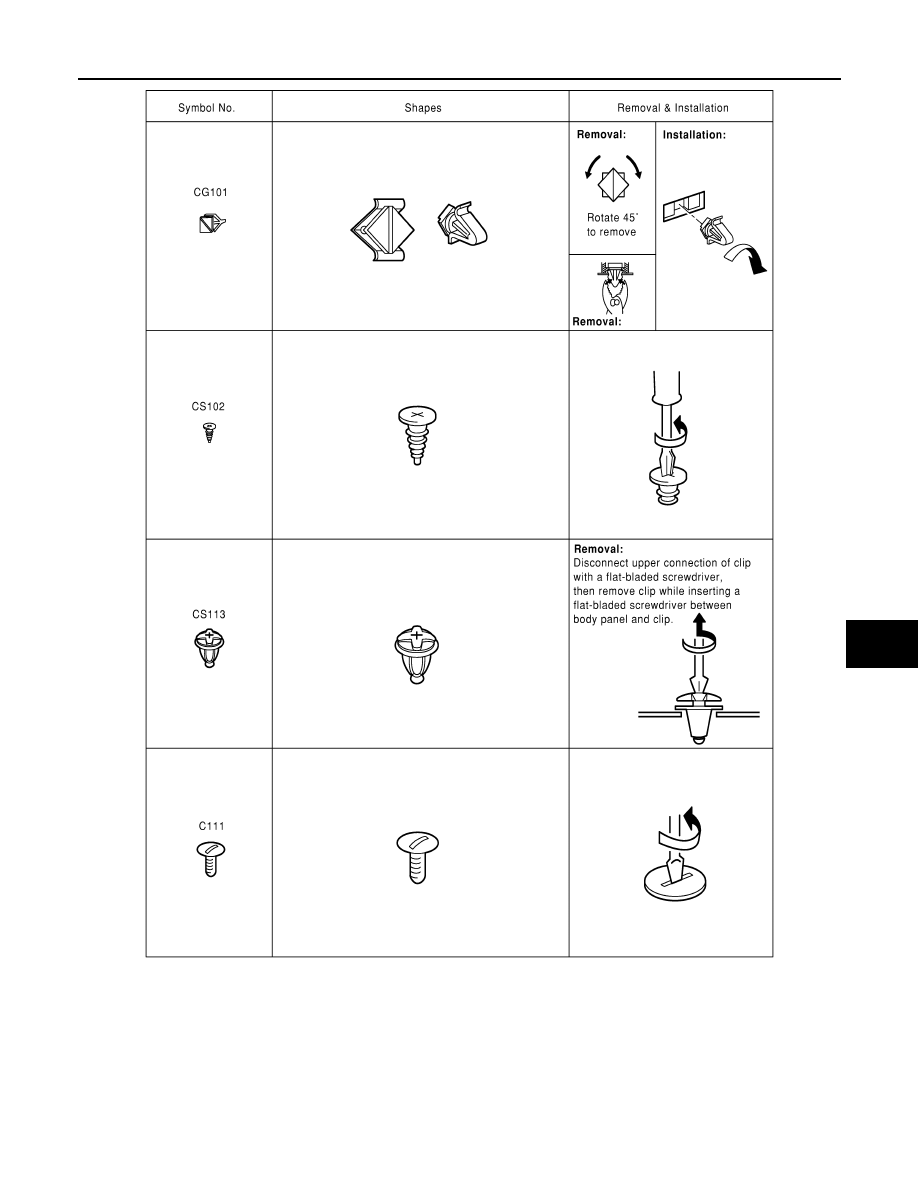

CLIP LIST

ALJIA0564GB

FRONT SEAT

SE-123

< REMOVAL AND INSTALLATION >

[W/O CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REMOVAL AND INSTALLATION

FRONT SEAT

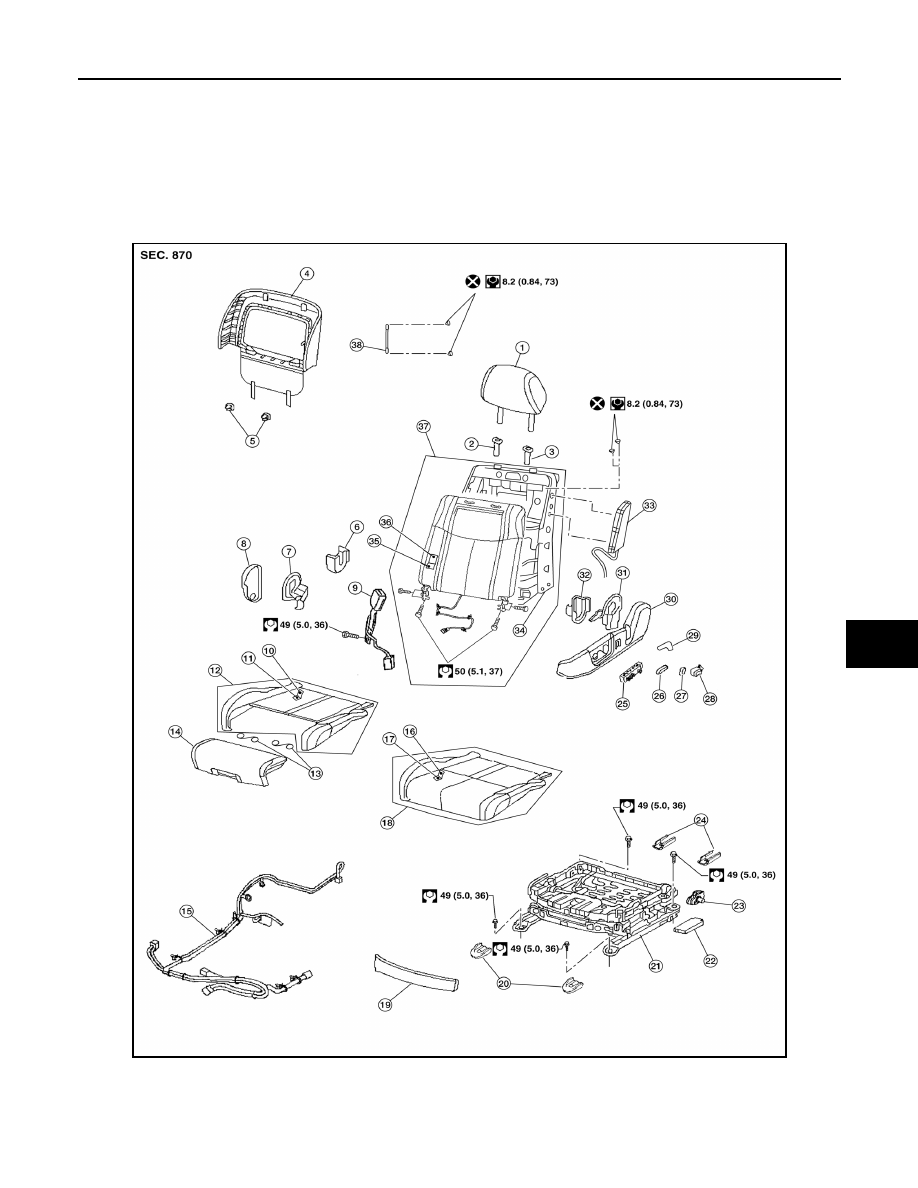

Exploded View

INFOID:0000000009468170

DRIVER

Driver Seat - Without Climate Controlled Seats

AWJIA0938ZZ

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seatback board

5.

Seatback board clip

6.

Seat cushion inner finisher inside (RH)

7.

Recline mechanism inner cover

8.

Seat cushion outer finisher (RH) 9.

Seat belt buckle

SE-124

< REMOVAL AND INSTALLATION >

[W/O CLIMATE CONTROLLED SEATS]

FRONT SEAT

PASSENGER

10. Seat cushion trim

11. Seat cushion pad

12. Seat cushion assembly

13. Thigh extension tether

14. Thigh extension assembly

15. Seat harness

16. Seat cushion trim (w/o thigh exten-

sion)

17. Seat cushion pad (w/o thigh ex-

tension)

18. Seat cushion assembly (w/o thigh exten-

sion)

19. Seat cushion front finisher

20. Front slide cover

21. Seat frame assembly

22. Power seat control unit

23. Actuator bracket

24. Rear slide cover

25. Power seat switch

26. Seat slide and lifter switch knob 27. Seat recline knob

28. Lumbar support switch (if equipped) 29. Lumbar lever (if equipped)

30. Seat cushion outer finisher (LH)

31. Recline device outer cover

32. Seat cushion inner finisher (LH) 33. Side air bag module

34. Seatback frame

35. Seatback pad

36. Seatback trim

37. Seatback assembly

38. Chute rod
