REAR SEAT
SE-73
< REMOVAL AND INSTALLATION >
[WITH CLIMATE CONTROLLED SEATS]
C
D
E
F
G
H
I
K
L
M
A
B
SE
N
O
P
Removal and Installation
INFOID:0000000009468149
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
SEAT CUSHION ASSEMBLY
Removal

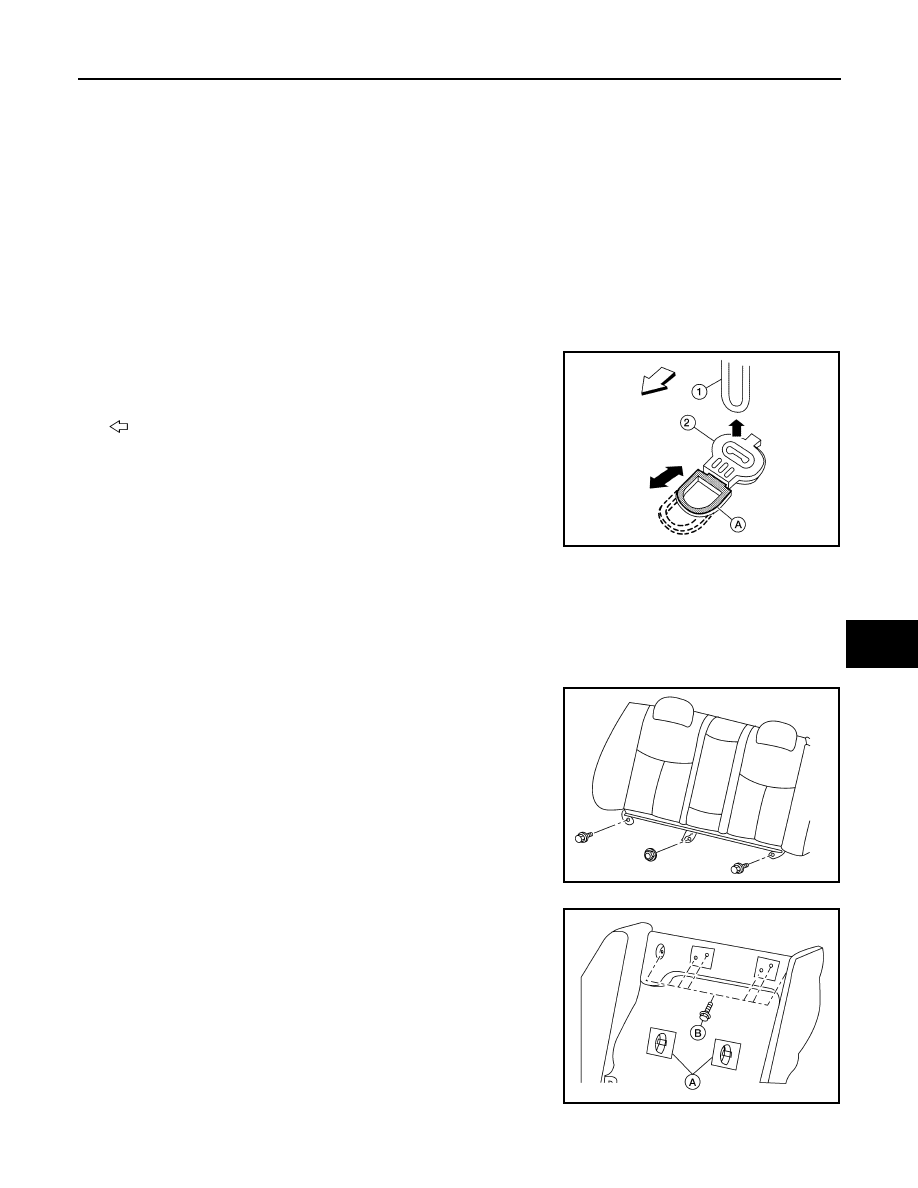

1. Locate the seat cushion lock (2) at the front bottom of the seat
cushion assembly (one for each side). Pull the release lever (A)
forward and lift the seat cushion assembly upward to release the
seat cushion wire (1) from the seat cushion lock (2).
: Front
2. Then pull the seat cushion assembly forward to remove.
Installation
Installation is in the reverse order of removal.
SEATBACK
Removal
1. Lock seatback (LH/RH) in upright position.
2. Remove the seatback hinge assembly bolts and nut.
3. Fold seatback (LH/RH) forward.
4. Remove seatback latch covers (A).
5. Remove the halo upper frame assembly bolts (B).
6. Remove the seatback assembly.
7.
Installation

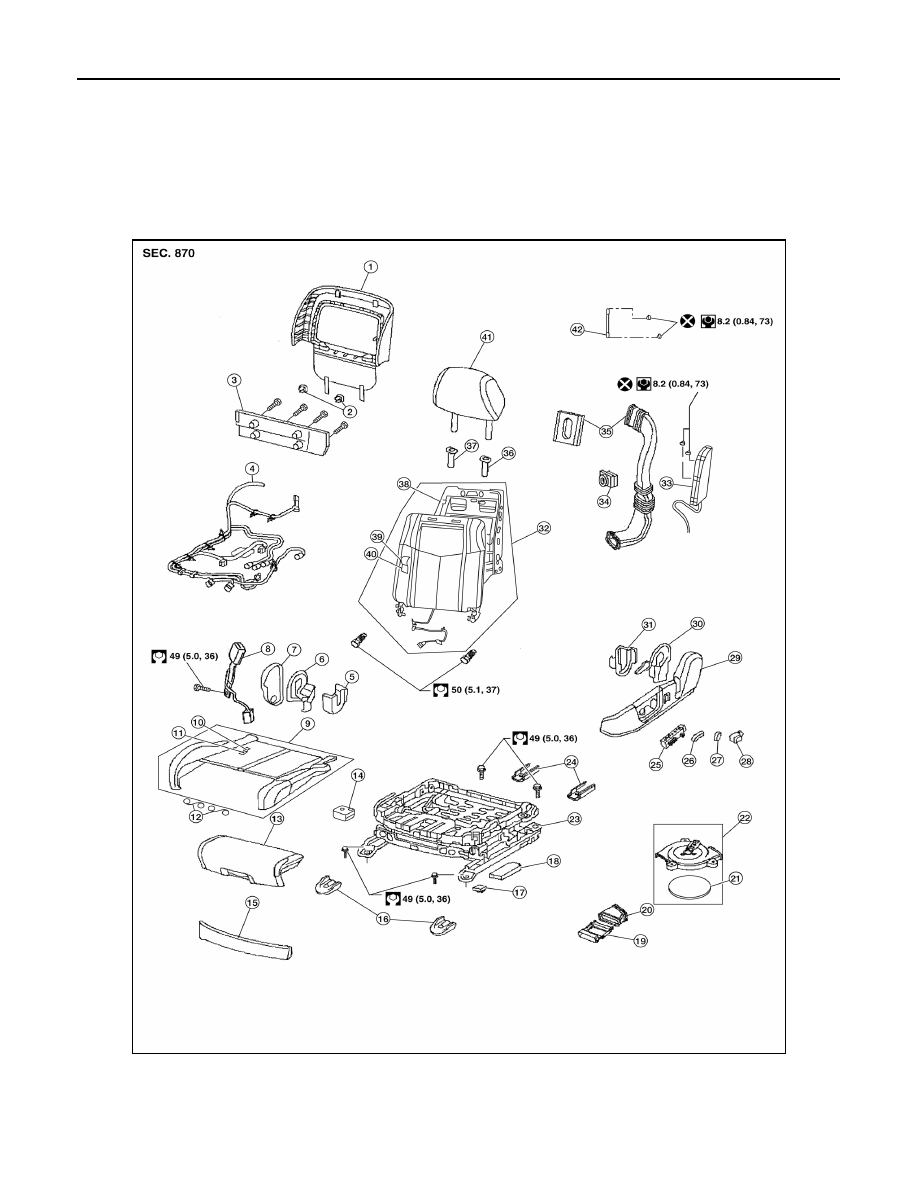

13. Seatback assembly (LH)
14. Seatback latch striker (LH)
15. Seatback frame (LH)
16. Seatback pad (LH)
17. Seatback trim (LH)
18. Seatback frame (RH)
19. Side bolster pad (LH)
20. Side bolster trim (LH)
21. Seat belt guide (LH)
22. Seatback latch assembly
23. Seatback latch cover
24. Side bolster pad (RH)
25. Side bolster trim (RH)
26. Seat belt guide (RH)
27. Seatback assembly (RH)
28. Headrest holder (locked)
29. Headrest holder (free)
30. Headrest
ALJIA0949ZZ
ALIIA0328ZZ
ALIIA0329ZZ
