Nissan Maxima. Manual - part 1024





FRONT SEAT

SE-69

< REMOVAL AND INSTALLATION >

[WITH CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

8. Disconnect the harness connector under the seat and remove harness clips.
9. Remove seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that the seat harness or the floor trim is not damaged during installation.

NOTE:

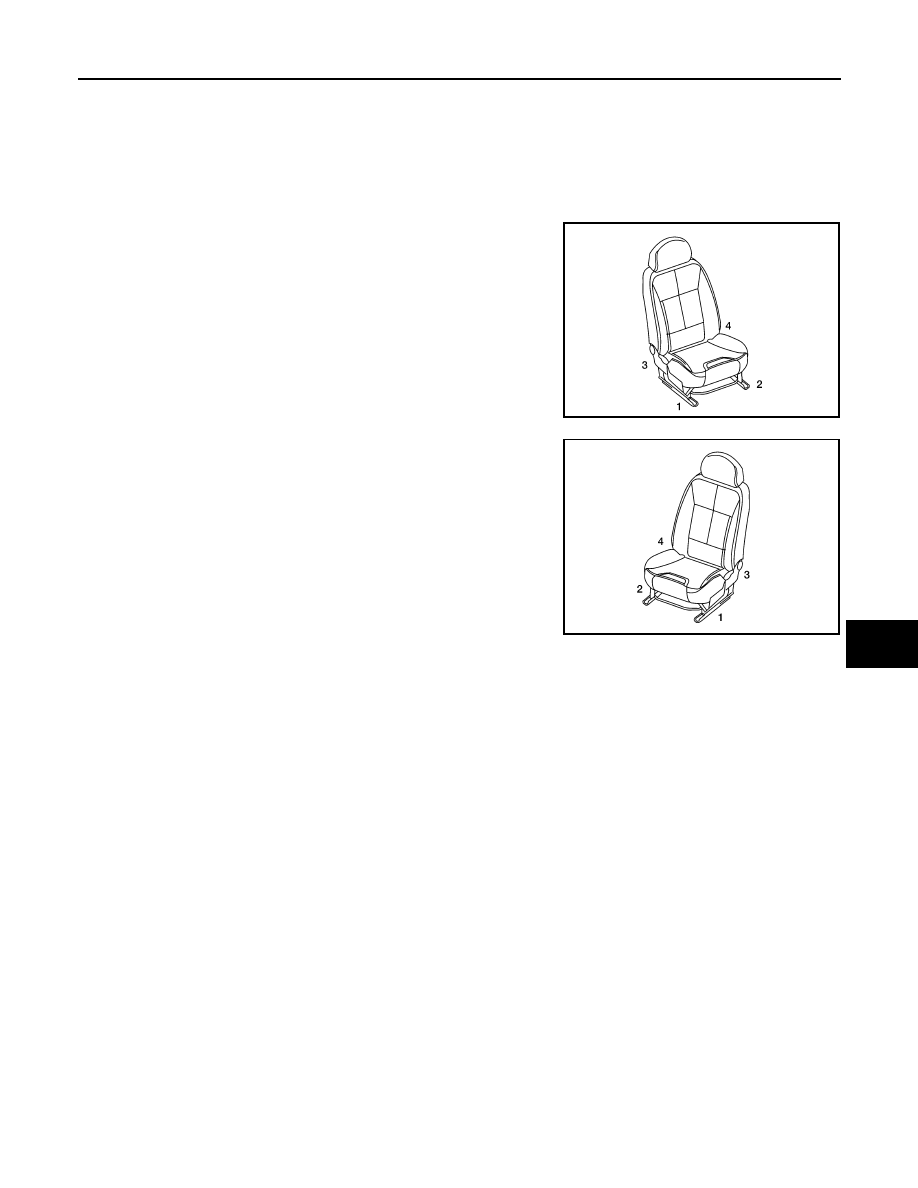

• When installing the LH front seat, tighten the bolts in the order

shown.

• When installing the RH front seat, tighten the bolts in the order

shown.

LH front seat bolt torque

: 49 Nm (5.0 kg-m, 36 ft-lb)

LIIA2853E

RH front seat bolt torque

: 49 Nm (5.0 kg-m, 36 ft-lb)

LIIA2854E

SE-70

< REMOVAL AND INSTALLATION >

[WITH CLIMATE CONTROLLED SEATS]

REAR SEAT

REAR SEAT

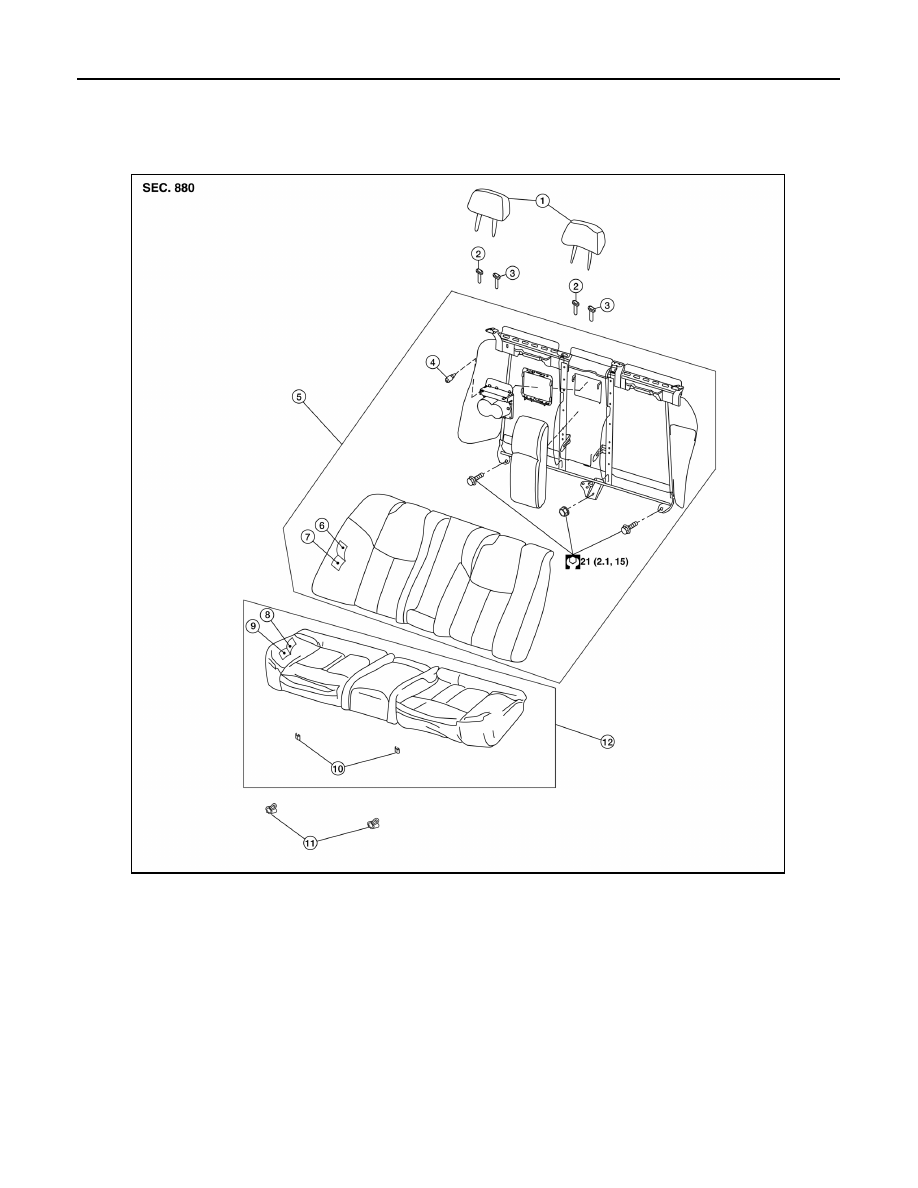

Exploded View - Fixed Seatback

INFOID:0000000009468146

Removal and Installation

INFOID:0000000009468147

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

SEAT CUSHION ASSEMBLY

Removal

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Bumper

5.

Seatback assembly

6.

Seatback trim

7.

Seatback pad

8.

Seat cushion trim

9.

Seat cushion pad

10. Seat cushion wire cover

11. Seat cushion lock

12. Seat cushion assembly

AWJIA0941ZZ

REAR SEAT

SE-71

< REMOVAL AND INSTALLATION >

[WITH CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

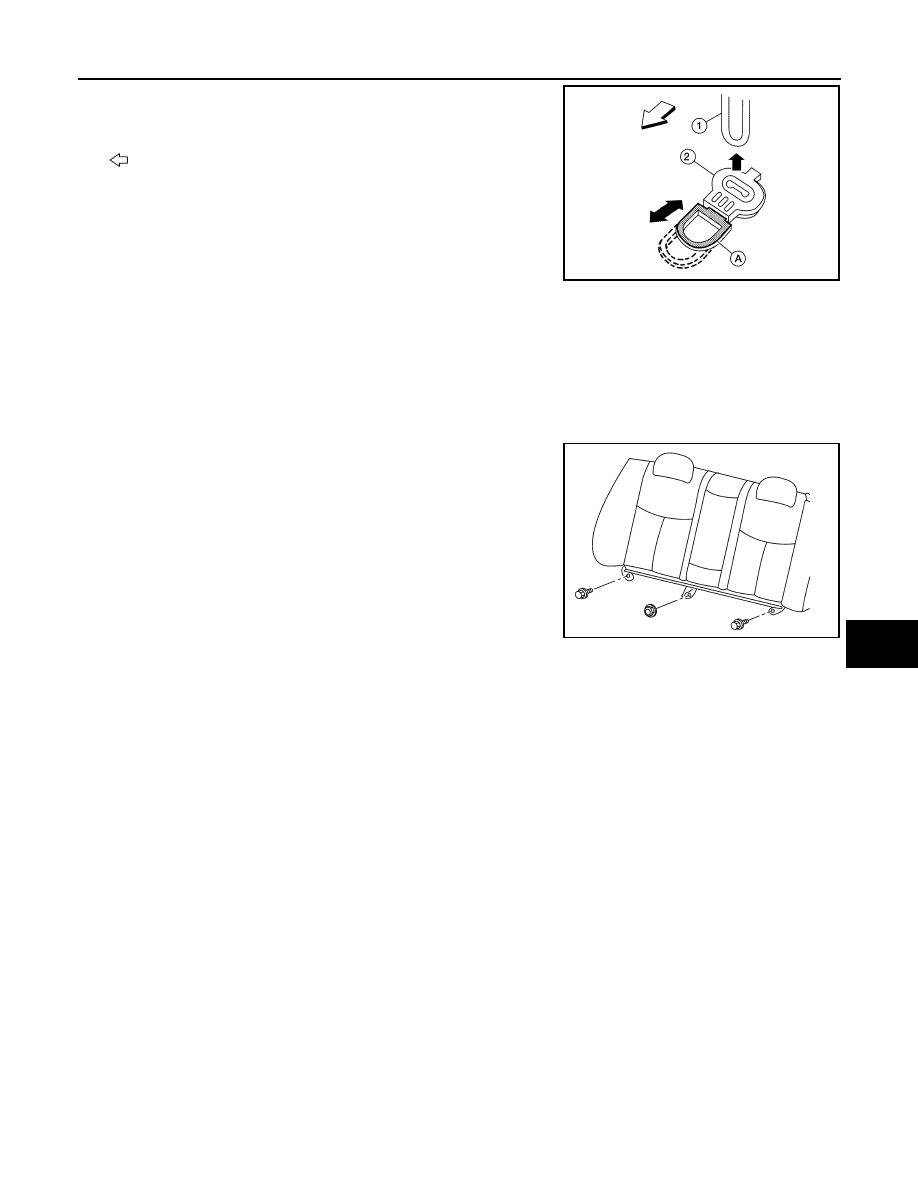

1. Locate the seat cushion lock (2) at the front bottom of the seat

cushion assembly (one for each side). Pull the release lever (A)

forward and lift the seat cushion assembly upward to release the

seat cushion wire (1) from the seat cushion lock (2).

: Front

2. Then pull the seat cushion assembly forward to remove.

Installation

Installation is in the reverse order of removal.

SEATBACK

Removal

1. Remove the seat cushion assembly.
2. Remove the headrests (LH/RH).
3. Remove the seatback assembly bolts and nut.

4. Lift the seatback to disengage seat hook wires from the hangers.

Installation

Installation is in the reverse order of removal.

ALJIA0949ZZ

ALIIA0328ZZ

SE-72

< REMOVAL AND INSTALLATION >

[WITH CLIMATE CONTROLLED SEATS]

REAR SEAT

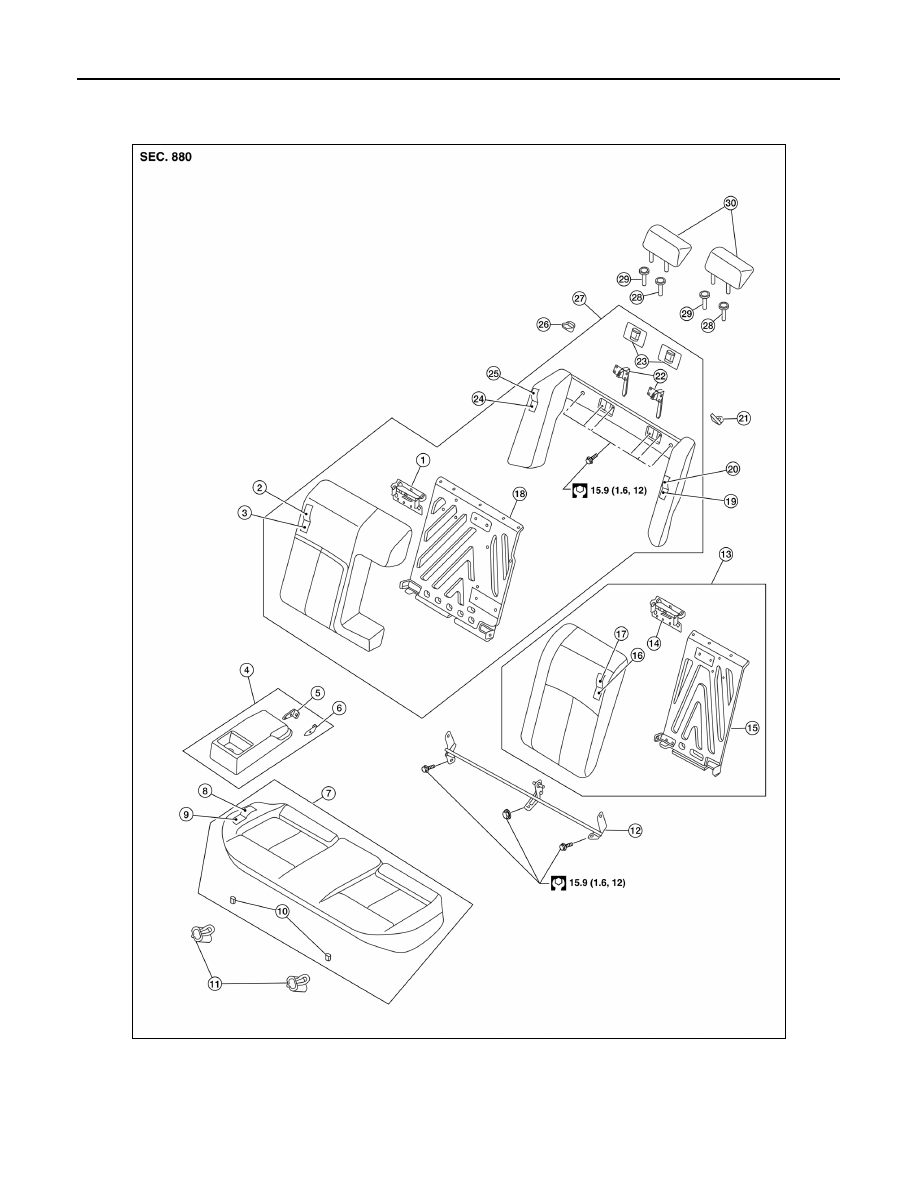

Exploded View - 60:40 Split Seatback

INFOID:0000000009468148

AWJIA0939ZZ

1.

Seatback latch striker (RH)

2.

Seatback trim (RH)

3.

Seatback pad (RH)

4.

Armrest assembly

5.

Inner armrest bracket (RH)

6.

Inner armrest bracket (LH)

7.

Seat cushion assembly

8.

Seat cushion trim

9.

Seat cushion pad

10. Seat cushion wire cover

11. Seat cushion lock

12. Seatback hinge assembly
