Nissan Maxima. Manual - part 89

AV-176

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

TEL ANTENNA

TEL ANTENNA

Removal and Installation

INFOID:0000000009471276

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove the rear parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

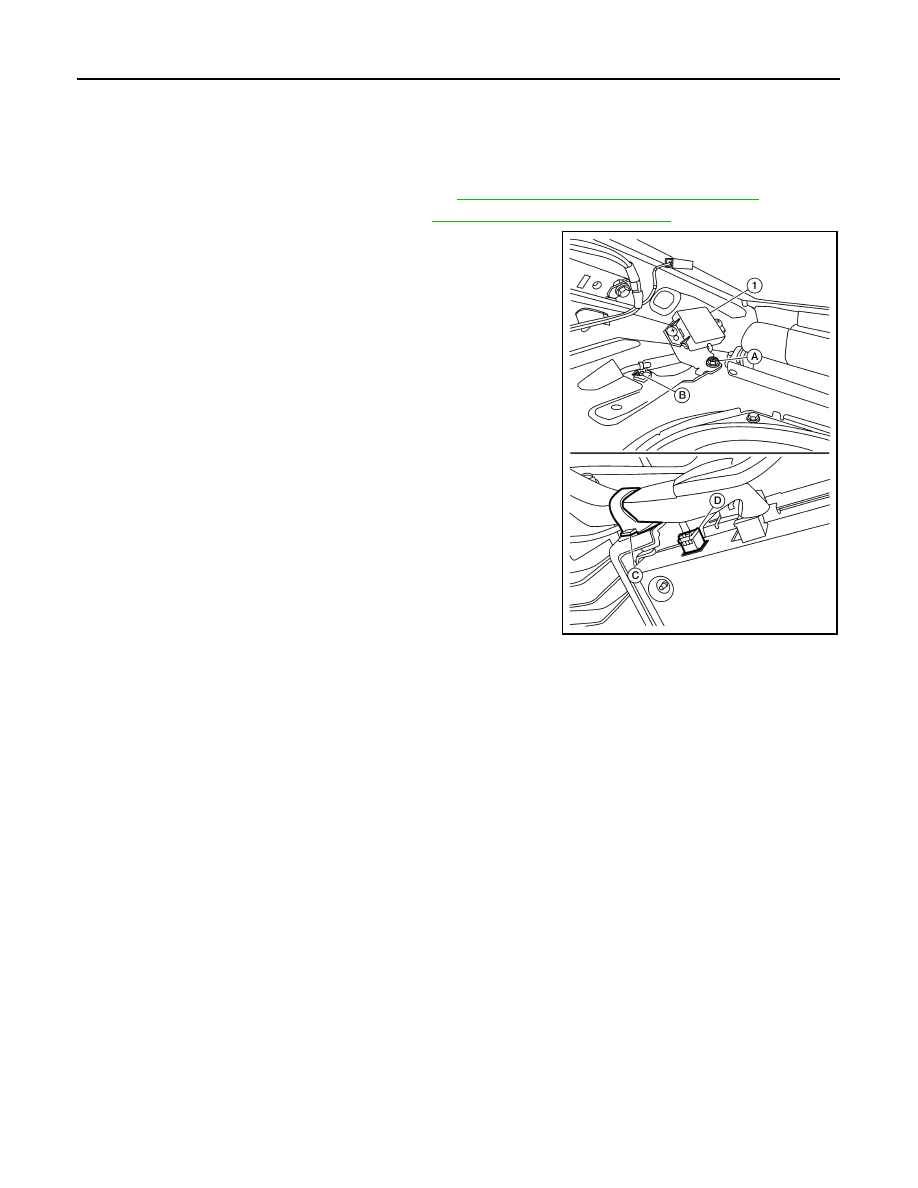

3. Remove the Bluetooth antenna screw (A).
4. Detach the Bluetooth antenna harness clip (B).
5. Fold down the rear seat (if equipped) or open the trunk lid, then

detach the Bluetooth antenna harness clip (C).

6. Disconnect the harness connector (D) from the Bluetooth

antenna (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1144ZZ

AV

BLUETOOTH CONTROL UNIT

AV-177

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000009471277

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove the trunk upper finisher. Refer to

INT-23, "Exploded View"

.

3. Remove the parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

4. From inside the passenger compartment, remove the bracket screws and lower the assembly for access.

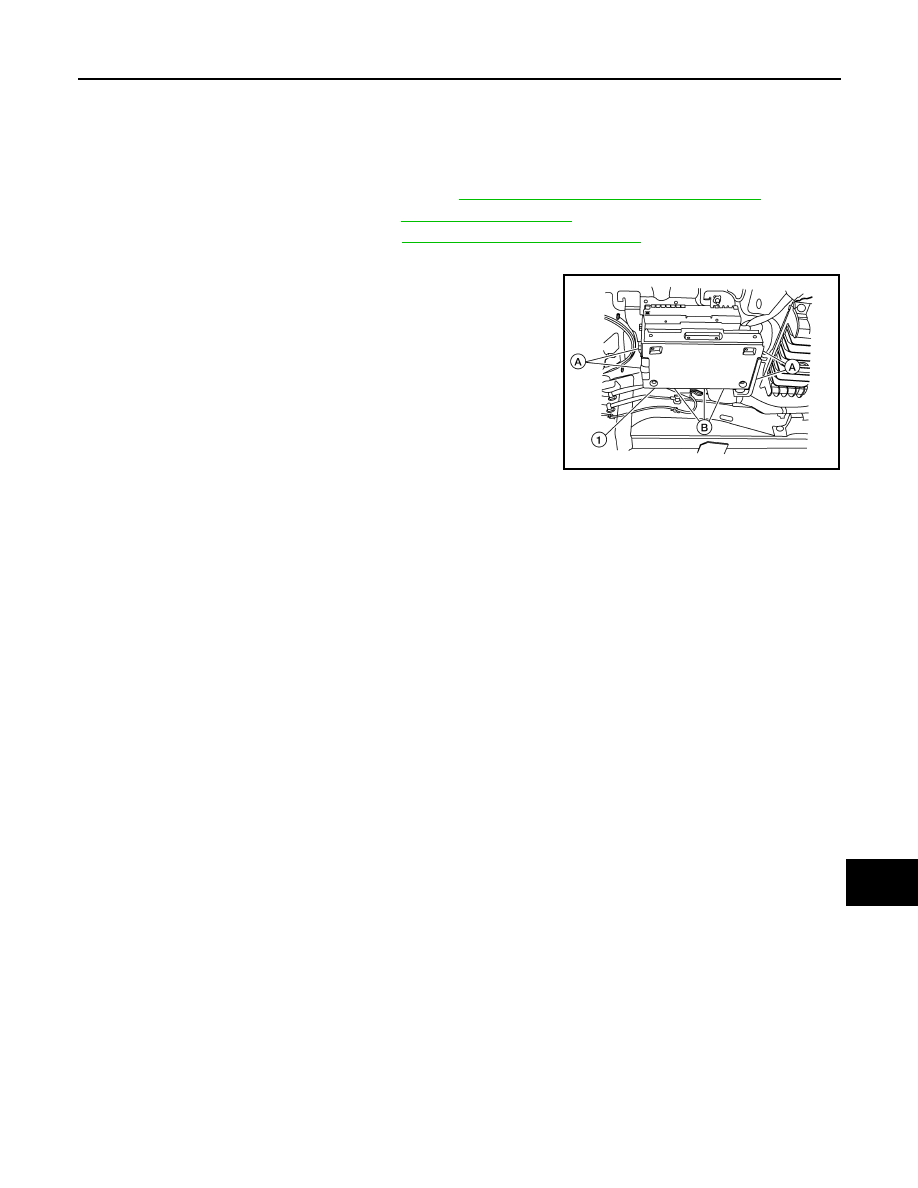

5. Remove the Bluetooth control unit screws (A).
6. Disconnect the harness connector (B) from the Bluetooth control

unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1154ZZ

AV-178

< BASIC INSPECTION >

[COLOR DISPLAY - W/O BOSE]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010064809

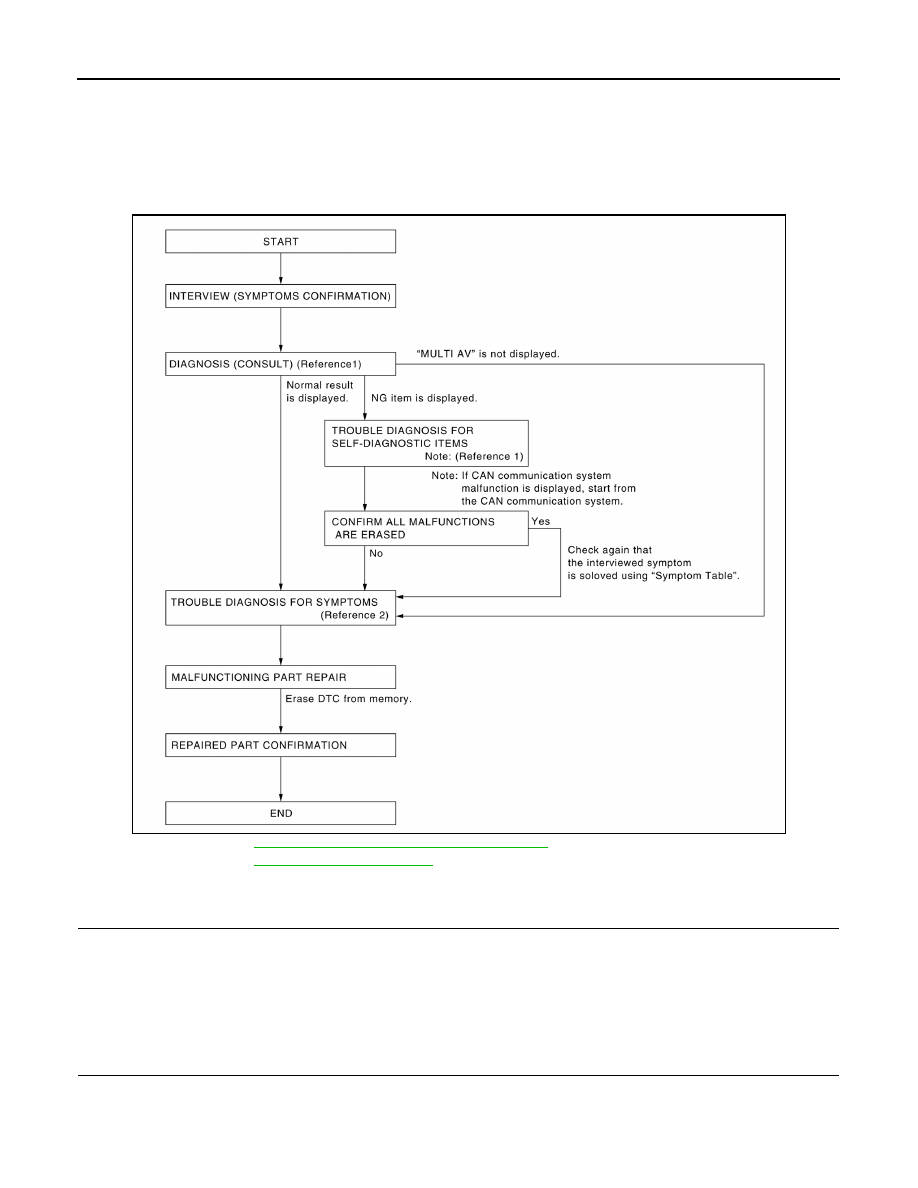

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-202, "CONSULT Function (MULTI AV)"

.

• Reference 2··· Refer to

AV-304, "Symptom Table"

.

DETAILED FLOW

1.

CHECK SYMPTOM

Check the malfunction symptoms by performing the following items.

• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

>> GO TO 2

2.

SELF-DIAGNOSIS (CONSULT)

1. Connect CONSULT and perform “SELF-DIAGNOSIS” for “MULTI AV”.

NOTE:

Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2. Check if any DTC No. is displayed in the self-diagnosis results.

AWNIA2486GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-179

< BASIC INSPECTION >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is any DTC No. displayed?

YES

>> GO TO 3

NO

>> GO TO 4

3.

CHECK SELF-DIAGNOSIS RESULTS (CONSULT)

1. Check the DTC No. indicated in the self-diagnosis results.

2. Perform the relevant diagnosis referring to the DTC No. list. Refer to

AV-272, "DTC Index"

.

NOTE:

Start with the diagnosis for the CAN communication system if “CAN COMM CIRCUIT [U1000] or CONTROL

UNIT (CAN) [U1010]” is displayed.

>> GO TO 5

4.

PERFORM DIAGNOSIS BY SYMPTOM

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-304, "Symptom

Table"

.

>> GO TO 5

5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the identified malfunctioning parts.

NOTE:

Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC No. has

been indicated in the self-diagnosis results.

>> GO TO 6

6.

CHECK AFTER REPAIR

1. Perform self-diagnosis for “MULTI AV” with CONSULT after repairing or replacing the malfunctioning

parts.

2. Check if any DTC No. is displayed in the self-diagnosis results.
Is any DTC No. displayed?

YES

>> GO TO 3

NO

>> GO TO 7

7.

FINAL CHECK

Perform the operation check to confirm that the malfunction symptom is solved or that any other symptoms

are present.
Are any symptoms present?

YES

>> GO TO 4

NO

>> Inspection End.
