AUDIO ANTENNA

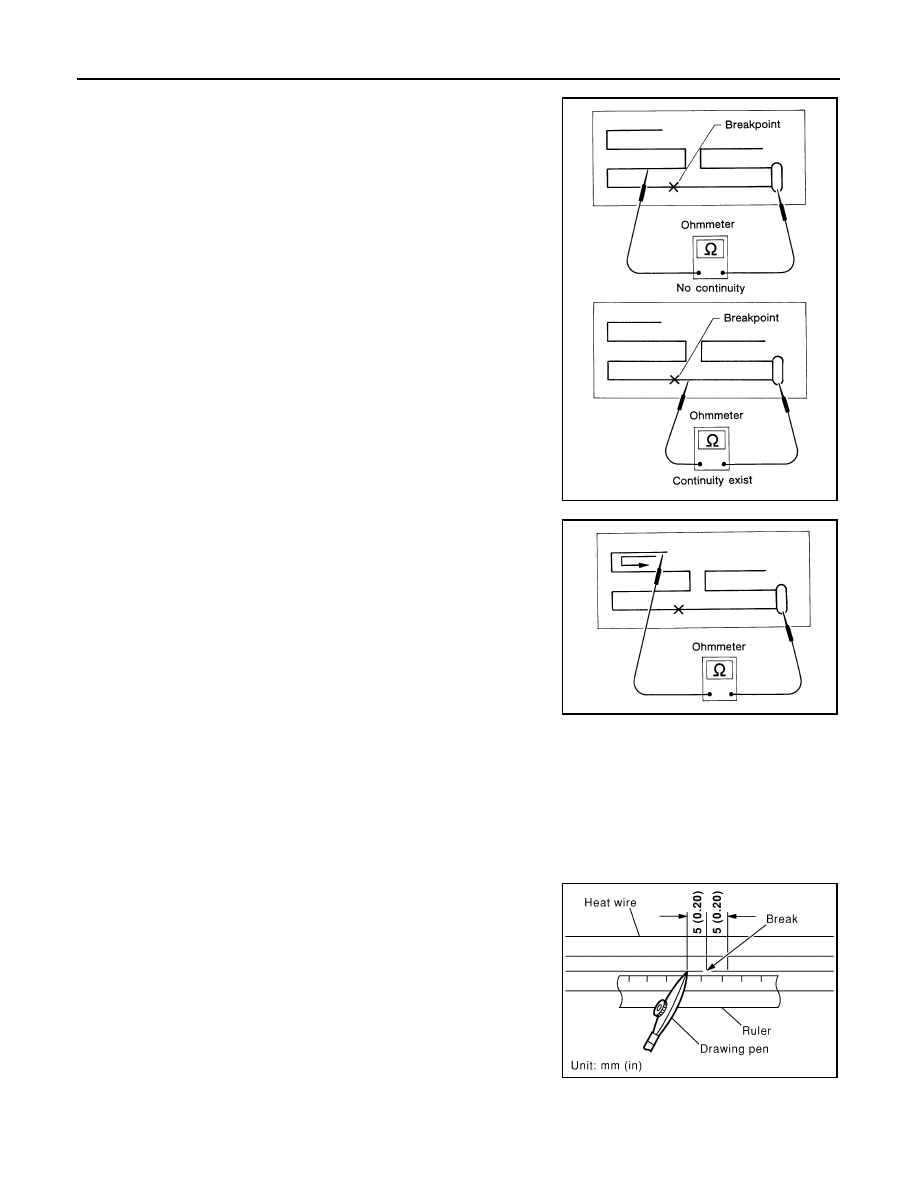

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

REPAIR EQUIPMENT

• Conductive silver composition (DuPont No. 4817 or equivalent)

• Ruler 30 cm (11.8 in) long

• Drawing pen

• Heat gun

• Alcohol

• Cloth

REPAIRING PROCEDURE

1. Wipe broken heat wire and its surrounding area clean with a

cloth dampened in alcohol.

2. Apply a small amount of conductive silver composition to tip of

drawing pen.

NOTE:

Shake silver composition container before use.

3. Place ruler on glass along broken line. Deposit conductive silver

composition on break with drawing pen. Slightly overlap existing

heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

SEL252I

SEL253I

PIIA0215E

AV

AUDIO ANTENNA

AV-173

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

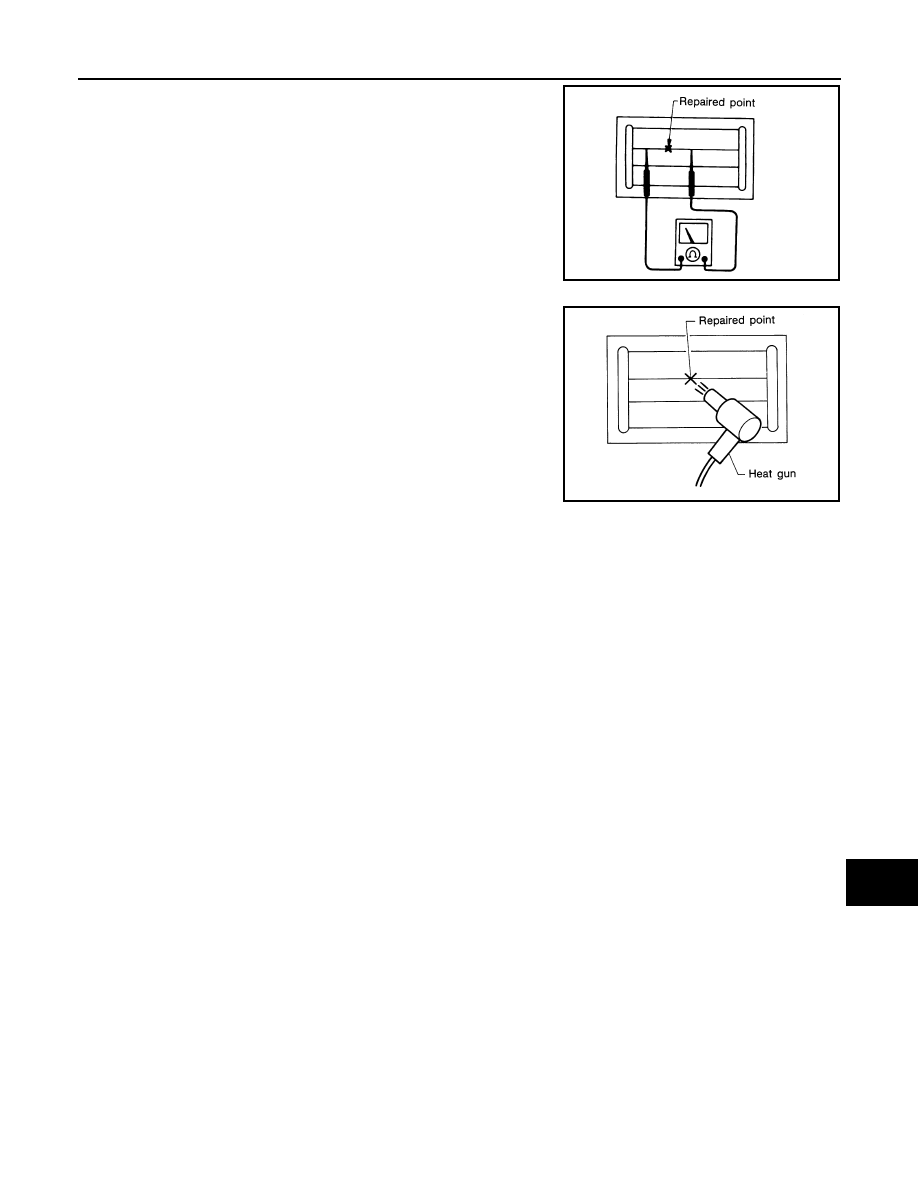

4. After repair has been completed, check repaired wire for conti-

nuity. This check should be conducted 10 minutes after silver

composition is deposited.

Do not touch repaired area while test is being conducted.

5. Apply a constant stream of hot air directly to the repaired area

for approximately 20 minutes with a heat gun. A minimum dis-

tance of 3 cm (1.2 in) should be kept between repaired area and

hot air outlet.

If a heat gun is not available, let the repaired area dry for 24

hours.

SEL012D

SEL013D

AV-174

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

ANTENNA AMP.

ANTENNA AMP.

Removal and Installation

INFOID:0000000009471274

REMOVAL

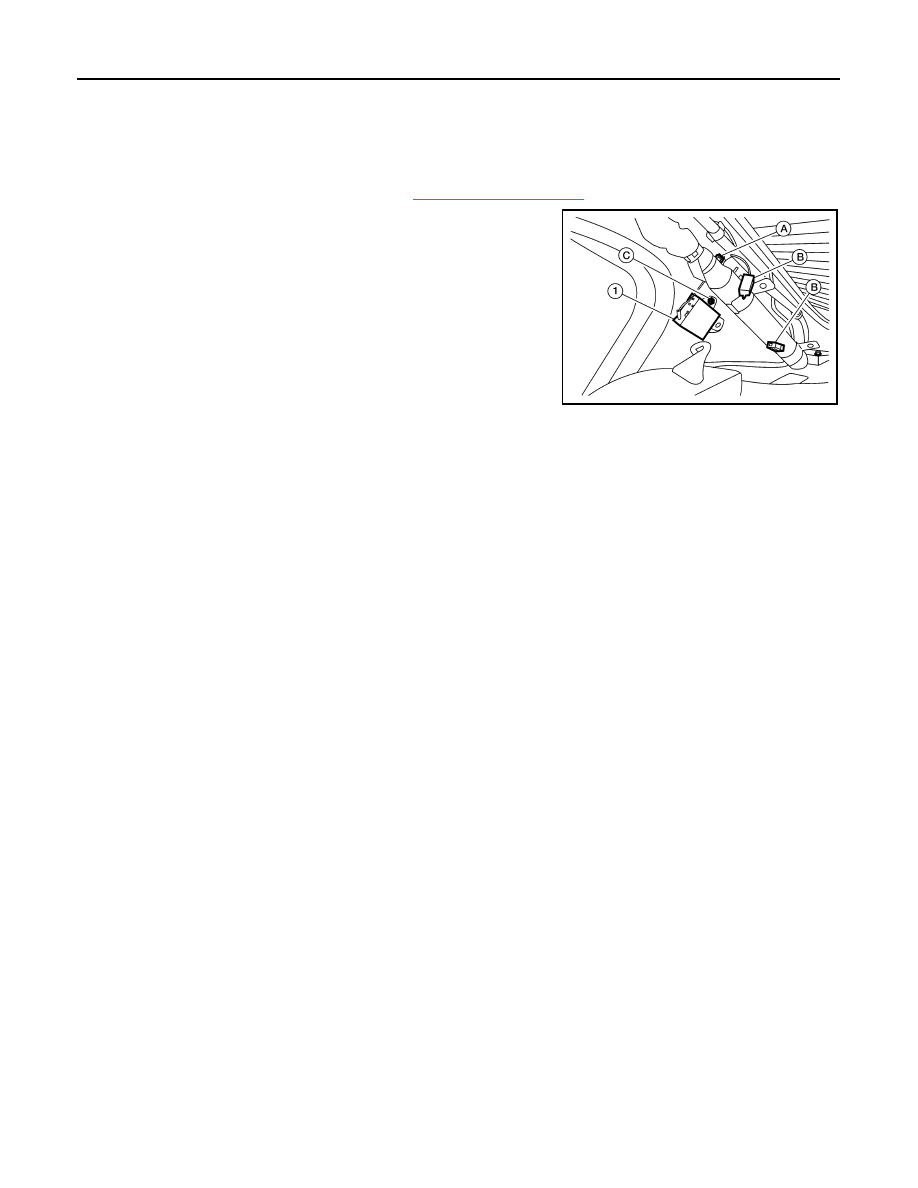

1. Remove the rear pillar finisher RH. Refer to

INT-27, "Exploded View"

.

2. Detach the antenna amp. harness clip (A).
3. Disconnect the harness connectors (B) from the antenna amp.

(1).

4. Remove the antenna amp. screw (C) and the antenna amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0043ZZ

AV

MICROPHONE

AV-175

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000009471275

REMOVAL

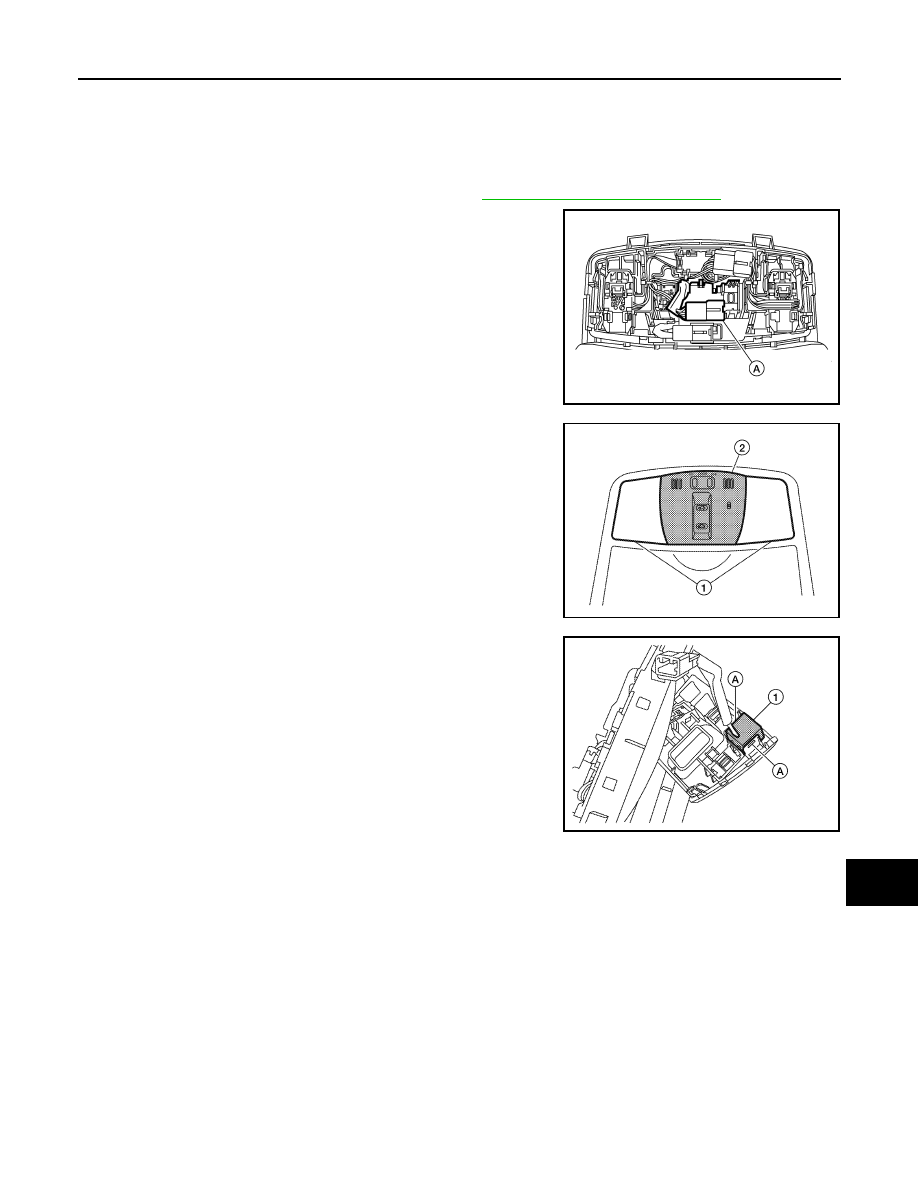

1. Remove the front room/map lamp assembly. Refer to
