FRONT TWEETER

 FRONT TWEETER

Removal and Installation

INFOID:0000000009471263

REMOVAL

1. Remove the front pillar finisher. Refer to

INT-24, "Removal and Installation"

.

2. Remove the front tweeter speaker grille. Refer to

IP-10, "Exploded View"

.

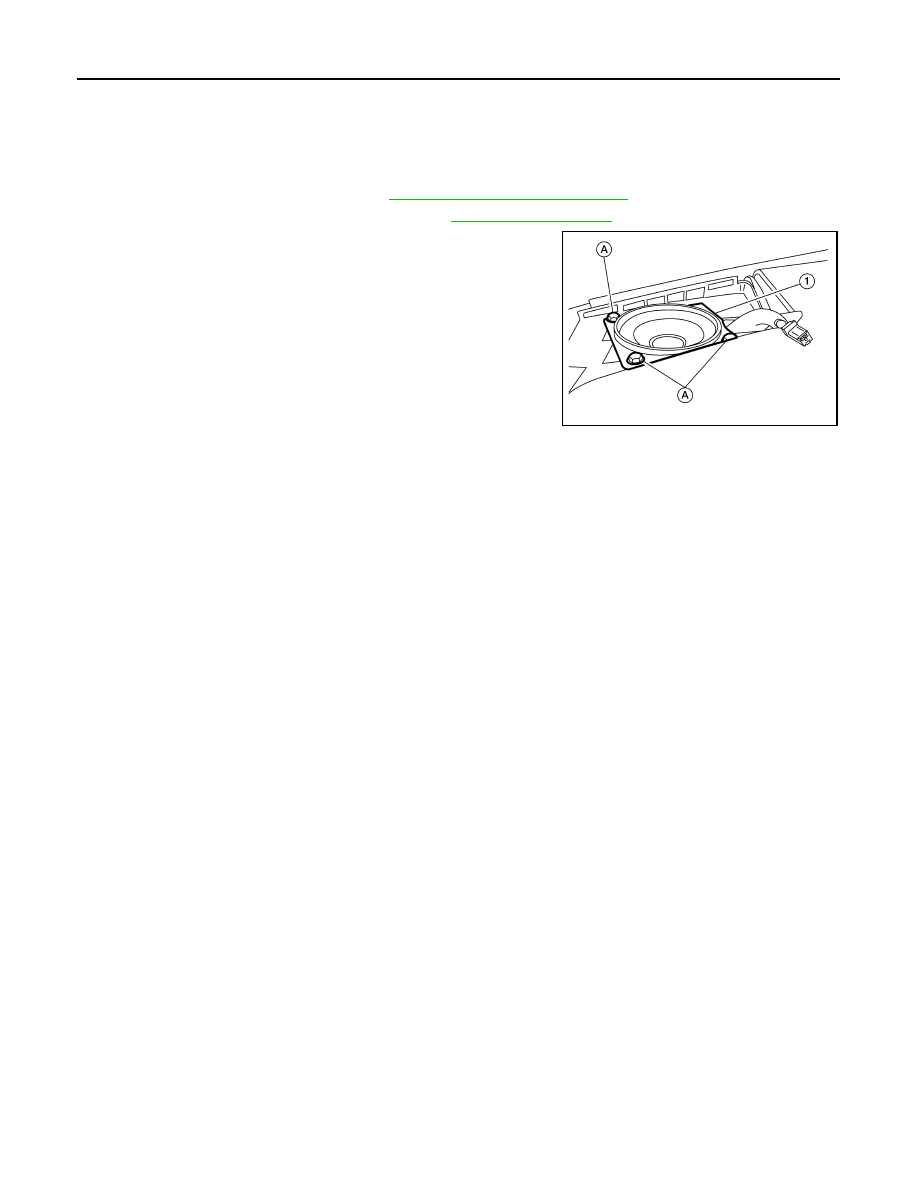

3. Remove the front tweeter speaker screws (A).
4. Pull out front tweeter speaker (1), disconnect the harness con-

nector from the front tweeter speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA2220ZZ

AV

CENTER SPEAKER

AV-165

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CENTER SPEAKER

Removal and Installation

INFOID:0000000009767264

REMOVAL

1. Remove the center speaker grille, using a suitable tool.

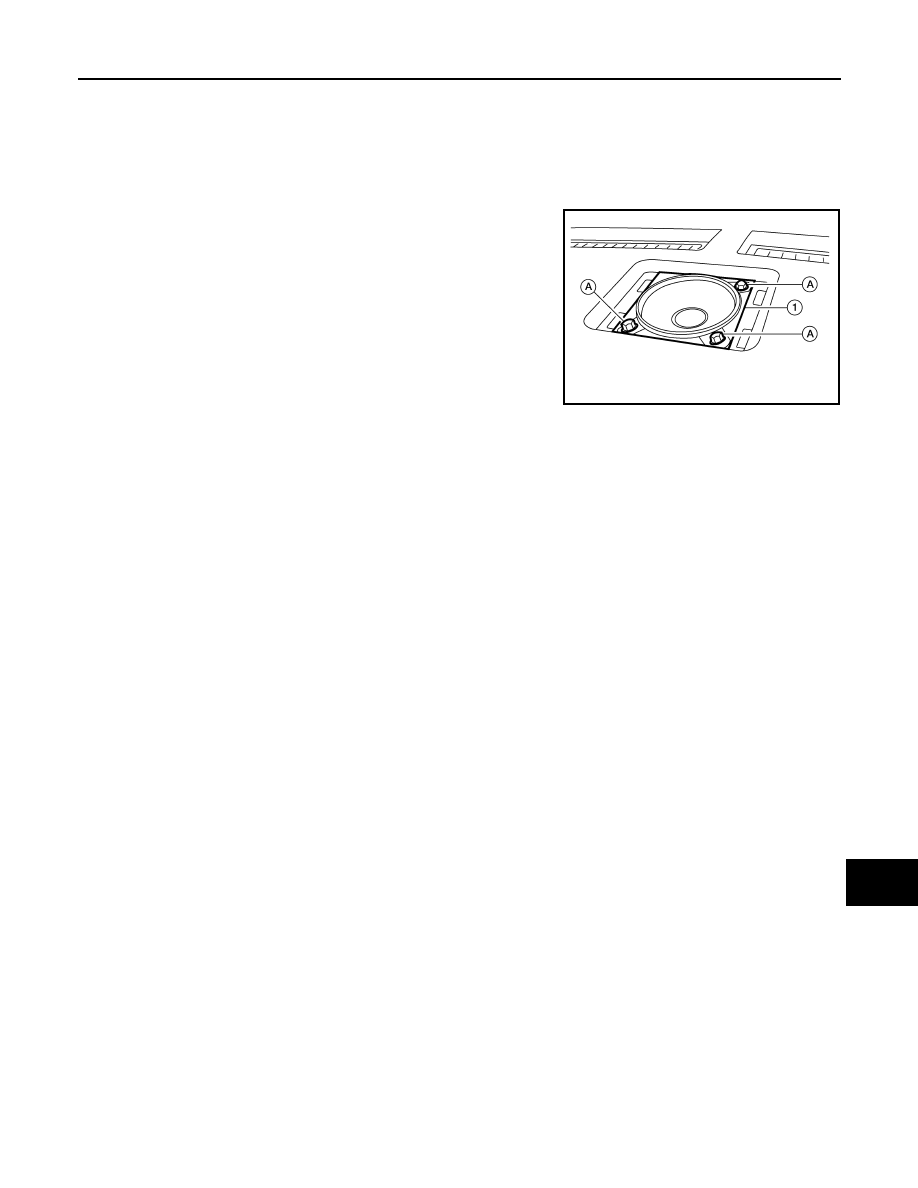

2. Remove the center speaker screws (A).
3. Pull out the center speaker (1), disconnect the harness connec-

tor from the center speaker and remove.

INSTALLATION

Installation is in the reverse order of removal.

AWNIA2221ZZ

AV-166

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009471265

REMOVAL

1. Remove the front door finisher. Refer to

INT-18, "Removal and Installation"

.

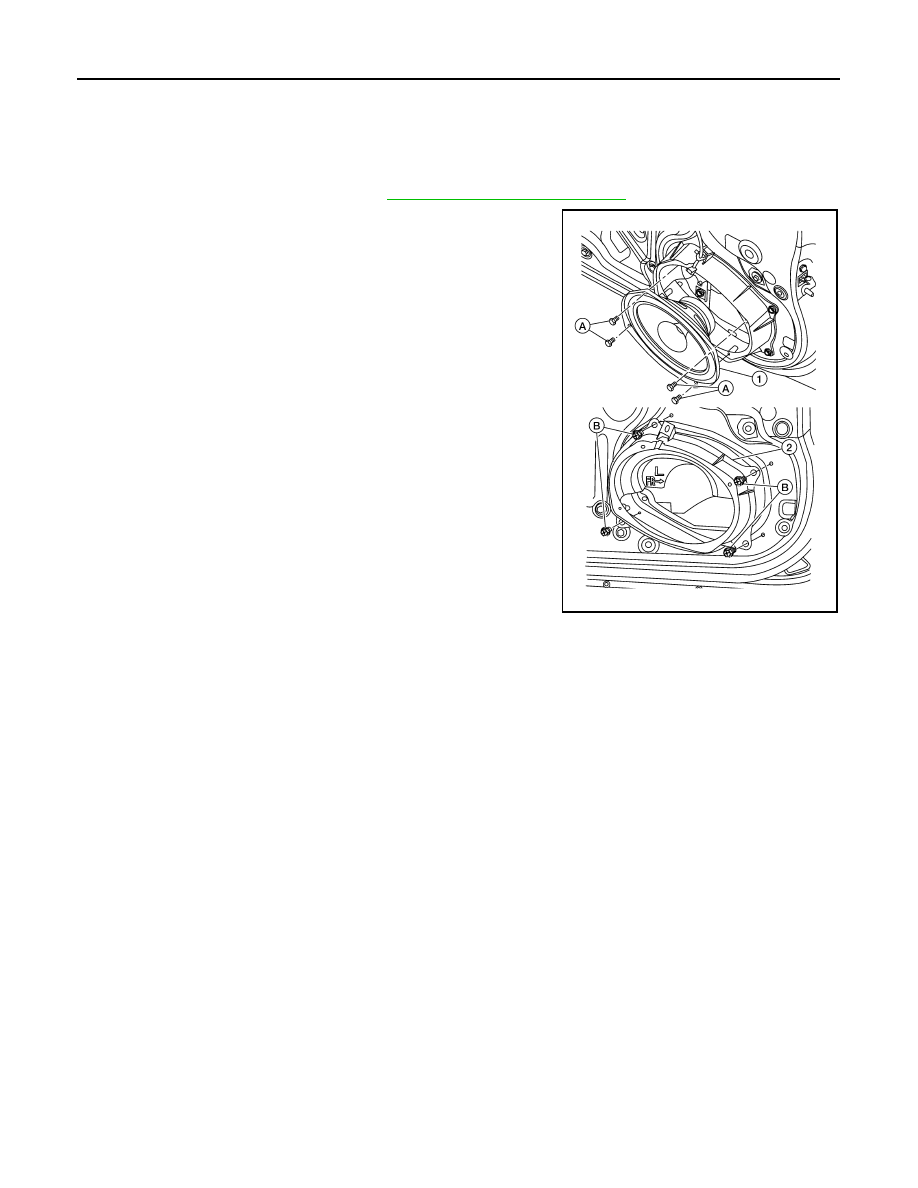

2. Remove the front door speaker screws (A).
3. Disconnect the harness connector from the front door speaker

(1) and remove.

4. Remove the front door speaker spacer screws (B) and remove

the front door speaker spacer (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1133ZZ

AV

REAR DOOR SPEAKER

AV-167

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000009471266

REMOVAL

1. Remove the rear door finisher. Refer to

INT-21, "Removal and Installation"

.

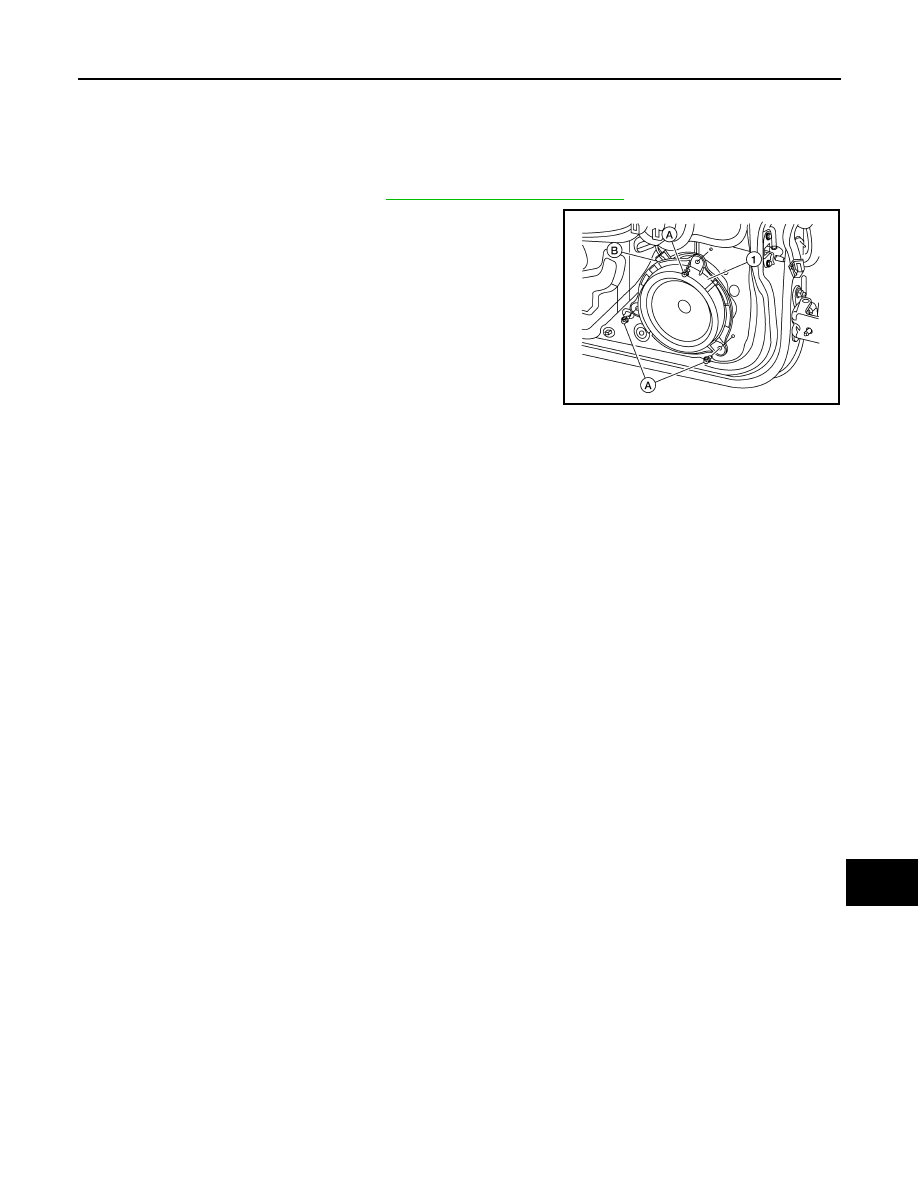

2. Remove the rear door speaker screws (A).
3. Disconnect the harness connector (B) from the rear door

speaker (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1135ZZ
