SUBWOOFER

SUBWOOFER

Removal and Installation

INFOID:0000000009471267

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

2. Remove the subwoofer screws.
3. Pull out the subwoofer, disconnect the harness connector from the subwoofer and remove.

INSTALLATION

Installation is in the reverse order of removal.

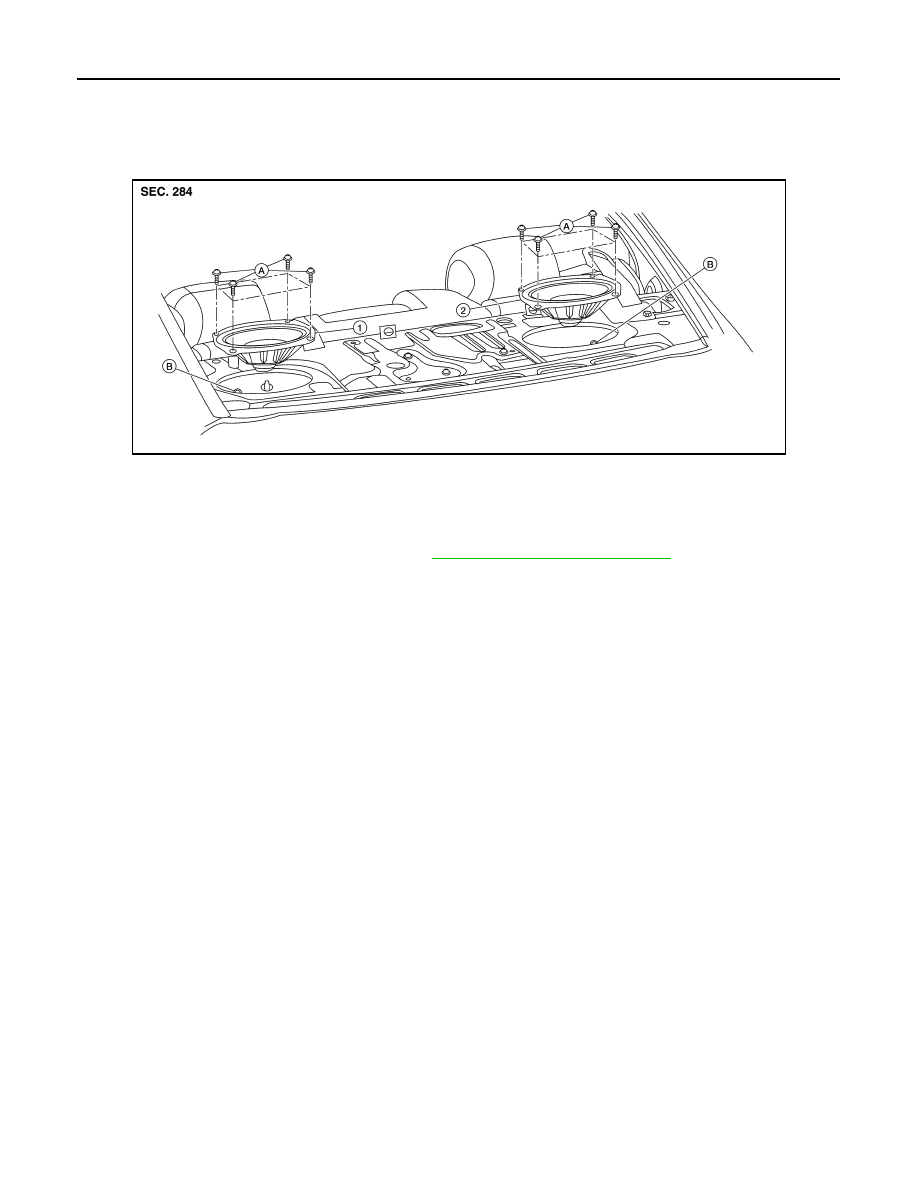

ALNIA1134ZZ

1.

Subwoofer (LH)

2.

Subwoofer (RH)

A.

Subwoofer screws

B.

Subwoofer connectors

AV

BOSE SPEAKER AMP

AV-169

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000009767263

REMOVAL

NOTE:

If removing the BOSE speaker amp. bracket, it is necessary to remove the parcel shelf finisher. The BOSE

speaker amp. can be removed without removing the BOSE speaker amp. bracket.
1. Disconnect the battery negative terminal.
2. Remove the trunk upper finisher. Refer to

INT-36, "Exploded View"

.

3. Remove the Bose speaker amp. screws.
4. Disconnect the Bose speaker amp. connectors and remove the Bose speaker amp.

INSTALLATION

Installation is in the reverse order of removal.

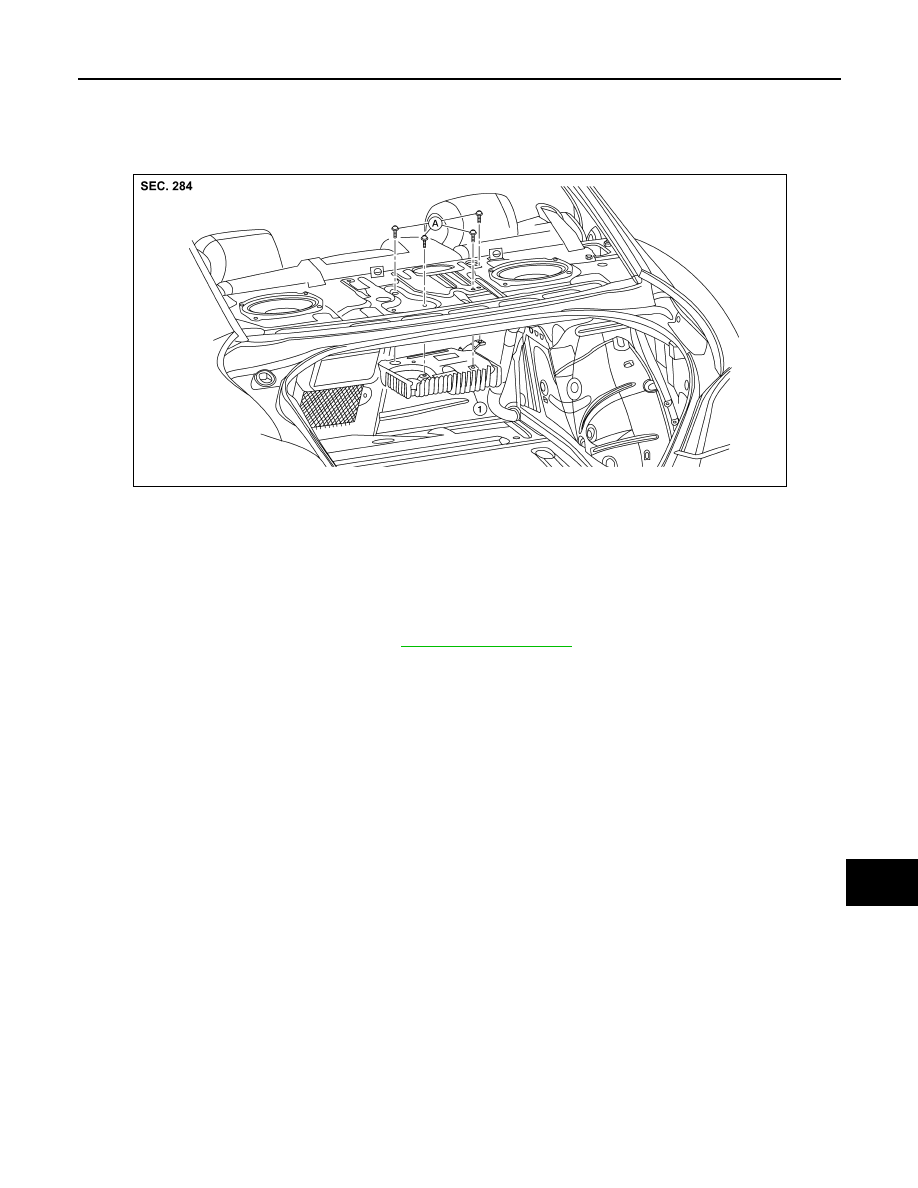

1.

Bose speaker amp.

A.

Bose speaker amp. screws

ALNIA1137ZZ

AV-170

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000009471271

REMOVAL

1. Remove the driver airbag module. Refer to

SR-12, "Removal and Installation"

.

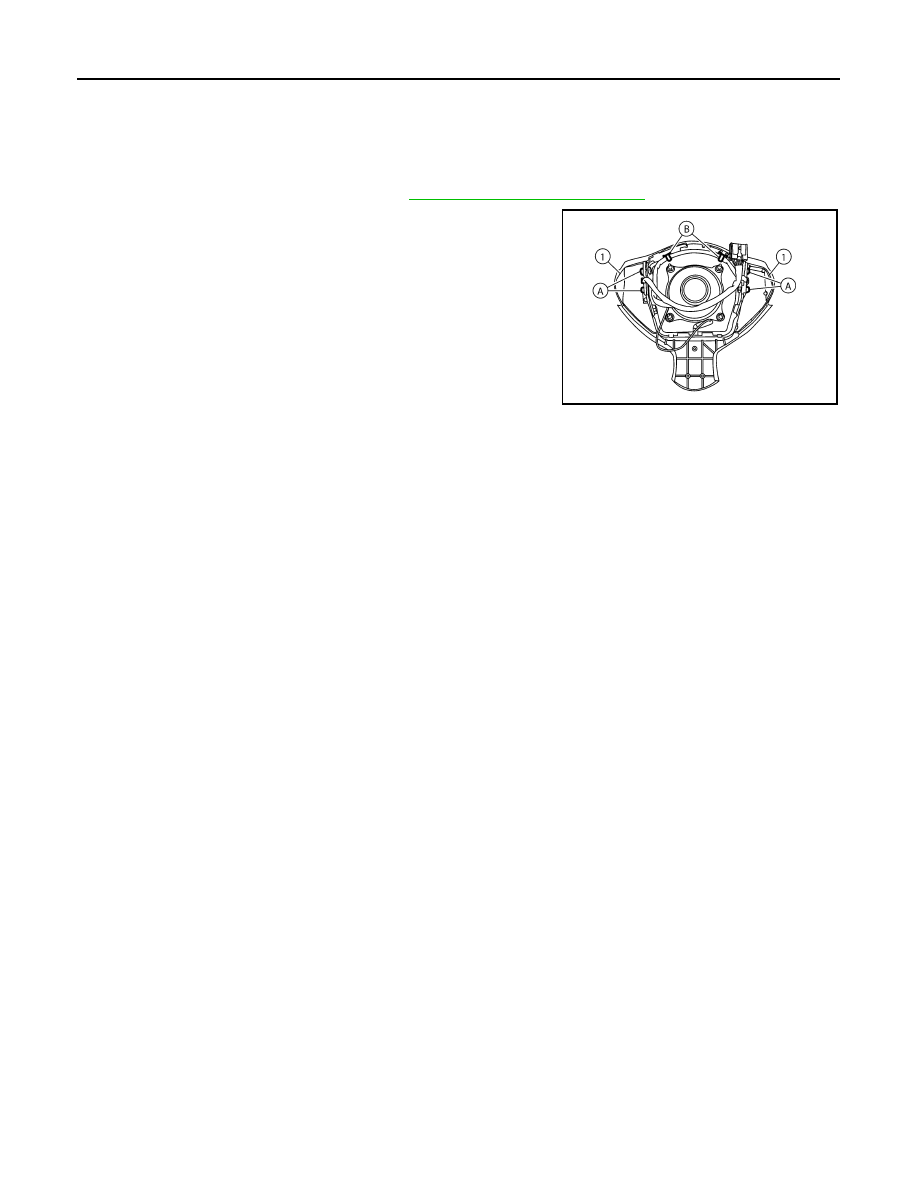

2. Remove the steering wheel audio control switch screws (A).
3. Release the steering wheel audio control switch harness clips

(B).

4. Remove the steering wheel audio control switches (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1132ZZ

AV

AUDIO ANTENNA

AV-171

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO ANTENNA

Location of Antenna

INFOID:0000000009471272

Window Antenna Repair

INFOID:0000000009471273

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

ALNIA1181ZZ

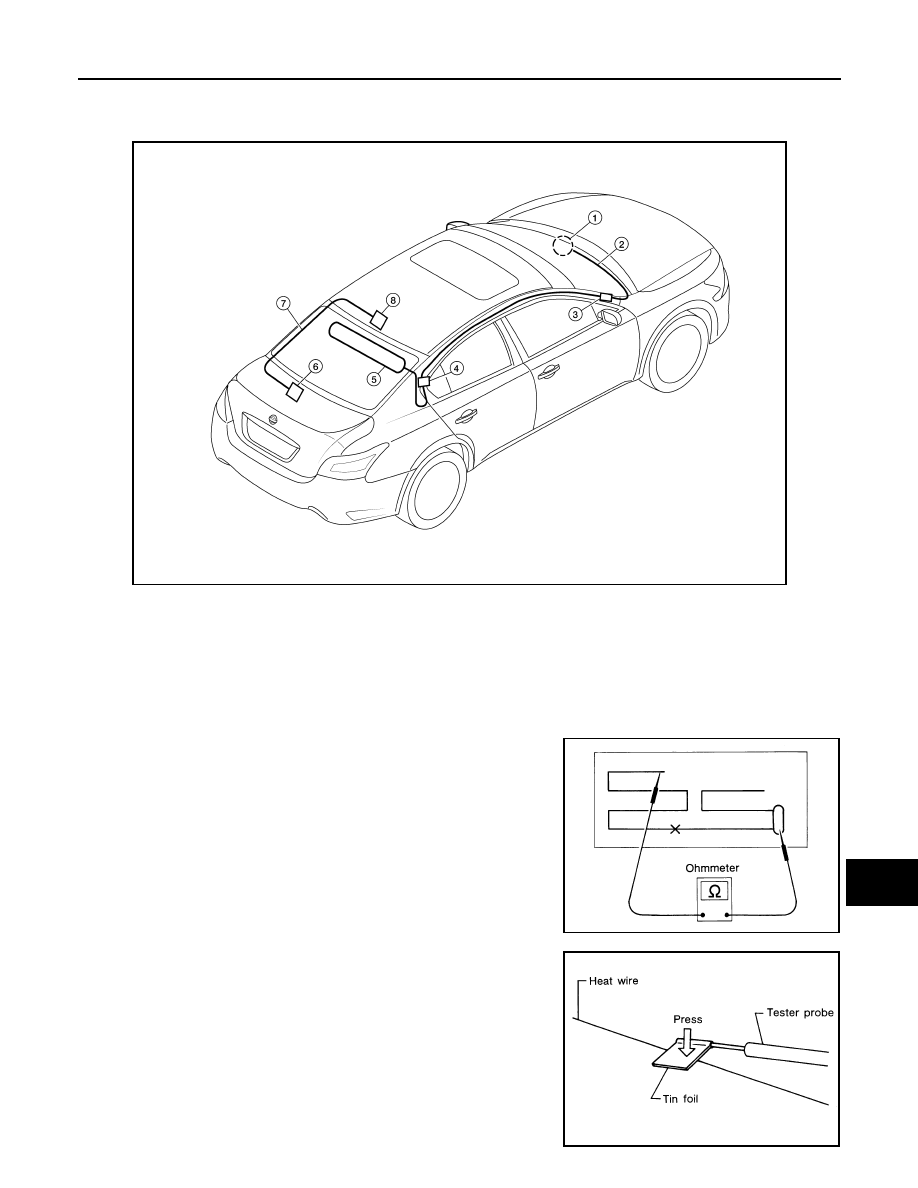

1.

Audio unit

2.

Audio unit antenna feeder

3.

In-line connectors M103, M501

4.

Antenna amp.

5.

Window antenna

6.

Satellite radio tuner

7.

Satellite radio antenna feeder

8.

Satellite radio antenna

SEL250I

SEL122R
