REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUST-
MENT
REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUST-
MENT : Description

INFOID:0000000010064810

Adjust the center position of the possible route line of the rear view monitor if it is shifted.

REAR VIEW MONITOR POSSIBLE ROUTE LINE CENTER POSITION ADJUST-
MENT : Special Repair Requirement

INFOID:0000000010064811

1.

STEERING OPERATION

Steer the steering wheel to the leftmost and rightmost positions.

>> GO TO 2

2.

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> END

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000010064812

BEFORE REPLACEMENT

When replacing AV control unit, save current vehicle specification with CONSULT configuration before

replacement.

AFTER REPLACEMENT

CAUTION:

When replacing AV control unit, you must perform “WRITE CONFIGURATION” with CONSULT.

• Complete the procedure of “WRITE CONFIGURATION” in order.

• If you set incorrect “WRITE CONFIGURATION”, incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000010064813

1.

SAVING VEHICLE SPECIFICATION

-CONSULT Configuration

Perform “READ CONFIGURATION” to save current vehicle specification. Refer to

AV-181, "CONFIGURA-

TION (AV CONTROL UNIT) : Description"

.

NOTE:

If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection”.

>> GO TO 2.

2.

REPLACE AV CONTROL UNIT

Replace AV control unit. Refer to

AV-311, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

-CONSULT Configuration

AV

INSPECTION AND ADJUSTMENT

AV-181

< BASIC INSPECTION >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual selection” to write

vehicle specification. Refer to

AV-181, "CONFIGURATION (AV CONTROL UNIT) : Special Repair Require-

ment"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course

lines) are normal.

>> WORK END

CONFIGURATION (AV CONTROL UNIT)
CONFIGURATION (AV CONTROL UNIT) : Description

INFOID:0000000010064814

• Since vehicle specifications are not included in the AV control unit after replacement, it is required to write

vehicle specifications with CONSULT.

• Configuration has three functions as follows.

CONFIGURATION (AV CONTROL UNIT) : Special Repair Requirement

INFOID:0000000010064815

1.

WRITING MODE SELECTION

CONSULT Configuration

Select “CONFIGURATION” of AV control unit.

When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.

2.

PERFORM “WRITE CONFIGURATION-CONFIG FILE”

CONSULT Configuration

Perform “WRITE CONFIGURATION-Config file”.

>> WORK END

3.

PERFORM “WRITE CONFIGURATION-MANUAL SELECTION”

CONSULT Configuration

 Select “WRITE CONFIGURATION-Manual selection” to write vehicle specifications into the AV control unit.

For data to write, refer to

AV-181, "CONFIGURATION (AV CONTROL UNIT) : Configuration List"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course

lines) are normal.

>> WORK END

CONFIGURATION (AV CONTROL UNIT) : Configuration List

INFOID:0000000010064816

CAUTION:

Function

Description

READ CONFIGURATION

• Reads the vehicle configuration of current AV control unit.
• Saves the read vehicle configuration.

WRITE CONFIGURATION-Manual selection

Writes the vehicle configuration with manual selection.

WRITE CONFIGURATION-Config file

Writes the vehicle configuration with saved data.

AV-182

< BASIC INSPECTION >

[COLOR DISPLAY - W/O BOSE]

INSPECTION AND ADJUSTMENT

Check vehicle specifications before servicing.

MANUAL SETTING ITEM

Note

Items

Setting value

STEERING

LHD

—

RHD

—

GRADE

MODE 1

BASE

MODE 2

OTHER

ENGINE TYPE

NORMAL

—

HYBRID

—

BODY TYPE

NORMAL

NORMAL

CONV

CONVERTIBLE

CAMERA SYSTEM

NONE/AVM

NONE or AVM

REAR

REAR CAMERA

REAR + SIDE

REAR + SIDE CAMERA

4WAS

WITHOUT

—

WITH

—

SOUND SYSTEM

BASE

—

BOSE

—

ANTENNA TYPE

ROD TYPE

—

LONG TYPE

—

DUAL-ZONE AUTO TEMP

WITHOUT

—

WITH

—

DVD PLAY FUNCTION

WITHOUT

—

WITH

—

BODY TYPE

SED 2DR

SEDAN 2 DOOR

SED 4DR 1

SEDAN 4 DOOR

SED 4DR 2

SEDAN 4 DOOR (WIDE)

H/B 2DR

H/B 2 DOOR

H/B 4DR

H/B 4 DOOR

COUPE 2DR

COUPE 2 DOOR

COUPE T

COUPE T BAR

WGN 4DR 2

49H WAGON 4 DOOR (WIDE)

H/T 2DR 1

H/T 2 DOOR

H/T 2DR 2

H/T 2 DOOR (HIGHROOF)

H/T 4DR 1

H/T 4 DOOR

H/T 4DR 2

H/T 4 DOOR (WIDE)

WGN 2DR

WAGON 2 DOOR

WGN 4DR 1

WAGON 4 DOOR

WGN 4DR 3

WAGON 4 DOOR (HIGHROOF)

WGN 4DR 4

56H WAGON 4 DOOR (WIDE)

VAN 2DR

VAN 2 DOOR

VAN 4DR 1

VAN 4 DOOR

VAN 4DR 2

VAN 4 DOOR (HIGHROOF)

CONV

CONVERTIBLE

AV

AUDIO SYSTEM

AV-183

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

AUDIO SYSTEM

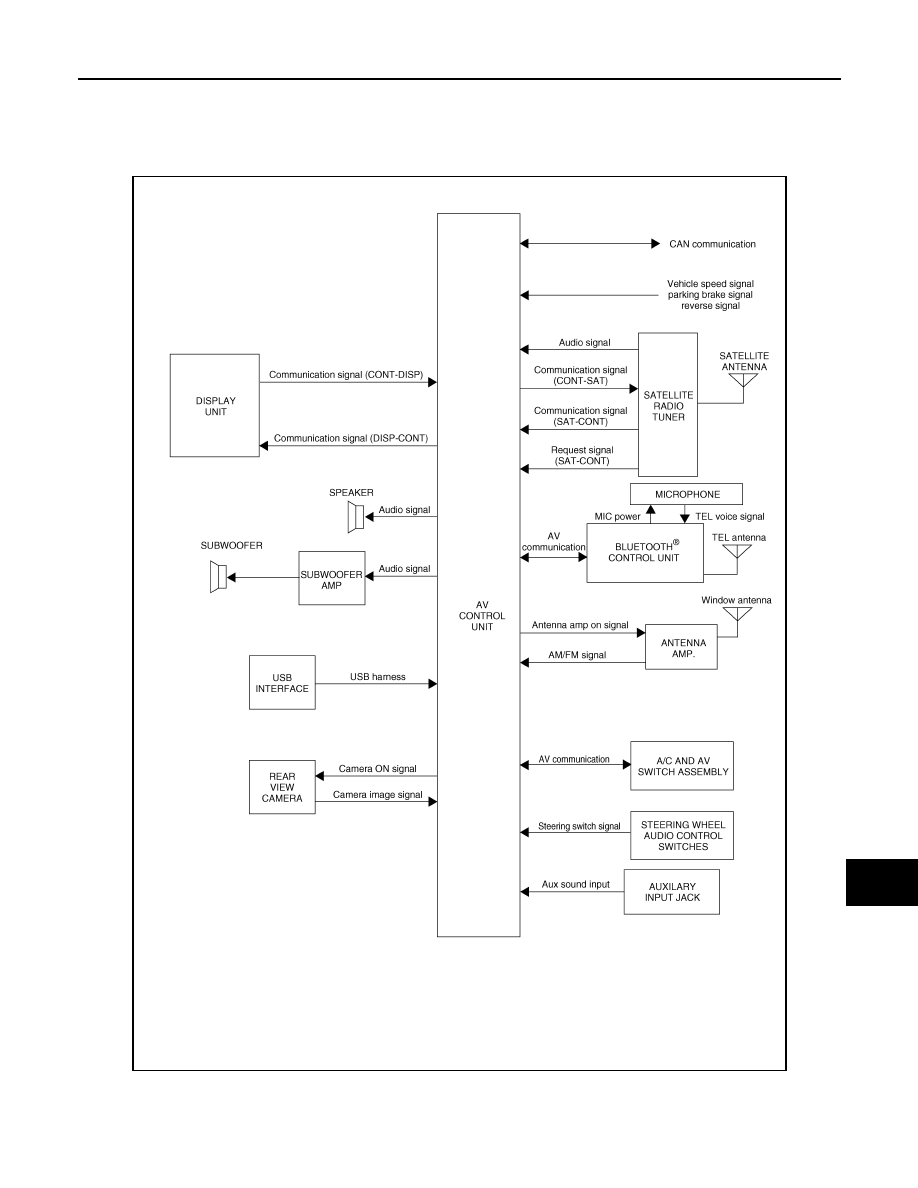

System Diagram
