GW-24

< ON-VEHICLE REPAIR >

REAR REGULATOR

6. Raise up the door glass and hold with suction lifter.
7. Disconnect the window motor connector.

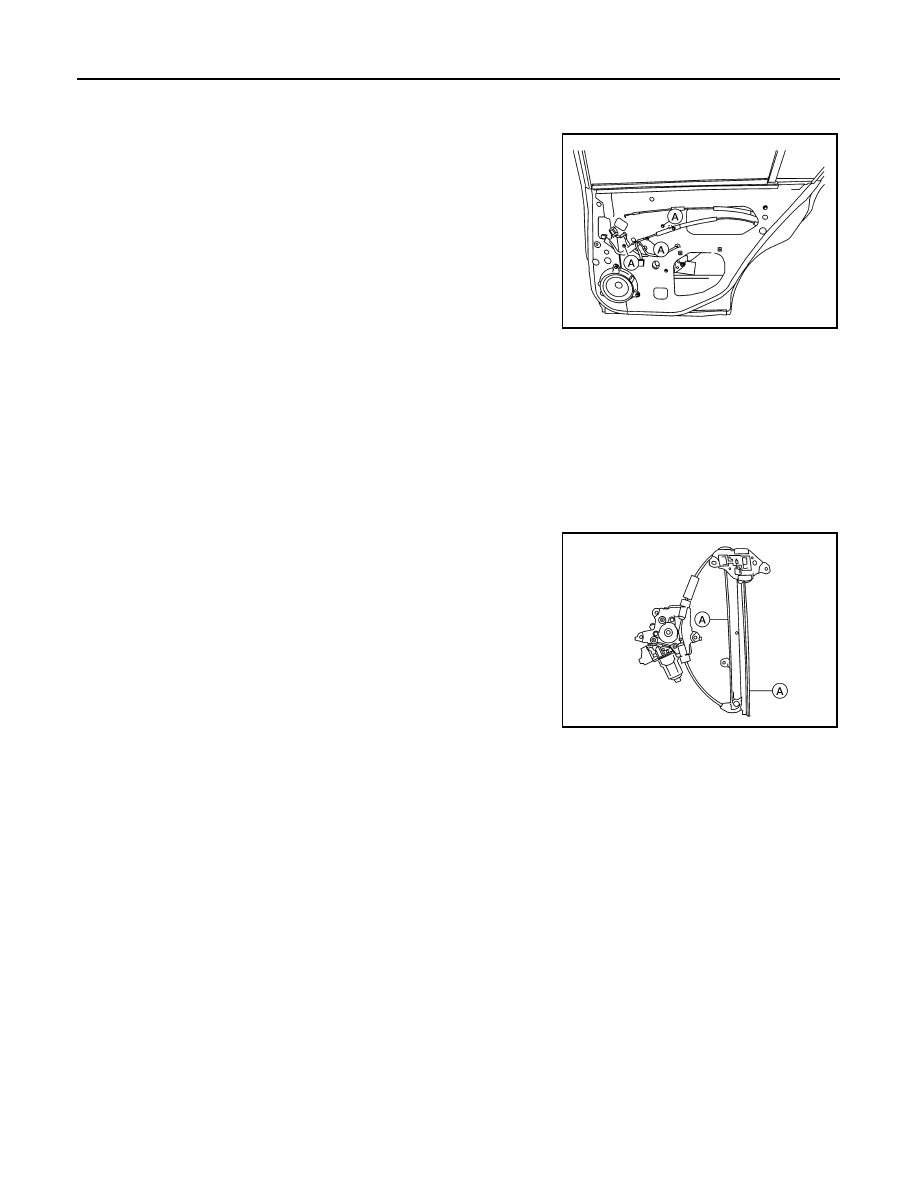

8. Remove the window regulator bolts (A) and remove the window

regulator from the rear door.

INSTALLATION

Installation is in the reverse order of removal.

• After installation, inspect and adjust the glass as necessary.

Inspection and Adjustment

INFOID:0000000004216145

Inspection after Removal

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Gear wear

• Regulator deformation

• Grease condition for each sliding part

Apply multi-purpose grease at points (A) shown.

FINAL INSPECTION

• Make sure the glass is securely fit into the glass run groove.

• Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)], and make sure the clearance to the sash is

parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,

guide rail mounting bolts, and glass and carrier plate mounting bolts to correct the glass position.

ALKIA0120ZZ

ALKIA0121ZZ

FRONT REGULATOR

GW-25

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

DISASSEMBLY AND ASSEMBLY

FRONT REGULATOR

Exploded View

INFOID:0000000004216146

Disassembly

INFOID:0000000004216147

Remove the bolts, window motor and regulator from the door module assembly.

Assembly

INFOID:0000000004216148

Assembly is in the reverse order of disassembly.

1.    Door

2.

Inside seal

3.

Door glass

4.

Regulator assembly

5.

Door module assembly

6.

Window motor

7.

Cover

ALKIA1455ZZ

GW-26

< DISASSEMBLY AND ASSEMBLY >

REAR REGULATOR

REAR REGULATOR

Exploded View

INFOID:0000000004216149

Disassembly

INFOID:0000000004216150

1. Remove the window motor bolts (A).
2. Remove the window motor from regulator assembly.

Assembly

INFOID:0000000004216151

Assembly in the reverse order of disassembly.

1.

Rear door

2.

Door glass run

3.

Door glass

4.

Inside seal

5.

Partition sash

6.

Rear window seal

7.

Rear window glass

8.

Regulator assembly

9.

Window motor

10. Water shield

AWKIA1271ZZ

ALKIA0123ZZ

HA-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

HA

A

B

HA

N

O

P

CONTENTS
