FRONT DOOR GLASS

2. Turn ignition switch ON.
3. Open the window fully by operating the power window switch. (Exclude this procedure if the window is

already fully opened)

4. Fully raise the power window switch in up direction (auto close position) and hold, keep holding the switch

even when window is completely closed and then release after 4 seconds has passed.

5. Inspect the anti-pinch system function.

NOTE:

Initialization may be cancelled with continuous opening and closing operation.In this case, initialize the

system.

INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM.

1. Fully open the door glass.
2. Place a wooden piece (wooden hammer handle etc.) at near fully closed position.
3. Carry out fully closing operation with auto up switch.

CAUTION:

• Do not inspect with pinching a part of worker's body, a hand etc. Work carefully not to be

pinched.

• Check that auto up function is normal before inspection following the system initialization.

• Check that the glass reverses without pinching the wooden piece, is lowered approx.150 mm (5.91 in)

or for 2 seconds and then stops.

• The glass should not be raised with power window main switch operated while it is reversing or lower-

ing.

FINAL INSPECTION

• Make sure the glass is securely set into the glass run groove.

• Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)] and make sure the clearance to the sash is

parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,

guide rail mounting bolts, and glass and guide rail mounting bolts to adjust the glass position.

FRONT REGULATOR

GW-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

FRONT REGULATOR

Exploded View

INFOID:0000000004216137

Removal and Installation

INFOID:0000000004533082

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the covers from the access holes on the door module assembly.

3. Reconnect the window switch to raise/lower the door glass until the door glass bolts can be seen through

the access holes in the door module assembly.

4. Remove the door glass bolts.

1.    Door

2.

Inside seal

3.

Door glass

4.

Regulator assembly

5.

Door module assembly

6.

Window motor

7.

Cover

ALKIA1455ZZ

GW-18

< ON-VEHICLE REPAIR >

FRONT REGULATOR

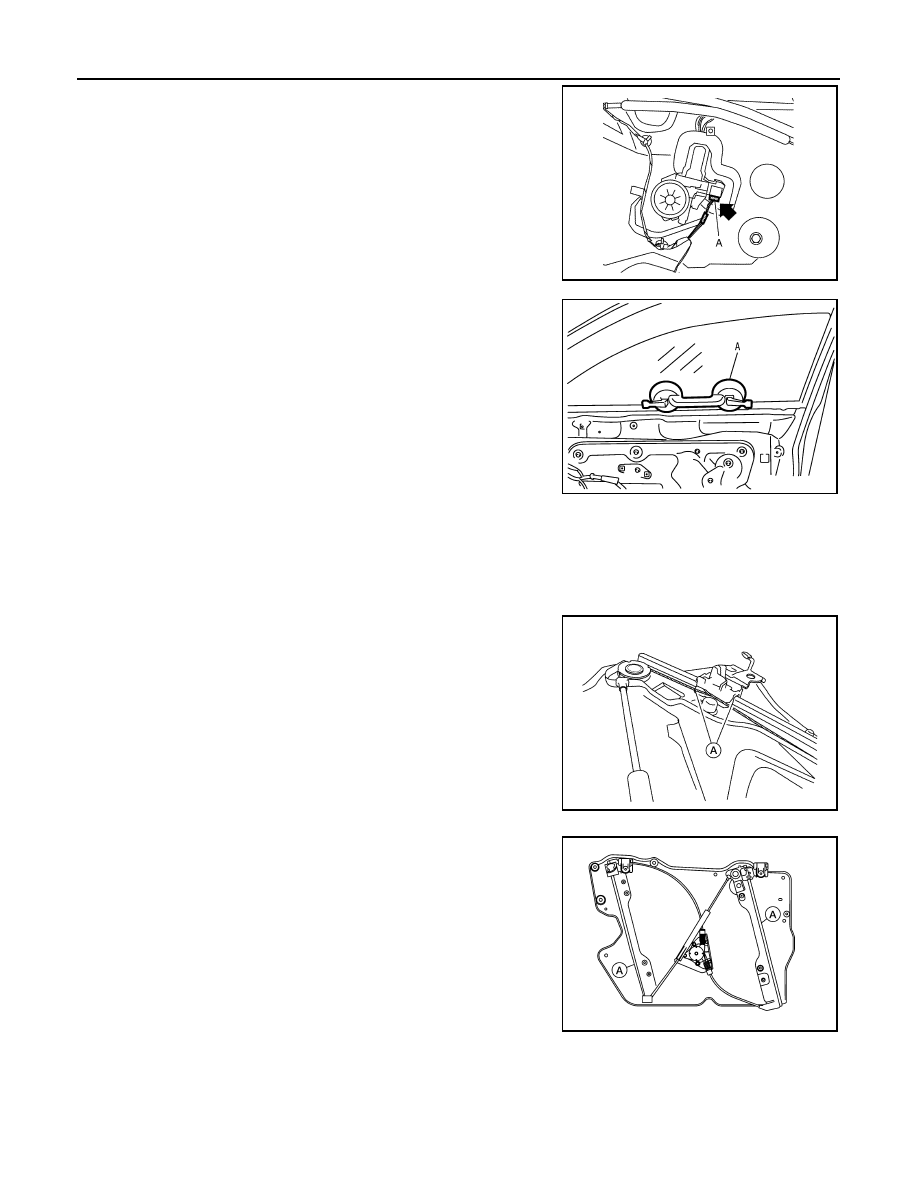

5. Disconnect the window motor connector (A) and clips.

6. Raise the door glass and hold with a suction lifter (A).

7. Remove the door module assembly.
8. Remove the regulator assembly from the front door module assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Excessive cable wear.

• Regulator channel deformation (A).

• Apply grease for each sliding part. Apply grease at the application

points (A) as shown.

ALKIA0111ZZ

PIIB3510J

ALKIA0113ZZ

ALKIA0114ZZ

FRONT REGULATOR

GW-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

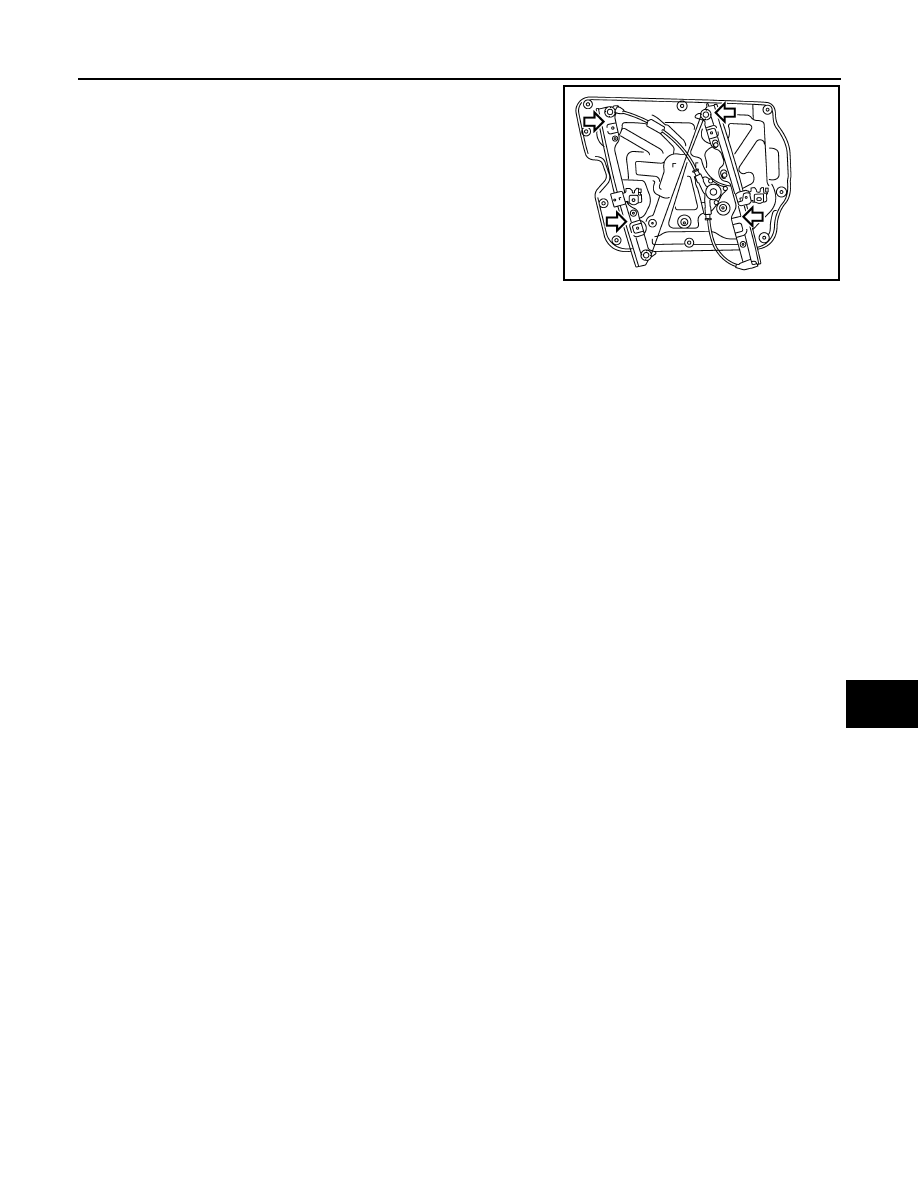

• Apply multi-purpose grease.

INSTALLATION

• After installation inspect and adjust as necessary. Refer to Inspection and Adjustment

Installation is in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000004216139

SYSTEM INITIALIZATION

If any of the following work has been done, initialize the system.

• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

• Removal and installation of the regulator assembly.

• Removal and installation of the motor from the regulator assembly.

• Removal and installation of the harness connector of the power window switch.

• Operate the regulator assembly as a unit.

• Removal and installation of the door glass.

• Removal and installation of the door glass run.

Initialization

After installing each component to the vehicle, follow the steps below.
1. Disconnect the negative battery terminal or disconnect power window switch harness connector tempo-

rarily, then reconnect after at least 1 minute.

2. Turn ignition switch ON.
3. Open the window fully by operating the power window switch. (Exclude this procedure if the window is

already fully opened)

4. Fully raise the power window switch in up direction (auto close position) and hold, keep holding the switch

even when window is completely closed and then release after 4 second has passed.

5. Inspect of the anti-pinch system function.

NOTE:

Initialization may be cancelled with continuous opening and closing operation.In this case, initialize the

system.

INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM.

1. Fully open the door glass.
2. Place a wooden piece (wooden hammer handle etc.) at near fully closed position.
3. Carry out fully closing operation with auto up switch.

CAUTION:

• Do not inspect with pinching a part of worker's body, a hand etc. Work carefully not to be

pinched.

• Check that auto up function is normal before inspection following the system initialization.

• Check that the glass reverses without pinching the wooden piece, is lowered approx.150 mm (5.91 in)

or for 2 seconds and then stops.

• The glass should not be raised with power window main switch operated while it is reversing or lower-

ing.

FITTING INSPECTION

• Make sure the glass is securely set into the glass run groove.

PIIB3290J
