FRONT REGULATOR

• Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)] and make sure the clearance to the sash is

parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,

guide rail mounting bolts, and glass and guide rail mounting bolts to adjust the glass position.

REAR DOOR GLASS

GW-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR DOOR GLASS

Components

INFOID:0000000004216140

Removal and Installation

INFOID:0000000004216141

REMOVAL

1. Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the water shield, being careful not to tear/damage it.
3. Temporarily reconnect the power window switch to the door harness.
4. Operate the power window switch to raise/lower the door glass until the door glass bolts can be seen.
5. Remove the door glass bolts (A).

1.

Rear door

2.

Door glass run

3.

Door glass

4.

Inside seal

5.

Partition sash

6.

Rear window seal

7.

Rear window glass

8.

Regulator assembly

9.

Window motor

10. Water shield

AWKIA1271ZZ

ALKIA0117ZZ

GW-22

< ON-VEHICLE REPAIR >

REAR DOOR GLASS

6. Remove the door glass.
7. Remove the partition sash from the glass run.

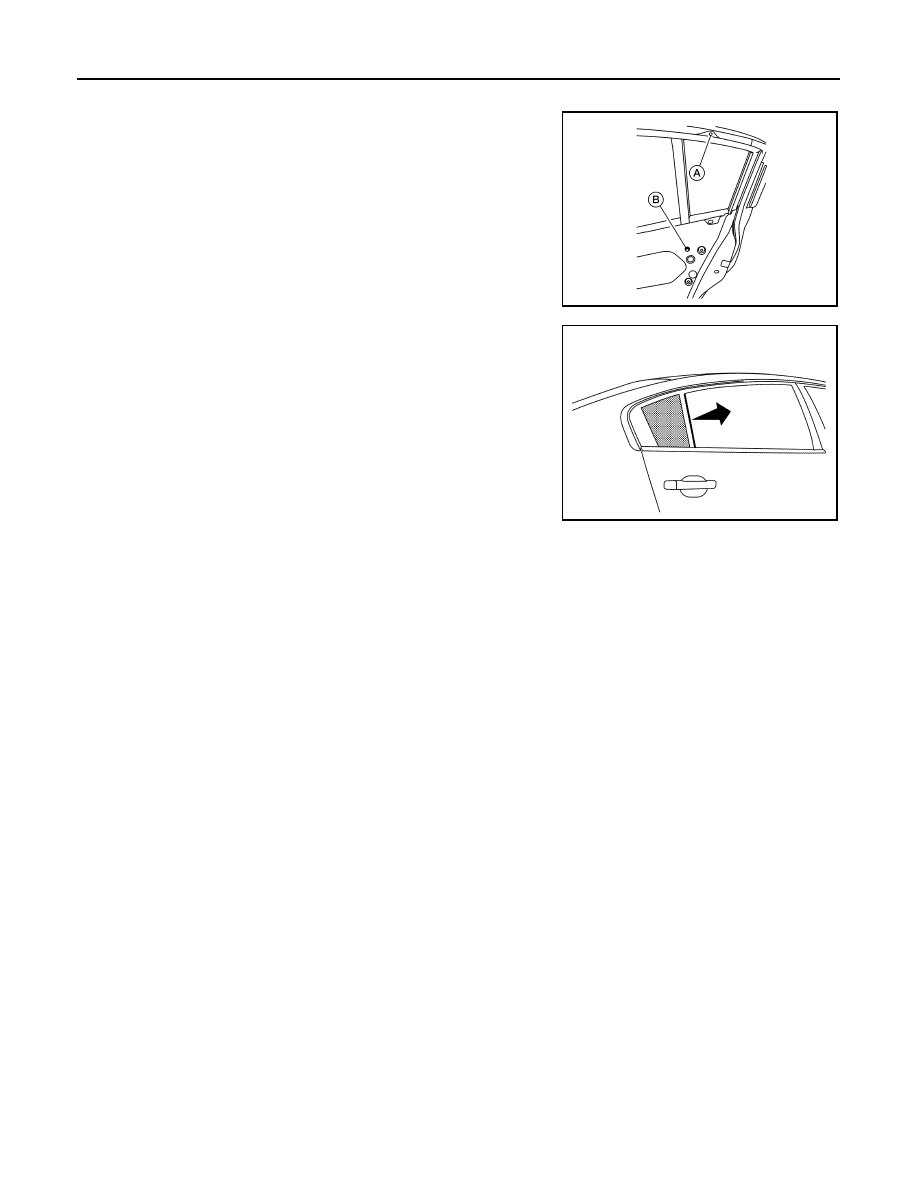

• Remove the partition sash bolt (lower) (B) and screw (upper)

(A) to remove the sash.

8. Remove the rear window glass from the door in the direction as

shown.

INSTALLATION

Installation is in the reverse order of removal.

• After installation, inspect and adjust the glass as necessary.

Inspection and Adjustment

INFOID:0000000004216142

FITTING INSPECTION

• Make sure the glass is securely fit into the glass run groove.

• Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)], and make sure the clearance to the sash is

parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,

guide rail mounting bolts, and glass and carrier plate mounting bolts to correct the glass position.

ALKIA0118ZZ

ALKIA0119ZZ

REAR REGULATOR

GW-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR REGULATOR

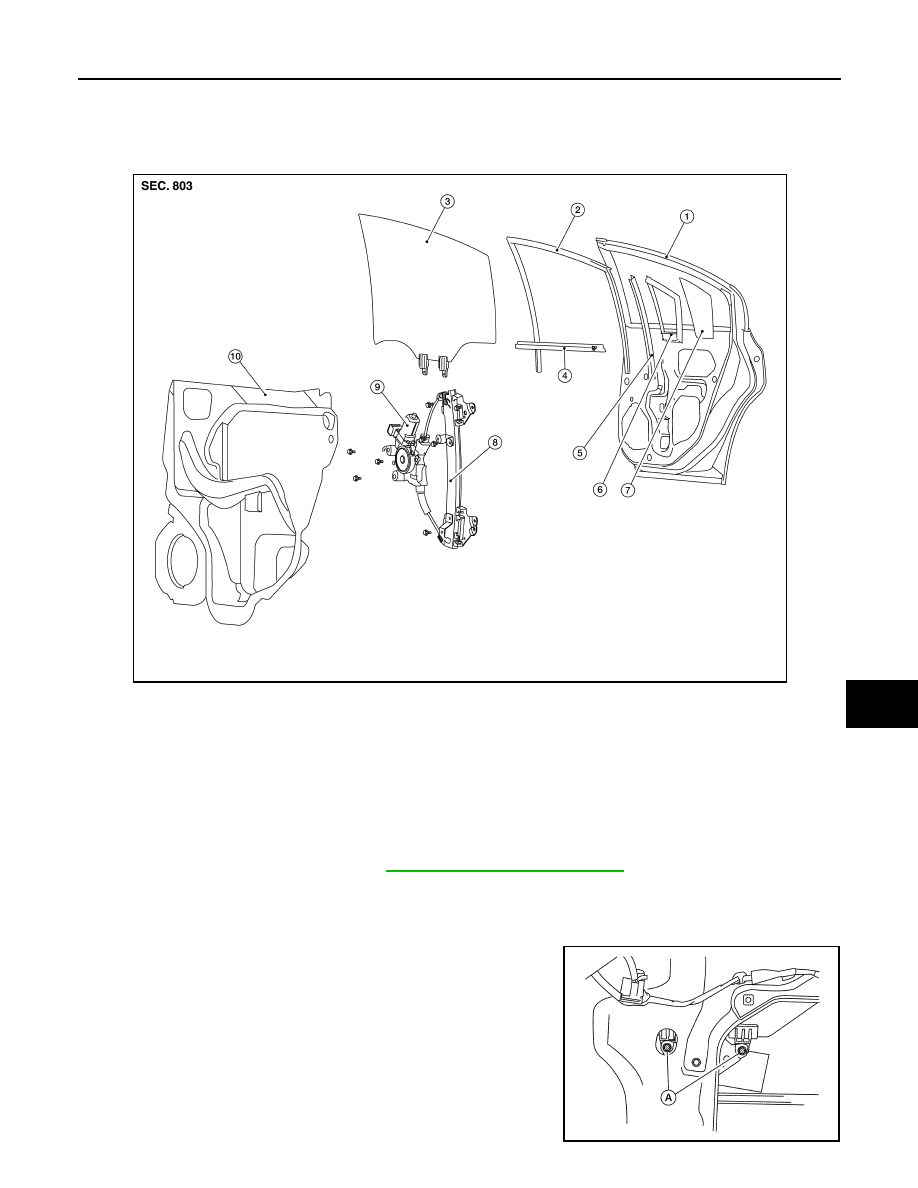

Exploded View

INFOID:0000000004216143

Removal and Installation

INFOID:0000000004216144

REMOVAL

1. Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the water shield, being careful not to tear/damage it.
3. Temporarily reconnect the power window switch to the door harness.
4. Operate the power window switch to raise/lower the door glass until the door glass bolts can be seen.
5. Remove the door glass bolts (A).

1.

Rear door

2.

Door glass run

3.

Door glass

4.

Inside seal

5.

Partition sash

6.

Rear window seal

7.

Rear window glass

8.

Regulator assembly

9.

Window motor

10. Water shield

AWKIA1271ZZ

ALKIA0117ZZ
