STOP LAMP

STOP LAMP

Bulb Replacement

INFOID:0000000004216448

STOP LAMP

Removal

1. Remove rear combination lamp. Refer to

EXL-164, "Removal and Installation"

.

2. Turn bulb socket counterclockwise to unlock and remove from combination lamp assembly.
3. Turn bulb counterclockwise to remove from bulb socket.

Installation

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000004216449

HIGH-MOUNTED STOP LAMP - WITH REAR SPOILER

Removal

1. Remove the rear air spoiler. Refer to

EXL-164, "Removal and Installation"

.

2. Remove the two screws and remove high mounted stop lamp from the rear air spoiler.

Installation

Installation is in the reverse order of removal.

HIGH-MOUNTED STOP LAMP - WITHOUT REAR AIR SPOILER

Removal

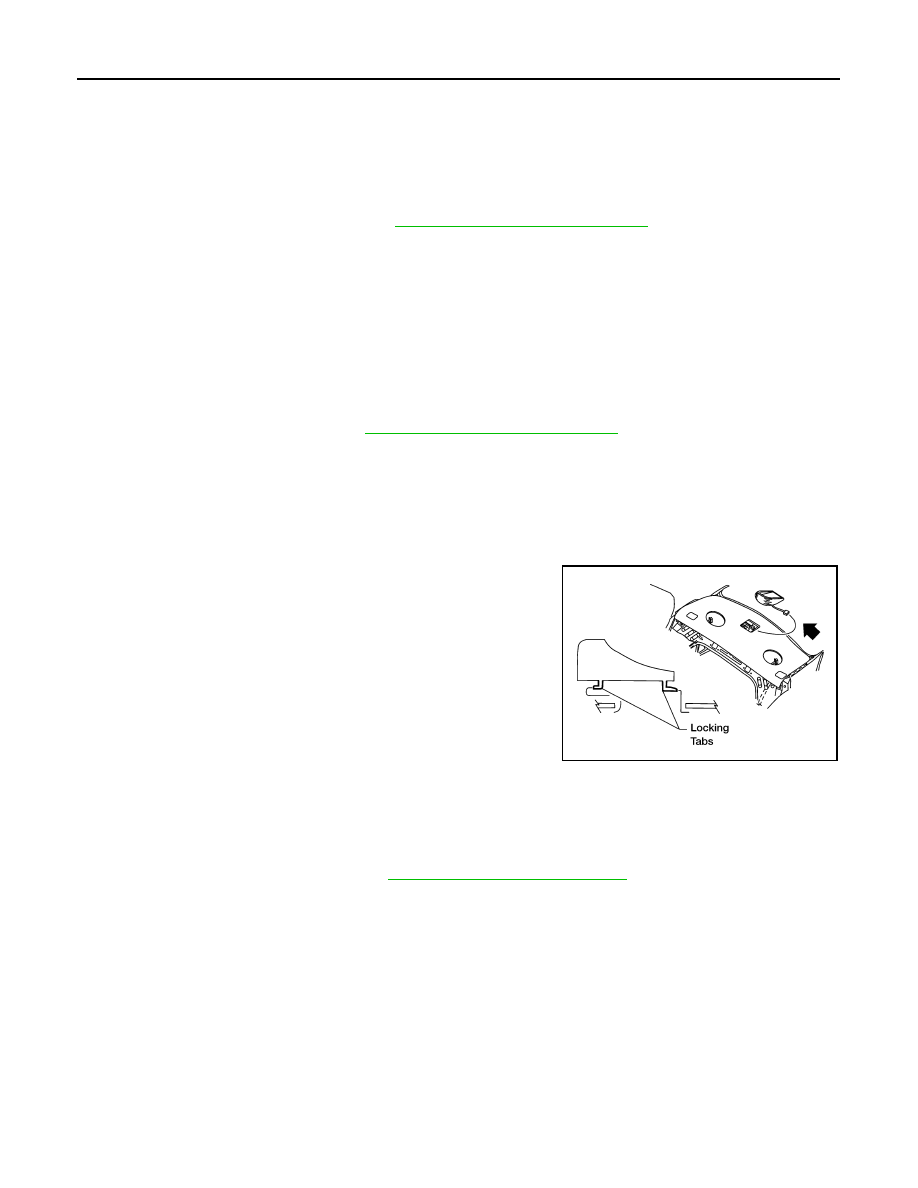

1. Slide high-mounted stop lamp assembly rearward on parcel

shelf to give clearance to front tabs.

2. Lift front of lamp assembly up and bring forward to give clear-

ance to rear tabs.

3. Disconnect the high-mounted connector and remove.

Installation

Installation is in the reverse order of removal.

REAR COMBINATION LAMP

Removal

1. Remove the trunk side finisher. Refer to

INT-27, "Removal and Installation"

.

2. From trunk, remove the rear combination lamp assembly nuts.
3. Disconnect connectors and remove rear combination lamp assembly.

Installation

Installation is in the reverse order of removal.

LKIA0063E

LICENSE PLATE LAMP

EXL-165

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LICENSE PLATE LAMP

Bulb Replacement

INFOID:0000000004216450

LICENSE PLATE LAMP

Removal

1. Position trunk lid finisher aside.
2. Turn license plate lamp bulb socket counterclockwise to unlock

and remove.

3. Pull license plate lamp bulb to remove from socket.

Installation

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000004216451

LICENSE PLATE LAMP

Removal

1. Remove the license plate finisher. Refer to

EXL-165, "Removal and Installation"

.

2. Disconnect the license plate lamp connector.
3. Remove the license plate lamp screw and remove the license

plate lamp.

Installation

Installation is in the reverse order of removal.

WKIA3384E

PKIA0059E

EXL-166

< ON-VEHICLE REPAIR >

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Bulb Replacement

INFOID:0000000004216452

REAR TURN SIGNAL LAMP

1. Remove the rear combination lamp. Refer to

EXL-166, "Removal and Installation"

.

2. Turn the rear turn signal lamp bulb socket counterclockwise and remove it.
3. Remove the rear turn signal lamp bulb.
4. Installation is in the reverse order of removal.

STOP/TAIL LAMP

1. Remove the rear combination lamp. Refer to

EXL-166, "Removal and Installation"

.

2. Turn the stop/tail lamp bulb socket counterclockwise and remove it.
3. Remove the stop/tail lamp bulb.
4. Installation is in the reverse order of removal.

BACK-UP LAMP

1. Remove the rear combination lamp. Refer to

EXL-166, "Removal and Installation"

.

2. Turn the back-up lamp bulb socket counterclockwise and remove it.
3. Remove the back-up lamp bulb.
4. Installation is in the reverse order of removal.

SIDE MARKER LAMP

1. Remove the rear combination lamp. Refer to

EXL-166, "Removal and Installation"

.

2. Turn the side marker lamp bulb socket counterclockwise and remove it.
3. Remove the side marker lamp bulb.
4. Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000004216453

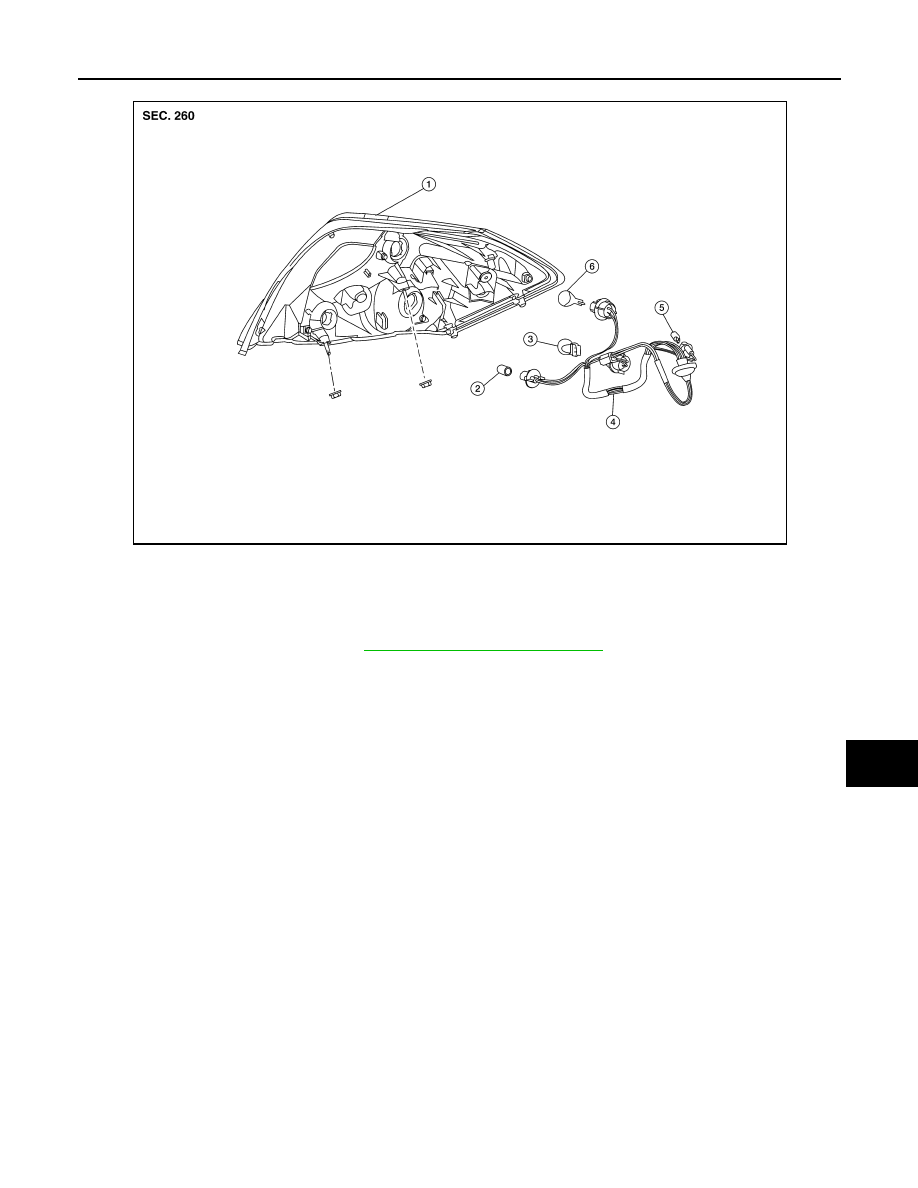

COMPONENTS

REAR COMBINATION LAMP

EXL-167

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REMOVAL

1. Remove trunk side finisher. Refer to

INT-27, "Removal and Installation"

.

2. Remove the rear combination lamp nuts.
3. Pull the rear combination lamp assembly toward rear of the vehicle and remove.

INSTALLATION

Installation is the reverse order of removal.

1.

Rear combination lamp assembly

2.

Back-up lamp bulb

3.

Stop/Tail lamp bulb

4.

Rear combination lamp harness

5.

Side marker lamp bulb

6.

Rear turn signal lamp bulb

ALLIA0039ZZ
