EXL-156

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000004216437

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

Precautions For High-Voltage System

INFOID:0000000004216438

Refer to

HBB-92, "Precautions For High-Voltage System"

.

General precautions for service operations

INFOID:0000000004216439

• Never work with wet hands.

• Turn the lighting switch OFF before disconnecting and connecting the connector.

• When checking the headlamp on/off operation, check it on vehicle and with the power connected to the vehi-

cle-side connector.

• Do not touch the headlamp bulb glass surface with bare hands or allow oil or grease to get on it. Do not

touch the headlamp bulb just after the headlamp is turned off, because it is very hot.

• When the bulb has burned out, wrap it in a thick vinyl bag and discard. Do not break the bulb.

• Leaving the bulb removed from the headlamp housing for a long period of time can deteriorate the perfor-

mance of the lens and reflector (dirt, clouding). Always prepare a new bulb and have it on hand when replac-

ing the bulb.

• When adjusting the headlamp aiming, turn the aiming adjustment screw only in the tightening direction. (If it

is necessary to loosen the screw, first fully loosen the screw, and then turn it in the tightening direction.)

• Do not use organic solvent (paint thinner or gasoline) to clean lamps and to remove old sealant.

HEADLAMP

EXL-157

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ON-VEHICLE MAINTENANCE

HEADLAMP

Aiming Adjustment

INFOID:0000000004216440

NOTE:

For details, refer to the regulations in your area.

Headlamp Aiming

NOTE:

• If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check head-

lamp aiming.

• Before performing headlamp aiming adjustment, check the following:

- Confirm which type of headlamp is in vehicle.

- Ensure all tires are inflated to correct pressure.

- Place vehicle and screen on level surface.

- Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

- Ensure engine coolant and engine oil are filled to correct level and fuel tank is full.

- Confirm spare tire, jack and tools are properly stowed.

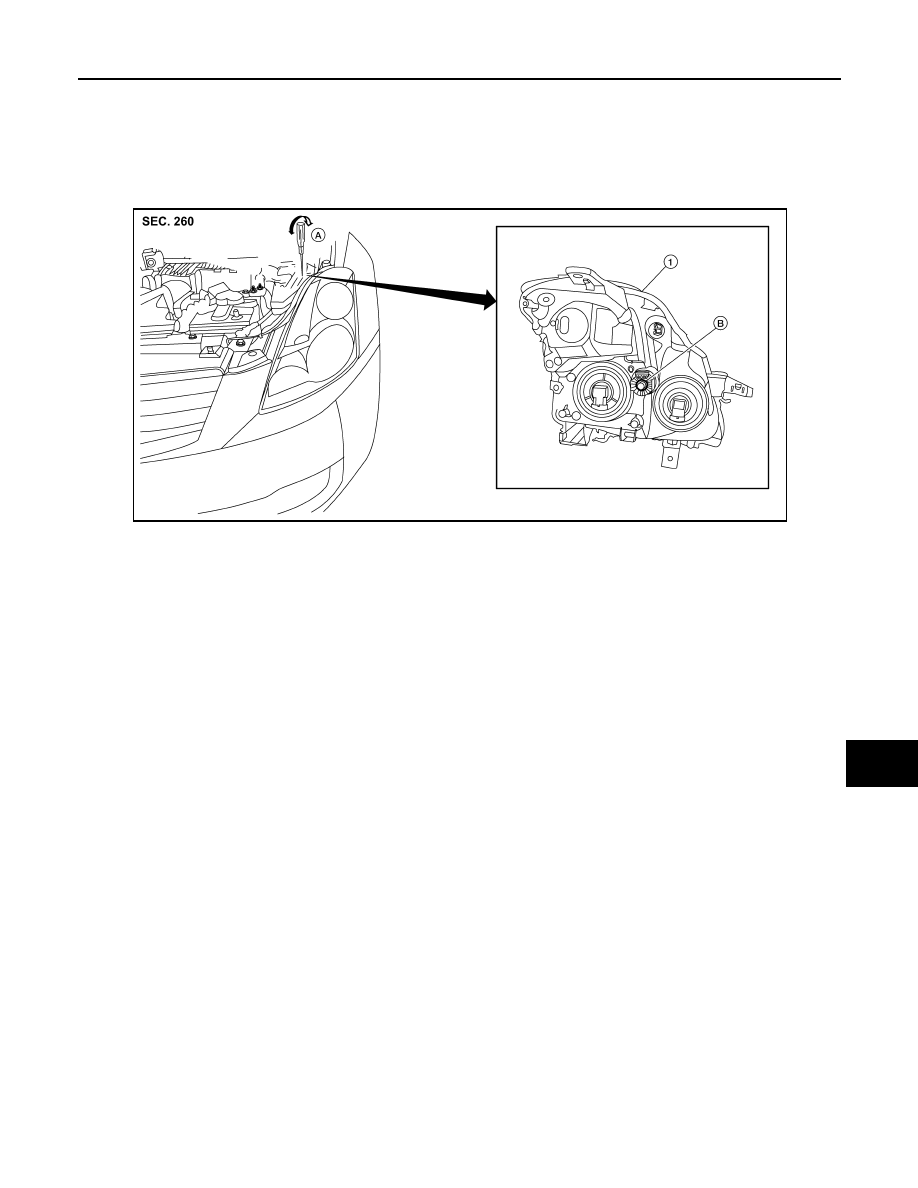

AIMING ADJUSTMENT

1.

Headlamp assembly

A.

Suitable tool (for aiming adjustment) B.

Adjusting screw

ALLIA0034ZZ

EXL-158

< ON-VEHICLE MAINTENANCE >

HEADLAMP

• Basic illuminating area for adjustment should be within the range shown on the aiming chart. Adjust

headlamps accordingly.

• First loosen the adjusting screw all the way and then make adjustment by tightening the screw.
1. Turn headlamp low beam on.
2. Use adjusting screws to perform aiming adjustment.

A.

Right

B.

Left

C.

Center of headlamp bulb (H-V point)

D.

Cutoff line

E.

Screen

F.

Aim evaluation segment

G.

Step

H.

Horizontal center line of headlamp

J.

53.2 mm (2.09 in)

K.

-13.3 mm (-0.52 in)

L.

7.62 m (25 ft)

M.

399 mm (15.71 in)

N.

133 mm (5.24 in)

V.

Vertical center line of headlamp

AWLIA1498ZZ

FRONT FOG LAMP

EXL-159

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP

Aiming Adjustment

INFOID:0000000004216441

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming

adjustment, make sure of the following.

• Keep all tires inflated to correct pressure.

• Place vehicle on level ground.

• See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and

tools). Have the driver or equivalent weight placed in driver seat.

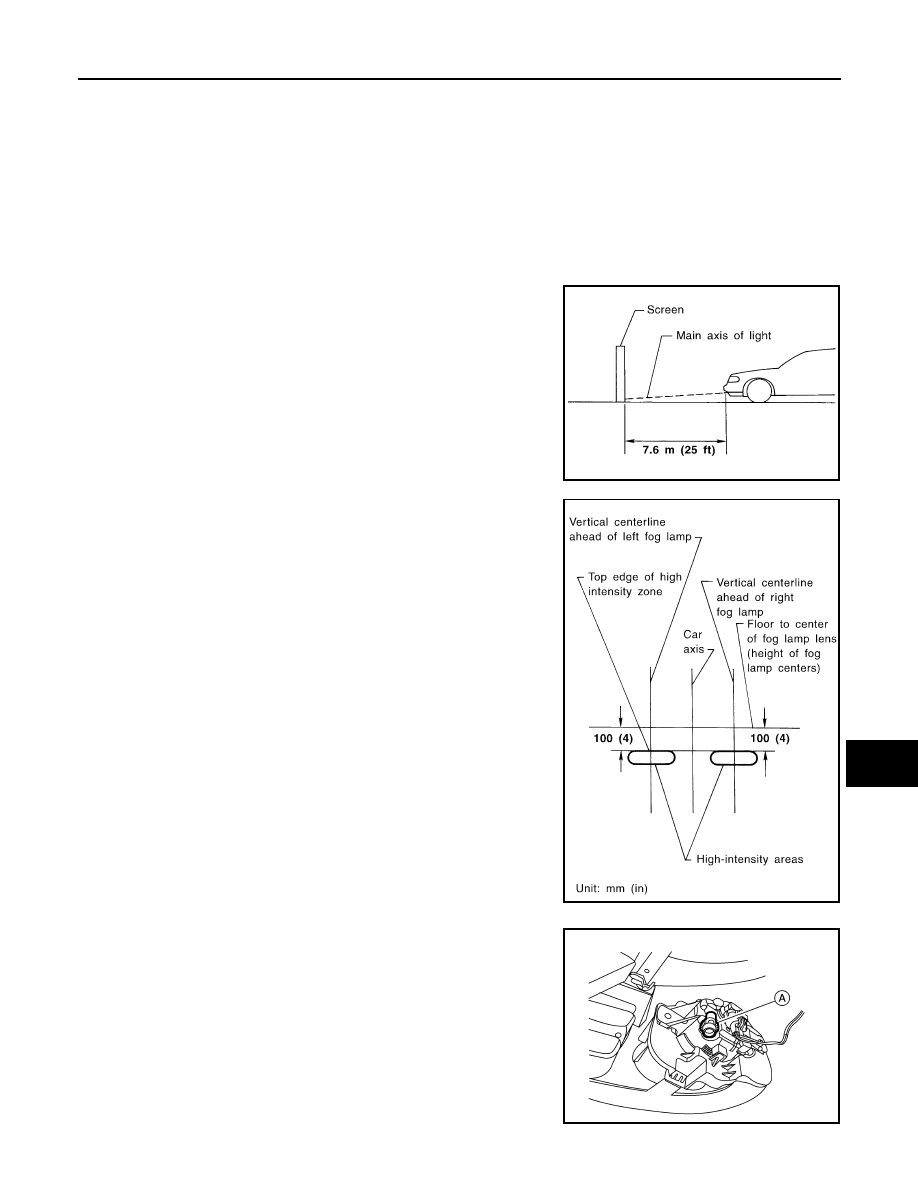

1. Set the distance between the screen and the center of the fog

lamp lens as shown.

2. Turn front fog lamps ON.

3. Adjust front fog lamps using adjusting screw so that the top edge

of the high intensity zone is 100 mm (4 in) below the height of

the fog lamp centers as shown.

• When performing adjustment, if necessary, cover the head-

lamps and opposite fog lamp.

• Adjust aiming in the vertical direction by turning the adjusting

screw (A).

MEL327G

MEL328G

ALLIA0035ZZ
