Nissan Altima HL32 Hybrid. Manual - part 291





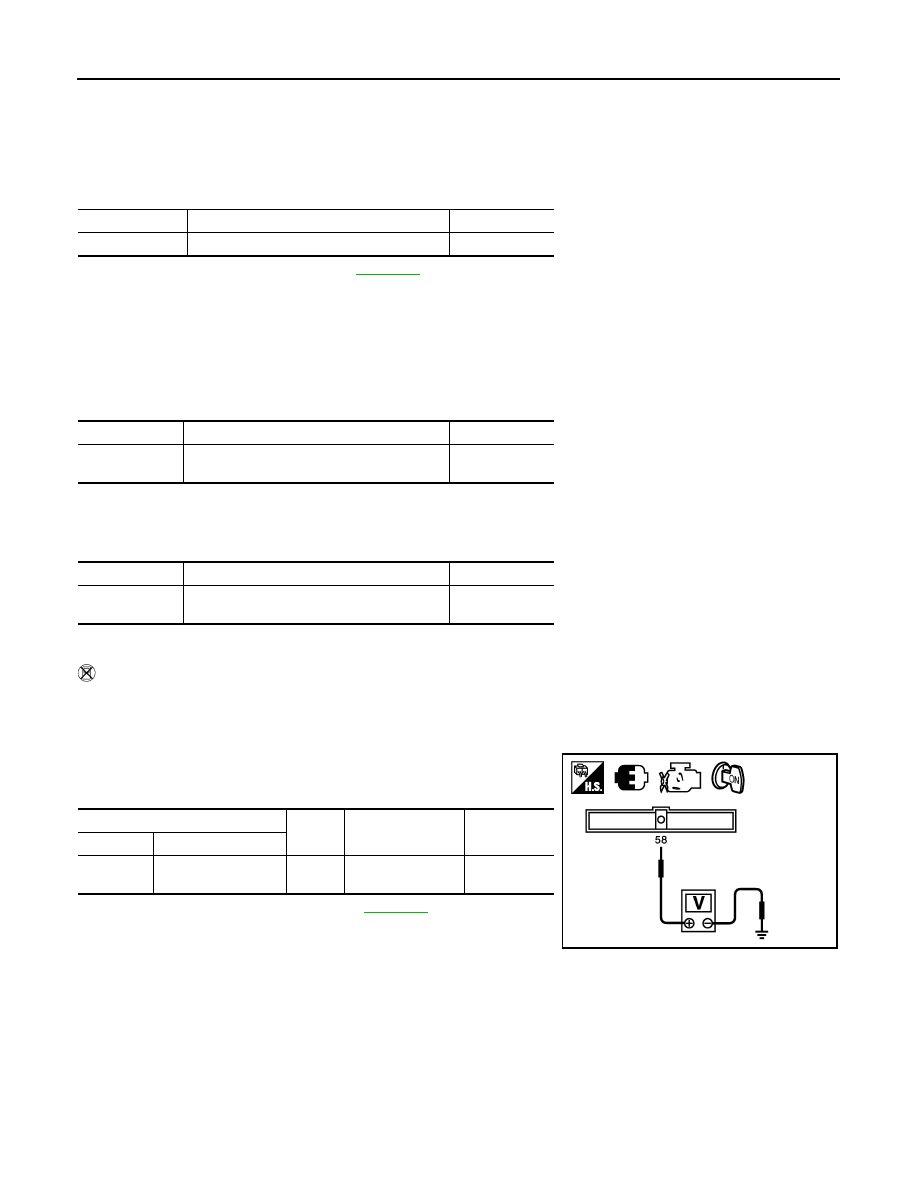

EC-148

< COMPONENT DIAGNOSIS >

[QR25DE]

P0101 MAF SENSOR

1. Turn ignition switch OFF.

2. Reconnect all harness connectors disconnected.

3. Lift up the vehicle.

4. Turn ignition switch ON.

5. Connect CONSULT-III and select “DATA MONITOR” mode.

6. Select “MAS A/F SE-B1” and check indication.

7. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine, and warm up engine to normal operating

temperature.

8. Depress the accelerator pedal and keep it.

9. Shift the selector lever to N position with engine running.

CAUTION:

Never leave the selector lever in the N position for a long period of time. In the N position, the

engine operates but electricity cannot be generated.

10. Select “MAS A/F SE-B1” in “DATA MONITOR” and check indication.

11. Shift the selector lever to P position.

12. Fully depress the accelerator pedal and keep it.

13. Check indication.

14. Fully release accelerator pedal then fully depress it.

15. Check for linear voltage rise in response to engine being increased to about 2,500 rpm.

Without CONSULT-III

1. Turn ignition switch OFF.

2. Reconnect all harness connectors disconnected.

3. Lift up the vehicle.

4. Turn ignition switch ON.

5. Check the voltage between ECM harness connector and

ground.

6. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine,

and warm up engine to normal operating temperature.

7. Depress the accelerator pedal and keep it.

8. Shift the selector lever to N position with engine running.

CAUTION:

Never leave the selector lever in the N position for a long period of time. In the N position, the

engine operates but electricity cannot be generated.

Monitor item

Condition

MAS A/F SE-B1

MAS A/F SE-B1

Ignition switch ON

Approx. 0.4 V

Monitor item

Condition

MAS A/F SE-B1

MAS A/F SE-B1

Idle (Engine is warmed-up to normal operat-
ing temperature.)

0.9 - 1.2 V

Monitor item

Condition

MAS A/F SE-B1

MAS A/F SE-B1

2,500 rpm (Engine is warmed-up to normal
operating temperature.)

1.5 - 1.8 V

ECM

Ground

Condition

Voltage

Connector

Terminal

F13

58

(MAF sensor signal)

Ground Ignition switch ON

Approx. 0.4 V

JMBIA1631ZZ

P0101 MAF SENSOR

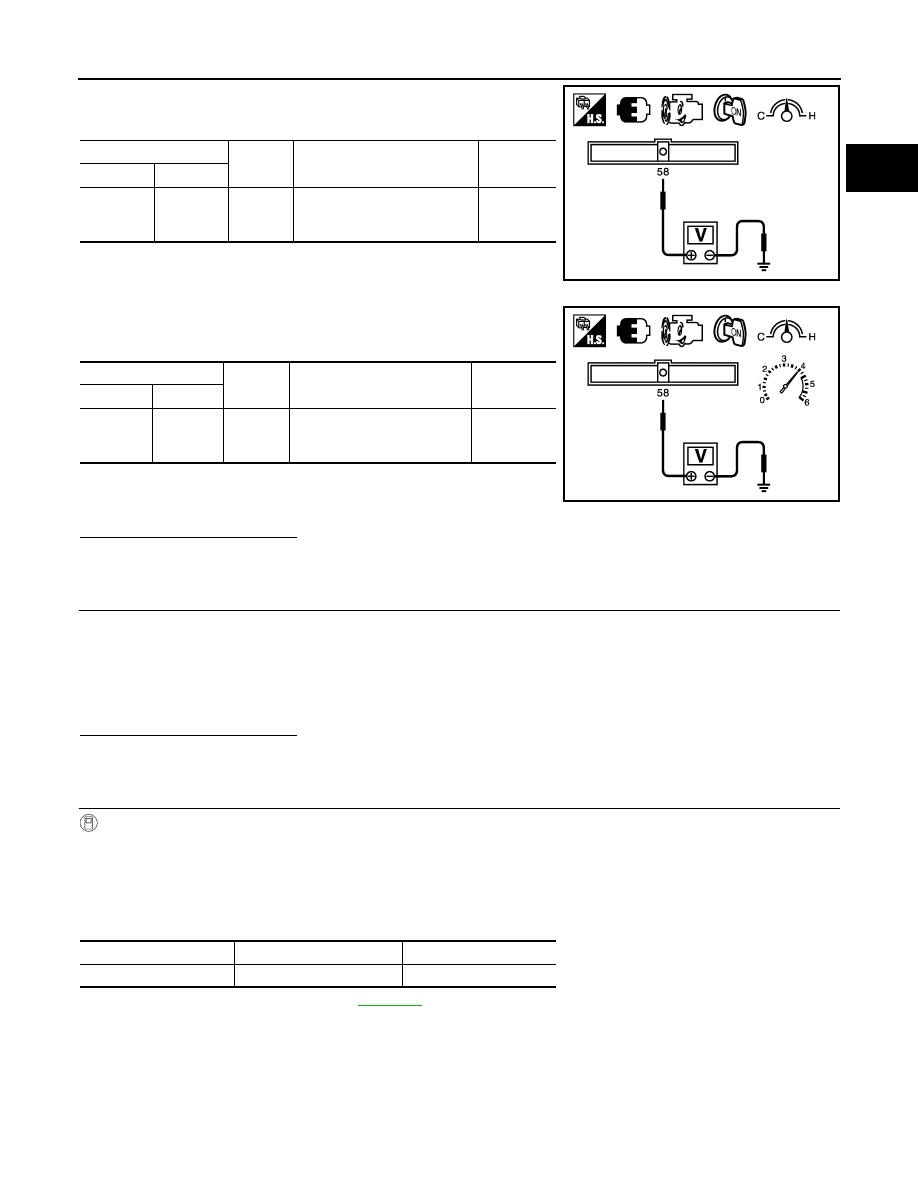

EC-149

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

9. Check the voltage between ECM harness connector and

ground.

10. Shift the selector lever to P position.

11. Fully depress the accelerator pedal and keep it.

12. Check the voltage between ECM harness connector and

ground.

13. Fully release accelerator pedal then fully depress it.

14. Check for linear voltage rise in response to engine being

increased to about 2,500 rpm.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK FOR THE CAUSE OF UNEVEN AIR FLOW THROUGH MASS AIR FLOW SENSOR

1. Turn ignition switch OFF.

2. Check for the cause of uneven air flow through mass air flow sensor. Refer to following.

-

Crushed air ducts

-

Malfunctioning seal of air cleaner element

-

Uneven dirt of air cleaner element

-

Improper specification of intake air system parts

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK MASS AIR FLOW SENSOR-II

With CONSULT-III

1. Repair or replace malfunctioning part.

2. Lift up the vehicle.

3. Turn ignition switch ON.

4. Connect CONSULT-III and select “DATA MONITOR” mode.

5. Select “MAS A/F SE-B1” and check indication.

6. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine, and warm up engine to normal operating

temperature.

7. Depress the accelerator pedal and keep it.

8. Shift the selector lever to N position with engine running.

CAUTION:

Never leave the selector lever in the N position for a long period of time. In the N position, the

engine operates but electricity cannot be generated.

9. Select “MAS A/F SE-B1” in “DATA MONITOR” and check indication.

ECM

Ground

Condition

Voltage

Connector

Terminal

F13

58

(MAF sen-
sor signal)

Ground

Idle (Engine is warmed-up to
normal operating tempera-
ture.)

0.9 - 1.2 V

JMBIA1632ZZ

ECM

Ground

Condition

Voltage

Connector

Terminal

F13

58

(MAF sen-
sor signal)

Ground

2,500 rpm (Engine is warmed-
up to normal operating tem-
perature.)

1.5 - 1.8 V

JMBIA1633ZZ

Monitor item

Condition

MAS A/F SE-B1

MAS A/F SE-B1

Ignition switch ON

Approx. 0.4 V

EC-150

< COMPONENT DIAGNOSIS >

[QR25DE]

P0101 MAF SENSOR

10. Shift the selector lever to P position.

11. Fully depress the accelerator pedal and keep it.

12. Check indication.

13. Fully release accelerator pedal then fully depress it.

14. Check for linear voltage rise in response to engine being increased to about 2,500 rpm.

Without CONSULT-III

1. Repair or replace malfunctioning part.

2. Lift up the vehicle.

3. Turn ignition switch ON.

4. Check the voltage between ECM harness connector and

ground.

5. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine,

and warm up engine to normal operating temperature.

6. Depress the accelerator pedal and keep it.

7. Shift the selector lever to N position with engine running.

CAUTION:

Never leave the selector lever in the N position for a long period of time. In the N position, the

engine operates but electricity cannot be generated.

8. Check the voltage between ECM harness connector and

ground.

9. Shift the selector lever to P position.

10. Fully depress the accelerator pedal and keep it.

11. Check the voltage between ECM harness connector and

ground.

12. Fully release accelerator pedal then fully depress it.

13. Check for linear voltage rise in response to engine being

increased to about 2,500 rpm.

Is the inspection result normal?

Monitor item

Condition

MAS A/F SE-B1

MAS A/F SE-B1

Idle (Engine is warmed-up to normal operat-
ing temperature.)

0.9 - 1.2 V

Monitor item

Condition

MAS A/F SE-B1

MAS A/F SE-B1

2,500 rpm (Engine is warmed-up to normal
operating temperature.)

1.5 - 1.8 V

ECM

Ground

Condition

Voltage

Connector

Terminal

F13

58

(MAF sensor signal)

Ground Ignition switch ON

Approx. 0.4 V

ECM

Ground

Condition

Voltage

Connector

Terminal

F13

58

(MAF sensor signal)

Ground

Idle (Engine is warmed-
up to normal operating
temperature.)

0.9 - 1.2 V

JMBIA1631ZZ

JMBIA1632ZZ

ECM

Ground

Condition

Voltage

Connector

Terminal

F13

58

(MAF sensor signal)

Ground

2,500 rpm (Engine is
warmed-up to normal op-
erating temperature.)

1.5 - 1.8 V

JMBIA1633ZZ

P0101 MAF SENSOR

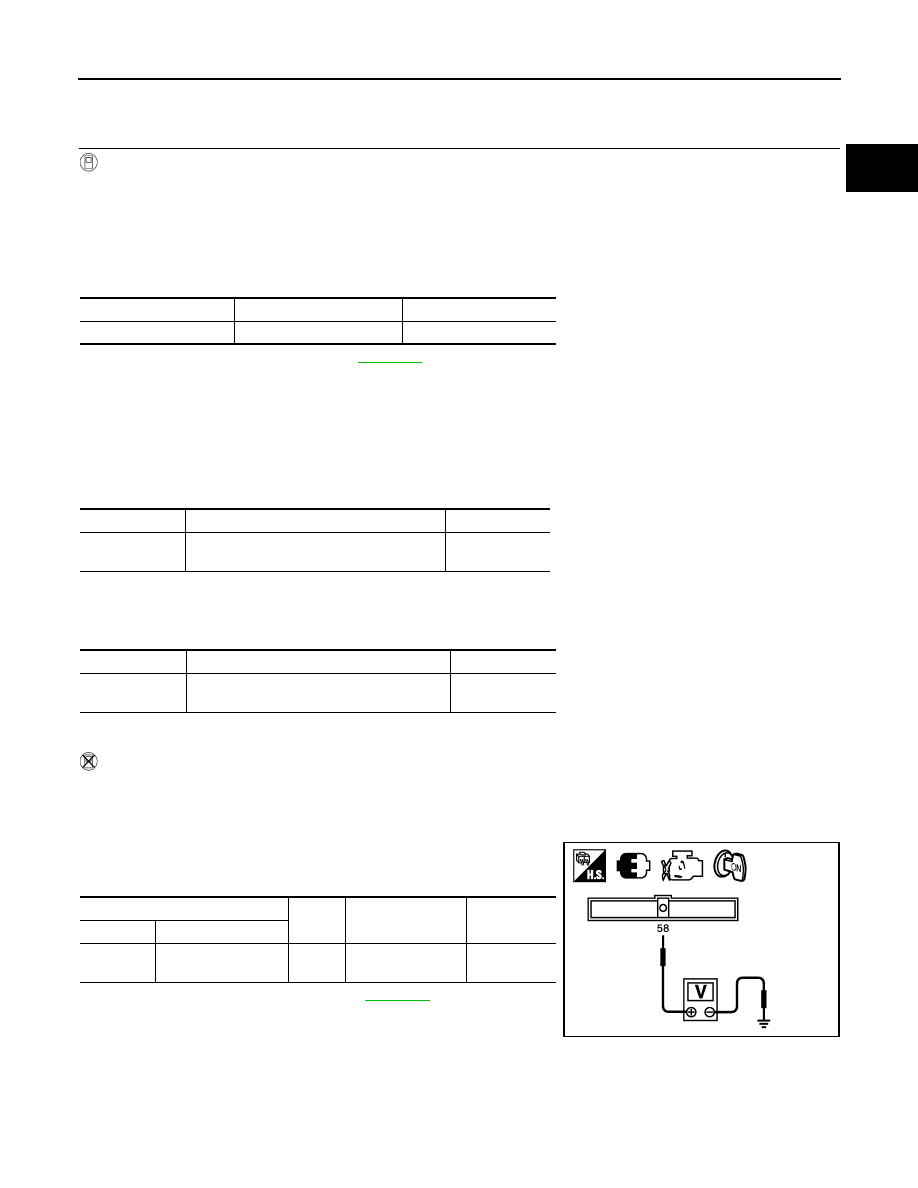

EC-151

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

YES

>> INSPECTION END

NO

>> GO TO 4.

4.

CHECK MASS AIR FLOW SENSOR-III

With CONSULT-III

1. Turn ignition switch OFF.

2. Disconnect mass air flow sensor harness connector and reconnect it again.

3. Lift up the vehicle.

4. Turn ignition switch ON.

5. Connect CONSULT-III and select “DATA MONITOR” mode.

6. Select “MAS A/F SE-B1” and check indication.

7. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine, and warm up engine to normal operating

temperature.

8. Depress the accelerator pedal and keep it.

9. Shift the selector lever to N position with engine running.

CAUTION:

Never leave the selector lever in the N position for a long period of time. In the N position, the

engine operates but electricity cannot be generated.

10. Select “MAS A/F SE-B1” in “DATA MONITOR” and check indication.

11. Shift the selector lever to P position.

12. Fully depress the accelerator pedal and keep it.

13. Check indication.

14. Fully release accelerator pedal then fully depress it.

15. Check for linear voltage rise in response to engine being increased to about 2,500 rpm.

Without CONSULT-III

1. Turn ignition switch OFF.

2. Disconnect mass air flow sensor harness connector and reconnect it again.

3. Lift up the vehicle.

4. Turn ignition switch ON.

5. Check the voltage between ECM harness connector and

ground.

6. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine,

and warm up engine to normal operating temperature.

7. Depress the accelerator pedal and keep it.

8. Shift the selector lever to N position with engine running.

CAUTION:

Never leave the selector lever in the N position for a long period of time. In the N position, the

engine operates but electricity cannot be generated.

Monitor item

Condition

MAS A/F SE-B1

MAS A/F SE-B1

Ignition switch ON

Approx. 0.4 V

Monitor item

Condition

MAS A/F SE-B1

MAS A/F SE-B1

Idle (Engine is warmed-up to normal operat-
ing temperature.)

0.9 - 1.2 V

Monitor item

Condition

MAS A/F SE-B1

MAS A/F SE-B1

2,500 rpm (Engine is warmed-up to normal
operating temperature.)

1.5 - 1.8 V

ECM

Ground

Condition

Voltage

Connector

Terminal

F13

58

(MAF sensor signal)

Ground Ignition switch ON

Approx. 0.4 V

JMBIA1631ZZ
