EC-140

< COMPONENT DIAGNOSIS >

[QR25DE]

P0043, P0044 HO2S3 HEATER

3. Check resistance between HO2S3 terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE HEATED OXYGEN SENSOR 3

Replace heated oxygen sensor 3.

CAUTION:

• Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard

surface such as a concrete floor; use a new one.

• Before installing new sensor, clean exhaust system threads using oxygen sensor thread cleaner

[commercial service tool: (J-43897-18 or J-43897-12)] and approved anti-seize lubricant (commercial

service tool).

>> INSPECTION END

Terminals

Resistance

2 and 3

3.3 - 4.4

Ω [at 25°C (77°F)]

1 and 2, 3, 4

∞Ω

(Continuity should not exist)

4 and 1, 2, 3

PBIB3310E

P0075 IVT CONTROL SOLENOID VALVE

EC-141

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0075 IVT CONTROL SOLENOID VALVE

Description

INFOID:0000000004211380

Intake valve timing control solenoid valve is activated by ON/OFF

pulse duty (ratio) signals from the ECM.

The intake valve timing control solenoid valve changes the oil

amount and direction of flow through intake valve timing control unit

or stops oil flow.

The longer pulse width advances valve angle.

The shorter pulse width retards valve angle.

When ON and OFF pulse widths become equal, the solenoid valve

stops oil pressure flow to fix the intake valve angle at the control

position.

DTC Logic

INFOID:0000000004211381

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine, and let engine idle for 5 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-141, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000004211382

1.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect intake valve timing control solenoid valve harness connector.

3. Turn ignition switch ON.

JMBIA0098GB

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0075

Intake valve timing control
solenoid valve circuit

An improper voltage is sent to the ECM
through intake valve timing control solenoid
valve.

• Harness or connectors

(Intake valve timing control solenoid valve
circuit is open or shorted.)

• Intake valve timing control solenoid valve

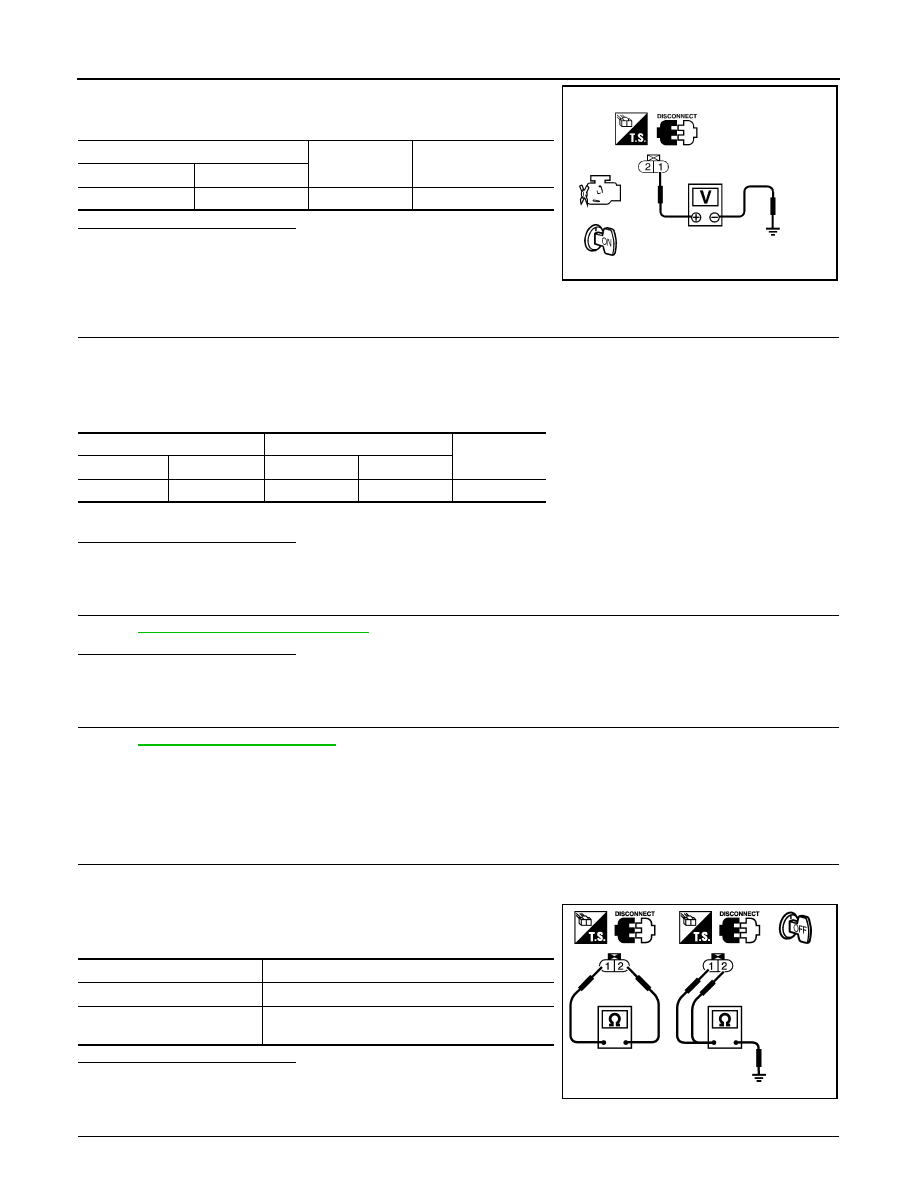

EC-142

< COMPONENT DIAGNOSIS >

[QR25DE]

P0075 IVT CONTROL SOLENOID VALVE

4. Check the voltage between intake valve timing control solenoid

valve harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair open circuit or short to ground or short to power

in harness or connectors.

2.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN

AND SHORT
1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between intake valve timing control solenoid valve harness connector and ECM har-

ness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE

Refer to

EC-142, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace intake valve timing control solenoid valve.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000004362530

1.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-I

1. Turn ignition switch OFF.

2. Disconnect intake valve timing control solenoid valve harness connector.

3. Check resistance between intake valve timing control solenoid

valve terminals as follows.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace intake valve timing control solenoid valve.

2.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-II

IVT control solenoid valve

Ground

Voltage

Connector

Terminal

F59

1

Ground

Battery voltage

SEF206W

IVT control solenoid valve

ECM

Continuity

Connector

Terminal

Connector

Terminal

F59

2

F13

78

Existed

Terminals

Resistance

1 and 2

6.7 - 7.7

Ω

1 or 2 and ground

∞ Ω

(Continuity should not exist)

PBIB0193E

P0075 IVT CONTROL SOLENOID VALVE

EC-143

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1. Remove intake valve timing control solenoid valve.

2. Provide 12V DC between intake valve timing control solenoid

valve terminals 1 and 2, and then interrupt it. Make sure that the

plunger moves as shown in the figure.

CAUTION:

Do not apply 12V DC continuously for 5 seconds or more.

Doing so may result in damage to the coil in intake valve

timing control solenoid valve.

NOTE:

Always replace O-ring when intake valve timing control

solenoid valve is removed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace intake valve timing control solenoid valve.

JMBIA0097ZZ
