Nissan Altima HL32 Hybrid. Manual - part 203





TRUNK OPEN FUNCTION

DLK-33

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK REQUEST SWITCH : Component Description

INFOID:0000000004215630

INTELLIGENT KEY

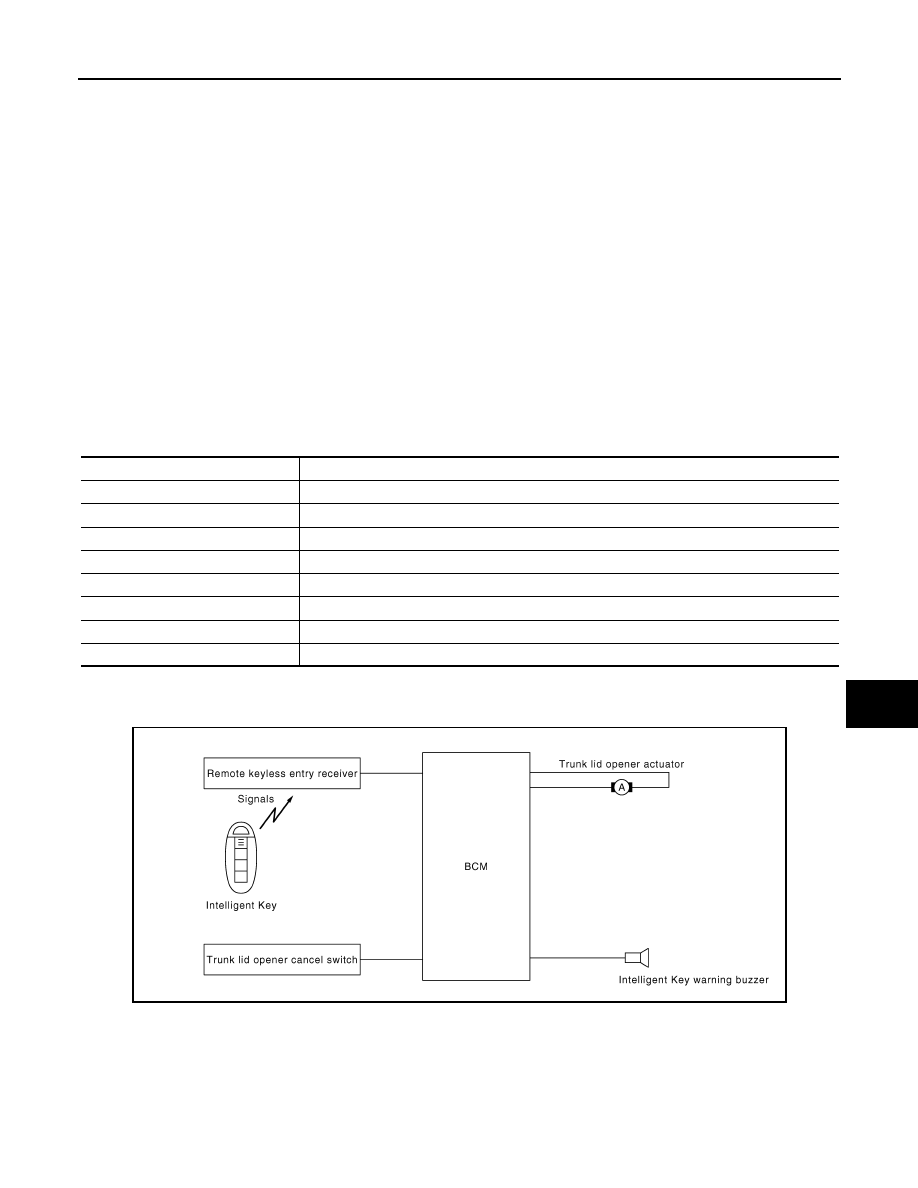

INTELLIGENT KEY : System Diagram

INFOID:0000000004215631

INTELLIGENT KEY : System Description

INFOID:0000000004215632

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the

same manner as the remote controller by operating the trunk open button.

OPERATION DESCRIPTION/TRUNK OPEN FUNCTION

10. Remote keyless entry receiver M27

(view with instrument panel removed)

11. Instrument panel antenna M49

(view with center console assembly re-
moved)

12. Push button ignition switch M38.

13. BCM M16, M17, M18, M19, M20, M21

(view with instrument panel removed)

14. ECVT device (detent switch)

15.  Combination meter M24

16. Front console antenna M203

(view with center console assembly re-
moved)

17. Rear parcel shelf antenna B29

18.  Trunk opener request switch B33

19. Rear bumper antenna B46

20. Trunk lamp switch and trunk release

solenoid B28
(view with trunk lid inner trim panel re-
moved)

21. Front outside handle LH (outside

key antenna) D6
Front outside handle RH (outside
key antenna) D106

22. Front outside handle LH (request switch) D6

Front outside handle RH (request switch)
D106

23. Front door lock assembly LH D10

Front door lock actuator RH D108

24. Front door switch LH B8

RH B108

25. Rear door switch LH B18

RH B116
Rear bumper antenna B46

Item

Function

BCM

Controls trunk open function.

Trunk release solenoid

Transmits trunk open operation to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Trunk opener request switch

Transmits trunk open operation to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

JMKIA0055GB

DLK-34

< FUNCTION DIAGNOSIS >

TRUNK OPEN FUNCTION

• When trunk button of the Intelligent Key is pressed, the trunk open signal is transmitted from the Intelligent

Key to the BCM via remote keyless entry receiver.

• When BCM receives the trunk open request signal, it operates the trunk lid opener actuator and opens the

trunk.

OPERATION CONDITION

OPERATION AREA

• Operating Range

• To ensure the Intelligent Key works effectively, use within 80 cm range of each door, however the operable

range may differ according to surroundings.

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key. BCM flashes hazard warning lamps as a reminder and

transmits horn chirp signal to IPDM E/R. IPDM E/R sound horns as a reminder.

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating function of hazard and horn reminder

Hazard and horn reminder does not operate if any door switch is ON (any door is OPEN).

How to change hazard and horn reminder mode

With CONSULT-III

Refer to

DLK-52, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

Without CONSULT-III

Refer to Owner's Manual for instructions.

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

Remote controller operation

Operation condition

Operation

Trunk open

• Press and hold the trunk open button for 0.5 second or more

Trunk open

C mode

S mode

Intelligent Key operation

Lock

Unlock

Trunk open

Lock

Unlock

Trunk open

Hazard warning lamp flash

Twice

Once

Twice

Horn sound

Once

Remote keyless entry functions

Int

ell

ige

nt

 Ke

y

Ke

y sl

ot

T

run

k ro

om

 la

m

p s

w

itc

h

T

run

k re

le

as

e s

ol

en

oi

d

Int

ell

ige

nt

 Ke

y wa

rni

ng

 bu

zz

er

CA

N co

mm

un

ic

at

ion

 s

ys

te

m

BCM

Co

m

bin

at

ion

 m

ete

r

H

a

zard warning

lamp

s

Ho

rn

s

IPDM E/R

He

ad

 la

m

p

Trunk open function by remote control button

×

×

×

×

×

×

Hazard and horn reminder function

×

×

×

×

×

×

×

×

TRUNK OPEN FUNCTION

DLK-35

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

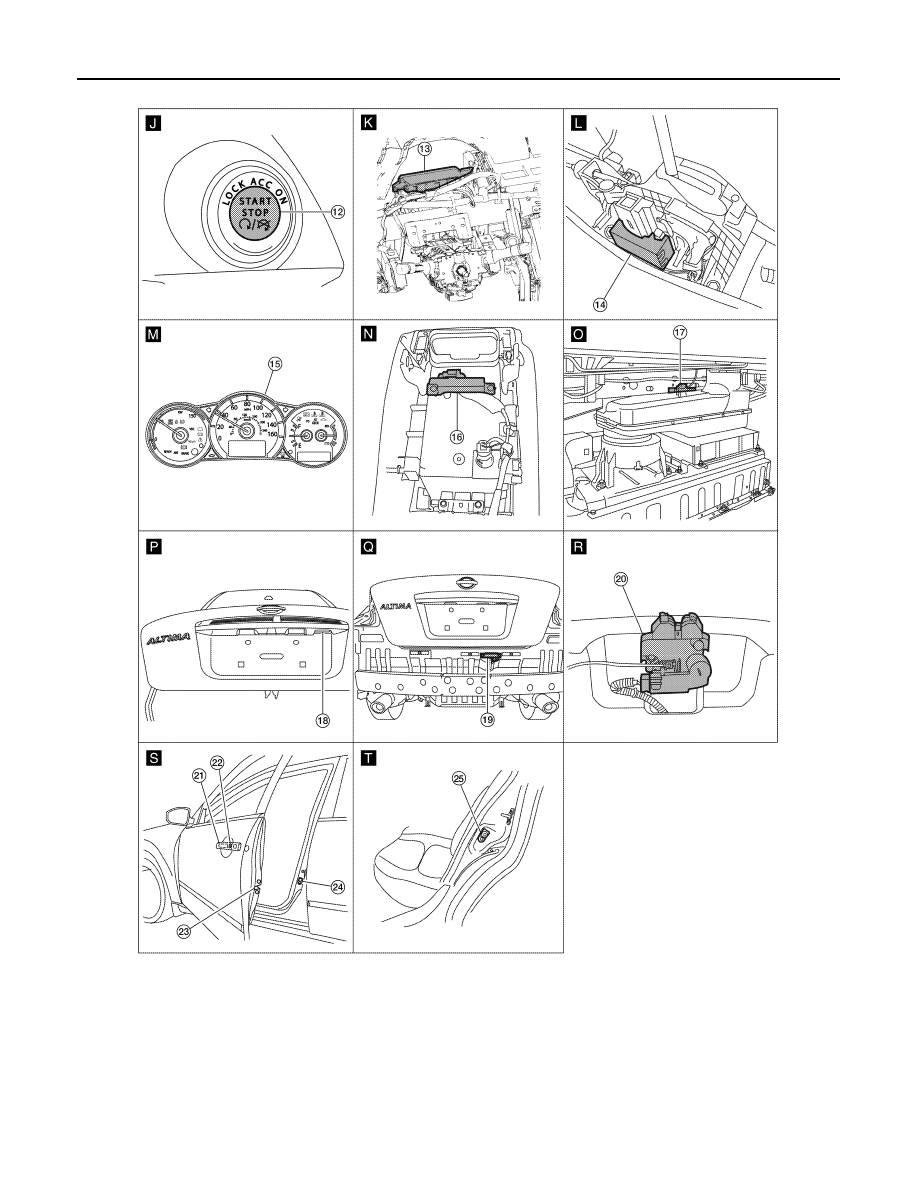

INTELLIGENT KEY : Component Parts Location

INFOID:0000000004466809

ALKIA0323ZZ

DLK-36

< FUNCTION DIAGNOSIS >

TRUNK OPEN FUNCTION

ALKIA0324ZZ

1.

Horn (low) E215
(view with front fender protector LH removed)

2.

Horn (high) E216

3.

Intelligent Key warning buzzer
E73

4.

ECM

5.

IPDM E/R E17, E18

6.

 Key slot M40

7.

Electronic steering column lock M32
(view with instrument panel LH removed)

8.

Stop lamp switch E38

9.

Trunk lid opener cancel switch
M74
