Nissan Altima HL32 Hybrid. Manual - part 201

DOOR LOCK FUNCTION

DLK-25

< FUNCTION DIAGNOSIS >

DLK

INTELLIGENT KEY : Component Description

INFOID:0000000004215622

10. Remote keyless entry receiver M27

(view with instrument panel removed)

11. Instrument panel antenna M49

(view with center console assembly re-
moved)

12. Push button ignition switch M38.

13. BCM M16, M17, M18, M19, M20, M21

(view with instrument panel removed)

14. ECVT device (detent switch)

15. Combination meter M24

16. Front console antenna M203

(view with center console assembly re-
moved)

17. Rear parcel shelf antenna B29

18. Trunk opener request switch B33

19. Rear bumper antenna B46

20. Trunk lamp switch and trunk release

solenoid B28
(view with trunk lid inner trim panel re-
moved)

21. Front outside handle LH (outside

key antenna) D6
Front outside handle RH (outside
key antenna) D106

22. Front outside handle LH (request switch) D6

Front outside handle RH (request switch)
D106

23. Front door lock assembly LH D10

Front door lock actuator RH D108

24. Front door switch LH B8

RH B108

25. Rear door switch LH B18

RH B116
Rear bumper antenna B46

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Intelligent key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

DLK-26

< FUNCTION DIAGNOSIS >

TRUNK OPEN FUNCTION

TRUNK OPEN FUNCTION

TRUNK LID OPENER SWITCH
TRUNK LID OPENER SWITCH : System Diagram

INFOID:0000000004215623

TRUNK LID OPENER SWITCH : System Description

INFOID:0000000004215624

TRUNK LID OPENER OPERATION

When trunk lid opener switch is ON, BCM opens trunk opener actuator.

BCM can open trunk lid opener actuator when

• vehicle speed is less than 5 km/h (3MPH)

• vehicle security system is disarmed or pre-armed phase

BCM does not open trunk lid opener actuator when

• trunk lid opener cancel switch is OFF (CANCEL)

• vehicle speed is more than 5 km/h (3MPH)

• vehicle security system is armed or alarm phase

• Within 3 seconds of removing the Intelligent Key from the key slot

ALKIA0180GB

Switch

Input/output signal to BCM

BCM function

Actuator

Trunk lid opener switch

Trunk open signal

Trunk open control

Trunk lid opener actuator

Trunk lid opener cancel switch

TRUNK OPEN FUNCTION

DLK-27

< FUNCTION DIAGNOSIS >

DLK

TRUNK LID OPENER SWITCH : Component Parts Location

INFOID:0000000004215625

TRUNK LID OPENER SWITCH : Component Description

INFOID:0000000004215626

TRUNK REQUEST SWITCH

ALKIA0081ZZ

BCM M16, M17, M18, M20, M21

Trunk lid opener switch M75

3. Trunk lid opener cancel switch M74

Trunk lamp switch and trunk release so-
lenoid B28 (view with trunk lid inner trim
panel removed)

Item

Function

BCM

Transmits trunk open operation to BCM.

Trunk lid opener switch

Transmits trunk open operation to BCM.

Trunk release solenoid

Opens the trunk with the open signal from BCM

Trunk lid opener cancel switch

Cancels the trunk open operation.

DLK-28

< FUNCTION DIAGNOSIS >

TRUNK OPEN FUNCTION

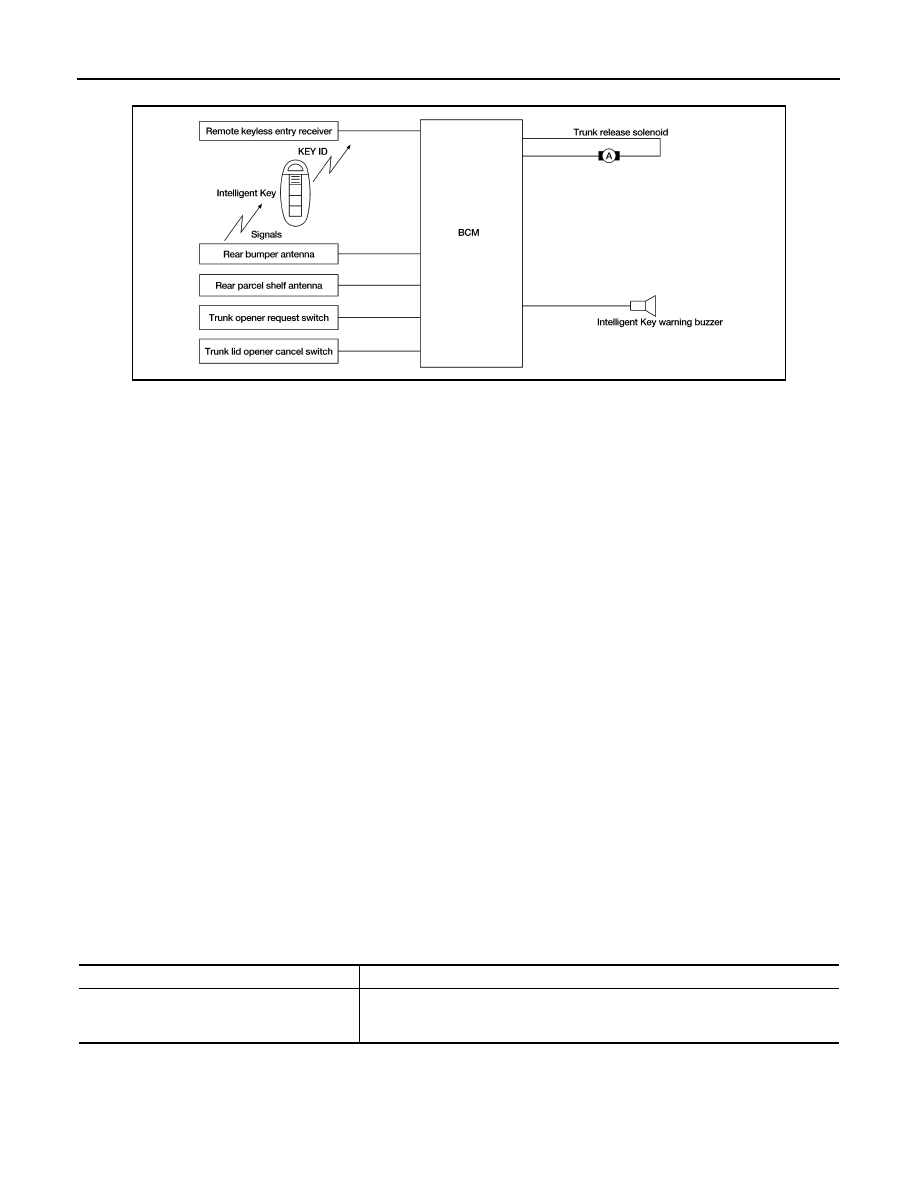

TRUNK REQUEST SWITCH : System Diagram

INFOID:0000000004215627

TRUNK REQUEST SWITCH : System Description

INFOID:0000000004215628

Only when pressing the request switch, it is possible to open the trunk by carrying the Intelligent Key.

• The Intelligent Key system is a system that makes it possible to open the trunk (trunk open function) by car-

rying the Intelligent Key which operates based on the results of electronic ID verification using two-way com-

munications between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• If an action that does not meet the operating conditions of the Intelligent Key system is taken, the buzzer

goes off to inform the driver (warning chime functions).

• When a trunk open with request switch or remote controller button operation, the hazard lamps flash and the

Intelligent Key warning buzzer or horns sound (hazard and buzzer/horn reminder function).

• The settings for each function can be changed with the CONSULT-III.

• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with the CONSULT-III.

OPERATION DESCRIPTION/TRUNK OPEN

• When the BCM detects that trunk open request switch is pressed, it starts the outside key antenna (trunk

room) and inside key antenna corresponding to the pressed trunk open request switch and transmits the

request signal to the Intelligent Key. And then, check that the Intelligent Key is near the trunk.

• If the Intelligent Key is within the outside key antenna (trunk room) detection area, it receives the request sig-

nal and transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.

• BCM transmits the trunk open request signal and sounds Intelligent Key warning buzzer 4 consecutive

times.

• When BCM receives the trunk open request signal, it operates the trunk release solenoid and opens the

trunk.

OPERATION CONDITION

If the following conditions are not satisfied, trunk open operation is not performed even if the request switch is

operated.

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

OUTSIDE KEY ANTENNA DETECTION AREA

ALKIA0181GB

Each request switch operation

Operation condition

Trunk open operation

• Intelligent Key is within outside key antenna (trunk room) detection area*
• Trunk cancel switch is ON
• Key reminder functions operate (trunk)
