Nissan Altima HL32 Hybrid. Manual - part 204

TRUNK OPEN FUNCTION

DLK-37

< FUNCTION DIAGNOSIS >

DLK

INTELLIGENT KEY : Component Description

INFOID:0000000004215634

10. Remote keyless entry receiver M27

(view with instrument panel removed)

11. Instrument panel antenna M49

(view with center console assembly re-
moved)

12. Push button ignition switch M38.

13. BCM M16, M17, M18, M19, M20, M21

(view with instrument panel removed)

14. ECVT device (detent switch)

15. Combination meter M24

16. Front console antenna M203

(view with center console assembly re-
moved)

17. Rear parcel shelf antenna B29

18. Trunk opener request switch B33

19. Rear bumper antenna B46

20. Trunk lamp switch and trunk release

solenoid B28
(view with trunk lid inner trim panel re-
moved)

21. Front outside handle LH (outside

key antenna) D6
Front outside handle RH (outside
key antenna) D106

22. Front outside handle LH (request switch) D6

Front outside handle RH (request switch)
D106

23. Front door lock assembly LH D10

Front door lock actuator RH D108

24. Front door switch LH B8

RH B108

25. Rear door switch LH B18

RH B116
Rear bumper antenna B46

Item

Function

BCM

Controls trunk open function.

Trunk release solenoid

Opens the trunk with the open signal from BCM.

Remote keyless entry receiver

Receives trunk open signal from the Intelligent Key, and then transmits to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with a buzzer sound.

DLK-38

< FUNCTION DIAGNOSIS >

WARNING FUNCTION

WARNING FUNCTION

System Description

INFOID:0000000004215635

OPERATION DESCRIPTION

The warning functions are as follows and are given to the user as warning information and warnings using

combinations of Intelligent Key warning buzzer, KEY warning lamp, key slot illumination and combination

meter display in combination meter.

• Intelligent Key system malfunction

• OFF position warning

• P position warning

• ACC warning

• Take away warning

• Door lock operation warning

• Key warning

• Intelligent Key insert information

• Engine start information

• Steering lock information

• Intelligent key low battery warning

• Key ID warning

OPERATION CONDITION

Once the following condition from below is established, alert or warning will be executed.

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

When a malfunction is detected on BCM, “KEY” warning lamp will illuminate.

OFF position warning

For internal

• Ignition switch: ACC position.
• Door switch (driver side): ON (Door is open).

For external

OFF position warning (For internal) is in active mode, driver side door has
been closed.
NOTE:
OFF position (For external) active only when each of the sequence has oc-
curred as below: P position warning

→ ACC warning → OFF position warning

(For internal)

→ OFF position warning (For internal)

P position warning

• Shift position: Except P position
• Engine is running to stopped (Ignition switch is ON to OFF)

ACC warning

• During P position warning is in active mode, shift position has changed P po-

sition.

• Ignition switch: Except OFF position.

Take away warning

Door is open to close

• Ignition switch: Except LOCK position.
• Door switch: ON to OFF (Door is open to close).
• Intelligent Key can not be detected inside the vehicle.

Door is open

• Door switch: ON (Door is open)
• Key ID verification every 5 seconds when registered Intelligent Key can not

be detected inside the vehicle.

Push-ignition switch oper-
ation

• Ignition switch: Except LOCK position.
• Press ignition switch.
• Intelligent Key can not be detected inside the vehicle.

Take away through win-
dow

• Engine is running.
• Key ID verification every 30 seconds when registered Intelligent Key can not

be detected inside the vehicle.

• After vehicle speed verification, the registered Intelligent Key can not be de-

tect inside the vehicle.

Intelligent Key is removed
from key slot

• When Intelligent Key is removed from key slot, Intelligent Key can not be de-

tected inside the vehicle.

WARNING FUNCTION

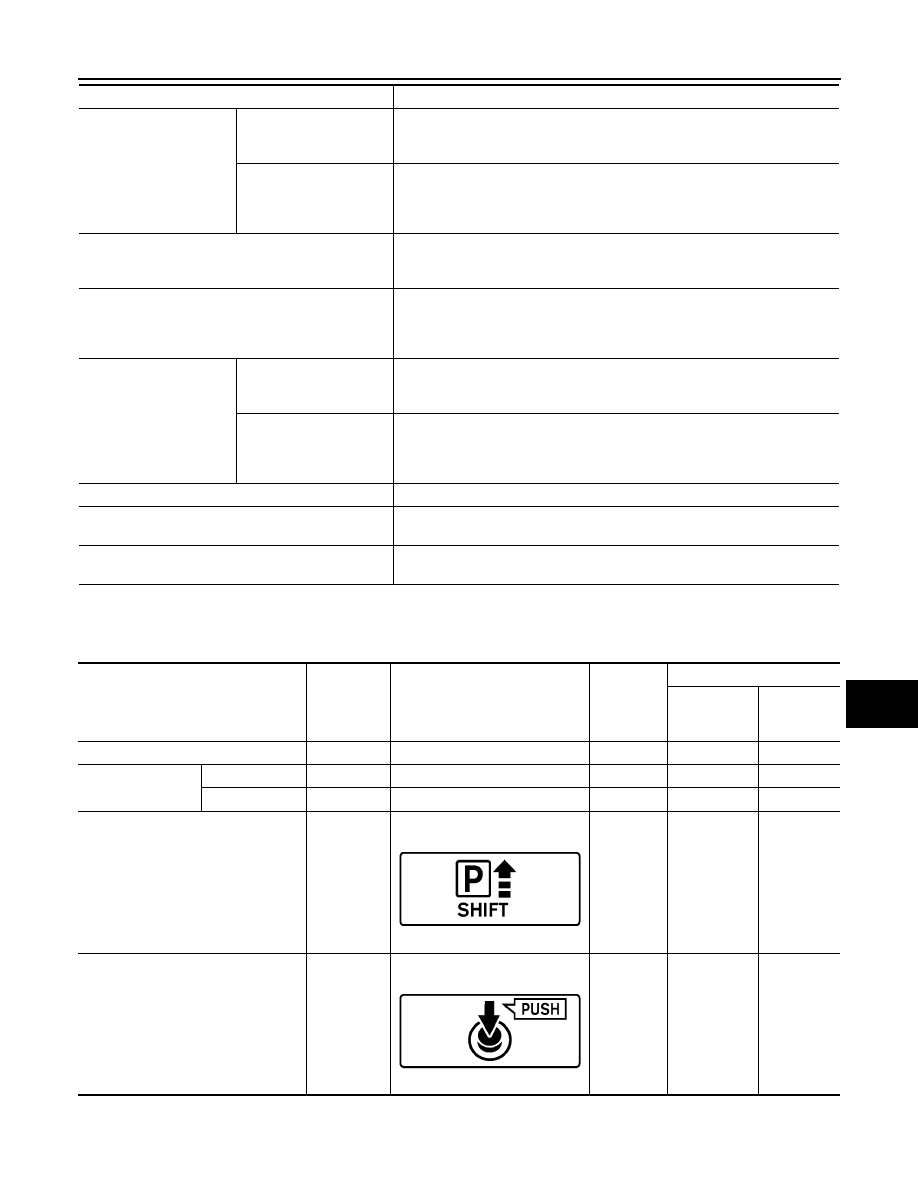

DLK-39

< FUNCTION DIAGNOSIS >

DLK

WARNING METHOD

The following table shows the alarm or warning methods with chime.

Meter display, “KEY” indicator or key slot illumination when the warning conditions are met.

Door lock operation warn-
ing

Request switch operation

When request switch is pushed (lock operation) under the following conditions.
• Door switch: ON (Any door is open).
• Intelligent Key is inside vehicle.

Intelligent Key button op-
eration

When Intelligent Key button is pushed (lock operation) under the following con-
ditions.
• Door switch: ON (Any door is open).
• For 3 seconds after Intelligent Key is removed from key slot.

Key warning

• Ignition switch is OFF position.
• Driver side door switch: ON (Driver side door is open).
• Intelligent Key is inserted in key slot.

Intelligent Key insert information

• Door switch: ON to OFF (Door is open to close).
• Ignition switch: OFF to ON position.
• Intelligent Key is out of key slot.
• Intelligent Key can not be detected inside the vehicle.

Engine start information

Ignition switch is ON posi-
tion

• Ignition switch: ON position.
• Shift position: P position
• Engine is stopped

Ignition switch is except
ON position

• Ignition switch: Except ON position.
• Shift position: P position
• Intelligent Key is inserted in key slot.
• Intelligent Key can be detected inside the vehicle.

Steering lock information

When steering lock can not be released after ignition switch is turned ON.

Intelligent Key low battery warning

When Intelligent Key has low battery, it is detected by BCM after ignition switch
is turned ON.

Key ID warning

When registered intelligent Key cannot be detected inside the vehicle after ig-
nition switch is turned ON.

Warning/Information functions

Operation procedure

Warning/Information functions

“KEY” warn-

ing lamp

Combination meter display

Key slot il-
lumination

Warning chime

Combination

meter buzzer

Intelligent

Key warning

buzzer

Intelligent Key system malfunction

Illuminate

—

OFF position warn-
ing

For internal

—

Activate

—

For external

—

Activate

P position warning

—

Activate

—

ACC warning

—

Activate

—

JMKIA0037GB

JMKIA0047GB

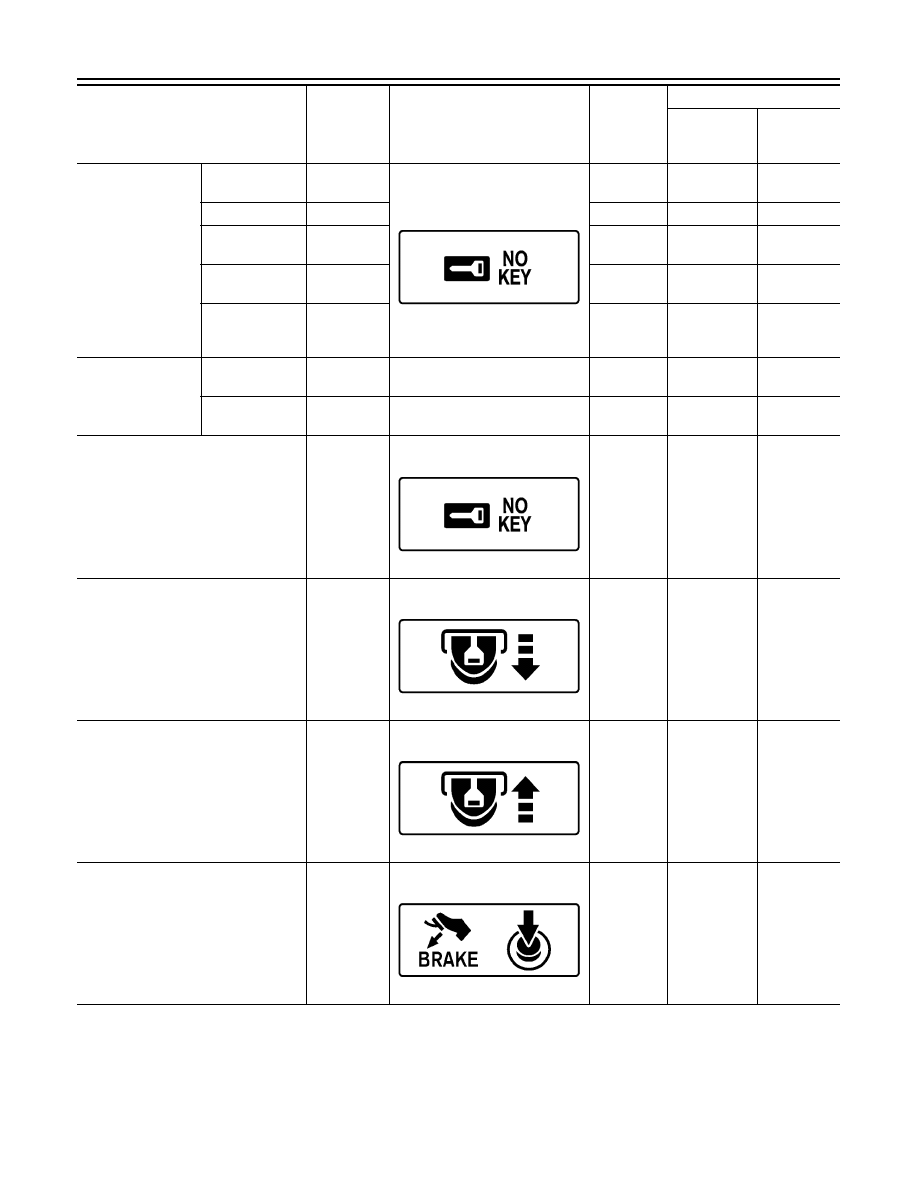

DLK-40

< FUNCTION DIAGNOSIS >

WARNING FUNCTION

Take away warning

Door is open to
close

—

Flash

Activate

Door is open

—

Flash

—

Push-ignition
switch operation

—

Flash

Activate

—

Take away
through window

—

Flash

Activate

—

Intelligent Key is
removed from
key slot

—

Flash

—

Door lock operation
warning

Request switch
operation

—

Activate

Intelligent Key
operation

—

Activate

Key ID warning

—

Key warning

—

Flash

Activate

—

Intelligent Key insert information

—

Flash

—

Engine start information

—

Warning/Information functions

“KEY” warn-

ing lamp

Combination meter display

Key slot il-
lumination

Warning chime

Combination

meter buzzer

Intelligent

Key warning

buzzer

JMKIA0036GB

JMKIA0035GB

JMKIA0034GB

JMKIA0032GB
