FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000004219419

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the front door speaker screws (A), then disconnect the

front door speaker connector and remove the front door speaker

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0040ZZ

AV

REAR SPEAKER

AV-49

< ON-VEHICLE REPAIR >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR SPEAKER

Removal and Installation

INFOID:0000000004219420

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

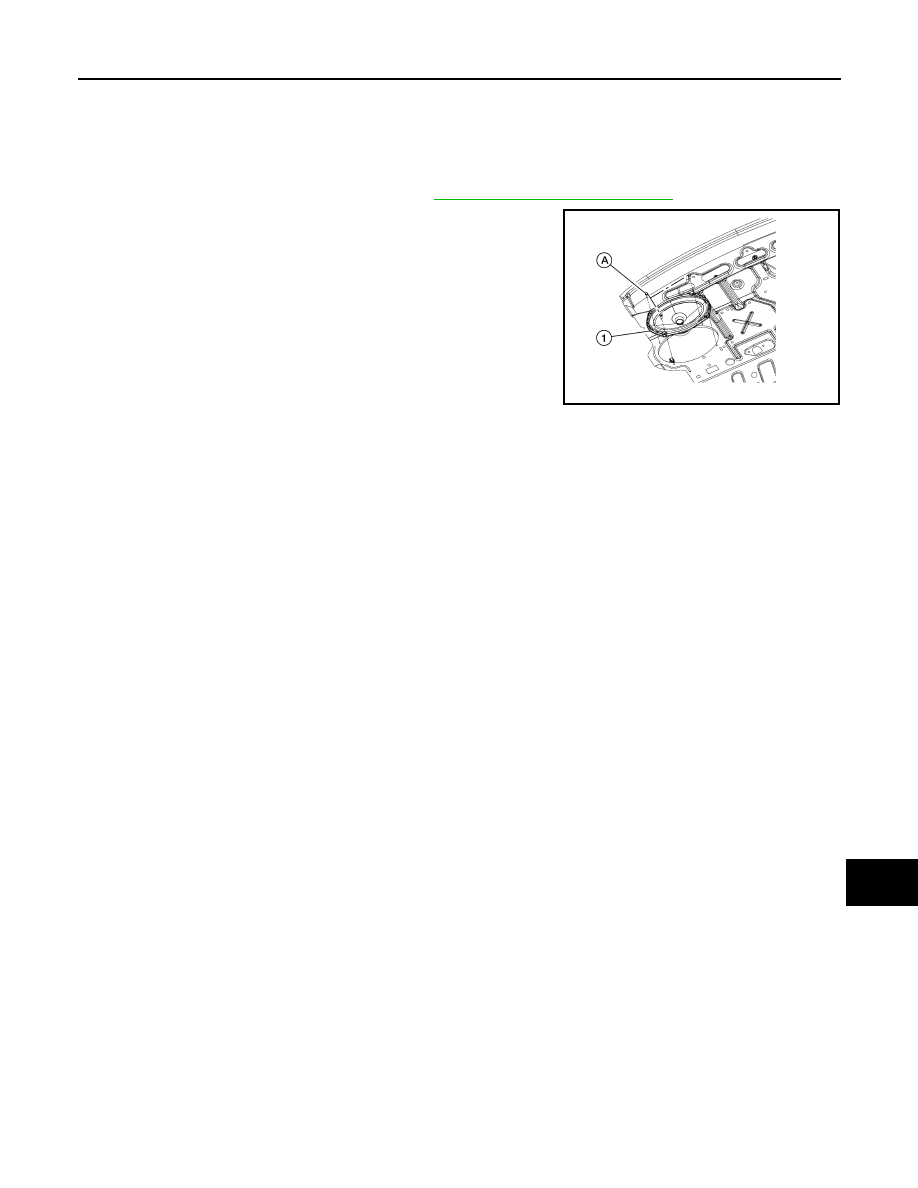

2. Remove the rear speaker screws (A), then disconnect the rear

speaker connector and remove the rear speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0042ZZ

AV-50

< ON-VEHICLE REPAIR >

[BASE AUDIO]

SATELLITE RADIO TUNER

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000004499305

REMOVAL

1. Disconnect the 12-volt battery negative terminal.
2. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

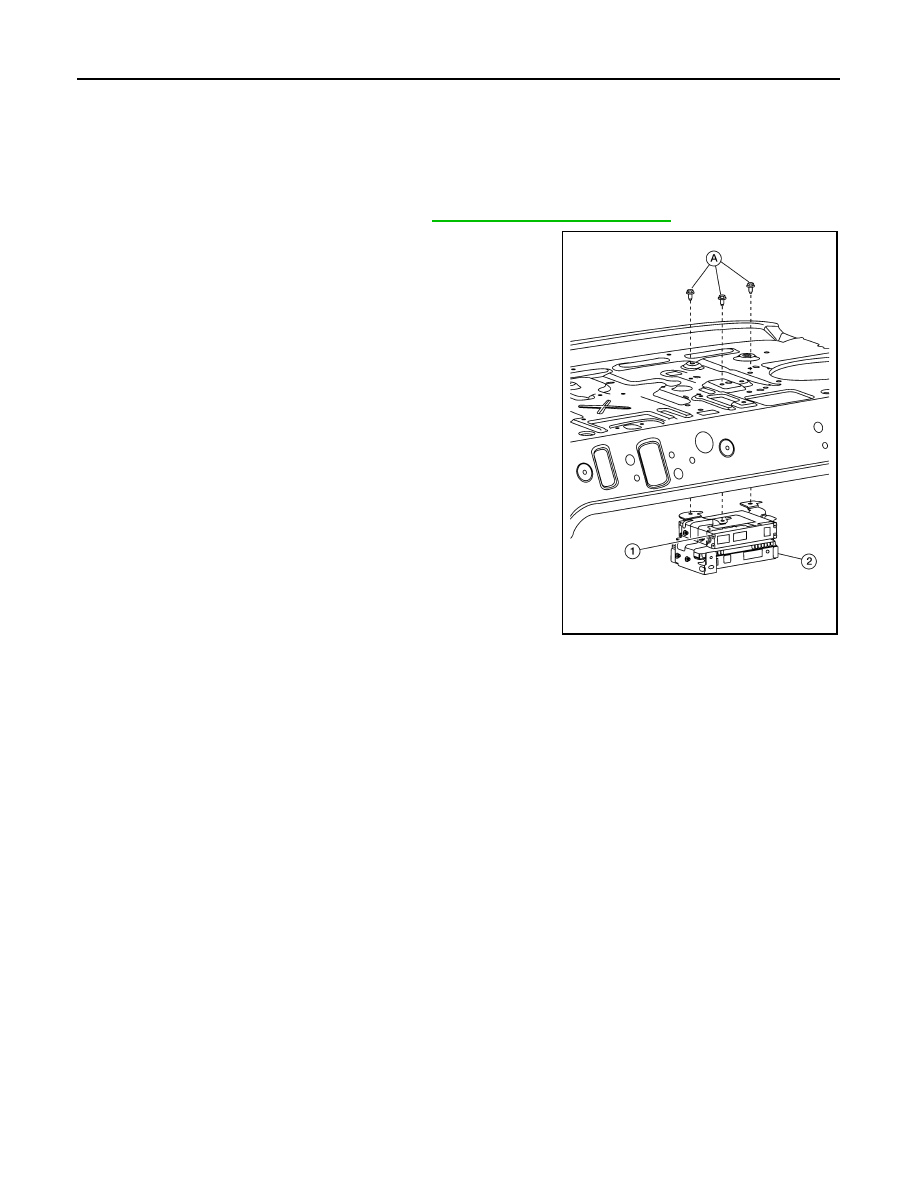

3. Remove the satellite radio tuner unit screws (A), disconnect the

satellite tuner harness connectors and remove the satellite radio

tuner (1).

NOTE:

Bluetooth control unit (2) is removed with the satellite radio tuner

unit (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0055ZZ

AV

AUDIO ANTENNA

AV-51

< ON-VEHICLE REPAIR >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO ANTENNA

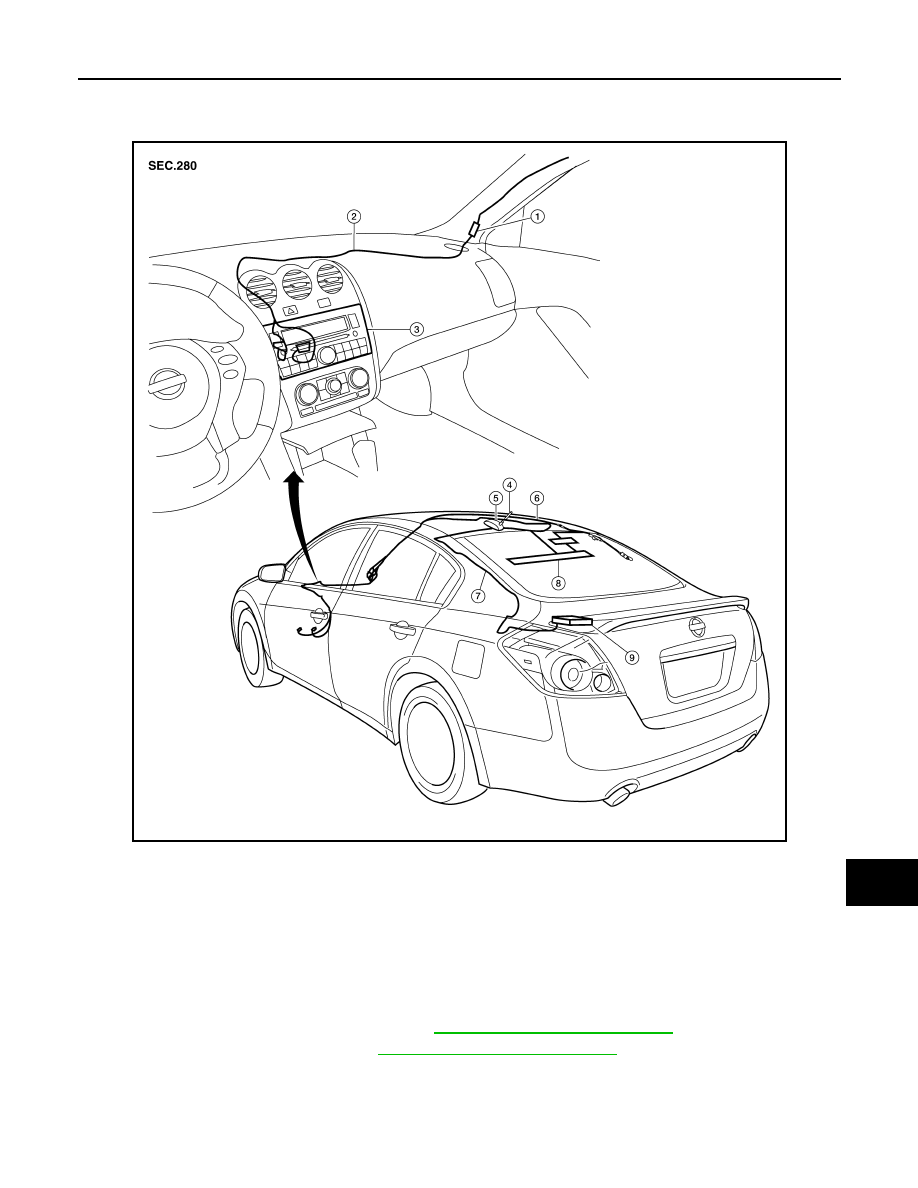

Location of Antennas

INFOID:0000000004219421

Roof Antenna

INFOID:0000000004219422

REMOVAL AND INSTALLATION

Removal

1. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove the rear assist grips. Refer to

INT-23, "Removal and Installation"

.

3. Pull down headlining (rear) and obtain space work between roof and headlining.

ALNIA0125ZZ

1.

Audio unit harness connector

2.

Audio unit harness

3.

Audio unit

4.

Roof antenna rod

5.

Roof antenna base

6.

Antenna feeder (to audio unit)

7.

Satellite feeder

8.

Window antenna

9.

Satellite radio tuner
