< PRECAUTION >

[BASE AUDIO]

PRECAUTIONS

• Be sure to turn ignition switch OFF and disconnect the battery cable from the negative terminal before

checking the circuit.

Precaution for Harness Repair

INFOID:0000000004499297

AV COMMUNICATION SYSTEM

• Solder the repaired parts, and wrap with tape. [Frays of twisted line

must be within 110 mm (4.33 in).]

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of

twisted line will be lost.)

PKIA0306E

PKIA0307E

AV

PREPARATION

AV-45

< PREPARATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000004219416

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

AV-46

< ON-VEHICLE REPAIR >

[BASE AUDIO]

AUDIO UNIT

ON-VEHICLE REPAIR

AUDIO UNIT

Removal and Installation

INFOID:0000000004219417

REMOVAL

1. Disconnect the 12-volt battery negative terminal.
2. Remove the cluster lid D. Refer to

IP-12, "Removal and Installation"

.

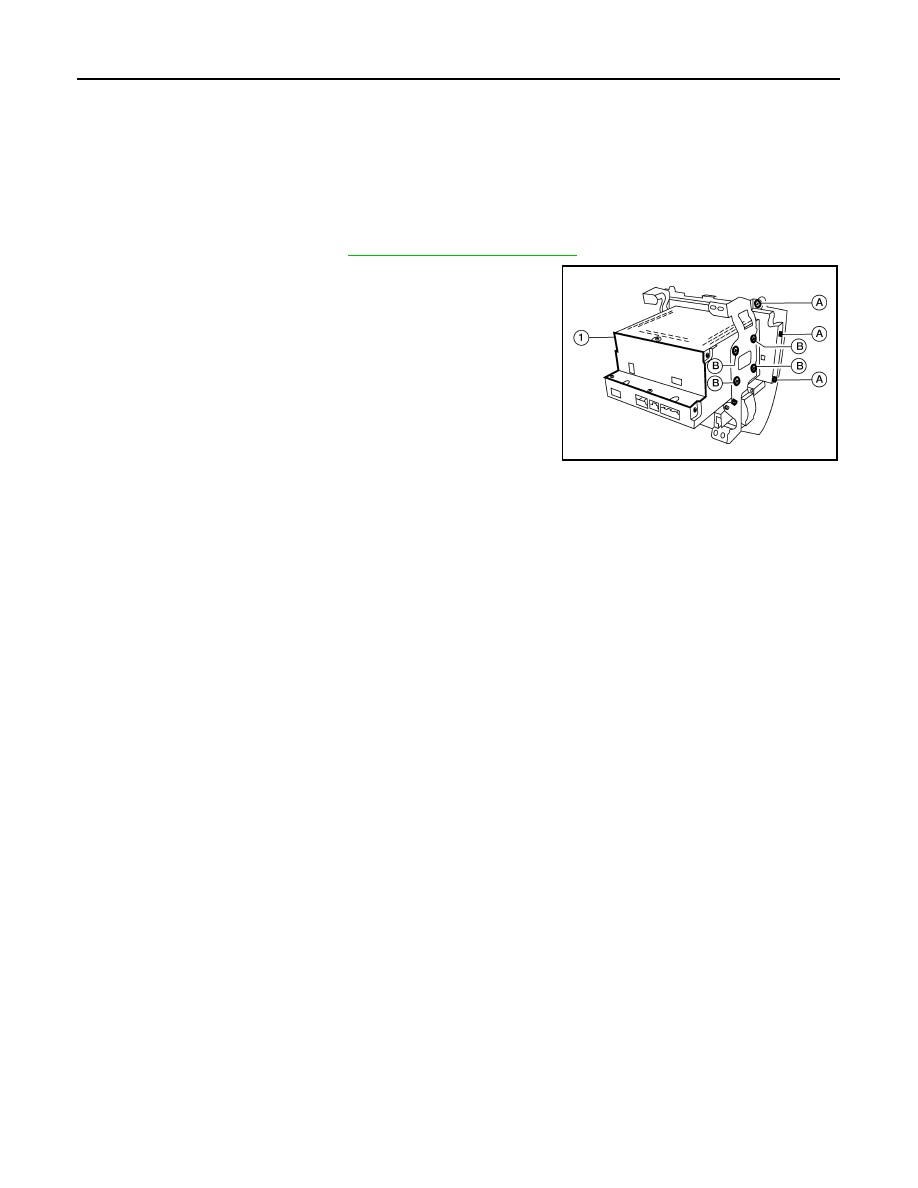

3. Remove the cluster lid D screws (A), then remove the audio unit

screws (B) and the audio unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0026ZZ

AV

TWEETER

AV-47

< ON-VEHICLE REPAIR >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TWEETER

Removal and Installation

INFOID:0000000004219418

REMOVAL

1. Remove the front pillar finisher. Refer to

INT-23, "Removal and Installation"

.

2. Remove tweeter speaker grille. Refer to

IP-12, "Removal and Installation"

.

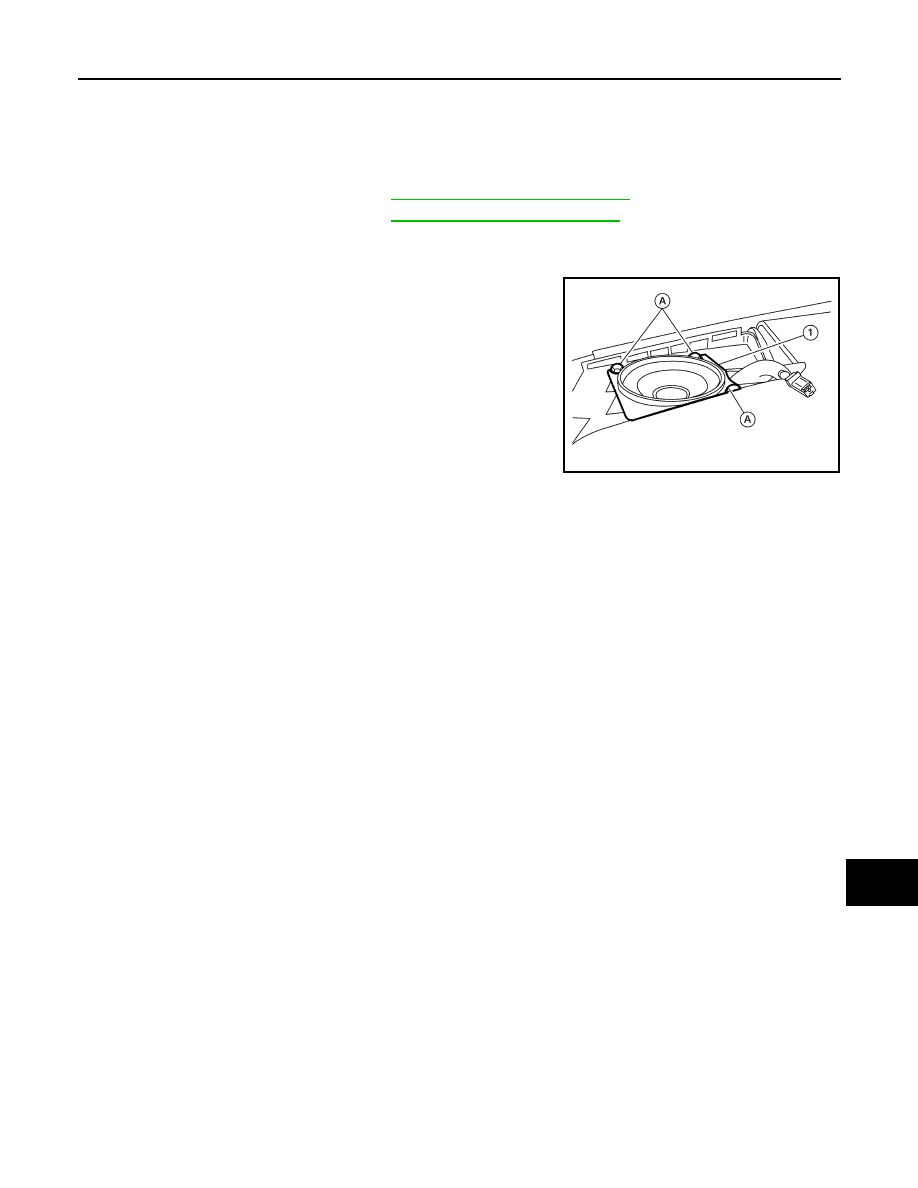

3. Remove the tweeter speaker screws (A), disconnect the tweeter speaker connector and remove the

tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0180GB
