AV-36

< ECU DIAGNOSIS >

[BASE AUDIO]

AUDIO UNIT

ABNIA0692GB

AV

AUDIO UNIT

AV-37

< ECU DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA0693GB

AV-38

< ECU DIAGNOSIS >

[BASE AUDIO]

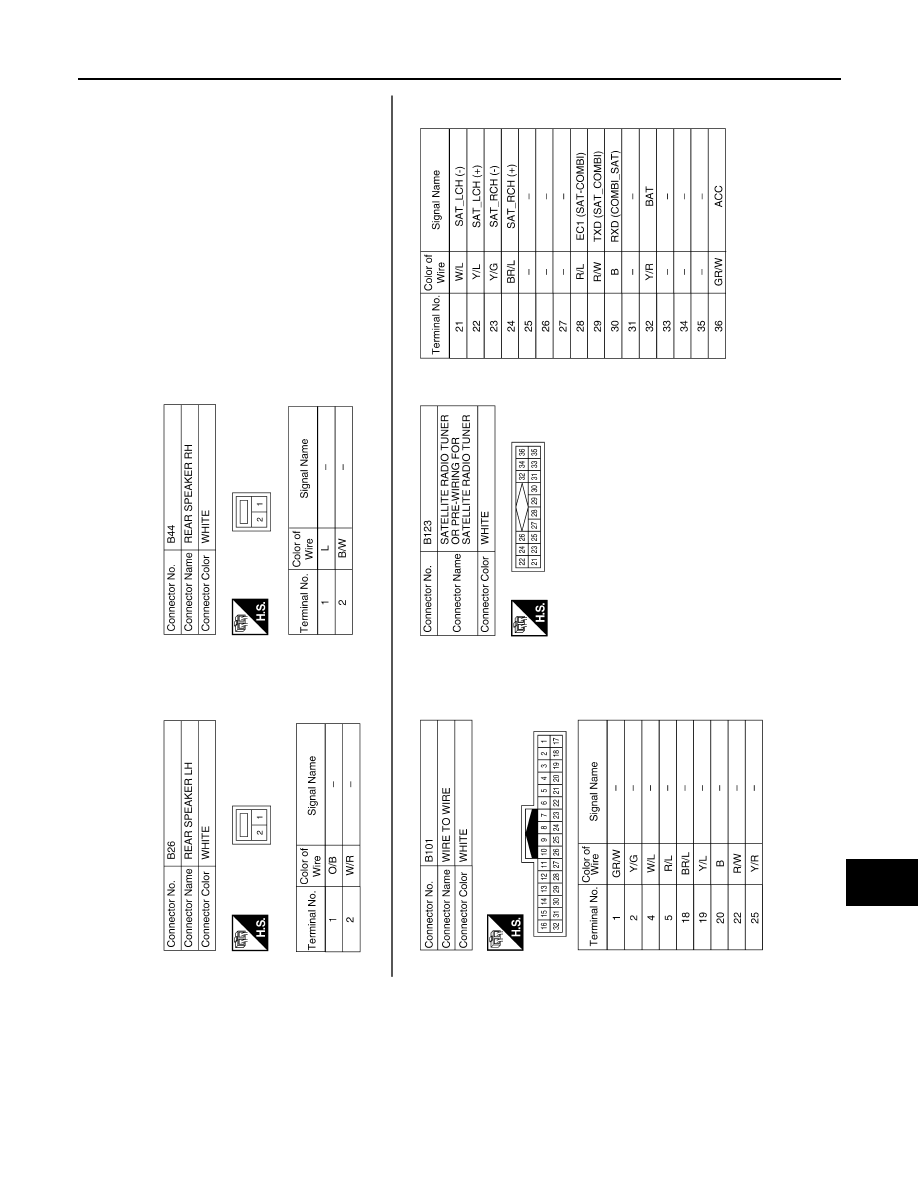

AUDIO UNIT

ABNIA0751GB

AV

SATELLITE RADIO TUNER

AV-39

< ECU DIAGNOSIS >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO TUNER

Reference Value

INFOID:0000000004219410

TERMINAL LAYOUT

PHYSICAL VALUES

LKIA0735E

Terminal

(Wire color)

Item

Signal
 input/
output

Condition

Voltage

(approx.)

+

–

Ignition

switch

Operation

22

(Y/L)

21

(W/L)

Audio signal LH

Output

ON

Receive audio signal.

24

(BR/L)

23

(Y/G)

Audio signal RH

Output

ON

Receive audio signal.

28

(R/L)

Ground

REQ1
(SAT-AUDIO)

Output

ON

Set to the satellite radio
mode

29

(R/W)

Ground

Communication signal
(SAT-AUDIO)

Output

ON

Set to the satellite radio
mode

SKIB3609E

SKIB3609E

SKIB3825E

SKIB3824E
