FRONT DOOR GLASS AND REGULATOR

GW-17

< REMOVAL AND INSTALLATION >

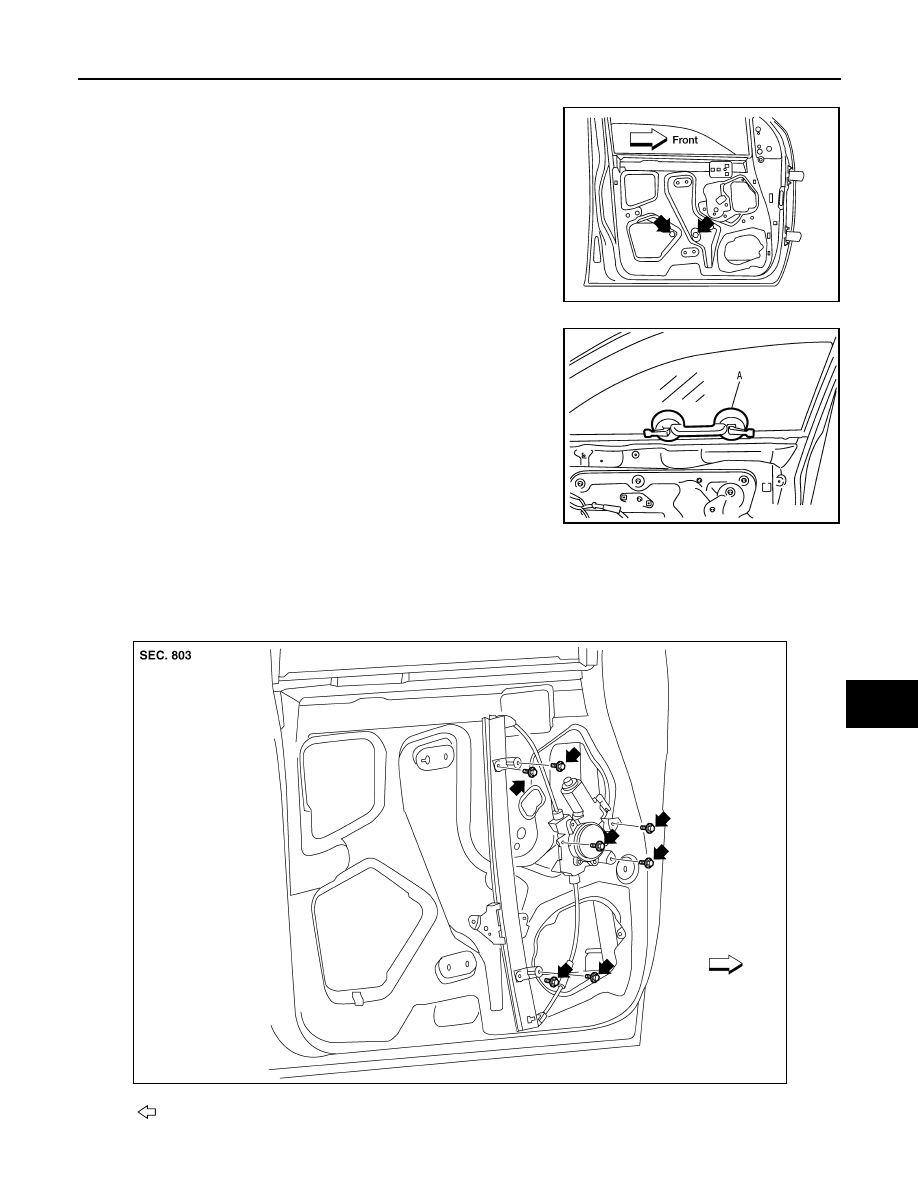

3. Temporarily reconnect the power window switch (if equipped).
4. For power windows, operate the power window switch to raise/

lower the door window until the glass bolts can be seen.

5. For manual windows, temporarily reinstall the window crank

handle and lower the window until the glass bolts can be seen.

6. Remove the glass bolts.

7. Raise the front door glass and hold it in place with suitable tool

(A).

8. Disconnect the harness connector from the regulator assembly

(if equipped).

9. Remove the bolts and the regulator assembly.

NOTE:

Power window shown, manual window similar.

LIIA1686E

PIIB3510J

Front

WIIA1033E

GW-18

< REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

DISASSEMBLY AND ASSEMBLY

Remove the regulator motor or manual crank assembly from the regulator assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Wire wear

• Regulator deformation

• Grease condition for each sliding part

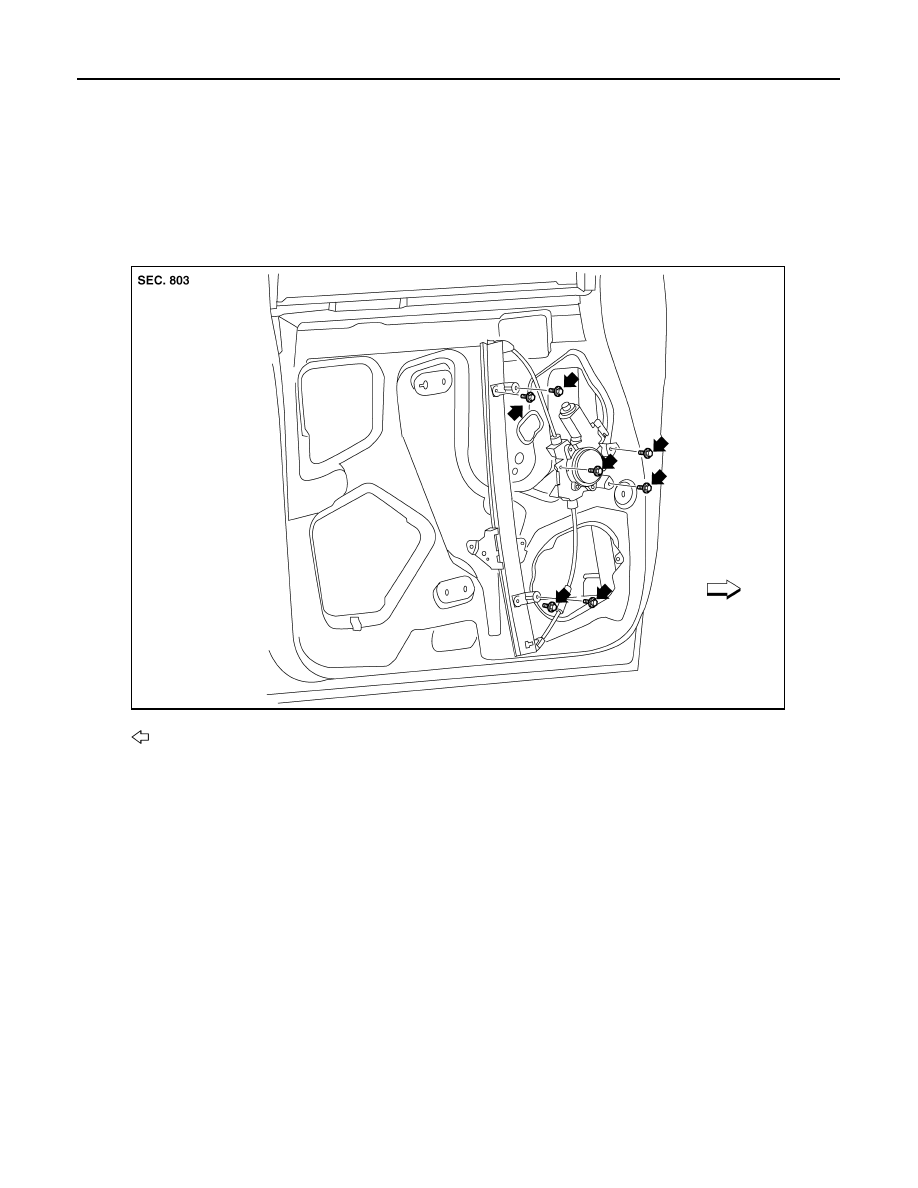

INSTALLATION

1. Install the regulator assembly.
a. Loosely install the top rear regulator bolt to use along with the temporary holds on the window motor or

crank assembly to install the assembly in the door.

b. Install the top front regulator bolt.
c.

Install the bottom front regulator bolt.

d. Install the bottom rear regulator bolt.
e. Tighten the top rear regulator bolt.
f.

Install the top window motor or manual crank assembly bolt.

g. Install the lower window motor or manual crank assembly bolt
h. Install the rear window motor or manual crank assembly bolt.

2. Connect the harness connector (if equipped) to the regulator assembly.

Front

Regulator and motor or
manual crank assembly
bolts

: 5.1 N·m (0.52 kg-m, 45 in-lb)

WIIA1033E

FRONT DOOR GLASS AND REGULATOR

GW-19

< REMOVAL AND INSTALLATION >

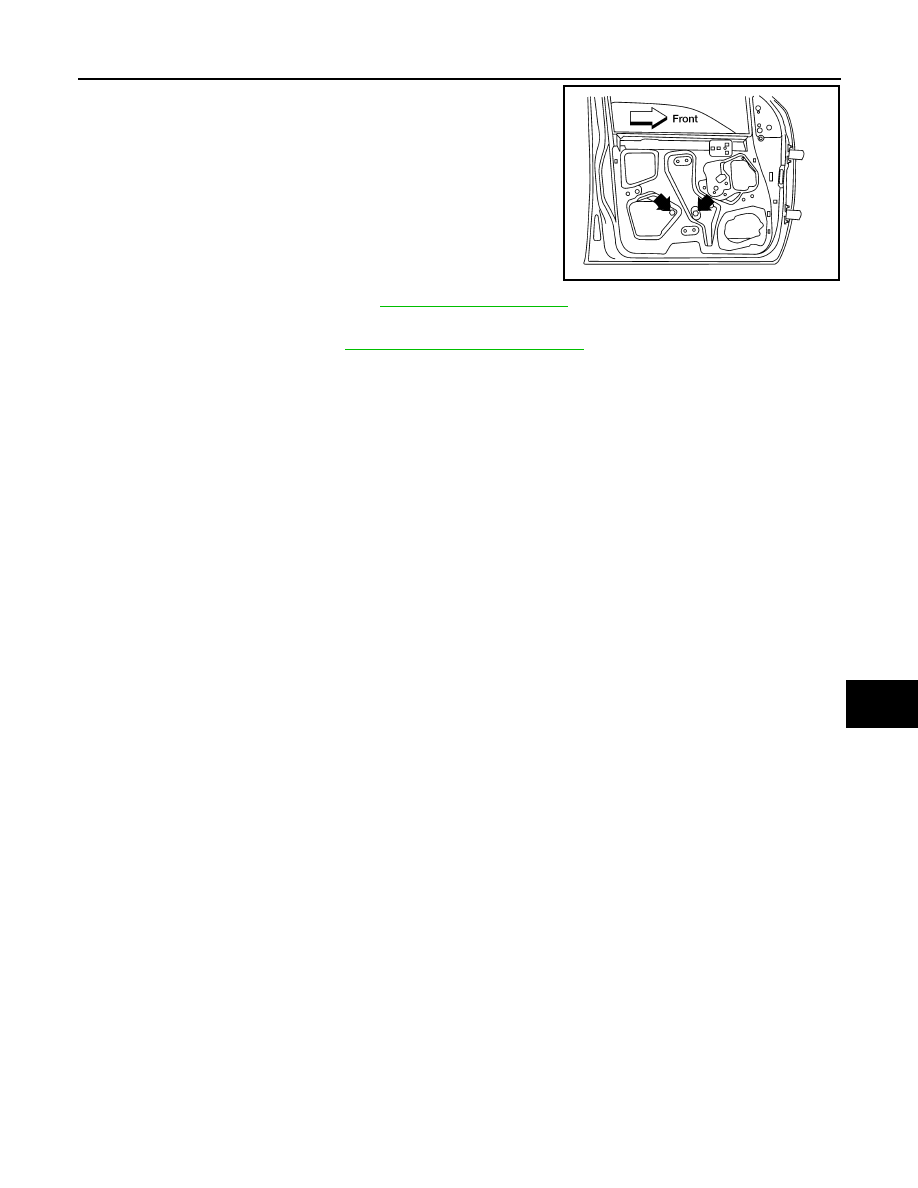

3. Lower the glass and ensure that it is in both the front and rear

glass channels. Tighten glass bolts.

4. Check the glass for proper fit. Refer to

GW-16, "Front Door Glass"

5. Reposition the vapor barrier.
6. Install front door finisher. Refer to

INT-15, "Removal and Installation"

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

LIIA1686E

GW-20

< REMOVAL AND INSTALLATION >

REAR DOOR GLASS AND REGULATOR

REAR DOOR GLASS AND REGULATOR

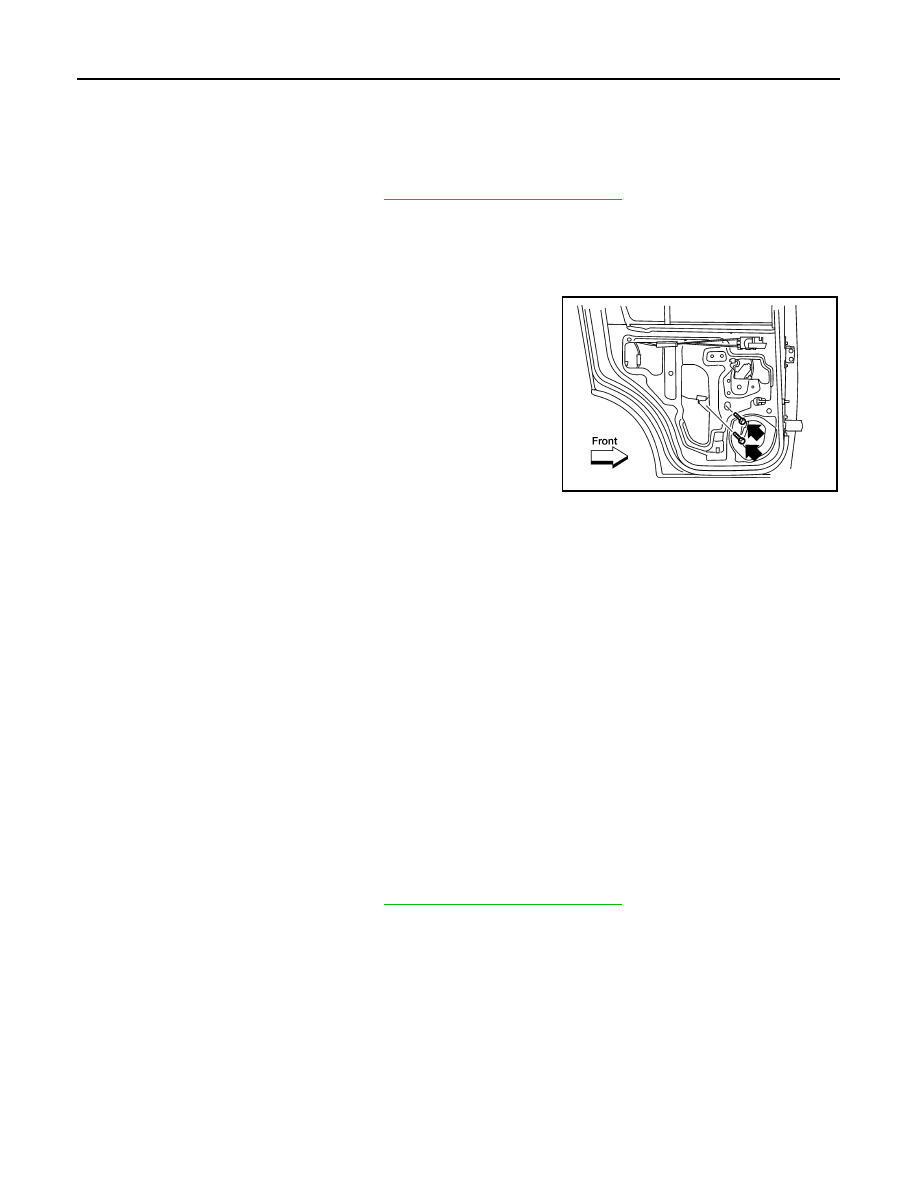

Rear Door Glass

INFOID:0000000009478977

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

2. Position aside the vapor barrier.
3. Remove the inside seal.
4. Temporarily reconnect the power window switch (if equipped).
5. Remove the glass run from the partition glass.
6. For power windows, operate the power window switch to raise/

lower the door window until the glass bolts can be seen.

7. For manual windows, temporarily reinstall the window crank

handle and lower the window until the glass bolts can be seen.

8. Remove the partition sash bolt (lower) and screw (upper) to

remove the sash.

9. Remove the bolts and the glass.

INSTALLATION

Installation is in the reverse order of removal.

• Check the glass alignment. Follow the FITTING INSPECTION procedure.

FITTING INSPECTION

• Check that the glass fits securely into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass carrier plate bolts to adjust the glass position.

Rear Door Glass Regulator

INFOID:0000000009478978

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

2. Position aside the vapor barrier.
3. Remove the inside seal.
4. Temporarily reconnect the power window switch (if equipped).

LIIA1689E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

Regulator and motor
or manual crank as-
sembly bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)
