PREPARATION

GW-9

< PREPARATION >

PREPARATION

Special Service Tool

INFOID:0000000010129253

The actual shape of tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000010129254

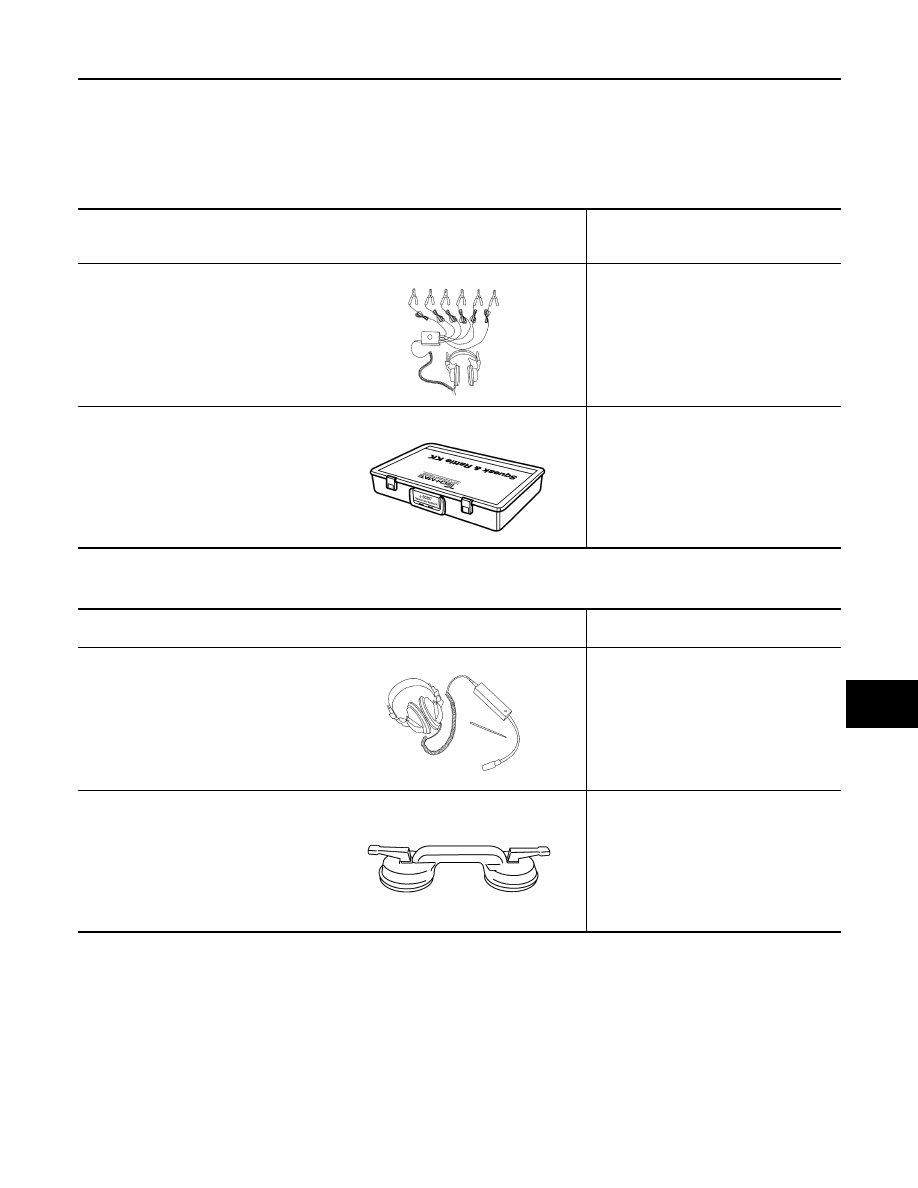

Tool number
(TechMate No.)
Tool name

Description

—

(J-39570)
Chassis Ear

Locating the noise

—

(J-50397)
NISSAN Squeak and Rattle Kit

Repairing the cause of noise

SIIA0993E

ALJIA1232ZZ

(TechMate No.)
Tool name

Description

(J-39565)
Engine Ear

Locating the noise

(

—

)

Suction lifter

Holding the door glass

SIIA0995E

PIIB1805J

GW-10

< REMOVAL AND INSTALLATION >

WINDSHIELD GLASS

REMOVAL AND INSTALLATION

WINDSHIELD GLASS

Removal and Installation

INFOID:0000000009478973

REMOVAL

1. Remove inside mirror. Refer to

MIR-22, "Inside Mirror Assembly"

2. Remove the front pillar upper finisher. Refer to

INT-19, "Removal and Installation"

3. Remove cowl top cover. Refer to

EXT-24, "Removal and Installation"

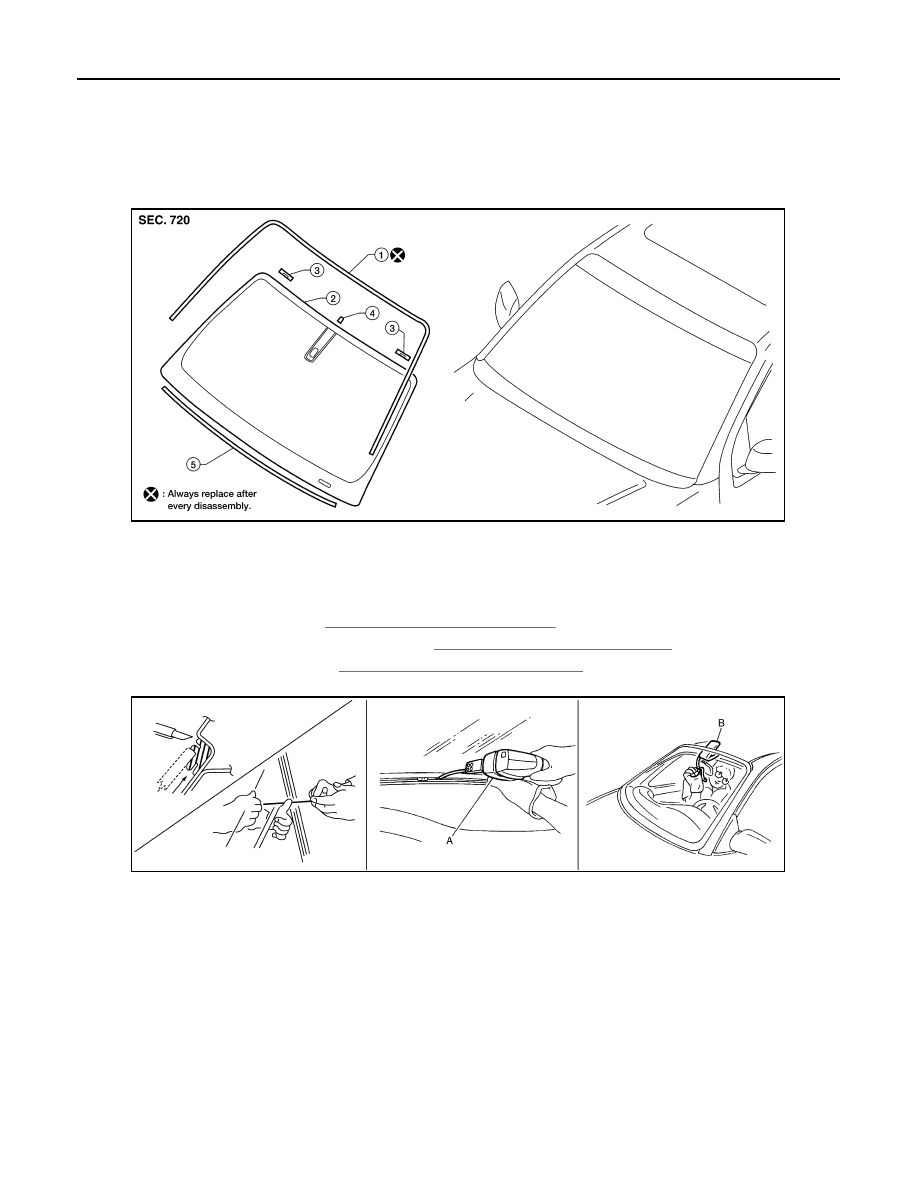

4. Remove windshield glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).

• Apply protective tape around the windshield glass to protect the painted surface from damage.

• If the windshield glass is to be reused, mark the body and the glass with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help pre-

vent glass splinters from entering your eyes or cutting your hands.

CAUTION:

• Be careful not to scratch the glass when removing.

• Do not set or stand glass on its edge. Small chips may develop into cracks.

• Protect the painted surface around the windshield glass from damage.

INSTALLATION

Installation is in the reverse order of removal.

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

Molding

Windshield

Windshield position pins

Mirror base

Insulator

LIIA1684E

PIIB5779E

WINDSHIELD GLASS

GW-11

< REMOVAL AND INSTALLATION >

• The molding must be installed securely so that it is in position and leaves no gap.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the windshield in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidities. The curing time will increase

under lower temperatures and lower humidities.

GW-12

< REMOVAL AND INSTALLATION >

WINDSHIELD GLASS

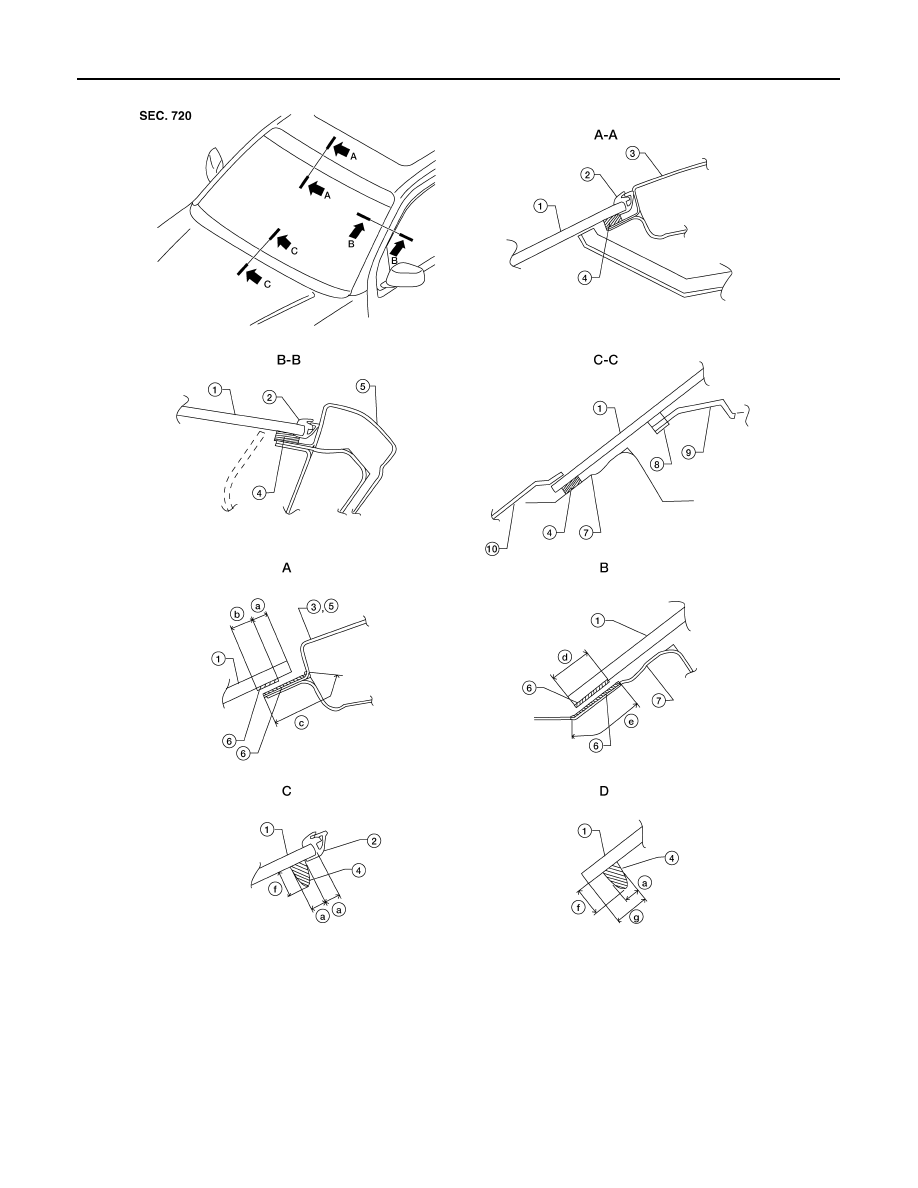

Windshield glass

Molding

Roof

Urethane

A-pillar

Primer

Cowl top panel

Insulator

Instrument panel

10. Cowl top cover

Primer area (top and sides)

Primer area (bottom)

Bond area (top and sides)

Bond area (bottom)

7.0 mm (0.28 in)

WIIA1032E
