WINDSHIELD GLASS

GW-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Repairing Water Leaks for Windshield

Leaks can be repaired without removing and reinstalling glass.

If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the windshield area while pushing glass outward.

To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

b.

10.0 mm (0.39 in)

c.

22.0 mm (0.87 in)

d.

20.0 mm (0.79 in)

e.

28.0 mm (1.10 in)

f.

12.0 mm (0.47 in)

g.

15.0 mm (0.59 in)

GW-14

< REMOVAL AND INSTALLATION >

REAR WINDOW GLASS AND MOLDING

REAR WINDOW GLASS AND MOLDING

Removal and Installation

INFOID:0000000009478974

REMOVAL

1. Remove or lower the headlining. Refer to

INT-25, "Removal and Installation"

.

2. Remove rear window glass using piano wire or power cutting

tool and an inflatable pump bag.

• Apply protective tape around the rear window glass to protect

the painted surface from damage.

• If the rear window glass is to be reused, mark the body and the

glass with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety

glasses and heavy gloves to help prevent glass splinters

from entering your eyes or cutting your hands.

CAUTION:

• When the rear window glass is to be reused, do not use a

cutting knife or power cutting tool.

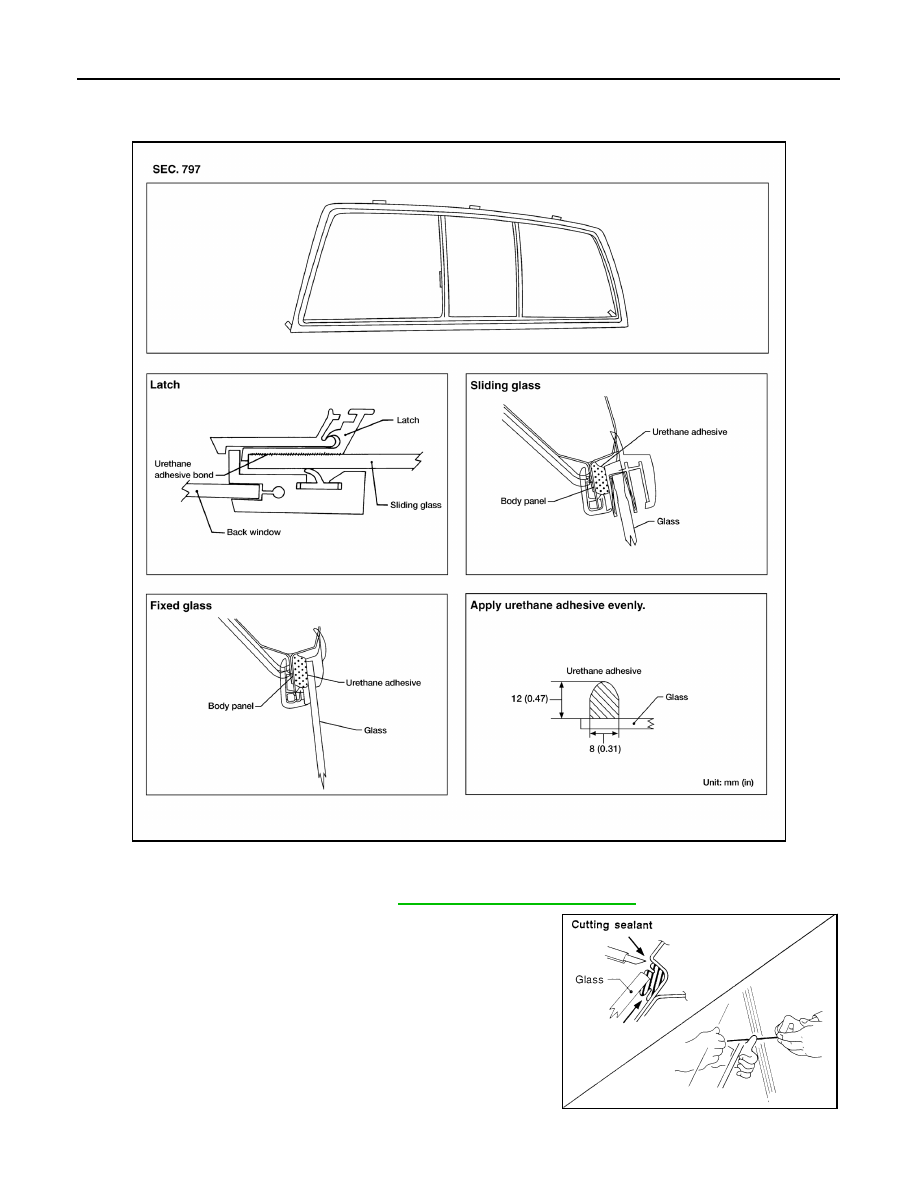

AWKIA1738GB

SBF034B

REAR WINDOW GLASS AND MOLDING

GW-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

Installation is in the reverse order of removal.

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• The molding must be installed securely so that it is in position and leaves no gap.

• Check gap along bottom to confirm that glass does not contact sheet metal.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the rear window in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase

under lower temperatures and lower humidities.

Repairing Water Leaks for Rear Window Glass

Leaks can be repaired without removing or reinstalling glass.

If water is leaking between urethane adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the rear window area while pushing glass outward.

To stop leak, apply primer (if necessary) and then urethane adhesive to the leak point.

GW-16

< REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

FRONT DOOR GLASS AND REGULATOR

Front Door Glass

INFOID:0000000009478975

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Position the vapor barrier aside.
3. Temporarily reconnect the power window switch (if equipped).
4. For power windows, operate the power window switch to raise/

lower the door window until the glass bolts can be seen.

5. For manual windows, temporarily reinstall the window crank

handle and lower the window until the glass bolts can be seen.

6. Remove the glass bolts.

7. While holding the door window, raise it at the rear and pull the

glass out of the sash toward the outside of the door.

INSTALLATION

Installation is in the reverse order of removal.

• Check the glass for proper fit. Follow the FITTING INSPECTION procedure.

• On the drivers door, reset the motor (if equipped). Follow the SETTING AFTER INSTALLATION procedure.

FITTING INSPECTION

• Check that the glass fits securely into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass and guide rail bolts to adjust the glass position.

Front Door Glass Regulator

INFOID:0000000009478976

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Position the vapor barrier aside.

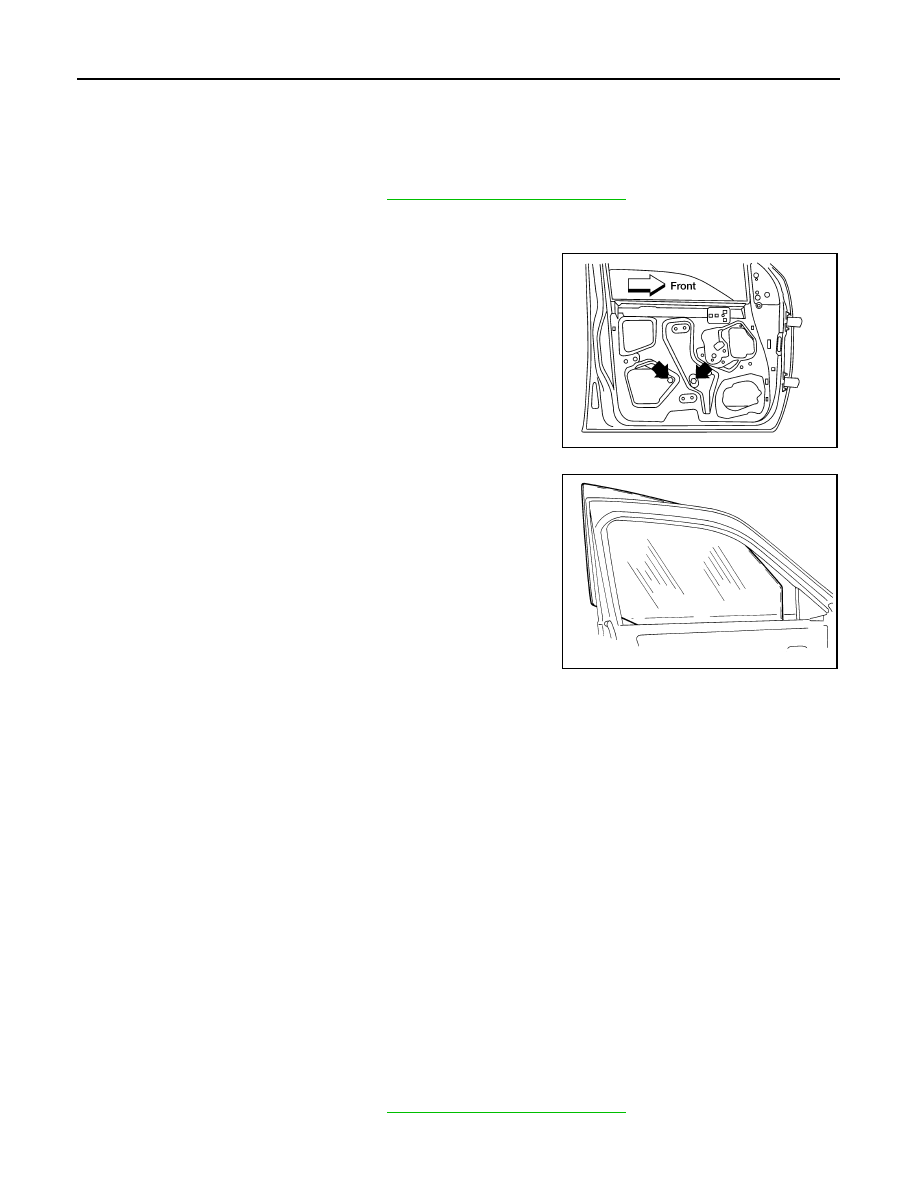

LIIA1686E

LIIA1687E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

Regulator and motor
or manual crank as-
sembly bolts

: 5.1 N·m (0.52 kg-m, 45 in-lb)

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)
