5. For power windows, operate the power window switch to raise/

lower the door window until the glass bolts can be seen.

6. For manual windows, temporarily reinstall the window crank

handle and lower the window until the glass bolts can be seen.

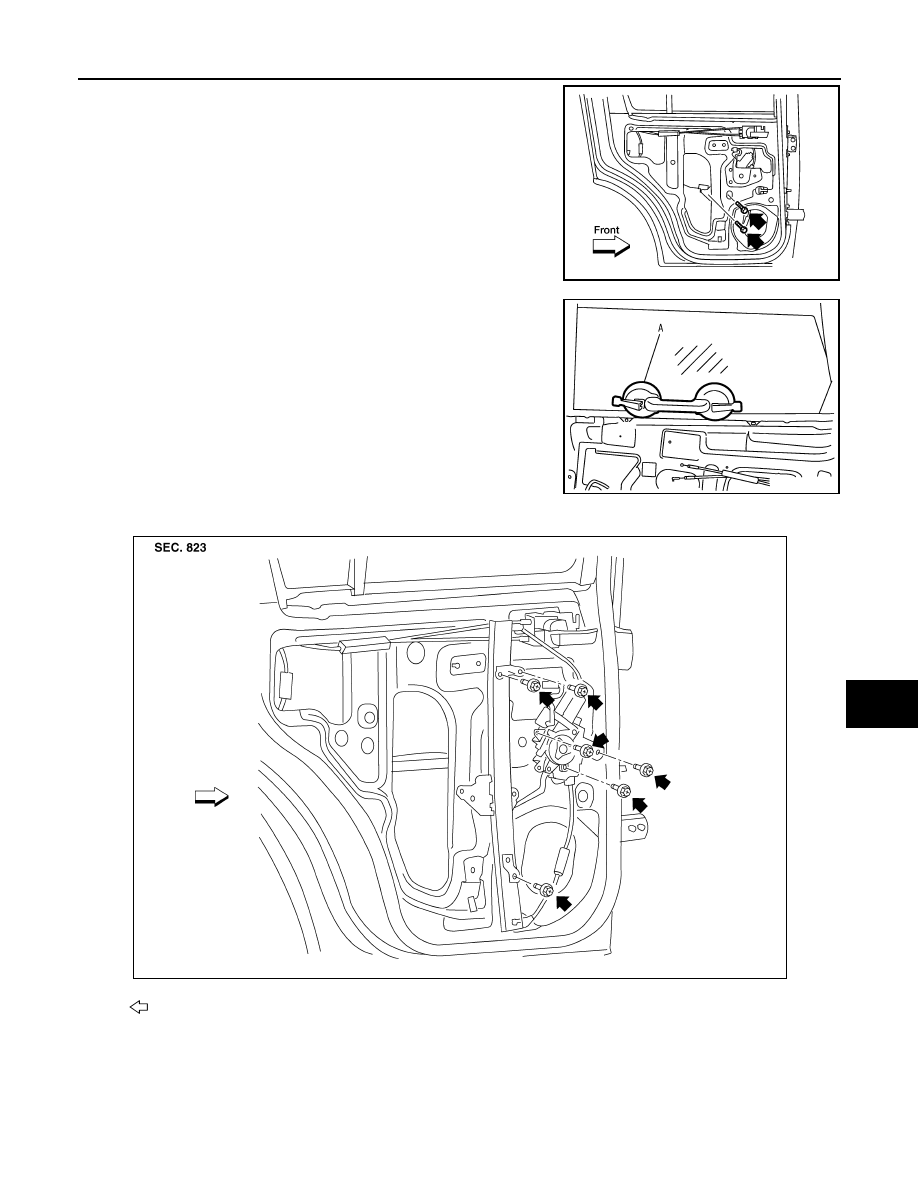

7. Raise the rear door glass and hold it in place with suitable tool

(A).

8. Remove the bolts and the regulator assembly.

• Disconnect the harness connector (if equipped) from the regu-

lator assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Gear wear

• Regulator deformation

• Spring damage

• Grease condition for each sliding part

LIIA1689E

PIIB3511J

Front

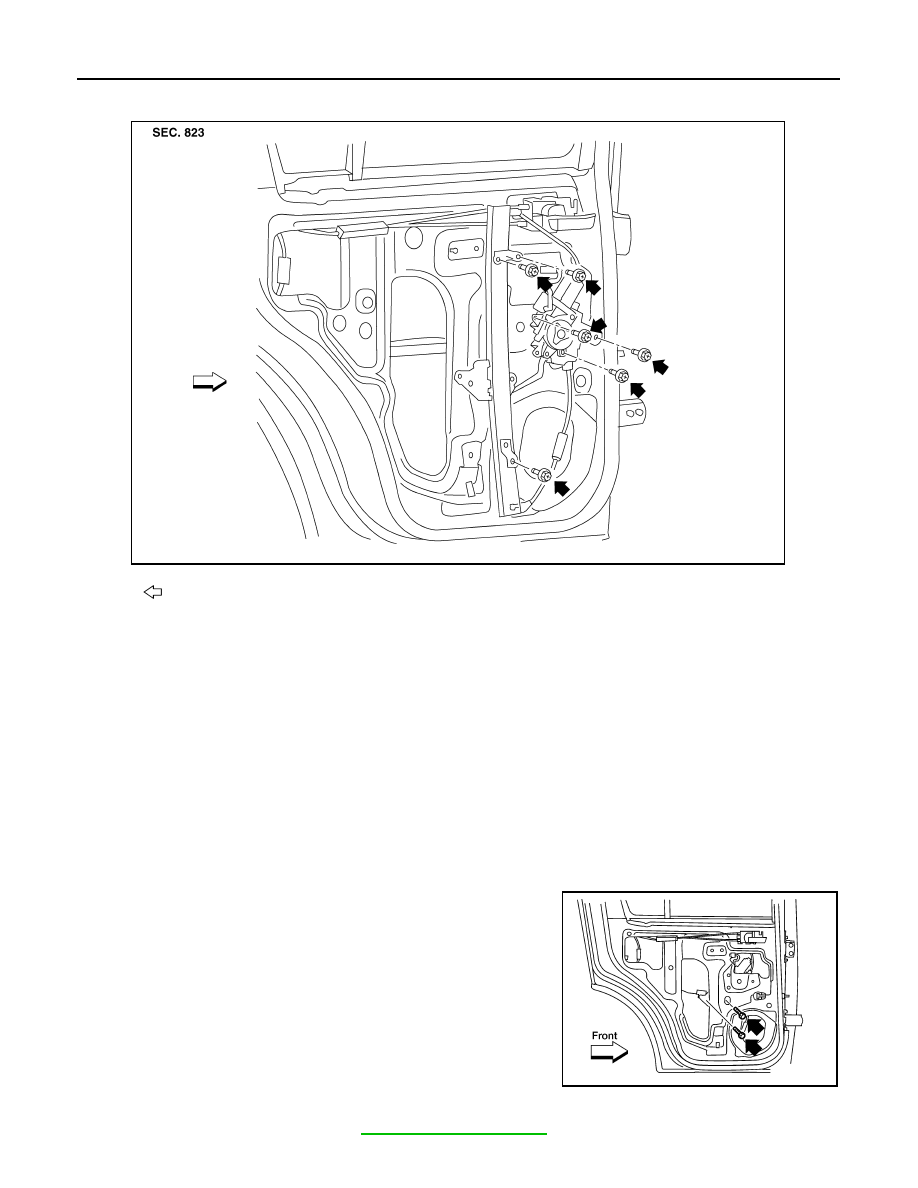

WIIA1034E

GW-22

< REMOVAL AND INSTALLATION >

REAR DOOR GLASS AND REGULATOR

INSTALLATION

1. Connect the harness connector and install the regulator assembly.
a. Loosely install the top rear regulator bolt to use along with the temporary holds on the window motor or

manual crank assembly to install the assembly in the door.

b. Install the top front regulator bolt.
c.

Install the bottom regulator bolt.

d. Tighten the top rear regulator bolt.
e. Install the top window motor or manual crank assembly bolt.
f.

Install the lower window motor or manual crank assembly bolt.

g. Install the front window motor or manual crank assembly bolt.

2. Lower the glass and ensure that it is in both the front and rear

glass channels. Tighten glass bolts.

3. Install the partition sash
4. Check the glass alignment. Refer to

GW-20, "Rear Door Glass"

.

Front

Regulator and motor or
manual crank assembly
bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

WIIA1034E

LIIA1689E

REAR DOOR GLASS AND REGULATOR

GW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

5. Install the inside seal.
6. Reposition the vapor barrier.
7. Install the rear door finisher. Refer to

INT-15, "Removal and Installation"

.

GW-24

< REMOVAL AND INSTALLATION >

SIDE WINDOW GLASS

SIDE WINDOW GLASS

Removal and Installation

INFOID:0000000009478979

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the side window glass using piano wire or power cut-

ting tool and an inflatable pump bag.

• Apply protective tape around the side window glass to protect

the painted surface from damage.

• If the window glass is to be reused, mark the body and the

glass with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety

glasses and heavy gloves to help prevent glass splinters

from entering your eyes or cutting your hands.

CAUTION:

• When the side window glass is to be reused, do not use a

cutting knife or power cutting tool.

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

Installation is in the reverse order of removal.

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• Check gap along bottom to confirm that glass does not contact sheet metal.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

1.

Side window glass

A.

12.0 mm (0.47 in)

B.

8.0 mm (0.31 in)

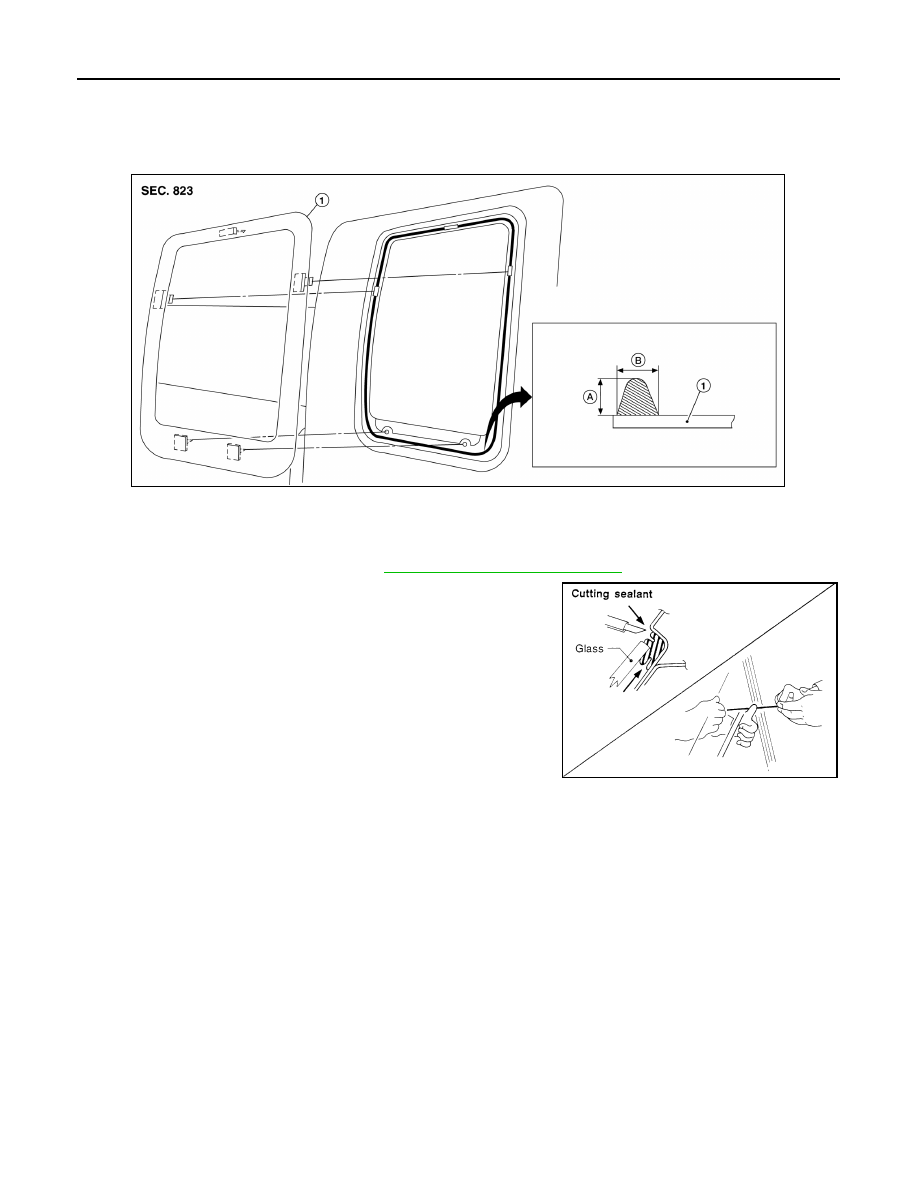

AWKIA1736ZZ

SBF034B
