Nissan Frontier. Manual - part 832
2014
QUICK REFERENCE GUIDE: FRONTIER
*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
*2: Target value 35
° 28′ (35.47°)
*3: Target value 31
° 27′ (31.45°)
*4: Target value 35
° 38′ (35.63°)
*5: Target value 31
° 49′ (31.82°)
*6: Some vehicles may be equipped with straight (non-adjustable) lower link bolts and washers. In order to adjust camber and caster on
these vehicles, first replace the lower link bolts and washers with adjustable (cam) bolts and washers.
General Specification (Rear)
INFOID:0000000010288611

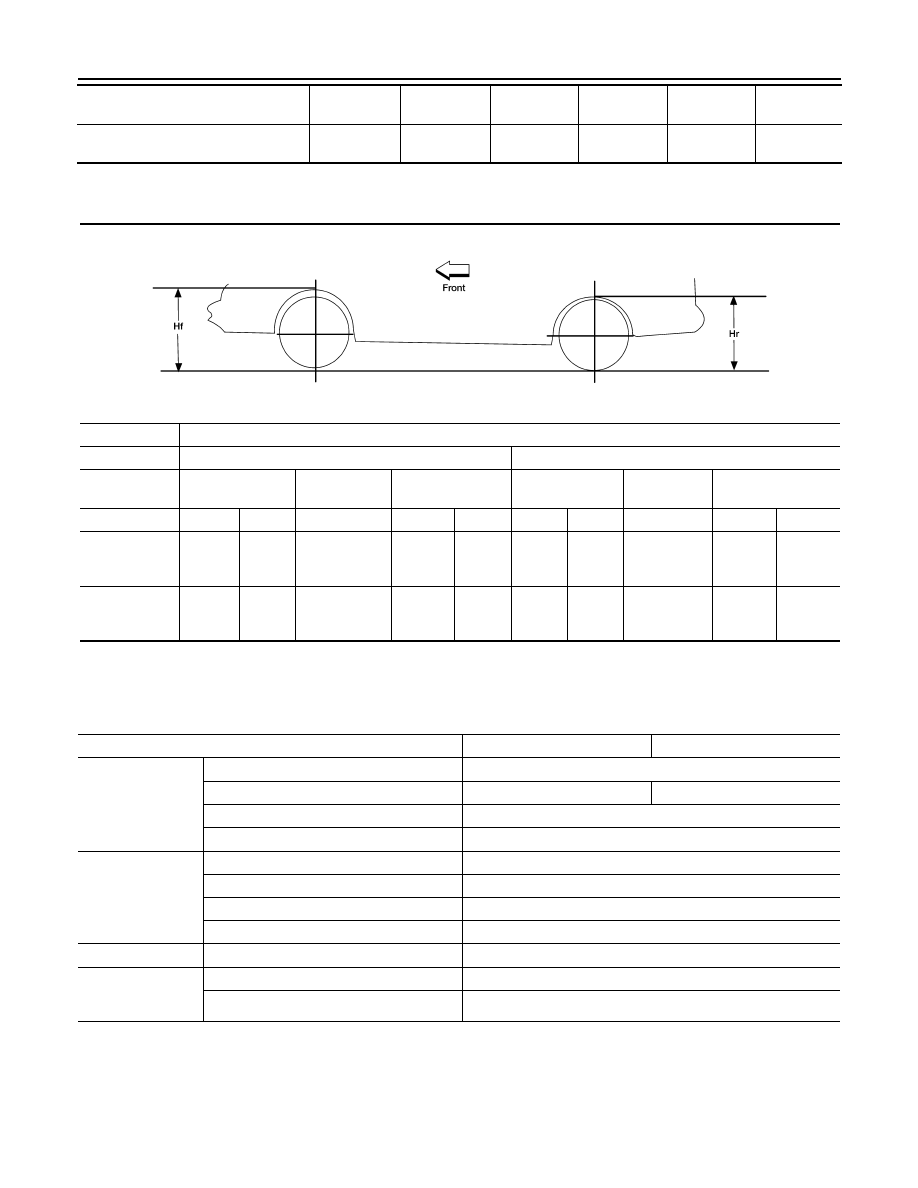

Wheelarch Height (Unladen*
1
)
INFOID:0000000010288612
King Cab
Unit: mm (in)

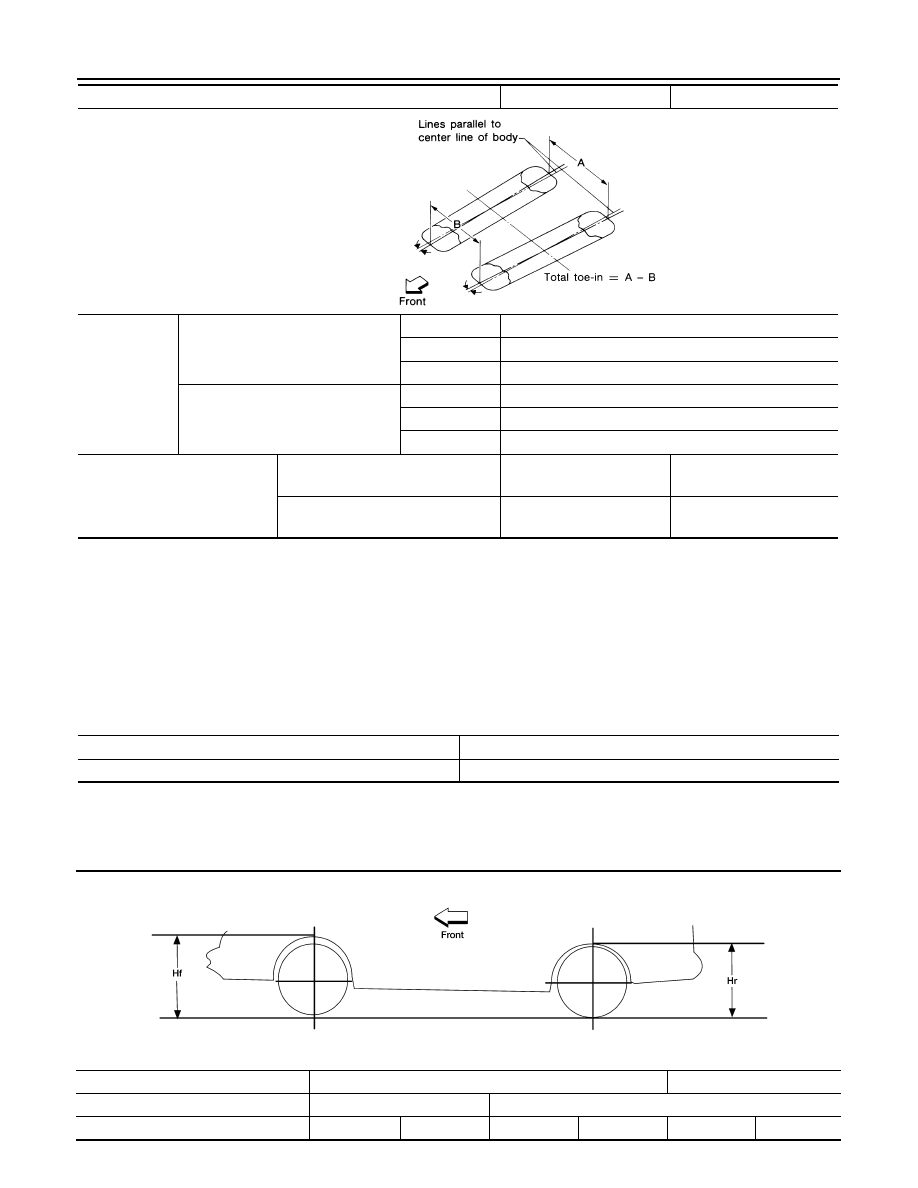

Total toe-in
Distance
Minimum
In 3.0 mm (In 0.12 in)
Nominal
In 4.0 mm (In 0.16 in)
Maximum
In 5.0 mm (In 0.20 in)
Angle
Degree minute (Decimal degree)
Minimum
In 0
° 7′ (In 0.12°)
Nominal
In 0
° 9′ (In 0.15°)
Maximum
In 0
° 11′ (In 0.18°)
Wheel turning angle (full turn)
Inside
Degree minute (Decimal degree)
33
° 28′ – 35° 28′ *
2
(33.47
° – 35.47°)
33
° 38′ – 35° 38′ *
4
(33.63
° – 35.63°)
Outside
Degree minute (Decimal degree)
29
° 27′ – 31° 27′ *
3
(29.45
° – 31.45°)
29
° 49′ – 31° 49′ *
5
(29.82
° – 31.82°)
Drive type
2WD
4WD
SFA234AC
Suspension type
Rigid axle with semi-elliptic leaf springs
Shock absorber type
Double-acting hydraulic
Drive type
2WD
4WD
Engine type
QR25DE
VQ40DE
Tire size
P235/75R15
P265/70R16
P265/70R16
P265/75R16
P265/70R16
P265/75R16
LEIA0085E
