Engine Tune-up Data: QR25DE

INFOID:0000000010288615

GENERAL SPECIFICATIONS

DRIVE BELT

SPARK PLUG

*: Always check with the Parts Department for the latest parts information.

Engine Tune-up Data: VQ40DE

INFOID:0000000010288614

GENERAL SPECIFICATIONS

Cylinder arrangement

In-line 4

Displacement

cm

3

 (cu in)

2,488 (151.82)

Bore and stroke

mm (in)

89.0 x 100.0 (3.504 x 3.937)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

9.5

Compression pressure
kPa (kg/cm

2

, psi) / 250 rpm

Standard

1,304 (13.3, 189)

Minimum

1,108 (11.3, 161)

Differential limit between cylinders

100 (1.0, 14)

Tension of drive belt

                         Auto adjustment by auto-tensioner

Make

NGK

Standard type*

PLZKAR6A–11

Gap (nominal)

1.1 mm (0.043 in)

Cylinder arrangement

V-6

Displacement cm

3

(cu in)

3,954 (241.30)

Bore and stroke mm (in)

95.5

× 92.0 (3.76 × 3.622)

Valve arrangement

DOHC

Firing order

1-2-3-4-5-6

Number of piston rings

Compression

2

Oil

1

Number of main bearings

4

Compression ratio

9.7

Compression pressure
kPa (kg/cm

2

, psi)/300 rpm

Standard

1,275 (13.0, 185)

Minimum

981 (10.0, 142)

Differential limit between cylinders

98 (1.0, 14)

QUICK REFERENCE GUIDE: FRONTIER

2014

DRIVE BELT

SPARK PLUG

*: Always check with the Parts Department for the latest parts information.

Front Wheel Alignment (Unladen*1)*6

INFOID:0000000010288613

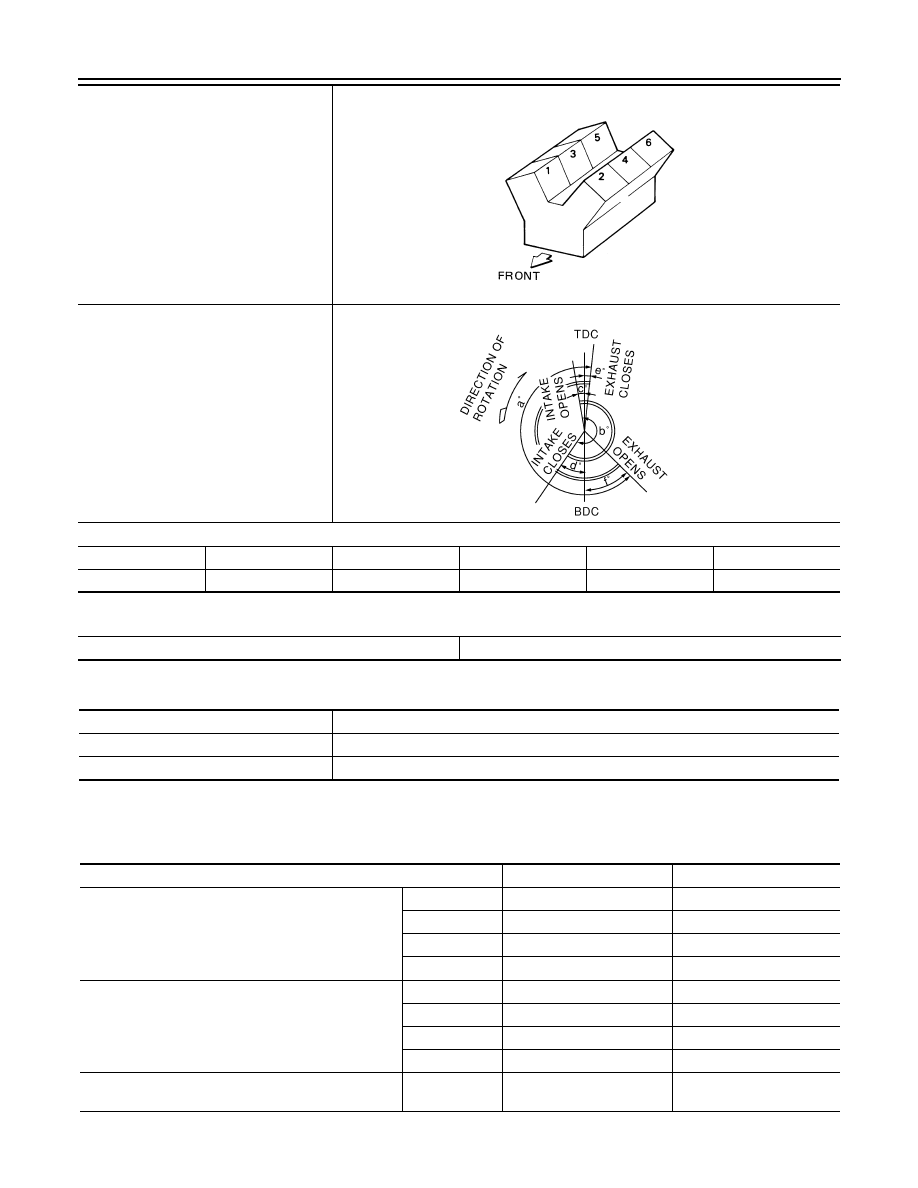

Cylinder number

Valve timing
(Intake valve timing control - “OFF”)

Unit: degree

a

b

c

d

e

f

244

240

−4

64

6

58

SEM713A

PBIC0187E

Tension of drive belts

Auto adjustment by auto-tensioner

Make

NGK

Standard type*

DILFR5A-11

Gap (nominal)

1.1 mm (0.043 in)

Drive type

2WD

4WD

Camber
Degree minute (decimal degree)

Minimum

-0

° 30′ (-0.50°)

-0

° 15′ (-0.25°)

Nominal

0

° 15′ (0.25°)

0

° 30′ (0.50°)

Maximum

1

° 0′ (1.00°)

1

° 15′ (1.25°)

Cross camber

0

° 45′ (0.75°) or less

 0

° 45′ (0.75°) or less

Caster
Degree minute (decimal degree)

Minimum

2

° 00′ (2.00°)

1

° 45′ (1.75°)

Nominal

2

° 45′ (2.75°)

2

° 30′ (2.5°)

Maximum

3

° 30′ (3.50°)

3

° 15′ (3.25°)

Cross caster

0

° 45′ (0.75°) or less

0

° 45′ (0.75°) or less

Kingpin inclination
Degree minute (decimal degree)

Nominal

13

° 0′ (13.00°)

12

° 45′ (12.75°)
