REMOVAL

1. Remove bolts and remove running board from running board brackets.
2. Remove screw and remove end cap and reinforcement.
3. Release clips and remove step pad from running board.
4. Remove nuts and bolts and remove running board brackets.

INSTALLATION

Installation is in the reverse order of removal.

EXT-32

< REMOVAL AND INSTALLATION >

ROOF RACK

ROOF RACK

Removal and Installation

INFOID:0000000009479009

Crew Cab

REMOVAL

1. Remove RH/LH side rail bolts (if equipped) from roof panel.
2. Pry outward releasing end caps and remove from side rails.
3. Remove the bolts and remove rear crossbar from side rails.
4. Remove the bolts and remove front crossbar from side rails.

INSTALLATION

Installation is in the reverse order of removal.

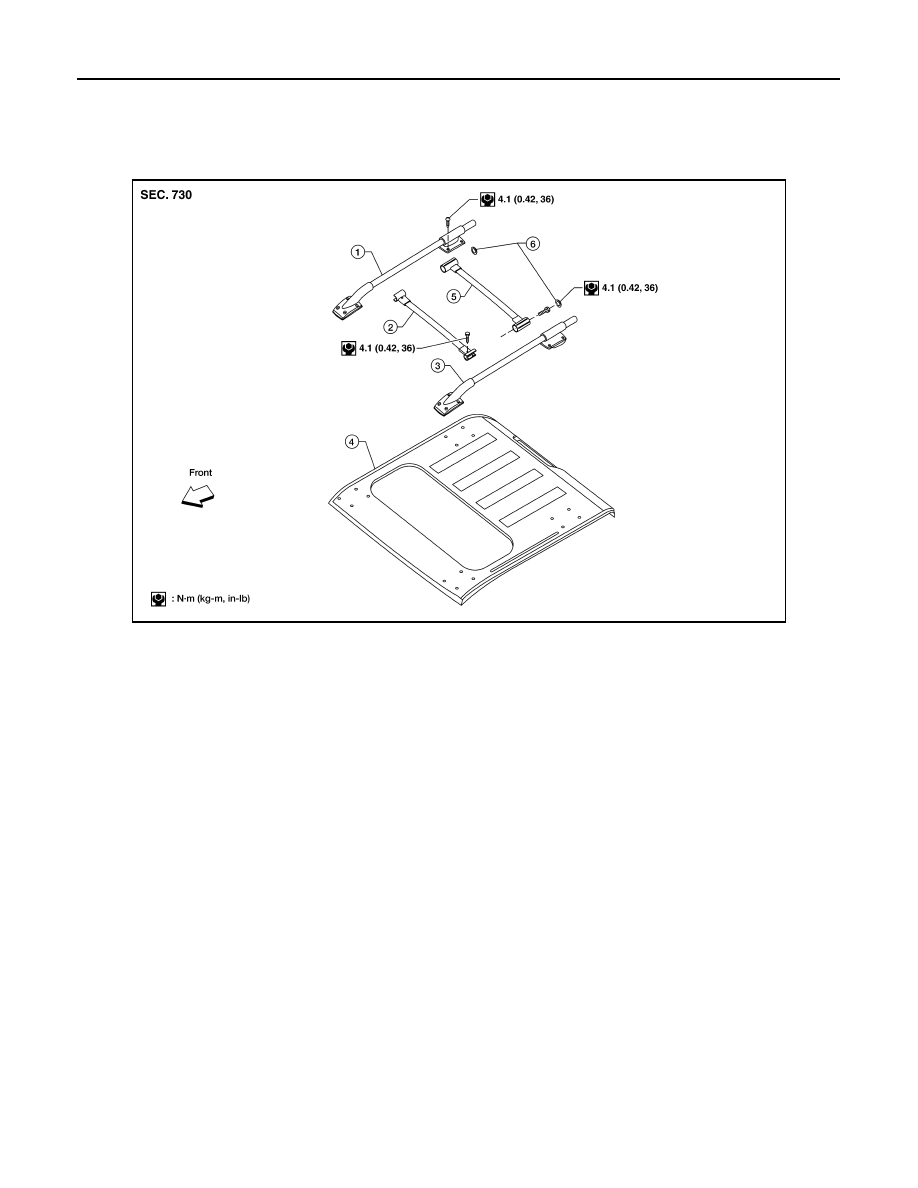

LIIA1960E

1.

RH side rail

2.

Front crossbar

3.

LH side rail

4.

Roof panel

5.

Rear crossbar

6.

End cap

DOOR OUTSIDE MOLDING

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

DOOR OUTSIDE MOLDING

Removal and Installation

INFOID:0000000009479010

DOOR OUTSIDE MOLDING

Removal

1. Lift molding from the front side off of flange.
2. Remove the door outside molding.

Installation

Installation is in the reverse order of removal.

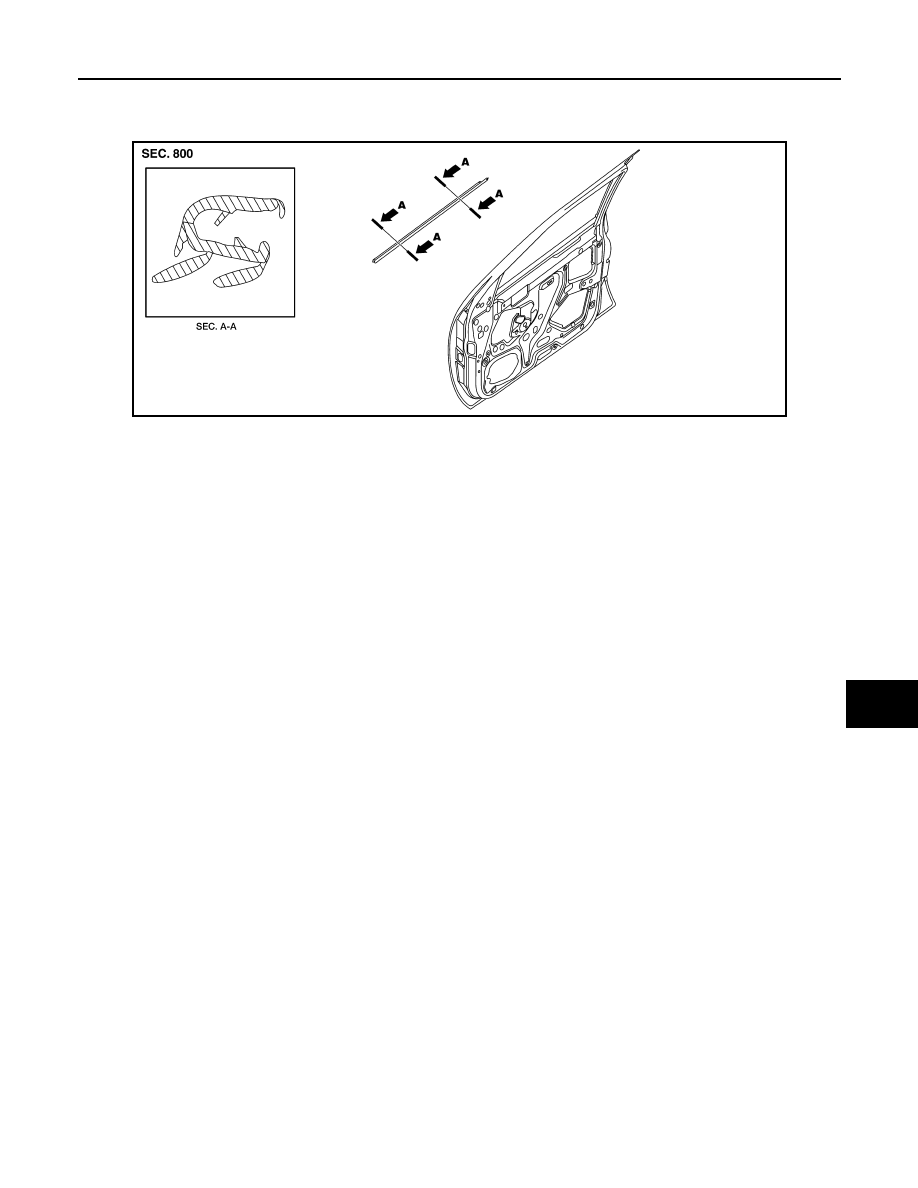

LIIA1780E

EXT-34

< REMOVAL AND INSTALLATION >

SIDE GUARD MOLDING

SIDE GUARD MOLDING

Removal and Installation

INFOID:0000000009479011

REMOVAL

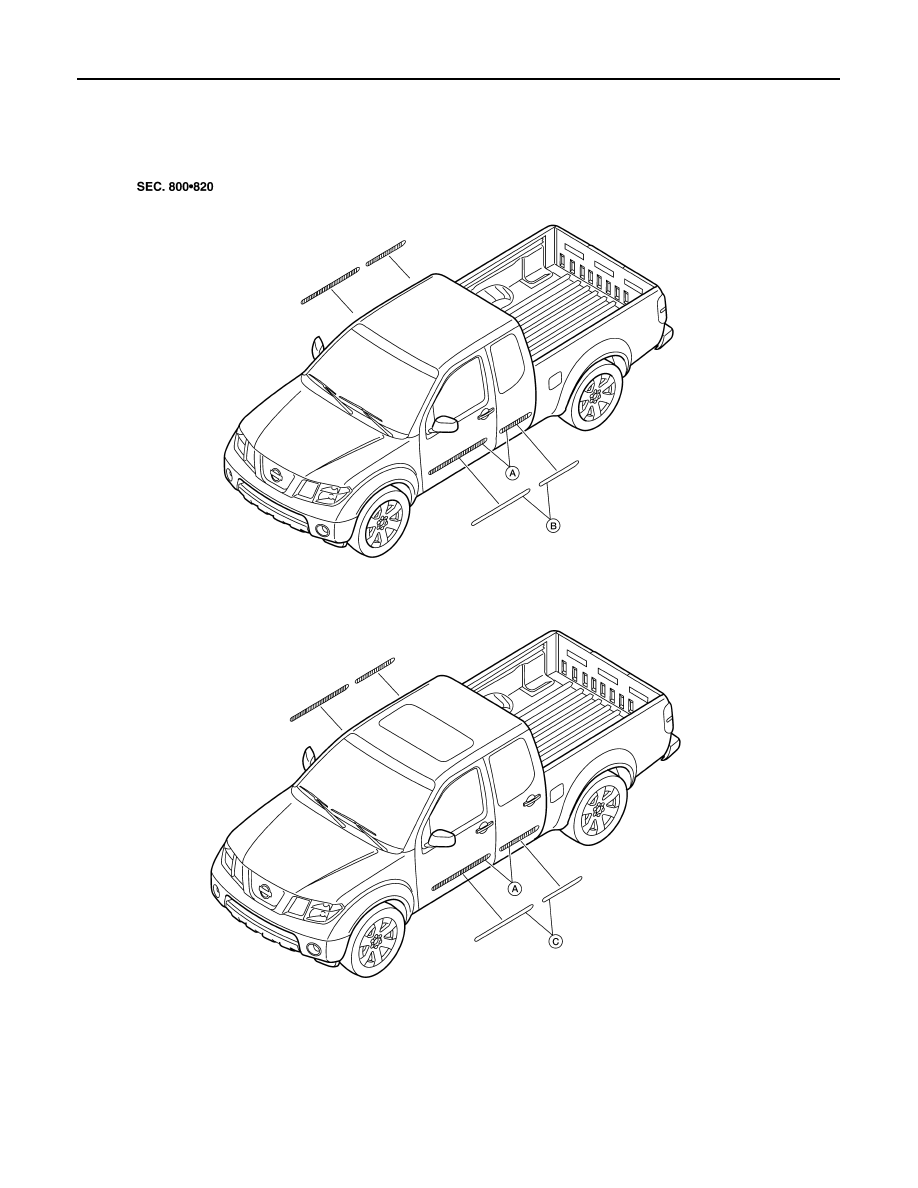

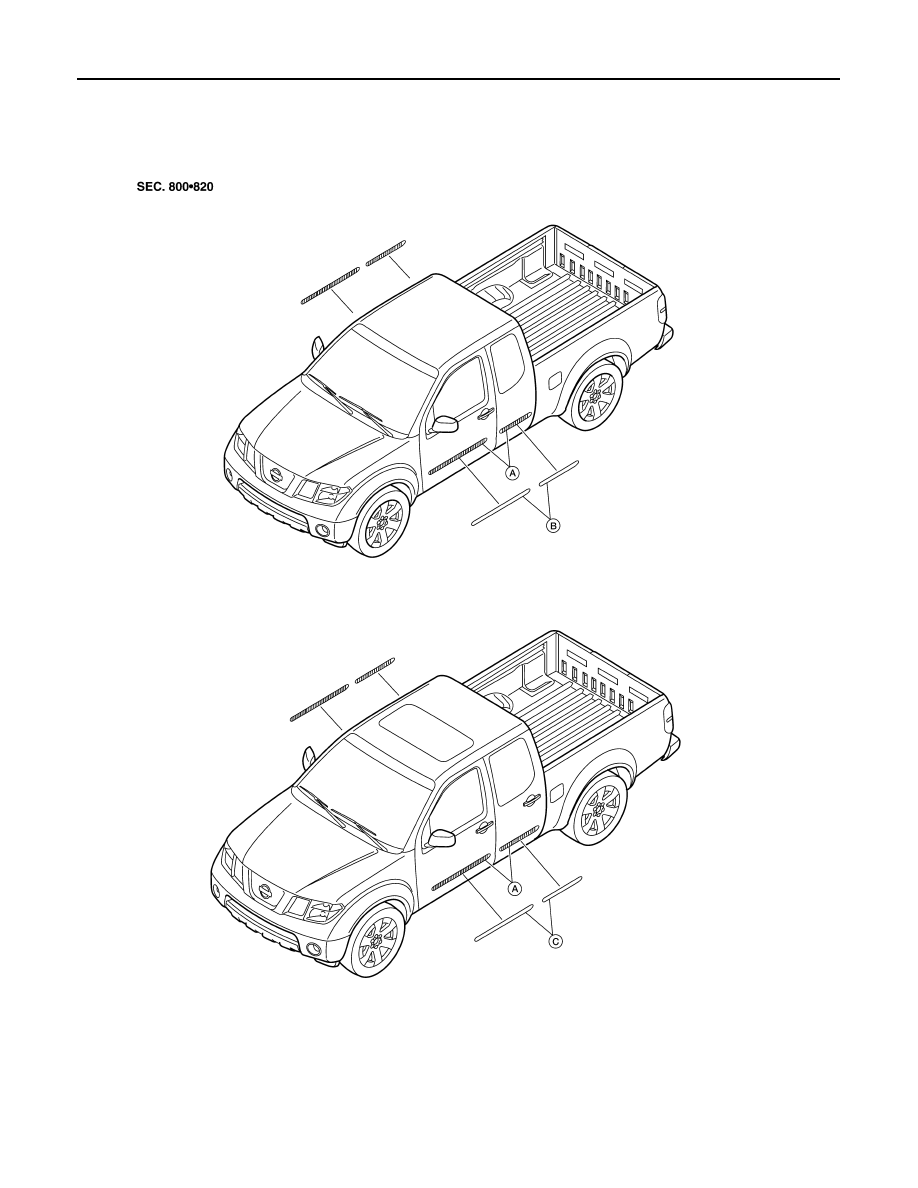

A.

Double-faced adhesive tape

B.

King cab side guard moulding

C.

Crew cab side guard moulding

WIIA1079E
