FENDER PROTECTOR

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Front - Plastic Bumper

Rear

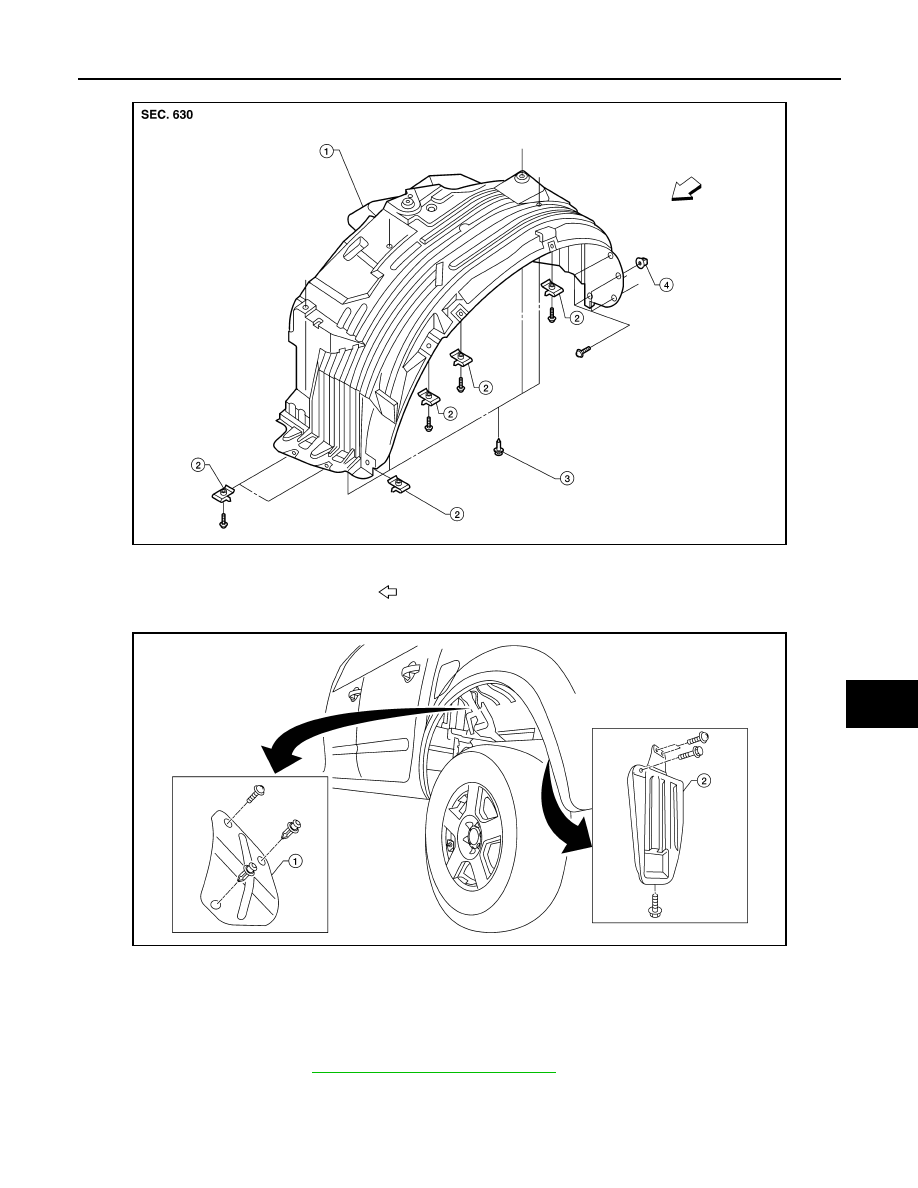

Removal and Installation of Front Fender Protector

INFOID:0000000009479005

REMOVAL

1. Remove mudguard. Refer to

EXT-29, "Removal and Installation"

.

2. Remove screws.
3. Remove plastic clips.
4. Remove grommets.

WIIA1078E

1.

Fender protector (LH)

2.

Nut

3.

Screw

4.

Grommet

Front

LIIA1948E

1.

Fuel filler pipe shield

2.

Rear fender shield

EXT-28

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

5. Remove front fender protector.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation of Rear Fender Protector

INFOID:0000000009479006

REMOVAL

1. Remove screws.
2. Remove pushpin.
3. Remove fuel filler pipe shield or rear fender shield.

INSTALLATION

Installation is in the reverse order of removal.

MUDGUARD

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

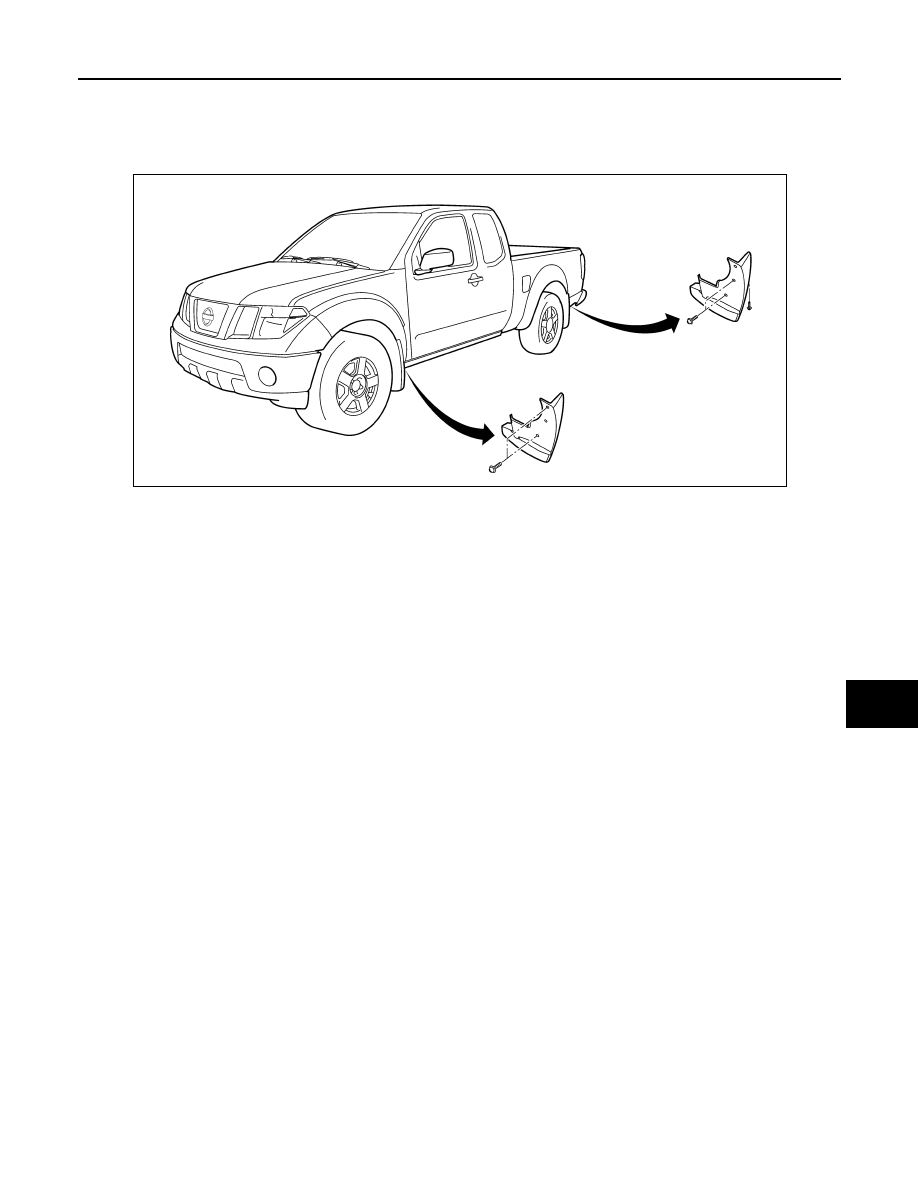

MUDGUARD

Removal and Installation

INFOID:0000000009479007

NOTE:

King Cab shown Crew Cab similar.

REMOVAL

1. Remove the mudguard fasteners.
2. Remove the mudguard.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1947E

EXT-30

< REMOVAL AND INSTALLATION >

RUNNING BOARDS

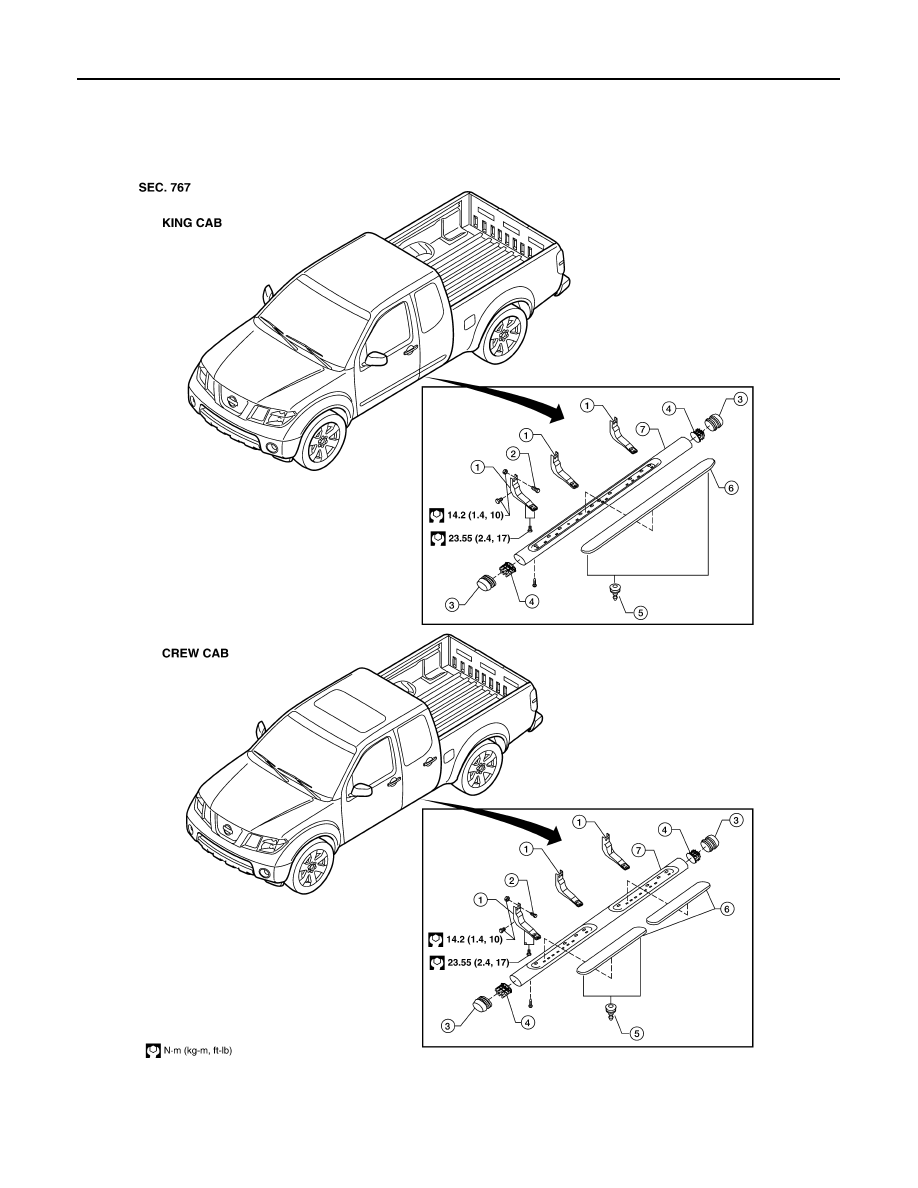

RUNNING BOARDS

Removal and Installation

INFOID:0000000009479008

1.

Running board bracket

2.

Weld stud

3.

End cap

4.

End cap reinforcement

5.

Clip

6.

Step pad

7.

Running board

WIIA0569E
