FRONT BUMPER

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

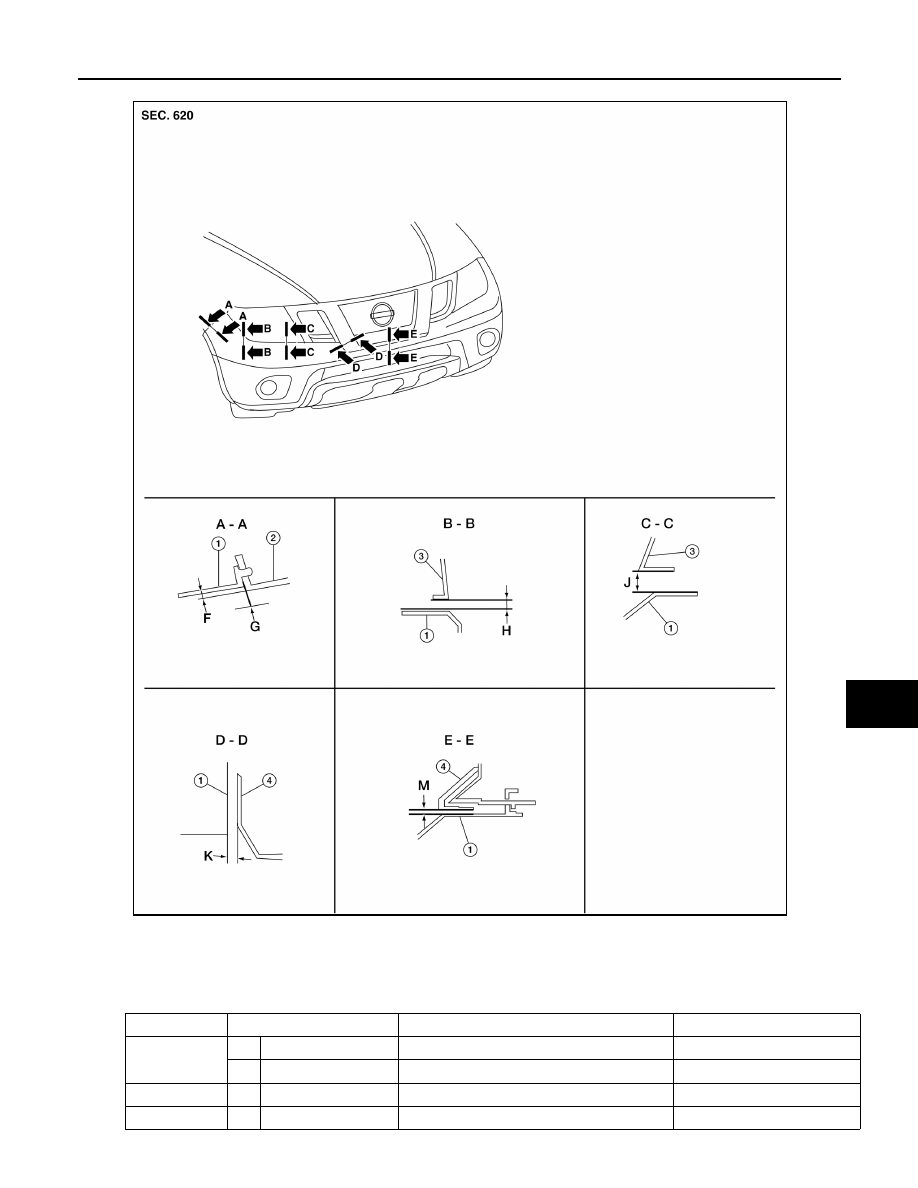

Units: mm (in)

1.

Front bumper assembly

2.

Front fender

3.

Head lamp assembly

4.

Front grille

ALKIA1950ZZ

Portion

Measurement

Standard

Difference (MAX)

A-A

F

Clearance

0.0 (0.00)

± 0.7 (0.03)

G

Surface height

0.8 (0.03)

± 1.0 (0.04)

B–B

H

Clearance

3.0 (0.12)

± 1.5 (0.06)

C-C

J

Clearance

3.0 (0.12)

± 1.5 (0.06)

EXT-20

< REMOVAL AND INSTALLATION >

FRONT BUMPER

D–D

K

Clearance

3.0 (0.12)

± 1.5 (0.06)

E-E

M

Clearance

3.0 (0.12)

± 1.5 (0.06)

REAR BUMPER

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REAR BUMPER

Removal and Installation

INFOID:0000000009479000

REMOVAL

NOTE:

It is not necessary to remove the tow hitch (if equipped) to service the rear bumper.
1. Remove upper and lower step pads.
2. Disconnect the harness connector from the sonar sensor (if equipped).
3. Disconnect license lamp harness (RH/LH).
4. Release clips from license lamp (RH/LH), then remove lamps from rear bumper.

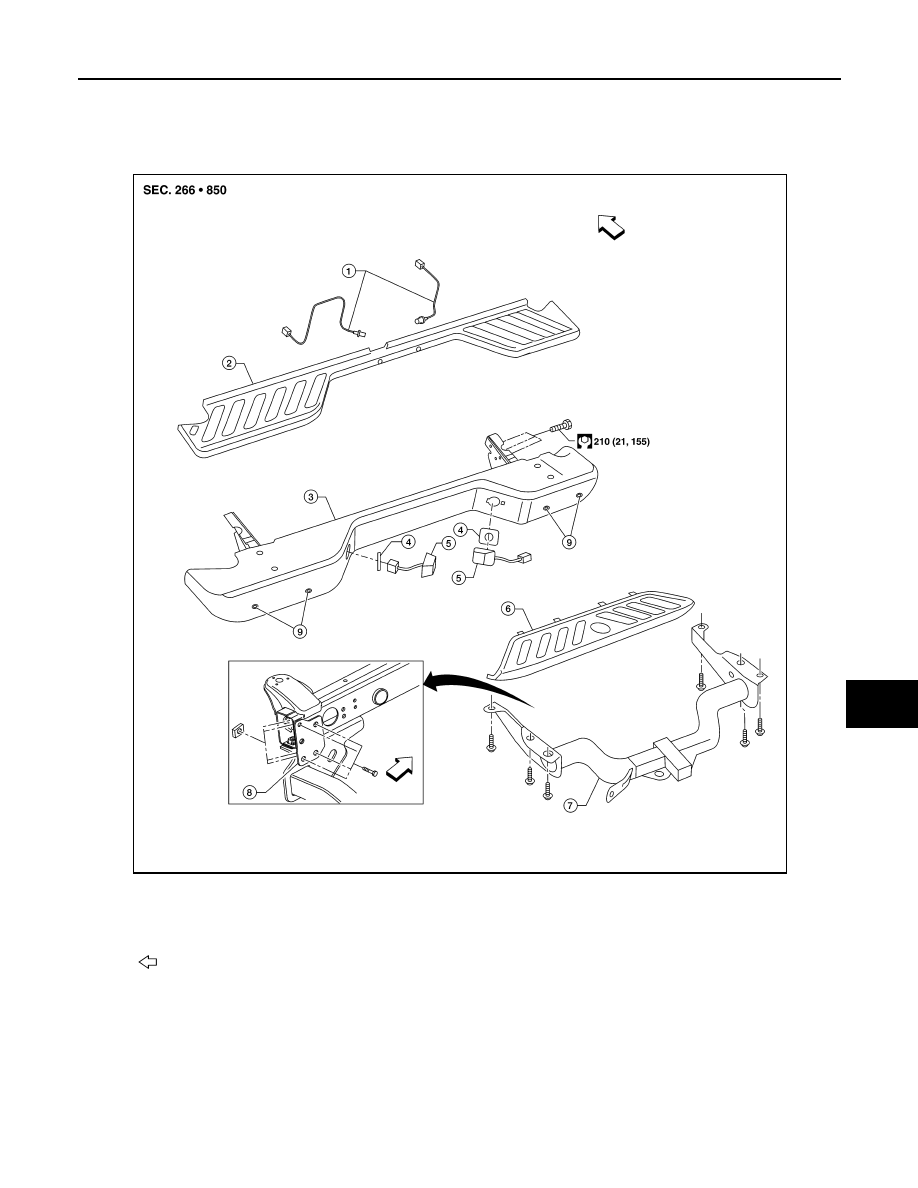

1. License lamp harness (RH/LH) 2.

Upper step pad

3. Rear bumper

4. License lamp gasket

5.

License lamp (RH/LH)

6. Lower step pad

7. Tow hitch (if equipped)

8.

Tow hitch reinforcement (if equipped) 9. Sonar sensor (if equipped)

Front

AWKIA2259ZZ

EXT-22

< REMOVAL AND INSTALLATION >

REAR BUMPER

5. Remove rear bumper.
6. Remove rear bumper reinforcement from frame.
7. Remove tow hitch (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

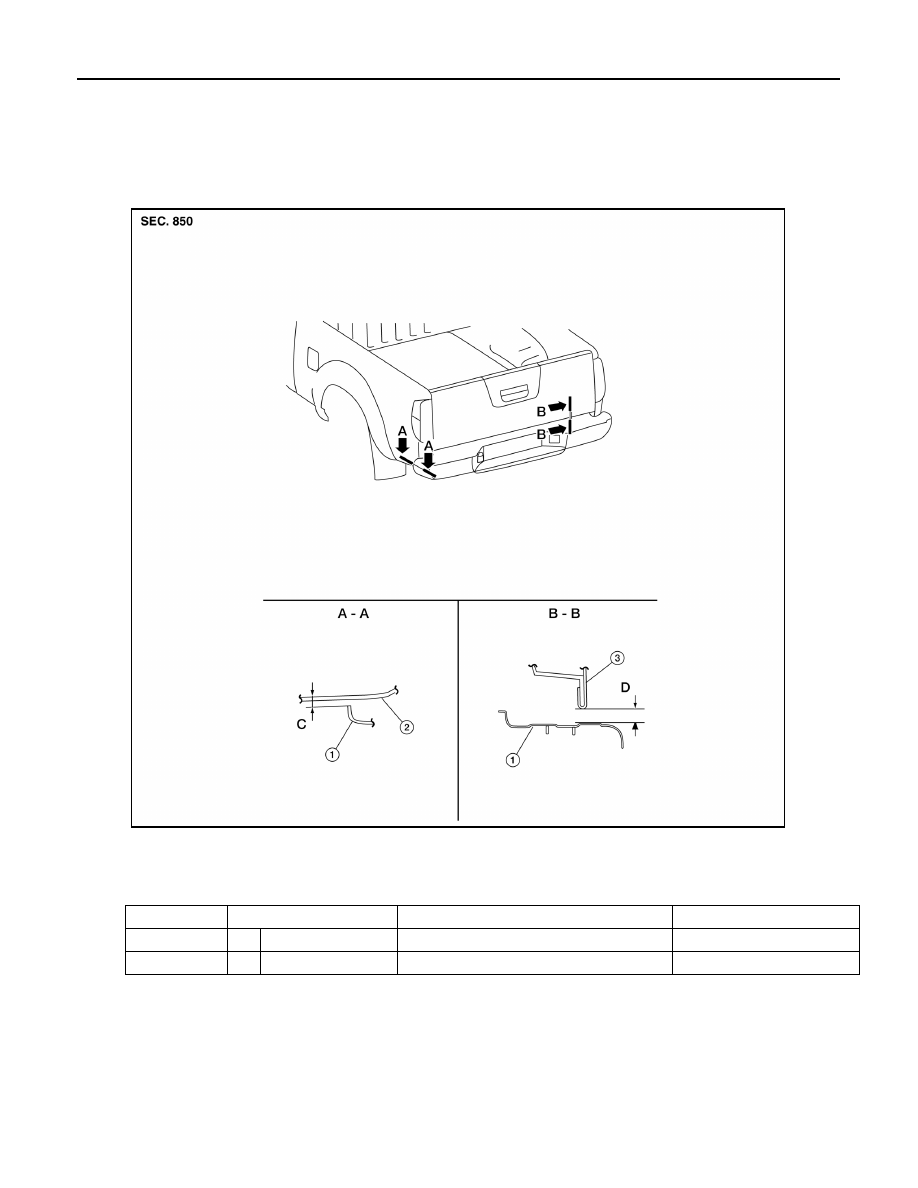

Units: mm (in)

1.

Rear bumper

2.

Bed side outer (LH)

3.

Tail gate

ALKIA1948ZZ

Portion

Measurement

Standard

Difference (MAX)

A–A

C

Clearance

20.0 (0.79)

± 5.0 (0.20)

B–B

D

Clearance

37.2 (1.46)

± 6.0 (0.24)
