FRONT GRILLE

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

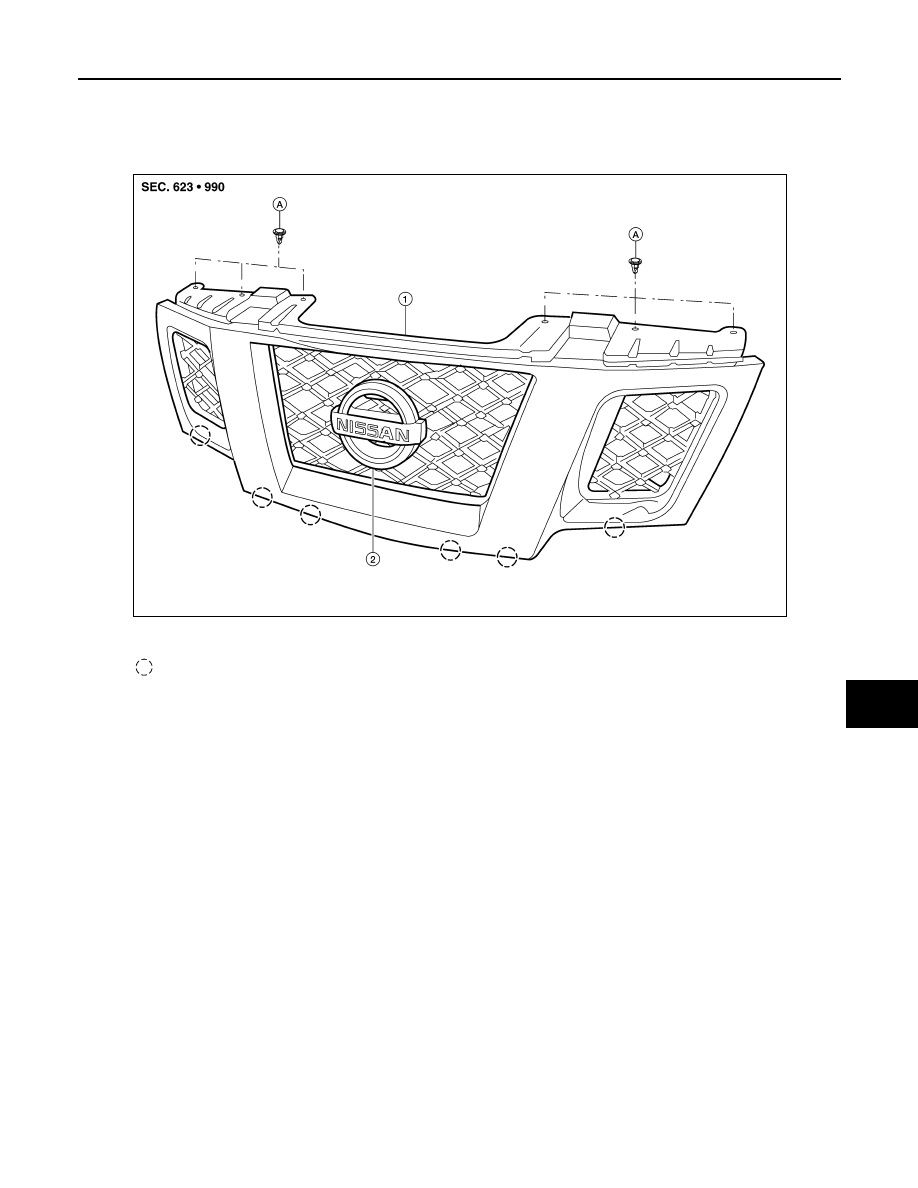

FRONT GRILLE

Removal and Installation

INFOID:0000000009479001

REMOVAL

1. Release the upper clips from the front grille.
2. Detach the front grille pawls and remove the front grille from member.
3. Remove the front grille emblem, if necessary.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front grille

2.

Front emblem

A.

Clips C205

Pawl

AWKIA1568ZZ

EXT-24

< REMOVAL AND INSTALLATION >

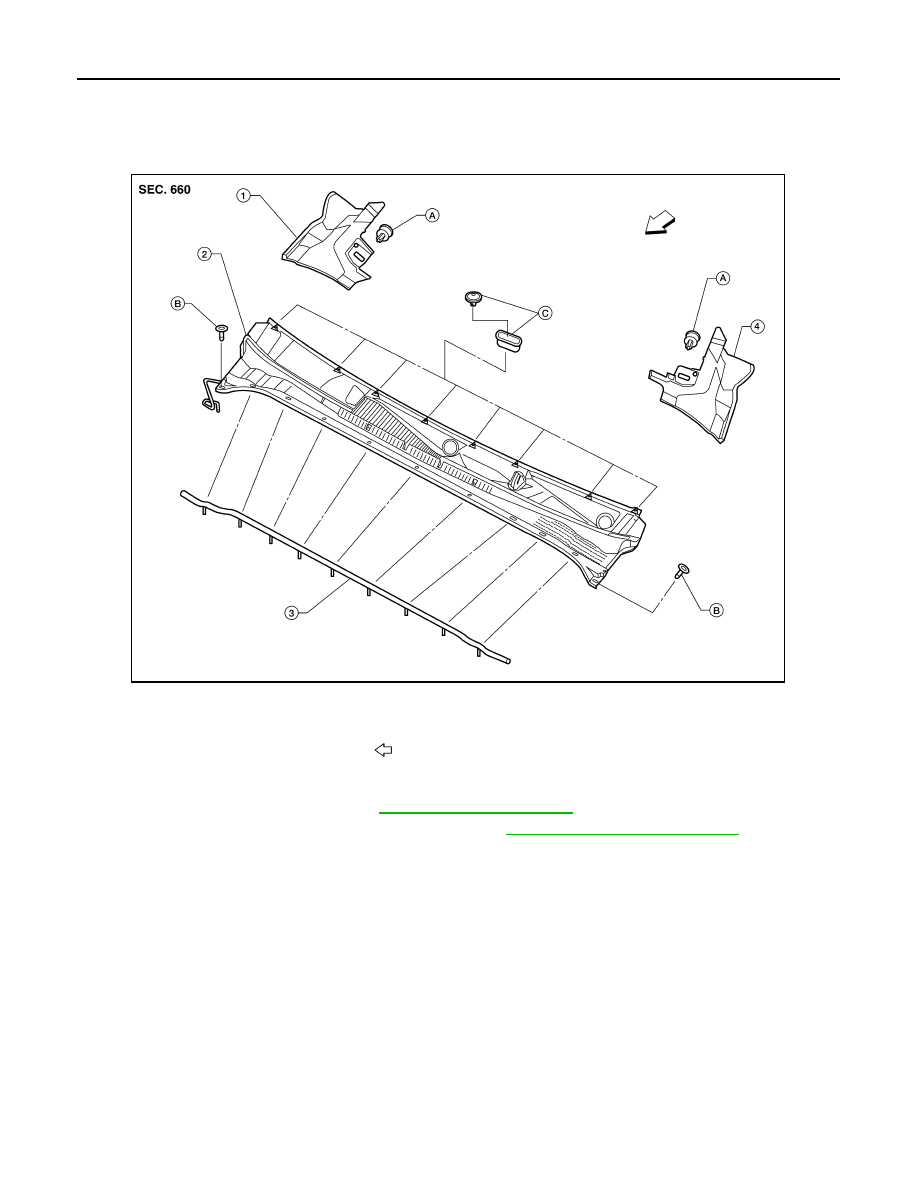

COWL TOP

COWL TOP

Removal and Installation

INFOID:0000000009479002

REMOVAL

1. Remove the front wiper arms. Refer to

WW-54, "Front Wiper Arms"

.

2. Remove the rubber seal and audio antenna rod. Refer to

AV-57, "Removal and Installation"

.

3. Remove the cowl top seal.
4. Remove the cowl top clips and lift the cowl top, disconnect the washer tubes from the washer nozzles and

remove the cowl top.

5. Release the clips and remove the LH and RH cowl top extensions.

INSTALLATION

Installation is in the reverse order of removal.

1.

Cowl top extension (RH)

2.

Cowl top

3.

Cowl top seal

4.

Cowl top extension (LH)

A.

Clip C205

B.

Clip C103

C.

Grommet CF110

Front

AWKIA0063ZZ

FRONT FENDER

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

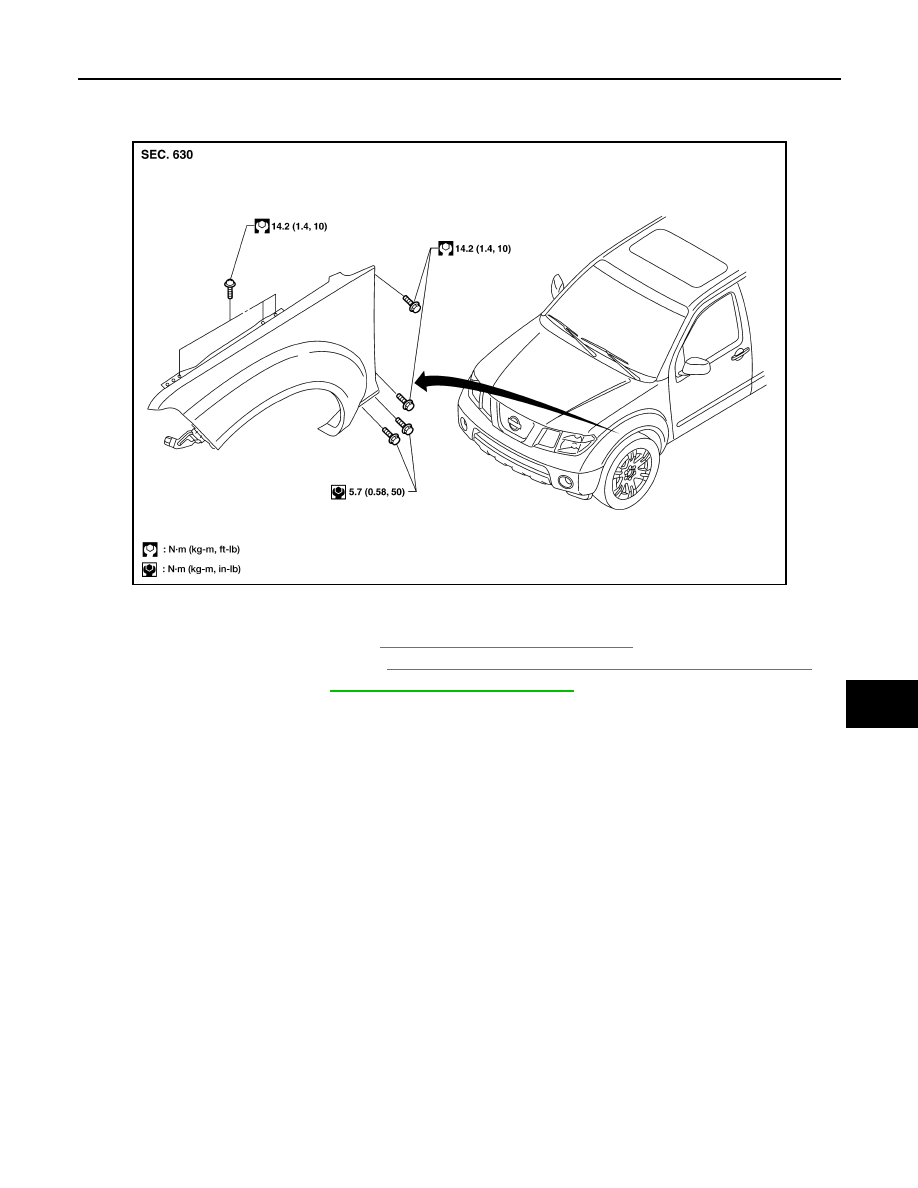

FRONT FENDER

Removal and Installation

INFOID:0000000009479003

REMOVAL

1. Remove headlamp assembly. Refer to

EXL-141, "Removal and Installation"

.

2. Remove front fender protector. Refer to

EXT-27, "Removal and Installation of Front Fender Protector"

.

3. Remove front bumper. Refer to

EXT-15, "Removal and Installation"

.

4. Remove hood prop rod and hood prop rod hold down clip.
5. Remove front fender bolts from hoodledge and dash panel.
6. Remove front fender bolts from rocker panel and radiator core support member.
7. Remove front fender.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1752E

EXT-26

< REMOVAL AND INSTALLATION >

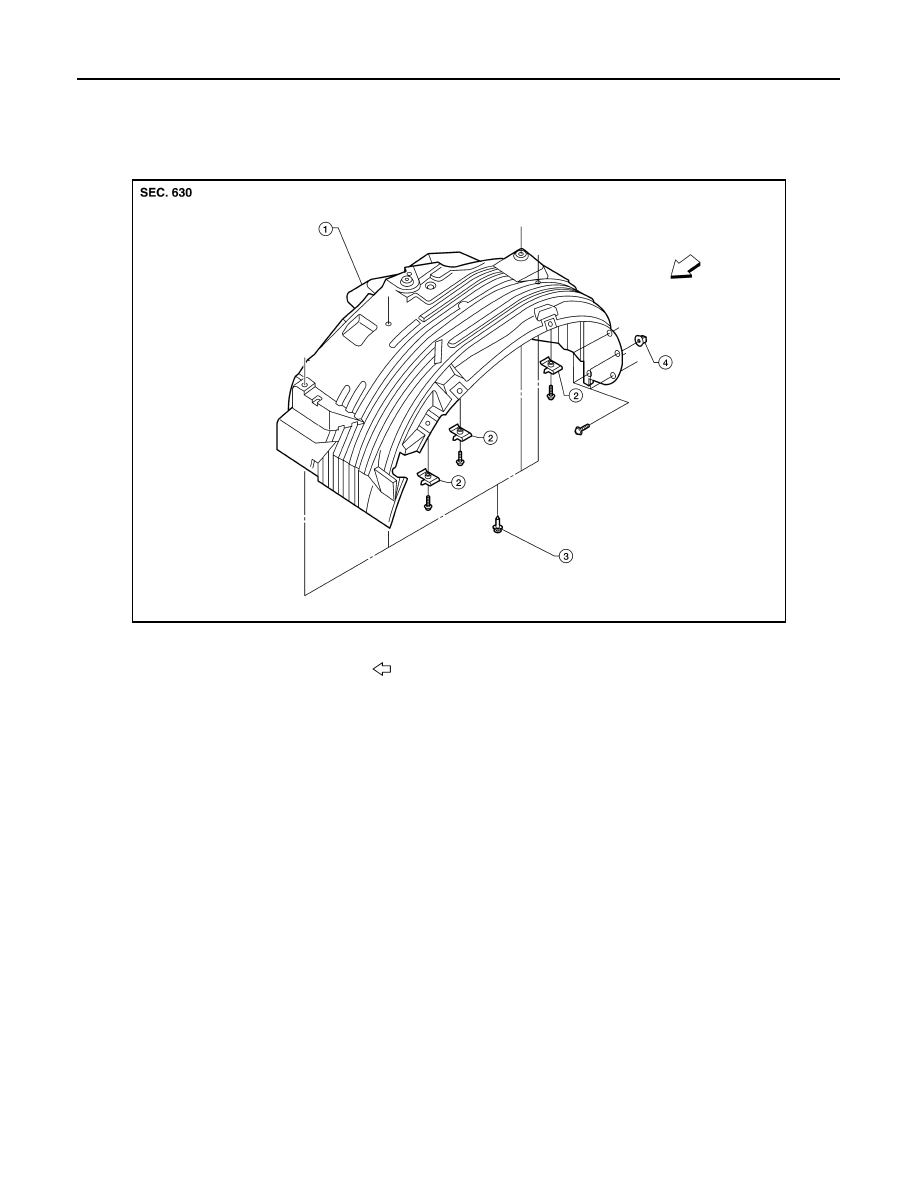

FENDER PROTECTOR

FENDER PROTECTOR

Component

INFOID:0000000009479004

Front - Steel Bumper

WIIA1077E

1.

Fender protector (LH)

2.

Nuts

3.

Screw

4.

Grommet

Front
