FRONT BUMPER

EXT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REMOVAL AND INSTALLATION

FRONT BUMPER

Removal and Installation

INFOID:0000000009478999

STEEL BUMPER

Removal

1. Remove front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Remove front valance LH, center, then RH.
3. Disconnect front valance lower from engine under cover.
4. Remove front bumper stays (LH/RH).
5. Disconnect fog lamp harnesses (if equipped).

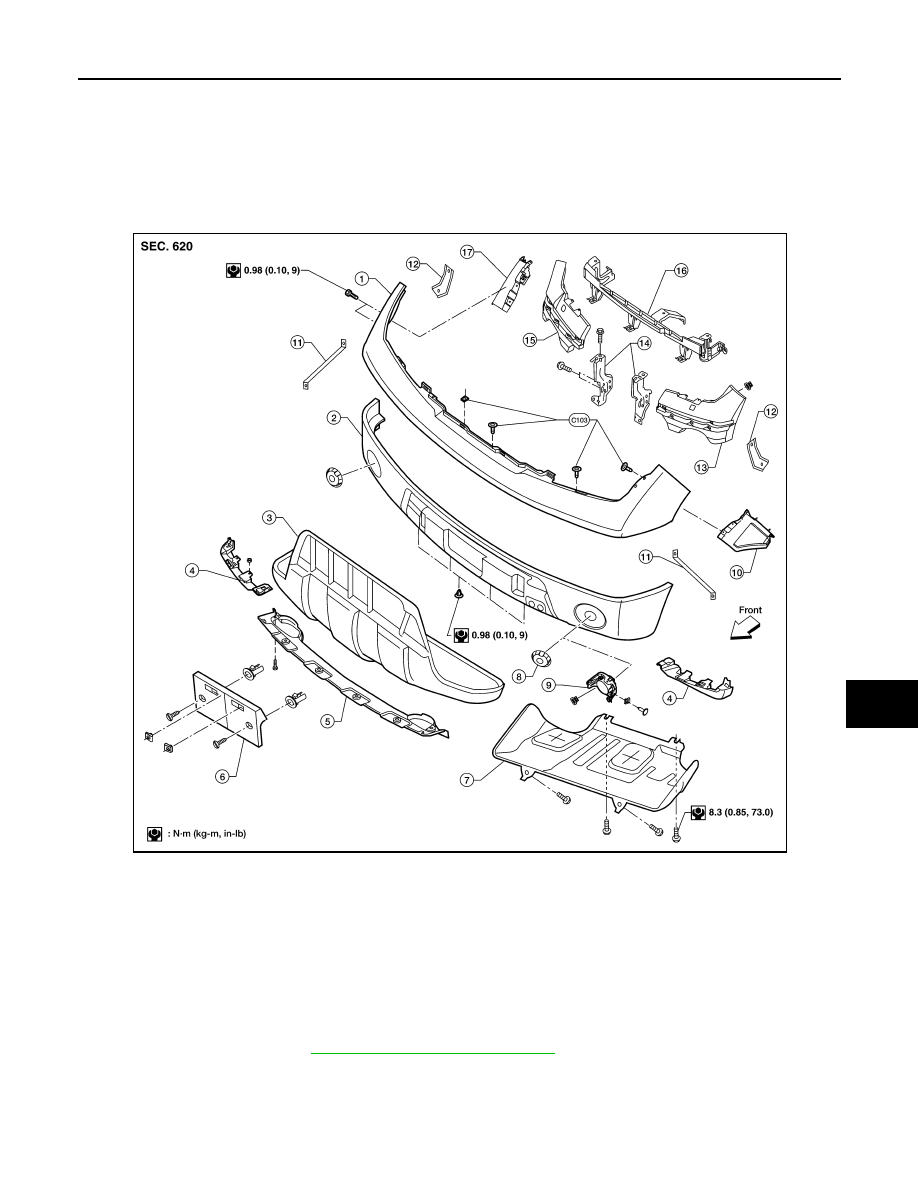

1.

Front bumper upper valance

2.

Front bumper assembly

3.

Front bumper lower valance

4.

Front valance (RH/LH)

5.

Front valance center

6.

Front license plate bracket

7.

Engine under cover

8.

Fog lamp opening finisher (if equipped)

9.

Fog lamp (if equipped)

10. Front bumper stay (LH)

11. Front bumper side brace

12. Front bumper reinforcement stay

(RH/LH)

13. Front bumper reinforcement (LH) 14. Front bumper bracket (RH/LH)

15. Front bumper reinforcement (RH)

16. Front bumper bracket center

17. Front bumper stay (RH)

WIIA0566E

EXT-16

< REMOVAL AND INSTALLATION >

FRONT BUMPER

6. Remove front bumper reinforcement stays (RH/LH).
7. Disconnect front fender protector and front bumper upper valance from fender.
8. Disconnect front bumper upper valance from front bumper bracket center.
9. Remove front bumper assembly.

Installation

Installation is in the reverse order of removal.

ALKIA2261ZZ

FRONT BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

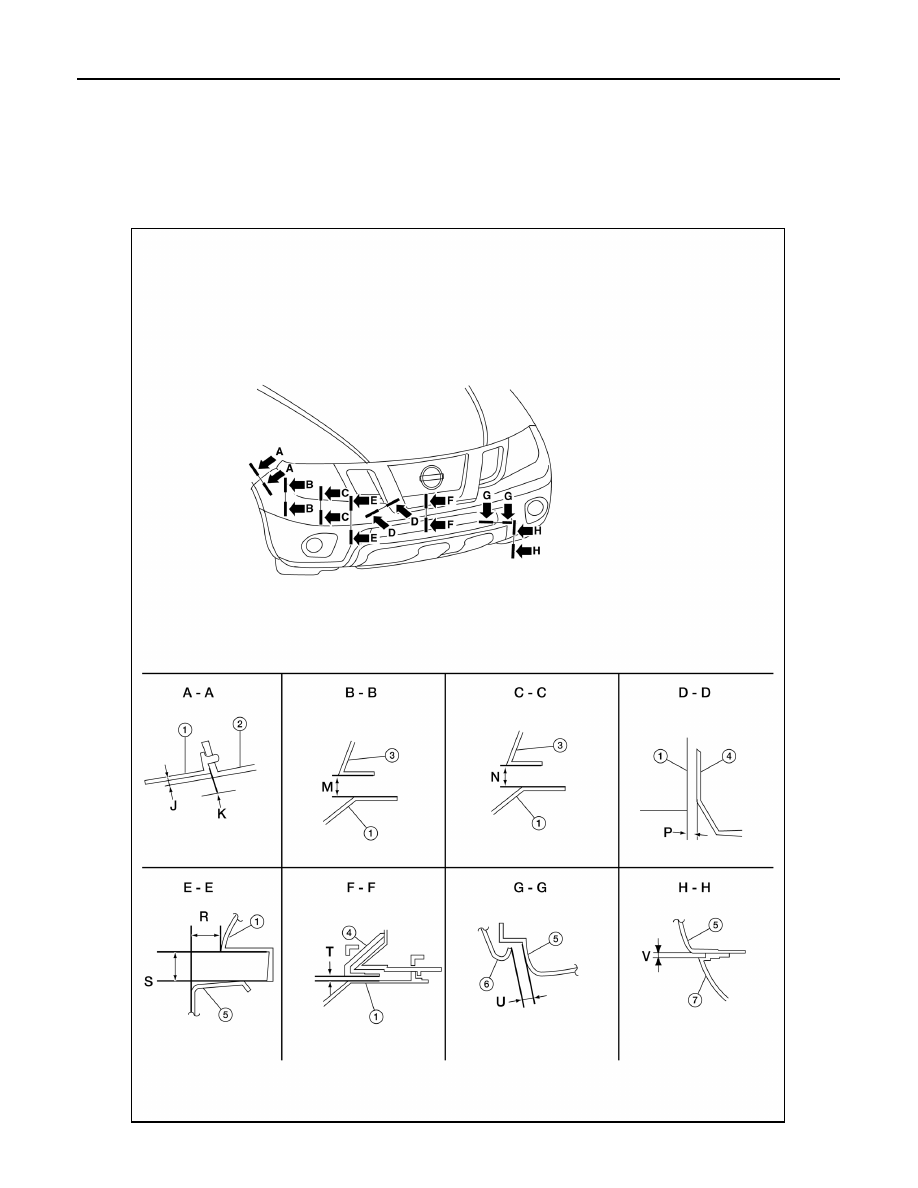

Units: mm (in)

PLASTIC BUMPER

1.

Front bumper upper valance

2.

Front fender

3.

Head lamp assembly

4.

Front grille

5.

Front bumper assembly

6.

Front bumper lower valance

7.

Front valance center

Portion

Measurement

Standard

Difference (MAX)

A-A

J

Surface height

0.0 (0.00)

± 0.7 (0.03)

K

Clearance

0.8 (0.03)

± 1.0 (0.04)

B–B

M

Clearance

3.0 (0.12)

± 1.5 (0.06)

C-C

N

Clearance

3.0 (0.12)

± 1.5 (0.06)

D–D

P

Clearance

3.0 (0.12)

± 1.5 (0.06)

E-E

S

Clearance

14.0 (0.55)

± 5.0 (0.20)

R

Surface height

3.0 (0.12)

± 3.0 (0.12)

F-F

T

Clearance

3.0 (0.12)

± 1.5 (0.06)

G-G

U

Clearance

2.0 (0.08)

± 1.0 (0.04)

H-H

V

Clearance

2.0 (0.04)

± 1.0 (0.04)

WIIA0651E

EXT-18

< REMOVAL AND INSTALLATION >

FRONT BUMPER

Removal

1. Remove front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Remove front valance LH, center, then RH.
3. Disconnect front portion of front fender protectors (RH/LH). Refer to

EXT-27, "Removal and Installation of

Front Fender Protector"

.

4. Disconnect front bumper bracket center and front fenders.
5. Disconnect fog lamp harnesses (if equipped).
6. Remove front bumper assembly.

Installation

Installation is in the reverse order of removal.

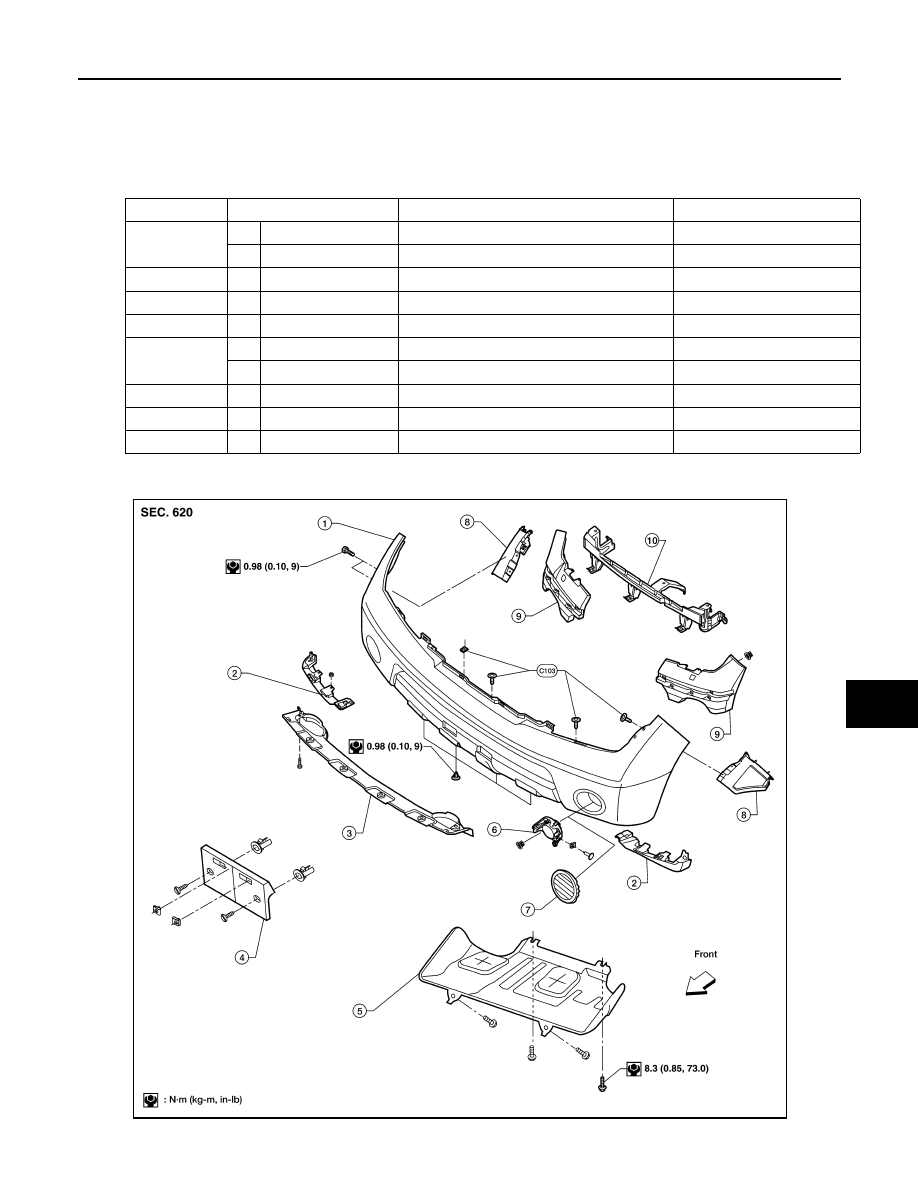

1.

Front bumper assembly

2.

Front valance (RH/LH)

3.

Front valance center

4.

Front license plate bracket

5.

Engine under cover

6.

Fog lamp (if equipped)

7.

Fog lamp opening finisher (if equipped) 8.

Front bumper bracket (RH/LH)

9.

Front bumper reinforcement (RH/LH)

10. Front bumper bracket center
